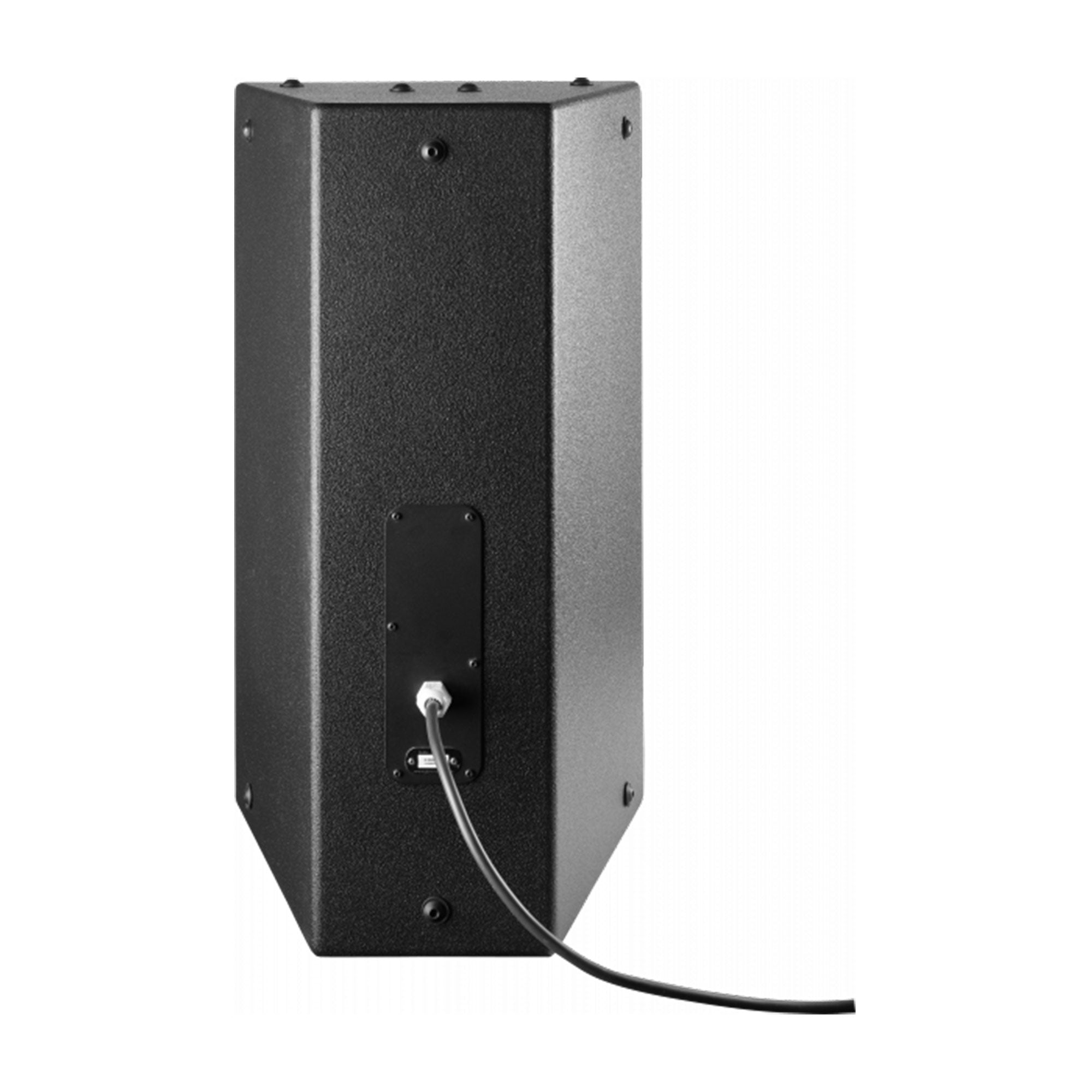

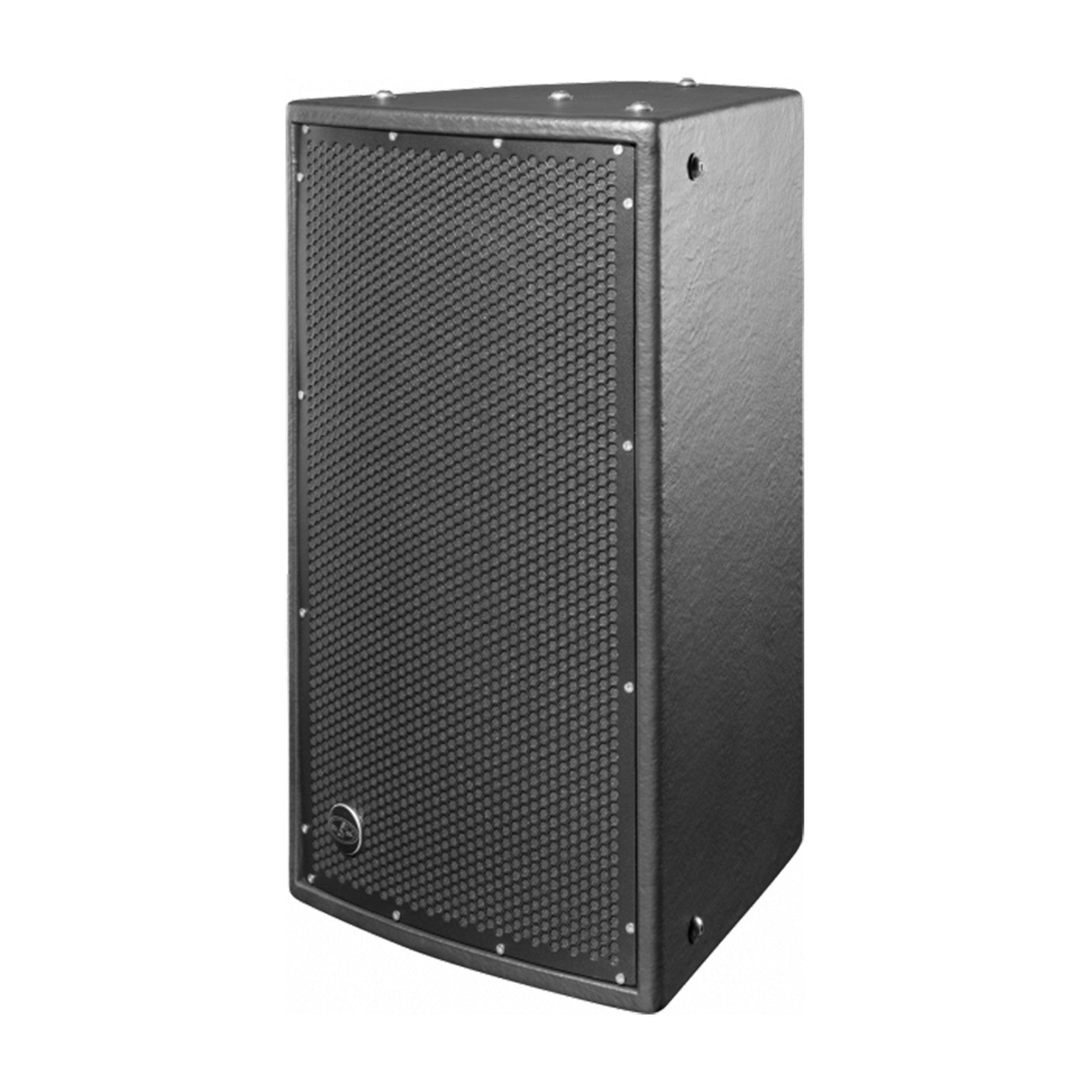

DAS WR-6412-DX - Passive 2-Way 12-Inch Install Loudspeaker (Black / Direct Exposure)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The WR-6412-DX employs a 12AV woofer for low frequency reproduction. A M-75 compression driver with 3" titanium diaphragm attached to a 60º x 40º rotatable horn provides exceptional high frequency reproduction. The rugged birch plywood cabinet construction is available in black, white or military grey depending on the finish.
The WR-6412-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Features:
- Passive, 300 W, 12", 2 way full-range
- 60×40 rotatable horn
- DX, IP54
- Available in black or white
- SPL Max: 130 dB
- Dispersion: 60º x 40º
- Weight: 31,5 kg ( 69,5 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 60¼ |
| Vertical Coverage | 40¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 130 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP54 |
| Depth | 395 mm (15,6 in) |
| Dimensions ( H x W x D ) | 705 x 395 x 395 mm 27,8 x 15,6 x 15,6 in |
| Net Weight | 31,5 kg ( 69,5 lb ) |
| Components | |
| LF Driver | 12P |
| HF Driver | M-75 |
| Horn/Waveguide | BC-64AL |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 773 x 458 x 472 mm 30,4 x 18,0 x 18,6 in |
| Shipping Weight | 34,0 kg ( 75,0 lb ) |
The WR-6412-DX employs a 12AV woofer for low frequency reproduction. A M-75 compression driver with 3" titanium diaphragm attached to a 60º x 40º rotatable horn provides exceptional high frequency reproduction. The rugged birch plywood cabinet construction is available in black, white or military grey depending on the finish.
The WR-6412-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Features:
- Passive, 300 W, 12", 2 way full-range
- 60×40 rotatable horn
- DX, IP54
- Available in black or white
- SPL Max: 130 dB
- Dispersion: 60º x 40º
- Weight: 31,5 kg ( 69,5 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 60¼ |
| Vertical Coverage | 40¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 130 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP54 |
| Depth | 395 mm (15,6 in) |
| Dimensions ( H x W x D ) | 705 x 395 x 395 mm 27,8 x 15,6 x 15,6 in |
| Net Weight | 31,5 kg ( 69,5 lb ) |
| Components | |
| LF Driver | 12P |
| HF Driver | M-75 |
| Horn/Waveguide | BC-64AL |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 773 x 458 x 472 mm 30,4 x 18,0 x 18,6 in |
| Shipping Weight | 34,0 kg ( 75,0 lb ) |
