DALE SKU # DAS-WR8826TDX

DAS WR-8826-TDX - Passive 2-Way Dual 8-Inch 70/100V Install Loudspeaker (Black / Direct Exposure)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

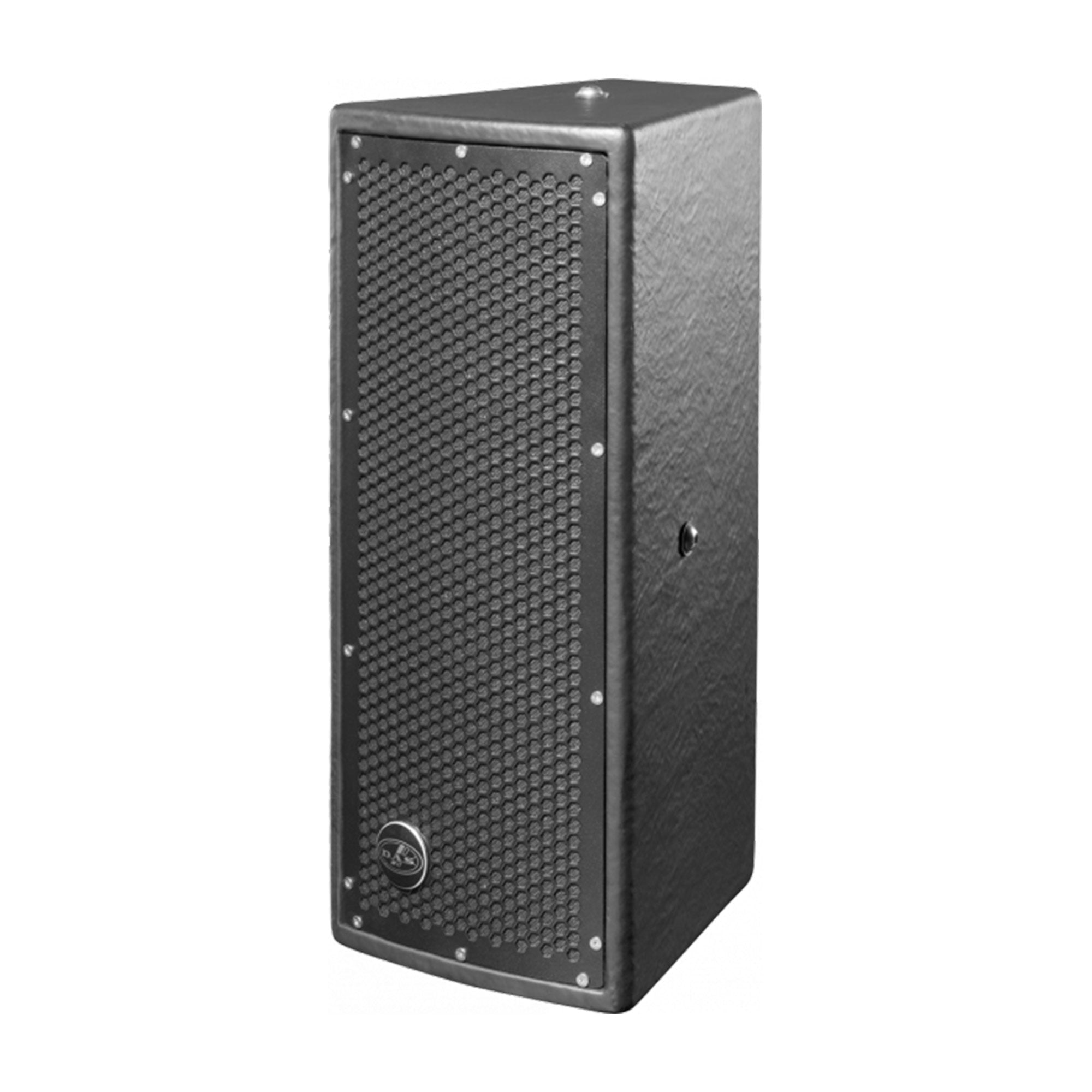

    The WR-8826-TDX employs twin 6B woofers for low frequency reproduction. A 1" annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white.

    The WR-8826TDX has been designed for the outdoor installation market. The WR-DX finish protects the cabinets from the elements thanks to a fiberglass exterior and gel coat interior protection augmenting their weather resistance when used in direct exposure situations. Stainless steel threaded rigging points and optional mounting hardware are available. The T-version is equipped with 50 W/100 V factory installed line transformer.

    Features:

    • Passive, 200 W, 2x 6", 2 way full-range
    • 80×80 horn
    • DX, IP56
    • 70 V/100 V line transformer
    • Available in black or white
    • SPL Max: 122 dB
    • Dispersion: 80º x 80º
    • Weight: 11,0 kg ( 24,5 lb )
    Performance
    Frequency Range (-10 dB) 76 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 80¼
    Vertical Coverage 80¼
    Nominal Impedance 133 ohms
    Transformer Taps 70 V 37 W
    Transformer Taps 100 V 75 W
    RMS Power Handling 75 W
    Peak Power Handling 300 W
    On-axis Sensitivity 1W/1 m 93 dB SPL
    Maximum Peak SPL at 1 m 118 dB
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A404
    INTEGRAL-A1002
    INTEGRAL-A1004
    INTEGRAL-A1602
    INTEGRAL-A1604
    INTEGRAL-MA1004
    INTEGRAL-MA1604
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors

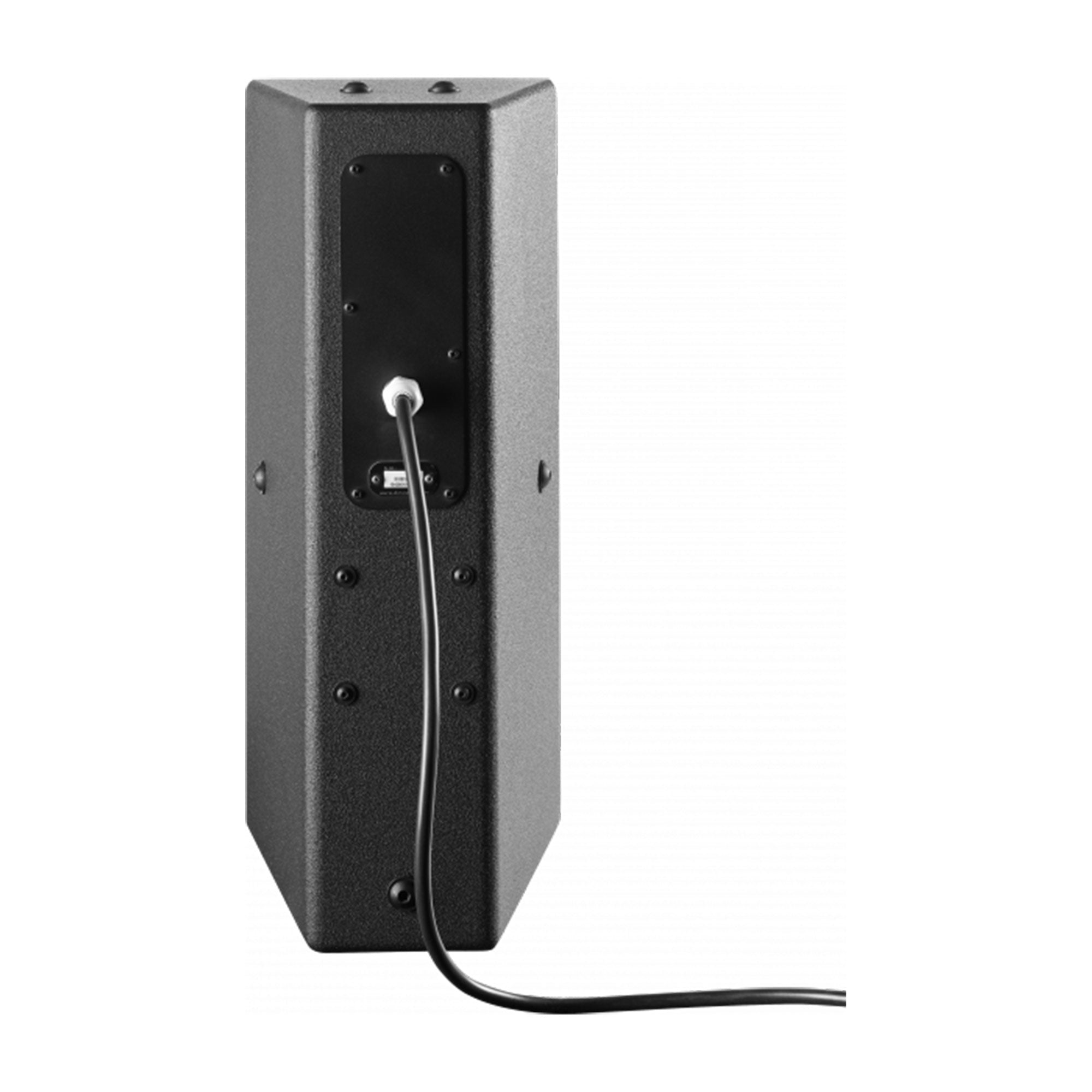

    Audio Input Connector Covered Barrier Strip Terminals
    Audio Output Connector Covered Barrier Strip Terminals
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish Fiberglass
    Color Black
    IP Rating IP56
    Depth 270 mm (10,6 in)
    Dimensions ( H x W x D ) 550 x 230 x 270 mm
    21,7 x 9,1 x 10,6 in
    Net Weight 11,0 kg ( 24,5 lb )
    Components
    LF Driver 6B
    HF Driver M-1
    Horn/Waveguide BC-88
    Shipping
    Carton Dimensions ( H x W x D ) 608 x 274 x 345 mm
    23,9 x 10,8 x 13,6 in
    Shipping Weight 15,0 kg ( 33,0 lb )
