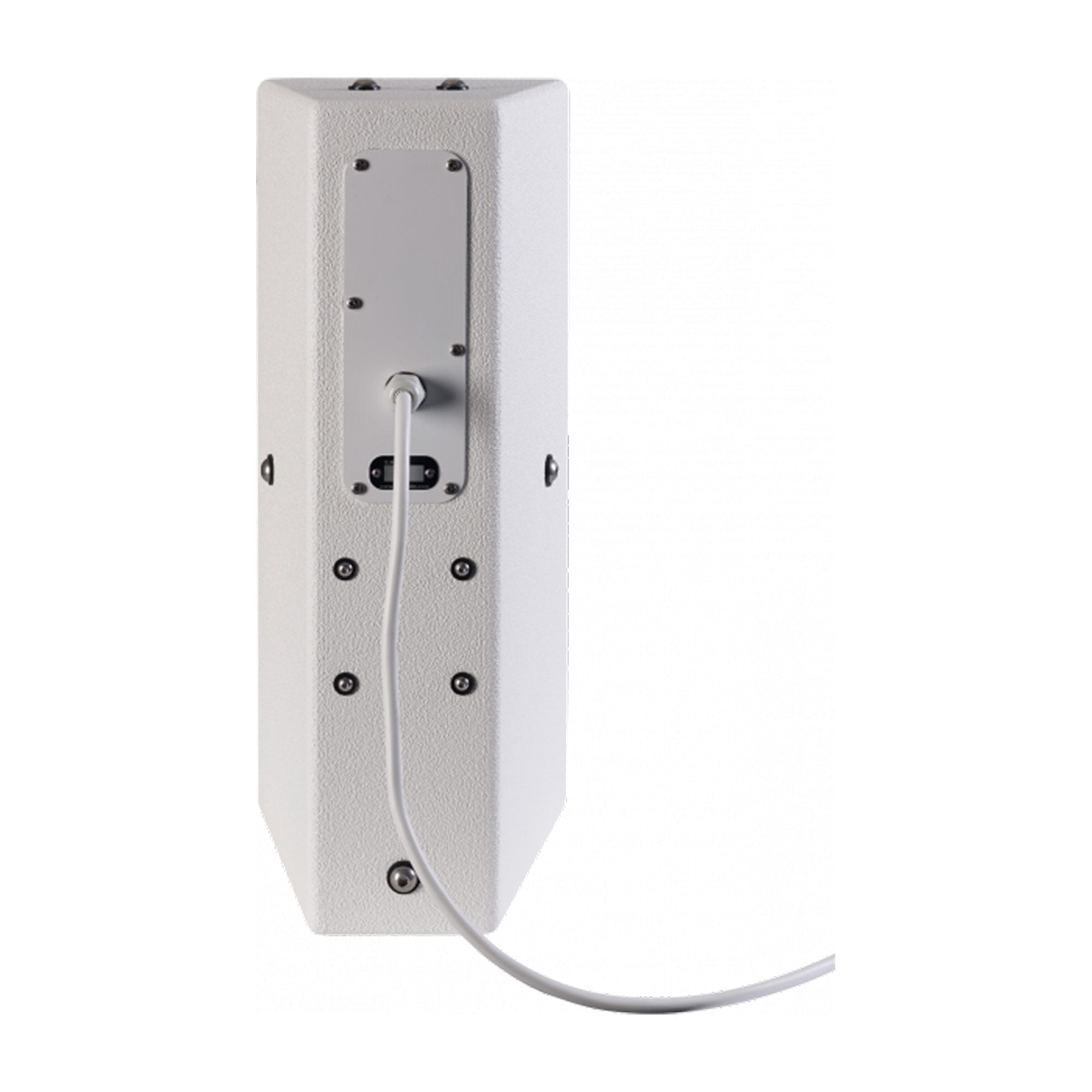

DAS WR-8826-TDXW - Passive 2-Way Dual 8-Inch 70/100V Install Loudspeaker (White / Direct Exposure)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The WR-8826-TDX employs twin 6B woofers for low frequency reproduction. A 1" annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white.
The WR-8826TDX has been designed for the outdoor installation market. The WR-DX finish protects the cabinets from the elements thanks to a fiberglass exterior and gel coat interior protection augmenting their weather resistance when used in direct exposure situations. Stainless steel threaded rigging points and optional mounting hardware are available. The T-version is equipped with 50 W/100 V factory installed line transformer.
Features:
- Passive, 200 W, 2x 6", 2 way full-range
- 80×80 horn
- DX, IP56
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 122 dB
- Dispersion: 80º x 80º
- Weight: 11,0 kg ( 24,5 lb )
| Performance | |
| Frequency Range (-10 dB) | 76 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 80¼ |
| Vertical Coverage | 80¼ |
| Nominal Impedance | 133 ohms |
| Transformer Taps 70 V | 37 W |
| Transformer Taps 100 V | 75 W |
| RMS Power Handling | 75 W |
| Peak Power Handling | 300 W |
| On-axis Sensitivity 1W/1 m | 93 dB SPL |
| Maximum Peak SPL at 1 m | 118 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP56 |
| Depth | 270 mm (10,6 in) |
| Dimensions ( H x W x D ) | 550 x 230 x 270 mm 21,7 x 9,1 x 10,6 in |
| Net Weight | 11,0 kg ( 24,5 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-1 |
| Horn/Waveguide | BC-88 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 608 x 274 x 345 mm 23,9 x 10,8 x 13,6 in |
| Shipping Weight | 15,0 kg ( 33,0 lb ) |
The WR-8826-TDX employs twin 6B woofers for low frequency reproduction. A 1" annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white.
The WR-8826TDX has been designed for the outdoor installation market. The WR-DX finish protects the cabinets from the elements thanks to a fiberglass exterior and gel coat interior protection augmenting their weather resistance when used in direct exposure situations. Stainless steel threaded rigging points and optional mounting hardware are available. The T-version is equipped with 50 W/100 V factory installed line transformer.
Features:
- Passive, 200 W, 2x 6", 2 way full-range
- 80×80 horn
- DX, IP56
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 122 dB
- Dispersion: 80º x 80º
- Weight: 11,0 kg ( 24,5 lb )
| Performance | |
| Frequency Range (-10 dB) | 76 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 80¼ |
| Vertical Coverage | 80¼ |
| Nominal Impedance | 133 ohms |
| Transformer Taps 70 V | 37 W |
| Transformer Taps 100 V | 75 W |
| RMS Power Handling | 75 W |
| Peak Power Handling | 300 W |
| On-axis Sensitivity 1W/1 m | 93 dB SPL |
| Maximum Peak SPL at 1 m | 118 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP56 |
| Depth | 270 mm (10,6 in) |
| Dimensions ( H x W x D ) | 550 x 230 x 270 mm 21,7 x 9,1 x 10,6 in |
| Net Weight | 11,0 kg ( 24,5 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-1 |
| Horn/Waveguide | BC-88 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 608 x 274 x 345 mm 23,9 x 10,8 x 13,6 in |
| Shipping Weight | 15,0 kg ( 33,0 lb ) |
