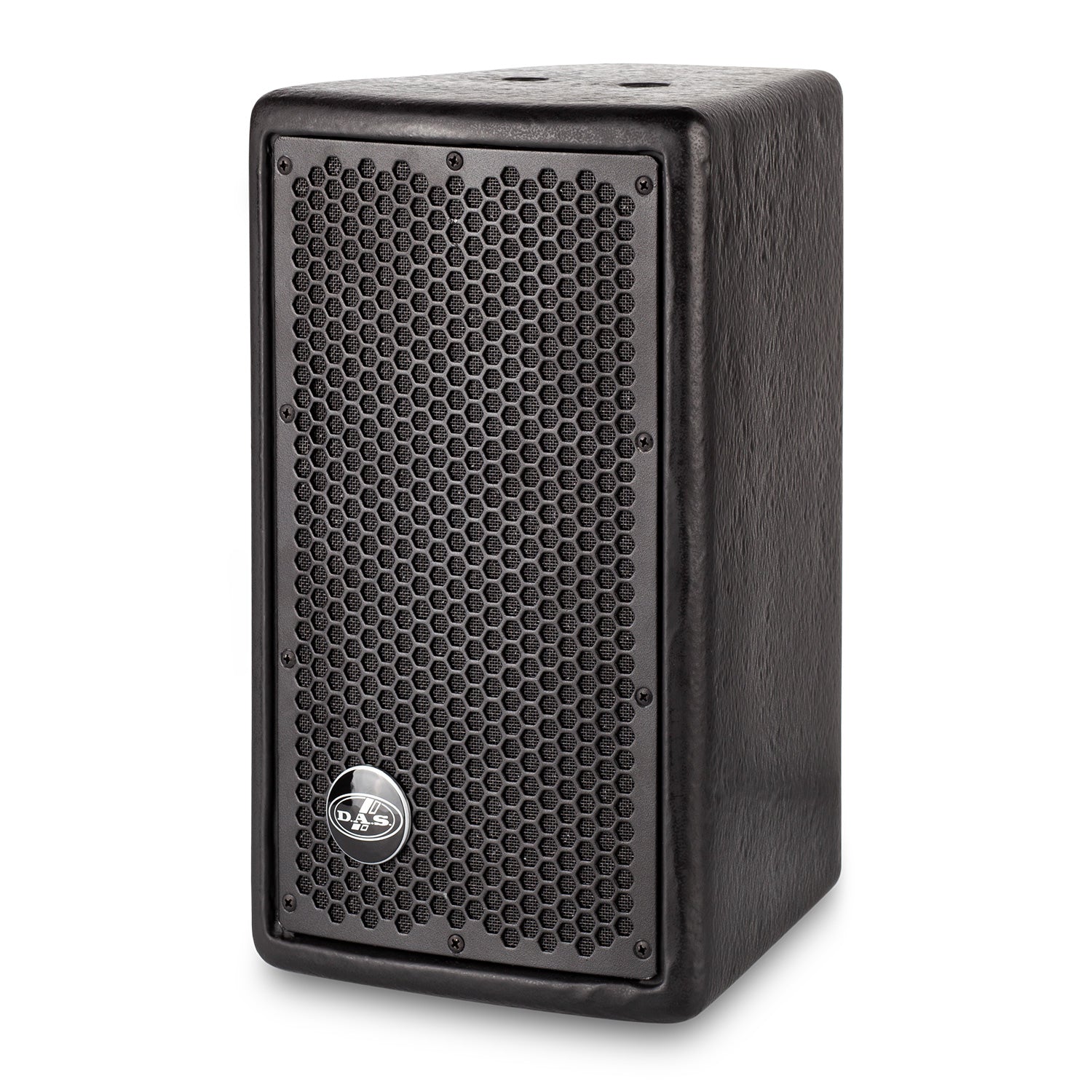

DAS WR-9606-TDX - Passive 2-Way 8-Inch 70/100V Install Loudspeaker (Black / Direct Exposure)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The WR-9606 is a 2-way full-range passive system that incorporates a 6B loudspeaker for the reproduction of low frequencies and the M-26 compression driver (1" diaphragm ) that provides brilliant high end reproduction.
The ultra-compact enclosures are made from birch plywood and are available in black, white or military gray depending on the exterior finish. The WR-9606 is an IP56 system and offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating.
The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Available in version with 100 / 70V multi-tap transformer.
Features:
- Passive, 200 W, 2x 6", 2 way full-range
- 80×80 horn
- DX, IP56
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 118 dB
- Dispersion: 90º x 60º
- Weight: 9,0 kg ( 19,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 76 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Transformer Taps 70 V | 12.5 W Ð 25 W Ð 50 W Ð 100 W |
| Transformer Taps 100 V | 25 W Ð 50 W Ð 100 W |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 92 dB SPL |
| Maximum Peak SPL at 1 m | 117 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP56 |
| Depth | 255 mm (10,0 in) |
| Dimensions ( H x W x D ) | 385 x 220 x 255 mm 15,2 x 8,7 x 10,0 in |
| Net Weight | 9,0 kg ( 19,9 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-26 |
| Horn/Waveguide | BCT-96 |
The WR-9606 is a 2-way full-range passive system that incorporates a 6B loudspeaker for the reproduction of low frequencies and the M-26 compression driver (1" diaphragm ) that provides brilliant high end reproduction.
The ultra-compact enclosures are made from birch plywood and are available in black, white or military gray depending on the exterior finish. The WR-9606 is an IP56 system and offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating.
The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Available in version with 100 / 70V multi-tap transformer.
Features:
- Passive, 200 W, 2x 6", 2 way full-range
- 80×80 horn
- DX, IP56
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 118 dB
- Dispersion: 90º x 60º
- Weight: 9,0 kg ( 19,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 76 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Transformer Taps 70 V | 12.5 W Ð 25 W Ð 50 W Ð 100 W |
| Transformer Taps 100 V | 25 W Ð 50 W Ð 100 W |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 92 dB SPL |
| Maximum Peak SPL at 1 m | 117 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP56 |
| Depth | 255 mm (10,0 in) |
| Dimensions ( H x W x D ) | 385 x 220 x 255 mm 15,2 x 8,7 x 10,0 in |
| Net Weight | 9,0 kg ( 19,9 lb ) |
| Components | |
| LF Driver | 6B |
| HF Driver | M-26 |
| Horn/Waveguide | BCT-96 |
