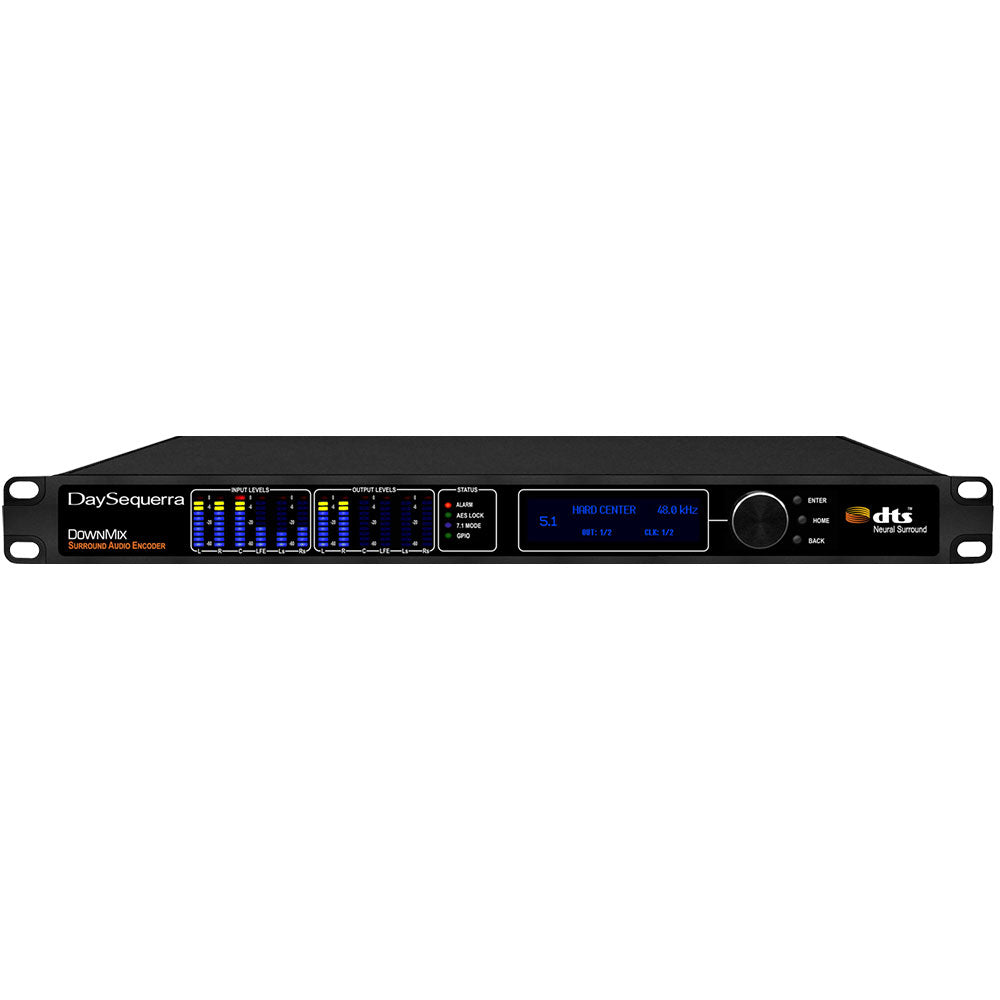

DaySequerra Downmix DTS 5.1 Surround to Stereo Neural Broadcast Format Converter
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DTS Neural SurroundTM DownMix encodes 5.1 surround sound to a stereo mix that accurately represents the 5.1 original. Unlike standard summing methods, the DTS Neural SurroundTM DownMix creates stereo that contains surround steering information. This stereo audio can be stored, mixed, transported and monitored just like any other (Lt/Rt or Lo/Ro) stereo mix.
Features:
- Perfect mapping of 5.1 or 7.1 surround elements into the stereo field
- Active correction to fix issues such as comb filtering, spatial location and distortion.
- The conveniences of a matrix surround encode/decode system with the performance of modern day perceptual audio codecs.
- Backward compatibility with matrix decoders (Dolby® ProLogic II, SRS Circle Surround, etc.).
- End-to-end surround delivery system when combined with the DTS Neural SurroundTM UpMix

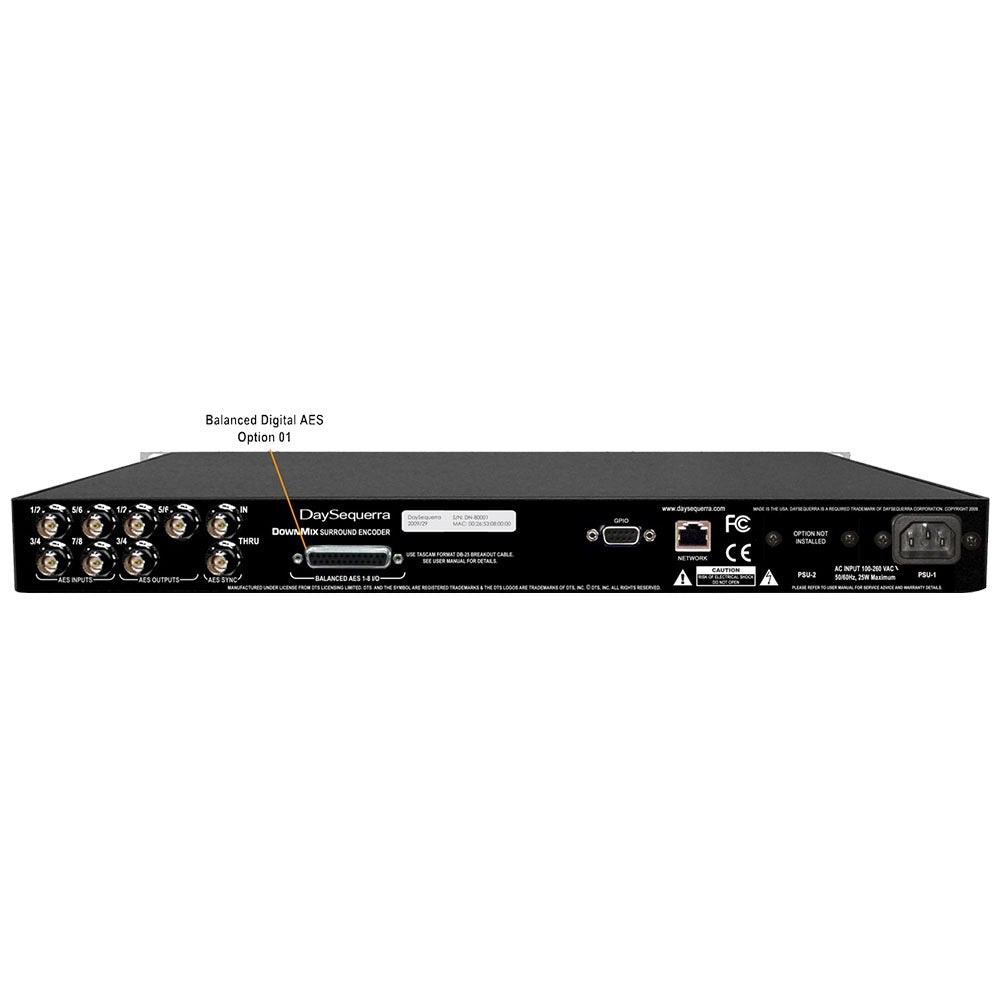

| Inputs | 4 AES-3 Inputs (5.1 and 7.1) 1 AES-3 or AES-11 SYNC |
| Outputs | 3 AES-3 Outputs (2.0 and 5.1) 1 AES-3 or AES-11 SYNC pass-through |
| Digital Inputs and Outputs | AES/EBU, 75 ohm, unbalance BNC |
| AES Sample Rate | 32kHz-96kHz |
| Latency | <16 msec |
| Dynamic Range | 140db DR, any input to any output; 135dB, any input to any output |
| Ethernet | 10/100-Base-T for field software updates |
| Dimensions and Weight | |
| Regulatory | |
| Warranty | Three years, limited parts and labor |
The DTS Neural SurroundTM DownMix encodes 5.1 surround sound to a stereo mix that accurately represents the 5.1 original. Unlike standard summing methods, the DTS Neural SurroundTM DownMix creates stereo that contains surround steering information. This stereo audio can be stored, mixed, transported and monitored just like any other (Lt/Rt or Lo/Ro) stereo mix.
Features:
- Perfect mapping of 5.1 or 7.1 surround elements into the stereo field
- Active correction to fix issues such as comb filtering, spatial location and distortion.
- The conveniences of a matrix surround encode/decode system with the performance of modern day perceptual audio codecs.
- Backward compatibility with matrix decoders (Dolby® ProLogic II, SRS Circle Surround, etc.).
- End-to-end surround delivery system when combined with the DTS Neural SurroundTM UpMix
| Inputs | 4 AES-3 Inputs (5.1 and 7.1) 1 AES-3 or AES-11 SYNC |
| Outputs | 3 AES-3 Outputs (2.0 and 5.1) 1 AES-3 or AES-11 SYNC pass-through |
| Digital Inputs and Outputs | AES/EBU, 75 ohm, unbalance BNC |
| AES Sample Rate | 32kHz-96kHz |
| Latency | <16 msec |
| Dynamic Range | 140db DR, any input to any output; 135dB, any input to any output |
| Ethernet | 10/100-Base-T for field software updates |
| Dimensions and Weight | |
| Regulatory | |
| Warranty | Three years, limited parts and labor |
