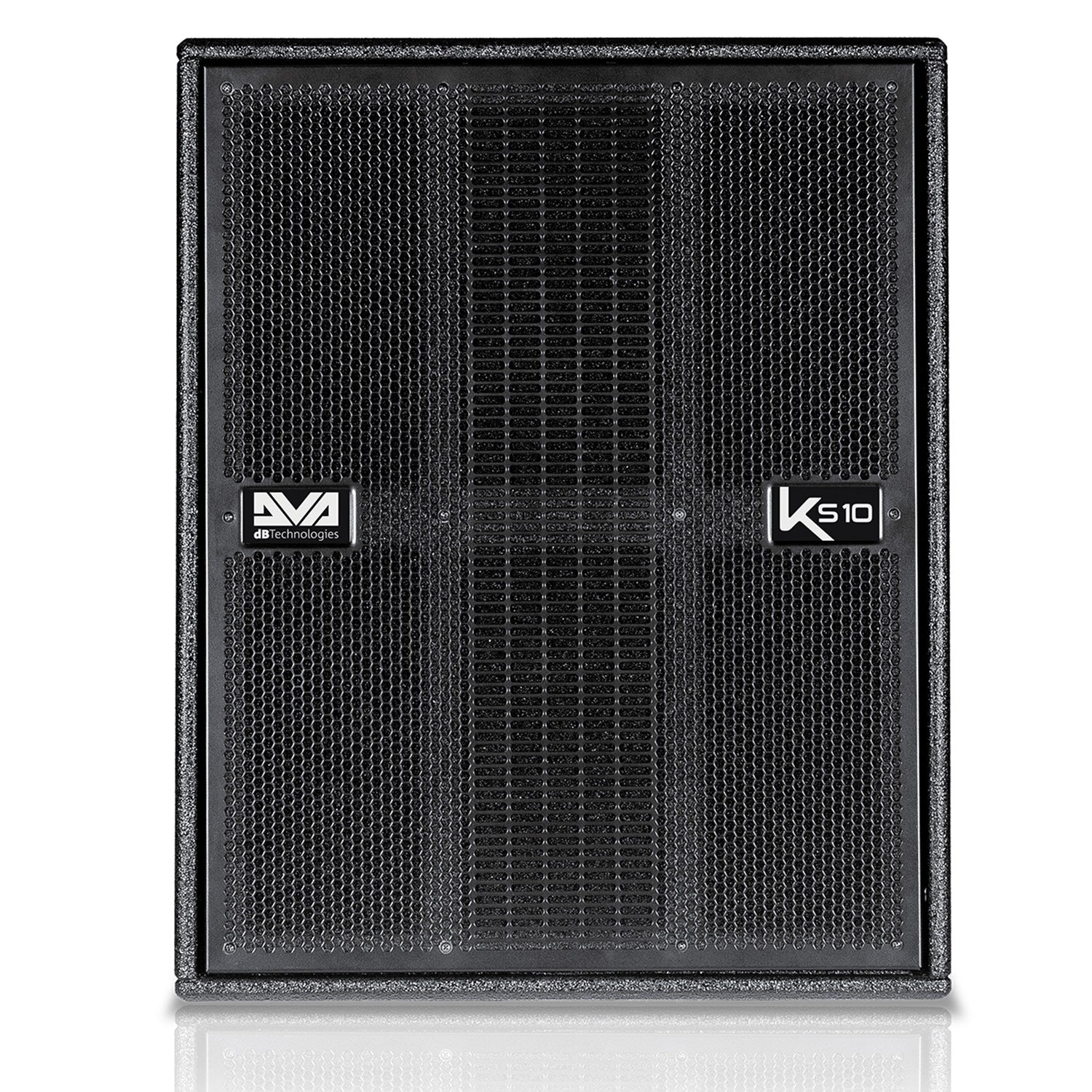

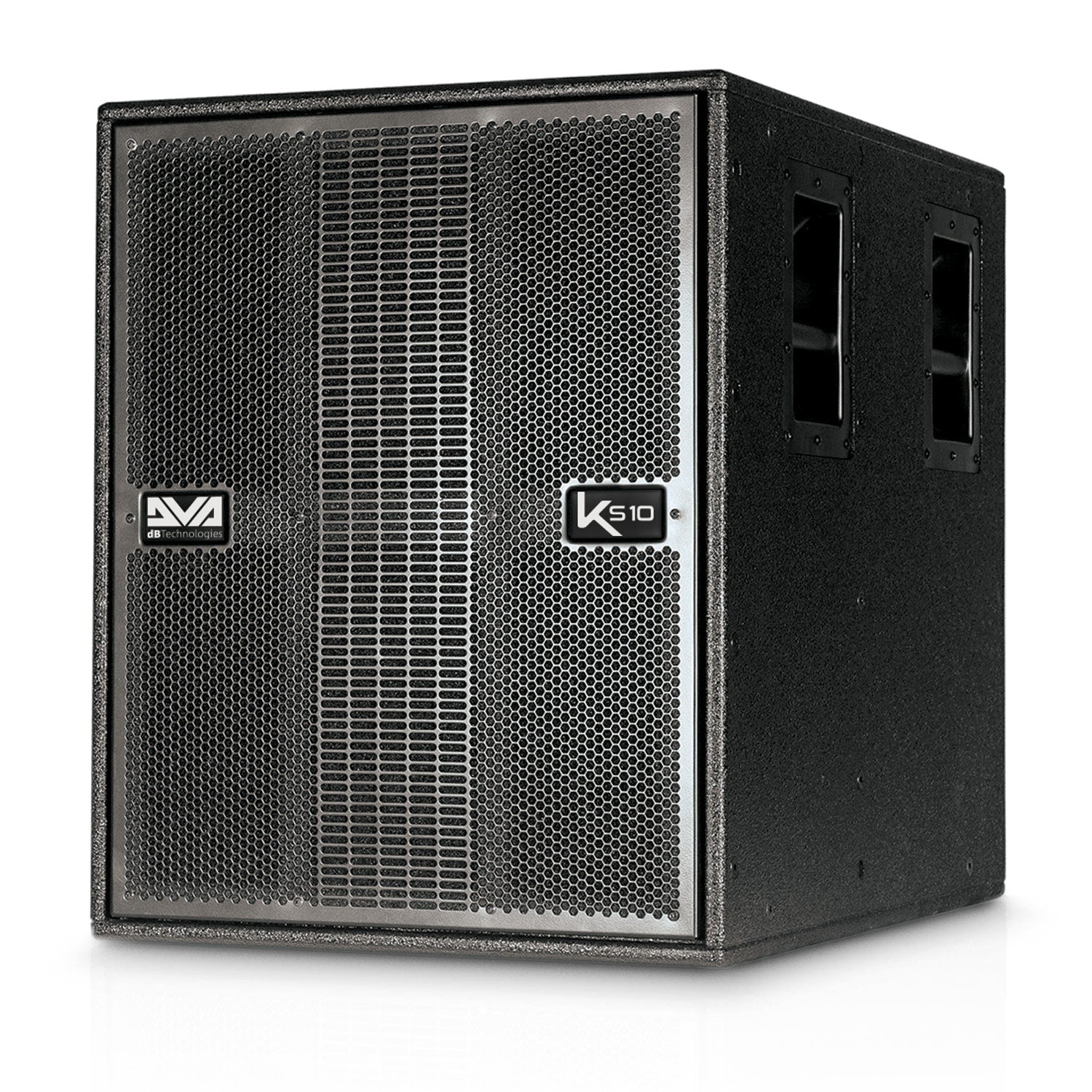

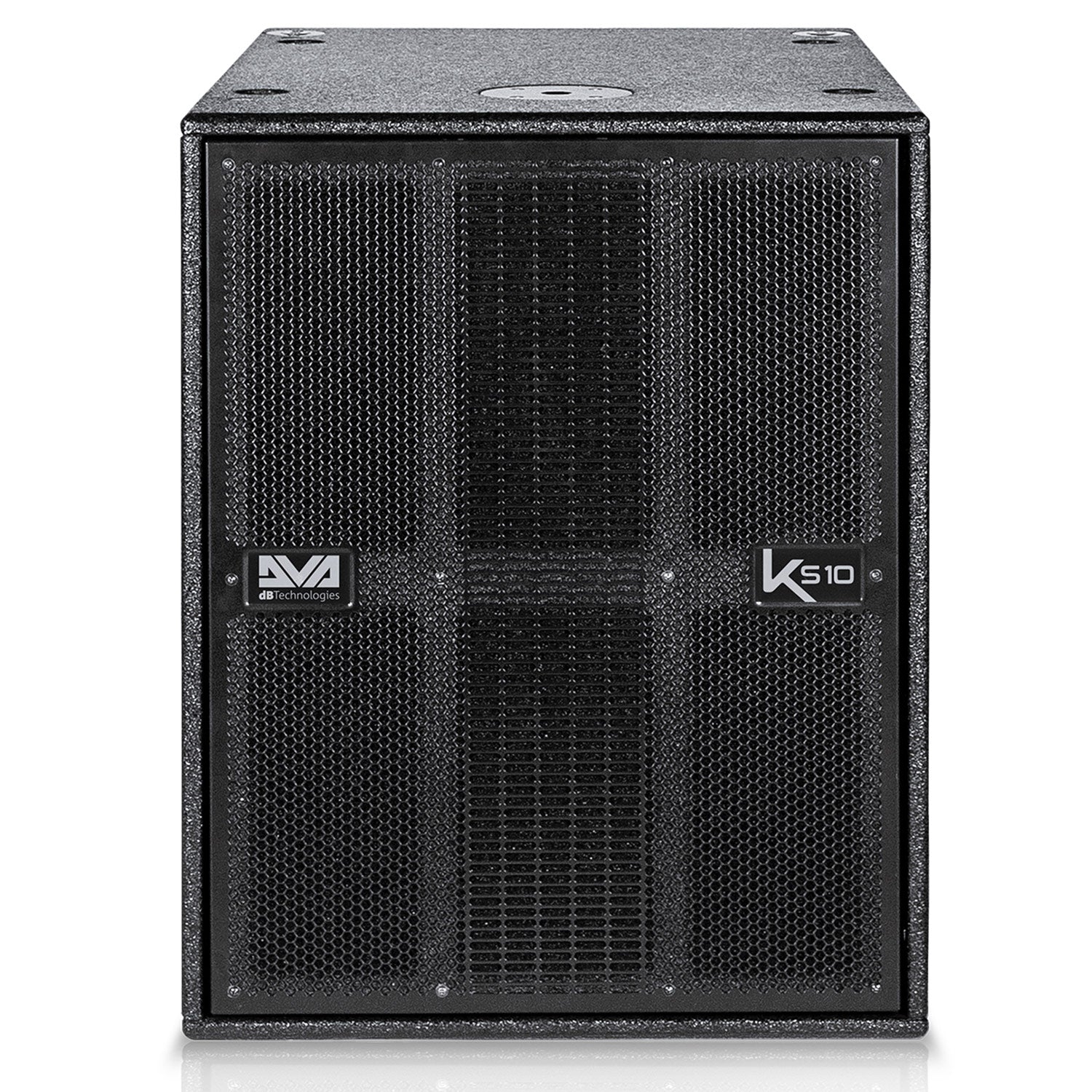

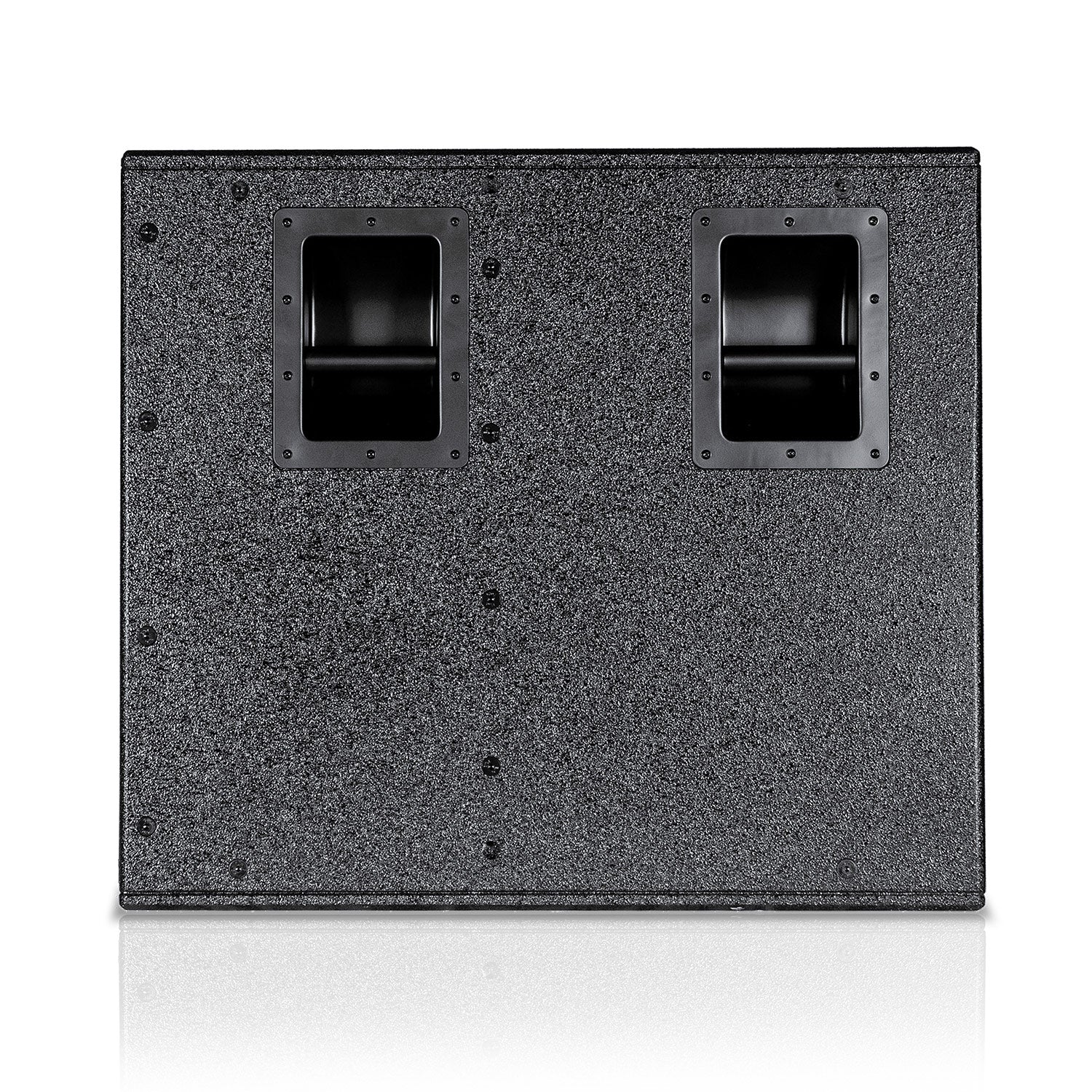

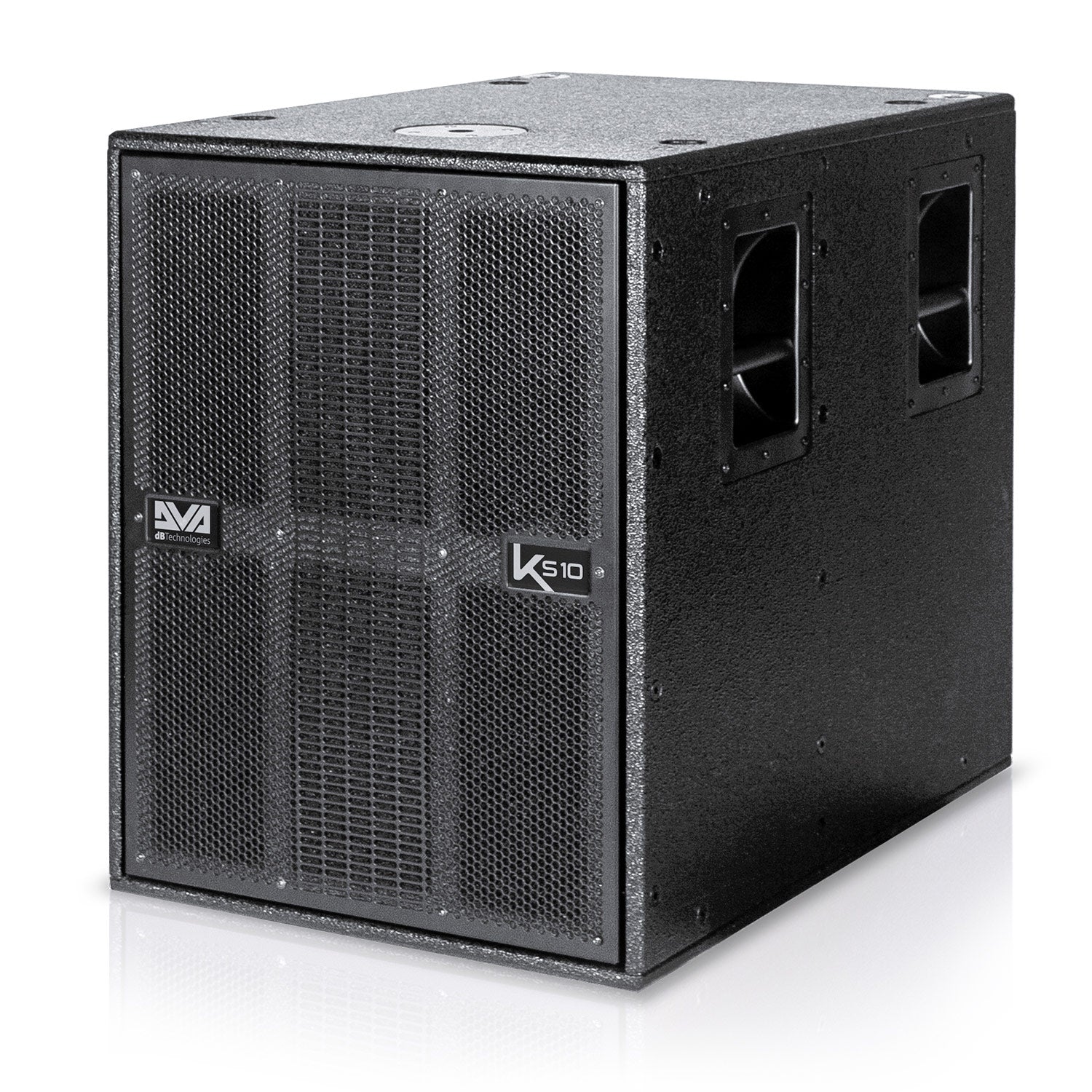

dBTechnologies DVA KS10 - Active Subwoofer

  • Dale #:

    DBTE-DVAKS10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DVA KS10 active subwoofer is an active subwoofer designed by building upon the innovation and professional quality of the DVA series. The semi horn-loaded configuration allows for acoustic optimization. The DSP, controlling the next-generation amplifier DIGIPRO G3, makes it possible to easily... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DVA KS10 active subwoofer is an active subwoofer designed by building upon the innovation and professional quality of the DVA series. The semi horn-loaded configuration allows for acoustic optimization. The DSP, controlling the next-generation amplifier DIGIPRO G3, makes it possible to easily and accurately configure the sound behaviour in professional use configurations. When coupled with the new DVA K5 series line-array modules, it can meet any and all needs, in any installation and tour context.

Features:

  • Powerful and noiseless amplification section, thanks to the new DIGIPRO G3 D-class amplifier which requires no active ventilation and makes it possible to achieve 1800 W peak power
  • SPL (peak) of 134 dB
  • High-quality 18” woofer
  • Equipped with handles and mounting points to ensure fast and versatile use in any context
  • Fast and accurate DSP configuration using the delay, phase and crossover controls

More +

Product Specs

Type

Active semi horn-loaded subwoofer

Frequency Response [- 10 dB]

41 - 120 Hz

LF

18”

LF Voice Coil 4"
Crossover Frequency 90 / 120 Hz (selectable)
Amplifier Type Digipro G3
Amplification Class D class
Amplification Power (Peak) 1,800 W
Amplification Power (RMS) 900 W
Power Supply SMPS with PSU Auto-Range
Power Supply Connector PowerCON In / Link
Cooling Technique Convection
Controls Rotary (Delay), switch (Phase, Xover, Outputs Mode)
Internal Controller DSP 25/56 bit/48 kHz
Limiter Peak, Thermal
Controls Subwoofer level, Subwoofer setup, Xover, Outputs mode
LEDs Limiter, Signal, Mute/prot, Ready
Power Supply Inputs and Links PowerCON In / Link
Audio Input 2 x XLR IN, balanced
USB 1x USB MINI, type B
Audio Output 2 x XLR link OUT, balanced
Material multi-layer wood
Grille CNC machining
Handles built-in
Connecting Points built into the housing
Direct Installation on Pole M20
Width 1100 mm (43.31 inch.)
Height 580 mm (22.83 inch.)
Depth 720 mm (28.53 inch.)
Weight 43,4 kg (95,69 lbs)
