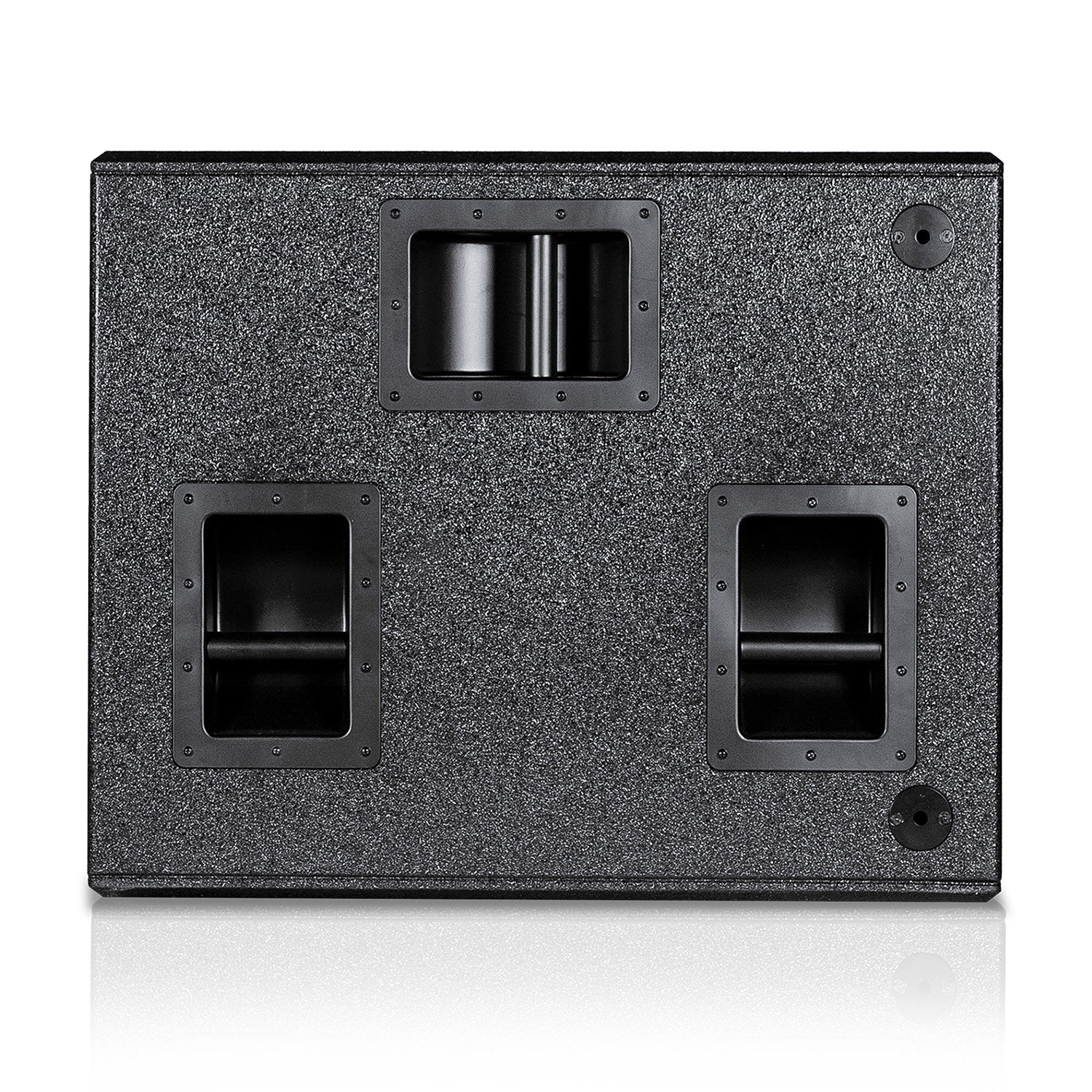

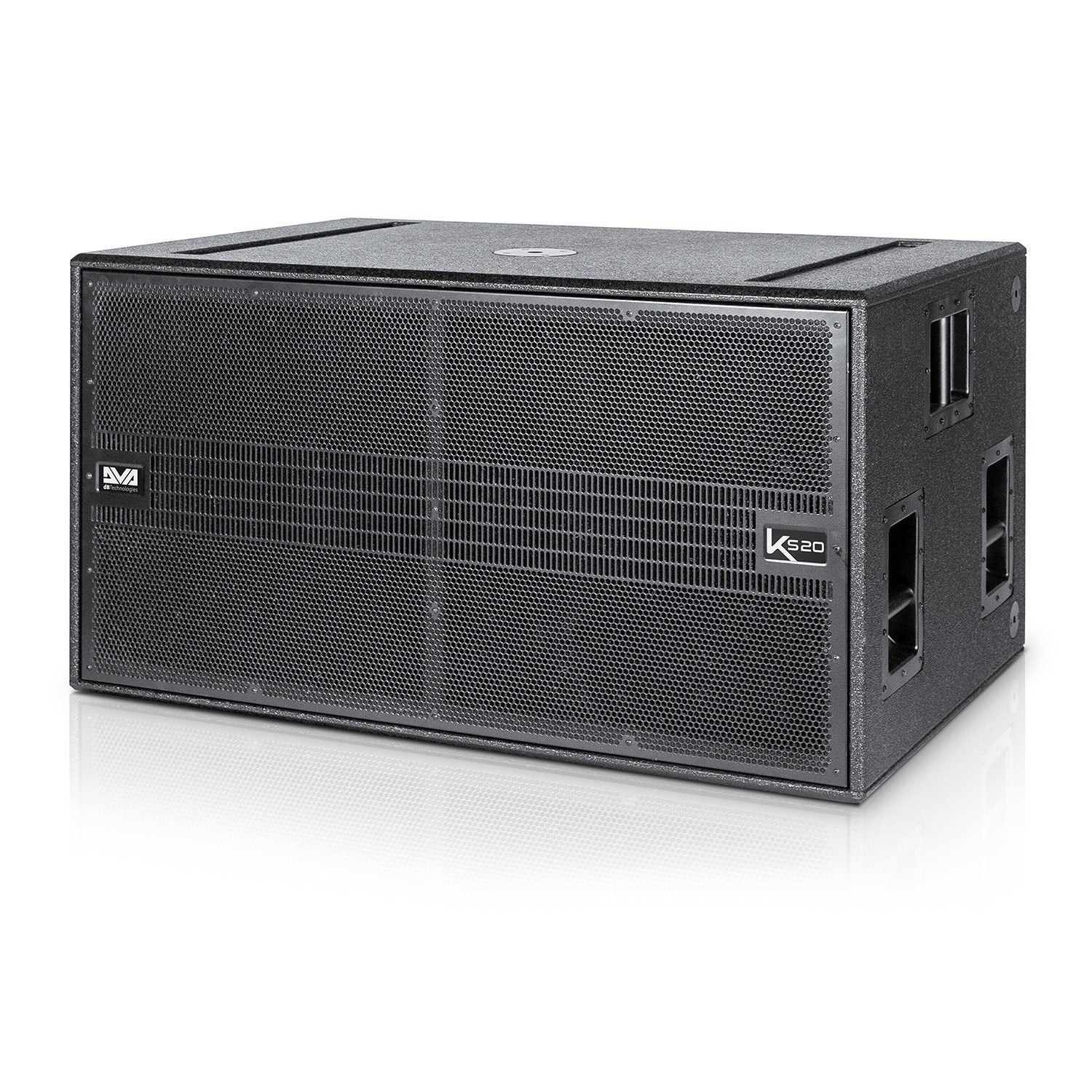

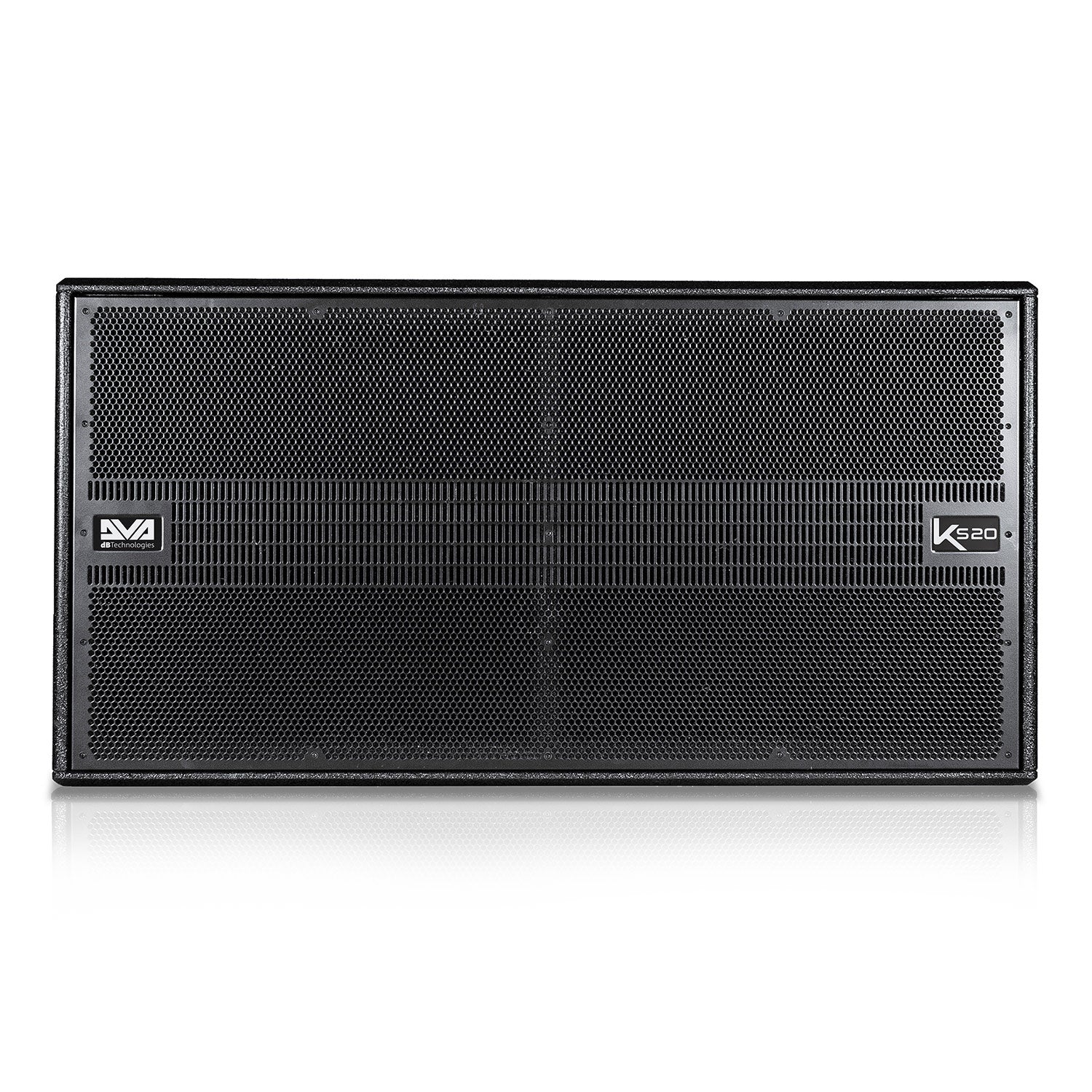

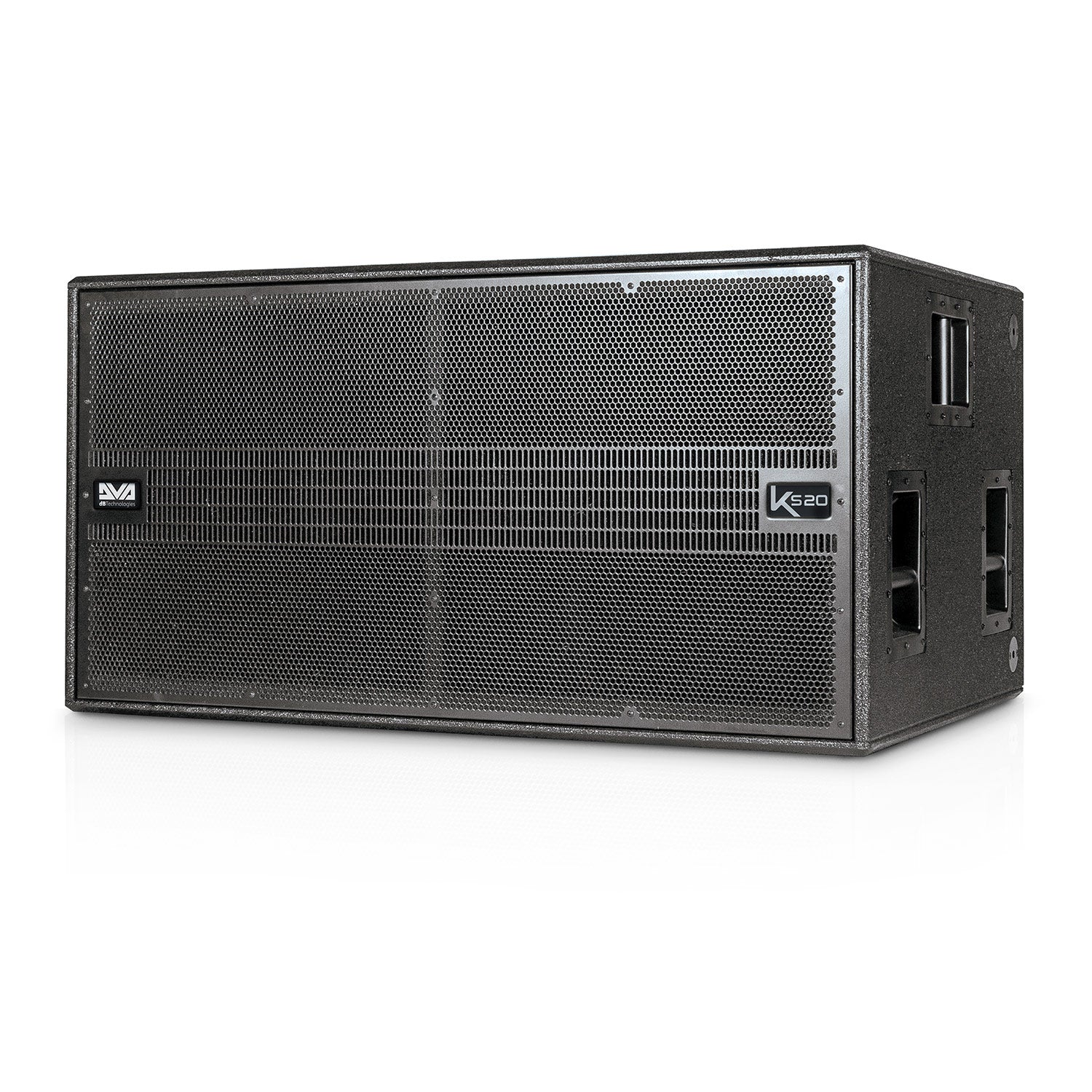

dBTechnologies DVA KS20 - Active Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DVA KS20 active subwoofer is an active subwoofer designed by building upon the innovation and professional quality of the DVA series. The semi horn-loaded configuration allows for acoustic optimization. The DSP, controlling the next-generation amplifier DIGIPRO G3, makes it possible to easily and accurately configure the sound behaviour in professional use configurations. When coupled with the new DVA K5 series line-array modules, it can meet any and all needs, in any installation and tour context.
Features:
- Powerful and noiseless amplification section, thanks to the new DIGIPRO G3 D-class amplifier which requires no active ventilation and makes it possible to achieve 1800 W peak power
- SPL (peak) of 138 dB
- High-quality 2X18" woofers
- Equipped with handles and mounting points to ensure fast and versatile use in any context
- Fast and accurate DSP configuration using the delay, phase and crossover controls
| Type | Active semi horn-loaded subwoofer |
| Frequency Response [- 10 dB] | 41 - 120 Hz |
| LF | 2x18” |
| LF Voice Coil | 4" |
| Crossover Frequency | 90 / 120 Hz (selectable) |
| Amplifier Type | Digipro G3 |
| Amplification Class | D class |
| Amplification Power (Peak) | 3,600 W |
| Amplification Power (RMS) | 1,800 W |
| Power Supply Connector | PowerCON In + Out |
| Cooling Technique | Convection |
| Internal Controller | DSP 28/56 bit/48 kHz |
| Limiter | Rms, Peak, Termico |
| Controls | Subwoofer level, Subwoofer setup, Xover, Outputs mode |
| LEDs | Limiter, Signal, Mute/prot, Ready |
| Power Supply Inputs and Links | PowerCON In / Link |
| Audio Input | 2 x XLR IN, balanced |
| USB | 1x USB MINI, type B |
| Audio Output | 2 x XLR link OUT, balanced |
| Material | multi-layer wood |
| Grille | CNC machining |
| Handles | built-in |
| Connecting Points | built into the housing |
| Direct Installation on Pole | M20 |
| Width | 1100 mm (43.31 inch.) |
| Height | 580 mm (22.83 inch.) |
| Depth | 720 mm (28.53 inch.) |
| Weight | 84 kg (185.19 lbs) |
The DVA KS20 active subwoofer is an active subwoofer designed by building upon the innovation and professional quality of the DVA series. The semi horn-loaded configuration allows for acoustic optimization. The DSP, controlling the next-generation amplifier DIGIPRO G3, makes it possible to easily and accurately configure the sound behaviour in professional use configurations. When coupled with the new DVA K5 series line-array modules, it can meet any and all needs, in any installation and tour context.
Features:
- Powerful and noiseless amplification section, thanks to the new DIGIPRO G3 D-class amplifier which requires no active ventilation and makes it possible to achieve 1800 W peak power
- SPL (peak) of 138 dB
- High-quality 2X18" woofers
- Equipped with handles and mounting points to ensure fast and versatile use in any context
- Fast and accurate DSP configuration using the delay, phase and crossover controls
| Type | Active semi horn-loaded subwoofer |
| Frequency Response [- 10 dB] | 41 - 120 Hz |
| LF | 2x18” |
| LF Voice Coil | 4" |
| Crossover Frequency | 90 / 120 Hz (selectable) |
| Amplifier Type | Digipro G3 |
| Amplification Class | D class |
| Amplification Power (Peak) | 3,600 W |
| Amplification Power (RMS) | 1,800 W |
| Power Supply Connector | PowerCON In + Out |
| Cooling Technique | Convection |
| Internal Controller | DSP 28/56 bit/48 kHz |
| Limiter | Rms, Peak, Termico |
| Controls | Subwoofer level, Subwoofer setup, Xover, Outputs mode |
| LEDs | Limiter, Signal, Mute/prot, Ready |
| Power Supply Inputs and Links | PowerCON In / Link |
| Audio Input | 2 x XLR IN, balanced |
| USB | 1x USB MINI, type B |
| Audio Output | 2 x XLR link OUT, balanced |
| Material | multi-layer wood |
| Grille | CNC machining |
| Handles | built-in |
| Connecting Points | built into the housing |
| Direct Installation on Pole | M20 |
| Width | 1100 mm (43.31 inch.) |
| Height | 580 mm (22.83 inch.) |
| Depth | 720 mm (28.53 inch.) |
| Weight | 84 kg (185.19 lbs) |
