dBTechnologies DVA MS12 - Active Subwoofer

  • Dale #:

    DBTE-DVAMS12
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

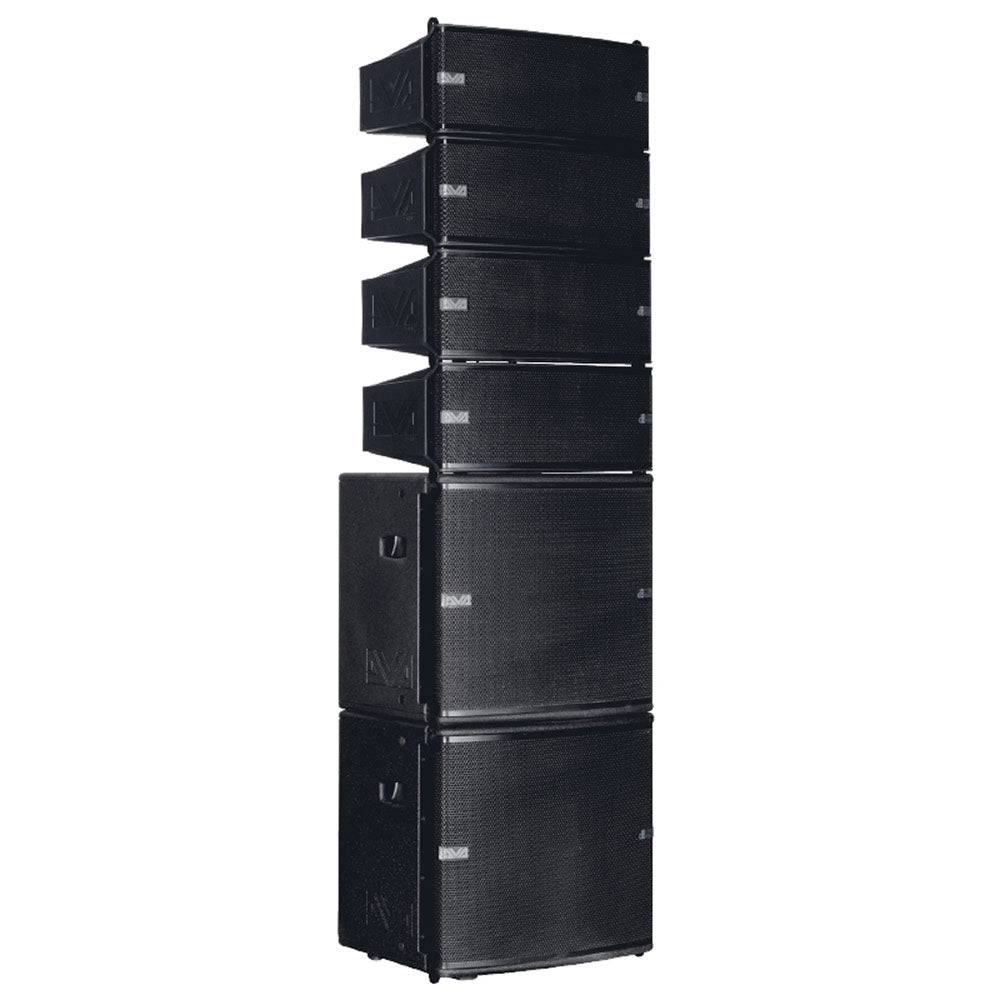

The speaker DVA MS12 is part of the modular system called DVA MINI. The system can be used in ground stack configuration or suspended in line-array configuration. The modules use a fast, innovative mechanical fastening method. This series is ideal for installations in theatres, places of worship,... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

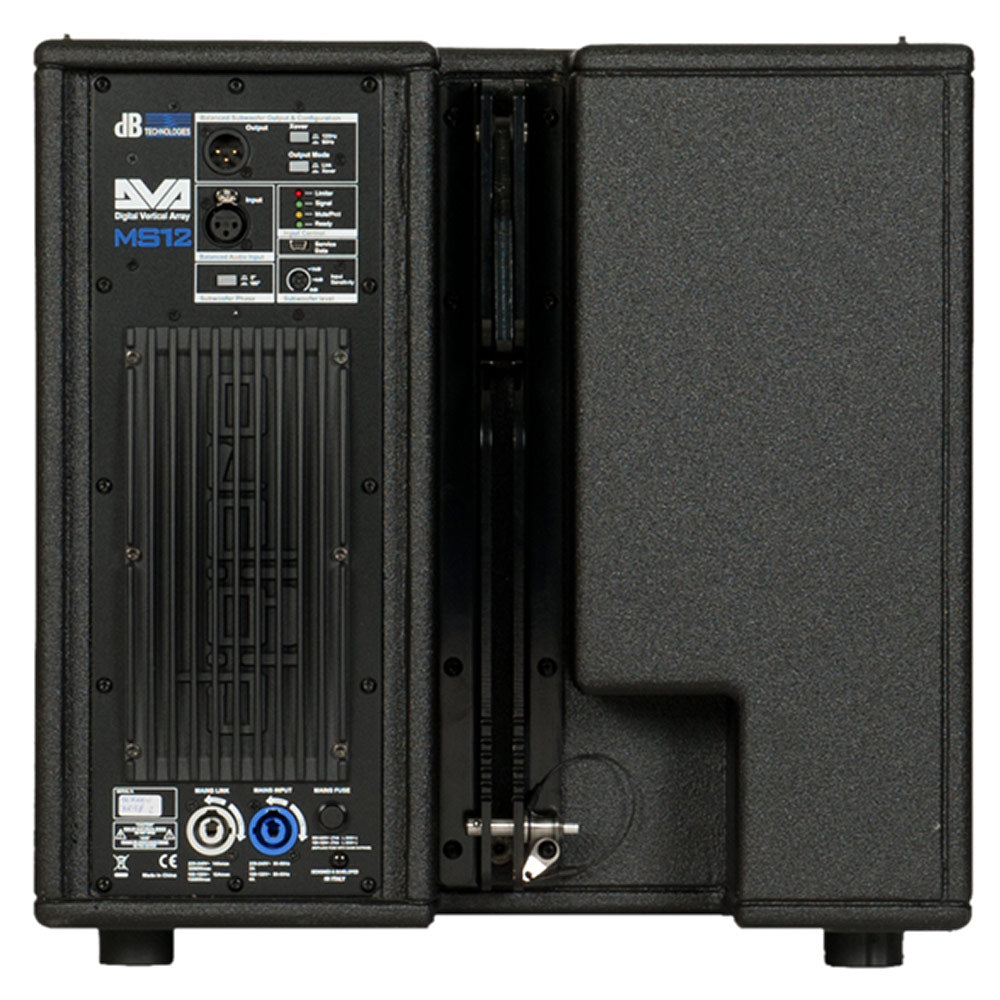

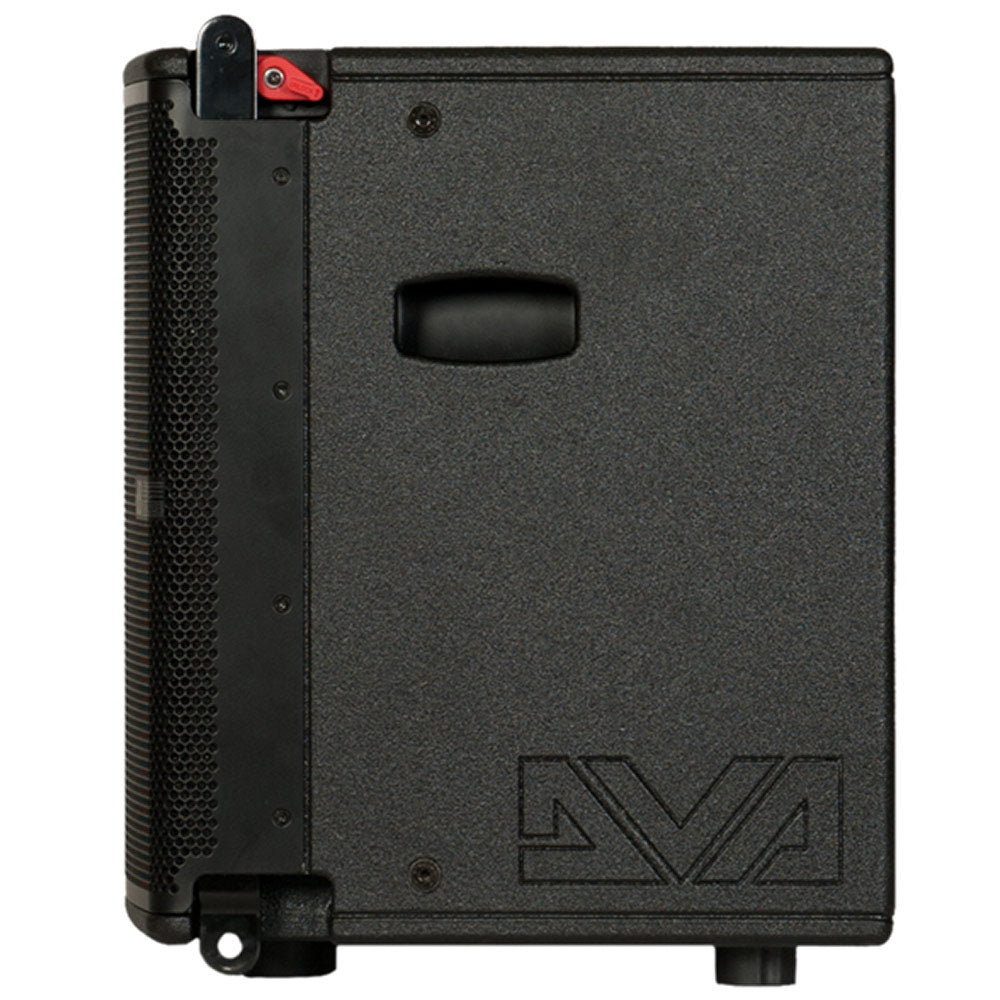

The speaker DVA MS12 is part of the modular system called DVA MINI. The system can be used in ground stack configuration or suspended in line-array configuration. The modules use a fast, innovative mechanical fastening method. This series is ideal for installations in theatres, places of worship, convention centers, concerts and live music performances which require medium-high sound pressures and limited weight and footprint. DVA MS12 is equipped with a class-D amplifier series DIGIPRO G3 capable of delivering 700W PMS and is equipped with a 12" woofer (voice coil 3"). The high efficiency of the modules DIGIPRO G3 allows to obtain high output power, with reduced weight and footprint. Thanks to its low power dissipation, the cooling of the amplifier module takes place in a static manner, avoiding the use of fans. The digital pre-amplifier with Digital Signal Processor (DSP) manages the acoustic components, the frequency response, the limiter and the speaker alerts. The SMPS (Switched-Mode Power Supply) Power Supply Unit (PSU) thanks to its self-range technology ensures operation at supply voltages from 100V~ to 120V~ and from 220V~ to 240V~. The subwoofer is in multi-layer birch wood with two side handles that facilitate its transport and installation. The speaker is equipped with a support with M20 thread for fastening with D35mm pole. The speaker is fitted with steel brackets and a handy locking system for fastening the various elements of the DVA MINI system. The four feet in plastics in the lower part of the speaker have a dual position: - external: for use as support, protecting the brackets from damage due to impacts with the ground. - retractable: for suspended use, so as to ensure the correct mechanical coupling with the other elements of the array. Audio balanced input at line level. It is able to accept “XLR” sockets.

More +

Product Specs

System

Active Amps

Type of Amplifier

Digital – Class D DIGIPRO G3TM technology

RMS Power

700W

Musical Power

1,400W

Frequency Response (-6dB) 45Hz-140Hz
Frequency Response (-10dB) 40Hz-165Hz
Cover Range Omnidirectional
Sound Pressure (SPL) 131dB
Component Parts 1 woofer 12” – VC 3”
Input sensitivity Nominal 0dB
Input Impedence Balanced 20Kohm
Input Impedence Unbalanced 10Kohm
Dimension (LxHxP) 460x430x385mm 18.1x16.9x15.2 inch
Weight 26.2Kg 58.4lbs
DSP Processor
DSP 28/56bit
Audio Conversion AD/DA 24bit/48KHz
Volume Control Digita
Crossover 924dB/Oct) 110Hz/140Hz
