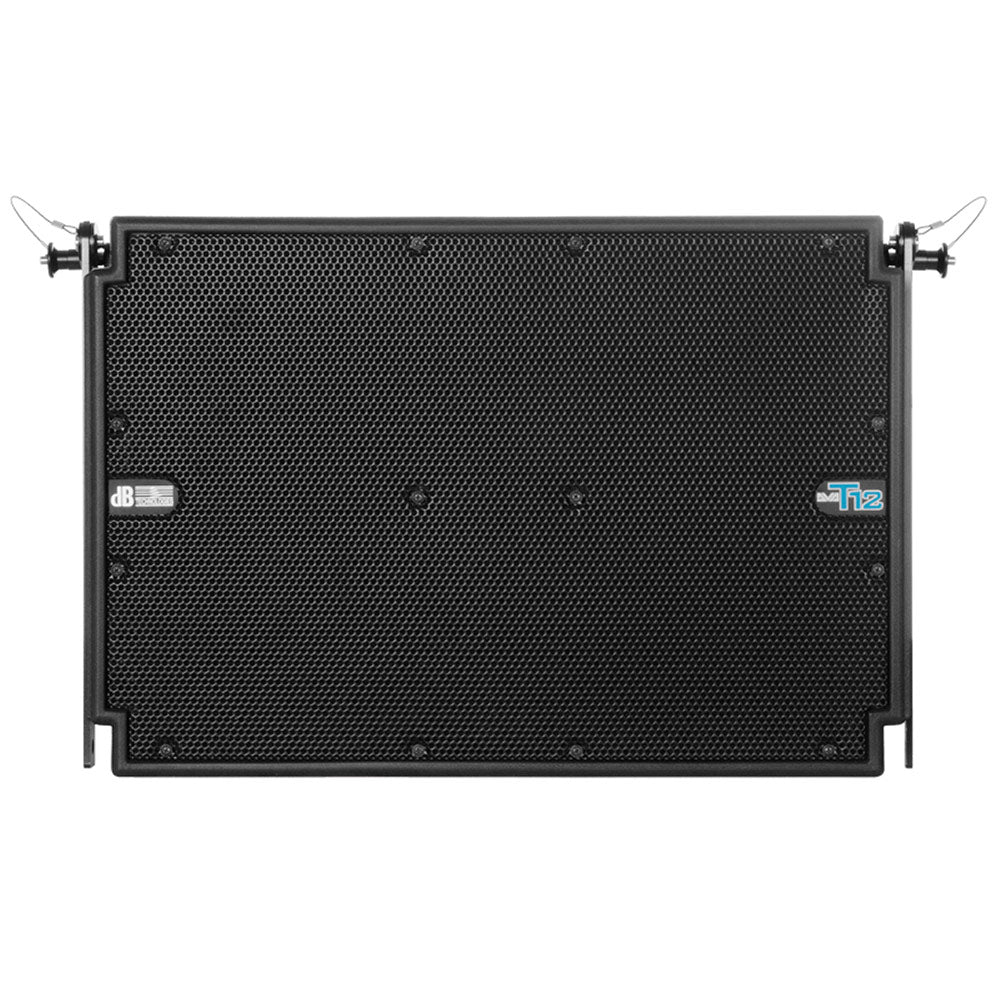

dBTechnologies DVA T12 Compact 12-Inch Line Array Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
DVA T12 features state-of-the-art neodymium speakers and high-performance DIGIPRO digital amps with total of 1,410W output power. In combination with top-drawer DSP and premium quality AD-DA converter, it delivers high-definition sonic images with massive SPL for large sound reinforcement applications.
A 12" neodymium woofer in a band-pass housing covers the low frequency range. Remarkably powerful, it packs an assertive punch that reaches down to 60 Hz to enable fullrange applications. The 12" woofer is slanted inside the housing, giving the cabinet a lean, unobtrusive look. Two 6.5" neodymium midrange are placed close together to maximize coherent coupling and response for those critical midrange frequencies.
The speaker resides in a sealed basket to optimize the displacement volume. This makes the midrange even more responsive. With a high BL factor, it reacts far faster to transients and renders each attack with awesome accuracy. Both 6.5" midrange are equipped with an optimized phase plug and feed into a frontloaded horn to achieve a uniform coverage pattern.
The DVA T12 is loaded with 3 1" HF drivers tuned specifically for the custom designed array horn. This combination maximizes the coupling of the drivers' outputs and extends the range of the HF signal.
Features:
- LONG-THROW SYSTEM
- FULLY POWERED 3-WAY UNIT
- FREELY SCALABLE TO SETUPS OF ANY SIZE
- HIGH-END DIGITAL CONTROLLER ON BOARD
- NETWORK READY WITH INTEGRATED RDNET PORT
- HARDWARE COMPATIBLE WITH DVA T8 AND T4
| Frequency Response [-6dB] | 60 - 19.000 Hz |
| Max SPL | One Unit: 136 dB |
| HF | 3x1 " |
| Voice Coil HF | 1.4 " |
| Directivity | 100x10 ¡ Single unit |
| Horn | Integrated CD Horn |
| MF | 2x 6.5 " |
| Type MF | Neodymium Sealed Basket Phase Plug Horn Loaded |
| Voice Coil MF | 2 " |
| LF | 12 " |
| Type LF | Neodymium |
| Voice Coil LF | 3 " |
| Amplifier | |
| Amp Technology | Digipro¨ G2 |
| Amp Class | Class D |
| HF Amp | 350 W RMS |
| MF Amp | 350 W RMS |
| LF Amp | 710 W RMS |
| Cooling | Convection |
| Processor | |
| Controller | DSP 56 bit |
| AD/DA Converter | 24 bit/96 kHz |
| System Presets | 8, HF/Low-mid correction |
| Limiter | Dual Active Limiter Multiband RMS, Peak, Thermal |
| Crossover Frequency MF-HF | 1800 Hz |
| Slope MF-HF | 24 dB/Octave |
| Crossover Frequency | LF-MF420 Hz |
| Slope LF-MF | 24 dB/Octave |
| Input | |
| Signal Input | 1x XLR fem, Bal. |
| Signal Output | 1x XLR male, Bal. |
| Network | RDnet remote control RJ45 connector IN/OUT |
| Power Socket | 1x Powercon In 1x Powercon Out |
| Voltage Range | 90 - 240 V |
| Mechanics | |
| Housing | Polypropylene PP, Aluminium reinforced |
| Housing Design | Trapezoidal 10¡ |

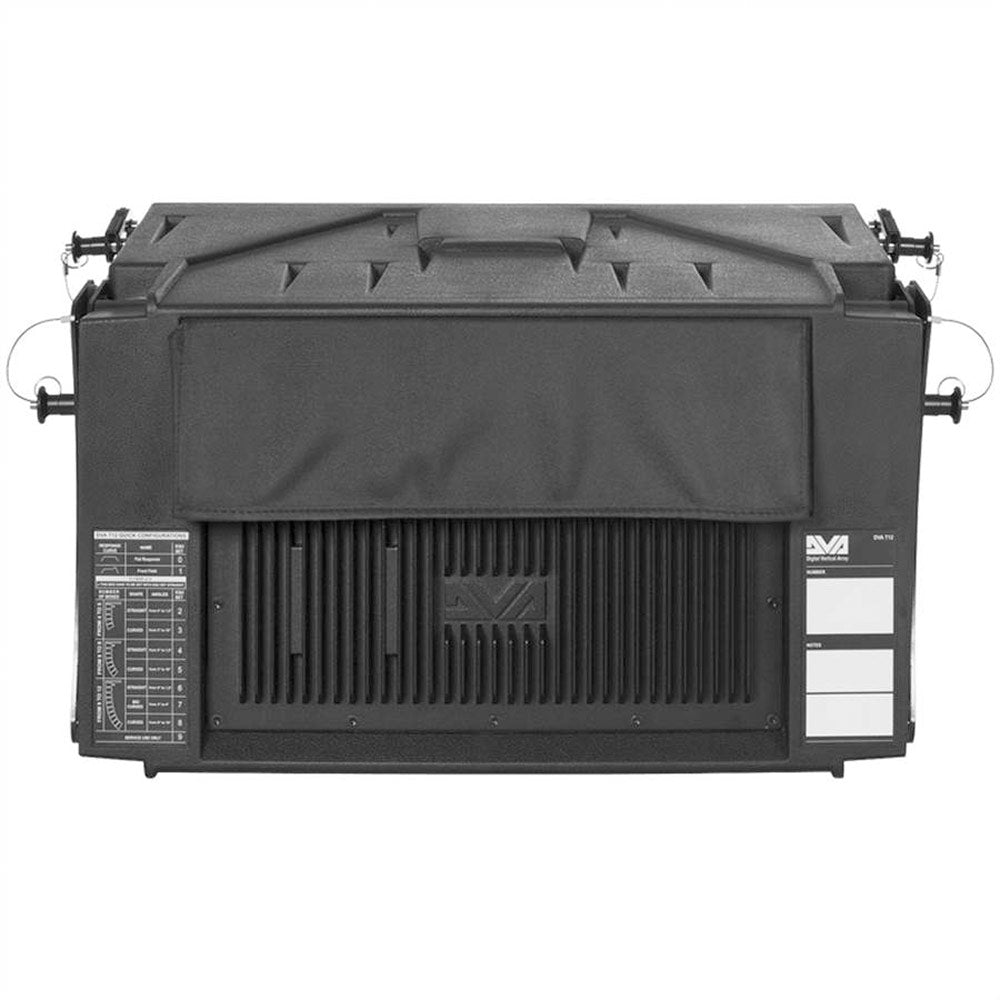

| Rain Cover | Included |
| Rigging Points | Integrated rigging hardware |
| Dimensions | Width 580 mm (23.2 in) Height 386 mm (15.44 in) Depth 430 mm (17.2 in) |
| Weight | 29,9 kg (63.93 lbs) |
DVA T12 features state-of-the-art neodymium speakers and high-performance DIGIPRO digital amps with total of 1,410W output power. In combination with top-drawer DSP and premium quality AD-DA converter, it delivers high-definition sonic images with massive SPL for large sound reinforcement applications.
A 12" neodymium woofer in a band-pass housing covers the low frequency range. Remarkably powerful, it packs an assertive punch that reaches down to 60 Hz to enable fullrange applications. The 12" woofer is slanted inside the housing, giving the cabinet a lean, unobtrusive look. Two 6.5" neodymium midrange are placed close together to maximize coherent coupling and response for those critical midrange frequencies.
The speaker resides in a sealed basket to optimize the displacement volume. This makes the midrange even more responsive. With a high BL factor, it reacts far faster to transients and renders each attack with awesome accuracy. Both 6.5" midrange are equipped with an optimized phase plug and feed into a frontloaded horn to achieve a uniform coverage pattern.
The DVA T12 is loaded with 3 1" HF drivers tuned specifically for the custom designed array horn. This combination maximizes the coupling of the drivers' outputs and extends the range of the HF signal.
Features:
- LONG-THROW SYSTEM
- FULLY POWERED 3-WAY UNIT
- FREELY SCALABLE TO SETUPS OF ANY SIZE
- HIGH-END DIGITAL CONTROLLER ON BOARD
- NETWORK READY WITH INTEGRATED RDNET PORT
- HARDWARE COMPATIBLE WITH DVA T8 AND T4
| Frequency Response [-6dB] | 60 - 19.000 Hz |
| Max SPL | One Unit: 136 dB |
| HF | 3x1 " |
| Voice Coil HF | 1.4 " |
| Directivity | 100x10 ¡ Single unit |
| Horn | Integrated CD Horn |
| MF | 2x 6.5 " |
| Type MF | Neodymium Sealed Basket Phase Plug Horn Loaded |
| Voice Coil MF | 2 " |
| LF | 12 " |
| Type LF | Neodymium |
| Voice Coil LF | 3 " |
| Amplifier | |
| Amp Technology | Digipro¨ G2 |
| Amp Class | Class D |
| HF Amp | 350 W RMS |
| MF Amp | 350 W RMS |
| LF Amp | 710 W RMS |
| Cooling | Convection |
| Processor | |
| Controller | DSP 56 bit |
| AD/DA Converter | 24 bit/96 kHz |
| System Presets | 8, HF/Low-mid correction |
| Limiter | Dual Active Limiter Multiband RMS, Peak, Thermal |
| Crossover Frequency MF-HF | 1800 Hz |
| Slope MF-HF | 24 dB/Octave |
| Crossover Frequency | LF-MF420 Hz |
| Slope LF-MF | 24 dB/Octave |
| Input | |
| Signal Input | 1x XLR fem, Bal. |
| Signal Output | 1x XLR male, Bal. |
| Network | RDnet remote control RJ45 connector IN/OUT |
| Power Socket | 1x Powercon In 1x Powercon Out |
| Voltage Range | 90 - 240 V |
| Mechanics | |
| Housing | Polypropylene PP, Aluminium reinforced |
| Housing Design | Trapezoidal 10¡ |
| Rain Cover | Included |
| Rigging Points | Integrated rigging hardware |
| Dimensions | Width 580 mm (23.2 in) Height 386 mm (15.44 in) Depth 430 mm (17.2 in) |
| Weight | 29,9 kg (63.93 lbs) |
