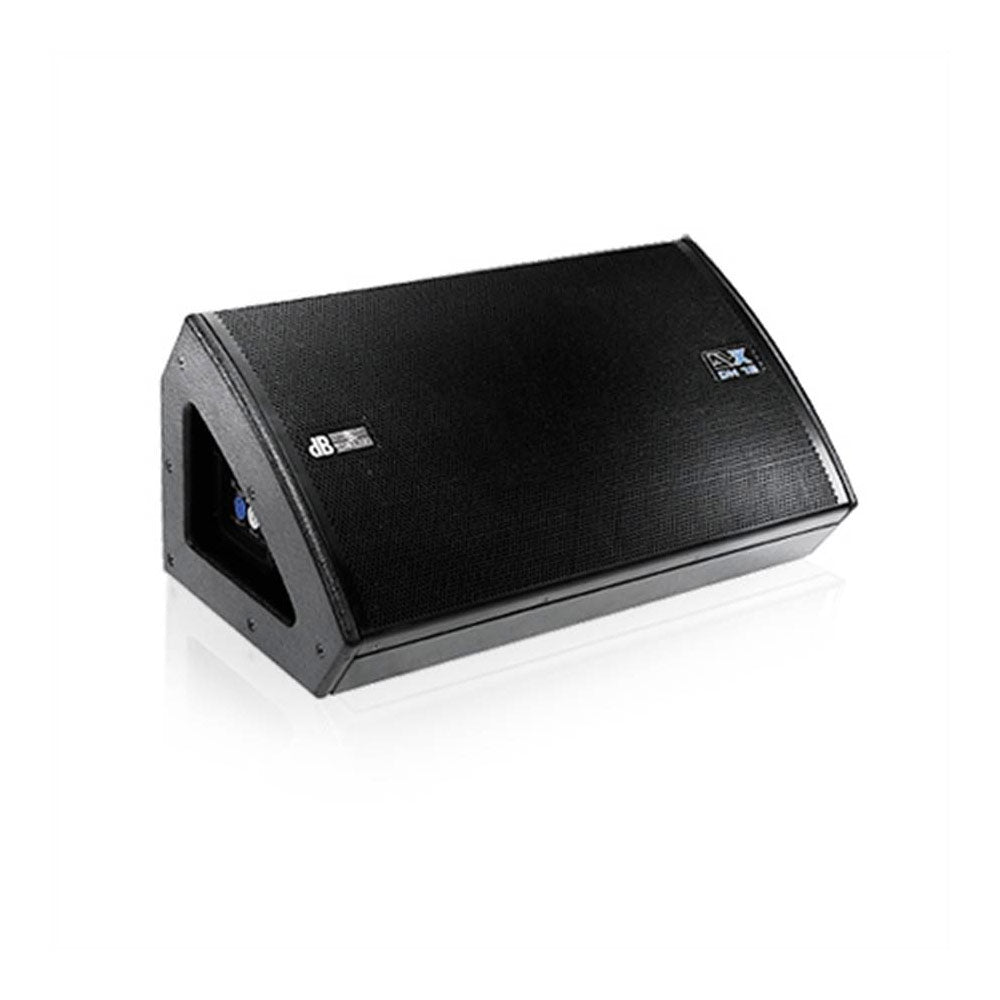

dBTechnologies DVX DM 12 - 2 Way Active Stage Monitor with 12" Woofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DVX DM 12 bi-amped active stage monitor is equipped with a DIGIPRO amplifier delivering 500W RMS for the bass section and 250W RMS for the high frequency section. The active two-way speaker features a neodymium 12" (voice coil 3") woofer and a neodymium 1.4" (voice coil 2.5") compression driver installed on a 40 x 90 degree aluminium CD- horn.. The speaker is made of 15mm birch ply wood, the 2 recessed handles and the 6 M8 threads located on the sides and the back of the speaker are enabling easy transport and installation. On the right side of the cabinet (bottom), there is a standard pole mount cup (D36mm) made of aluminium.
| System | Active Bi-Amp |
| Type of Amplifier | Class D |
| RMS Power | 500W + 250W |
| Frequency Response | 68 -19000Hz (-3dB) 55-20000Hz (-10dB) |
| Crossover | 1400Hz - 24dB/oct |
| Sound Pressure (max SPL) | 131dB |
| Ouptut Connector | Balanced XLR - Link / Out |
| Input Connector | Balanced XLR |
| Input Sensitivity | max -3dBu |
| Input Impedance | Balanced - 20kohm Unbalanced - 10Kohm |
| Color | Black |
| Dimension (WxHxD) | 660x305x378mm |
| Weight | 17.5Kg |
| Flying Support | 6 x M8 |
| Pole Mount Cup | D36mm (aluminium) |
| Handle | 2 - one per side |
| Rotating Horn | Yes |
The DVX DM 12 bi-amped active stage monitor is equipped with a DIGIPRO amplifier delivering 500W RMS for the bass section and 250W RMS for the high frequency section. The active two-way speaker features a neodymium 12" (voice coil 3") woofer and a neodymium 1.4" (voice coil 2.5") compression driver installed on a 40 x 90 degree aluminium CD- horn.. The speaker is made of 15mm birch ply wood, the 2 recessed handles and the 6 M8 threads located on the sides and the back of the speaker are enabling easy transport and installation. On the right side of the cabinet (bottom), there is a standard pole mount cup (D36mm) made of aluminium.
| System | Active Bi-Amp |
| Type of Amplifier | Class D |
| RMS Power | 500W + 250W |
| Frequency Response | 68 -19000Hz (-3dB) 55-20000Hz (-10dB) |
| Crossover | 1400Hz - 24dB/oct |
| Sound Pressure (max SPL) | 131dB |
| Ouptut Connector | Balanced XLR - Link / Out |
| Input Connector | Balanced XLR |
| Input Sensitivity | max -3dBu |
| Input Impedance | Balanced - 20kohm Unbalanced - 10Kohm |
| Color | Black |
| Dimension (WxHxD) | 660x305x378mm |
| Weight | 17.5Kg |
| Flying Support | 6 x M8 |
| Pole Mount Cup | D36mm (aluminium) |
| Handle | 2 - one per side |
| Rotating Horn | Yes |
