dBTechnologies DVX DM 28 - 2 Way Active Stage Monitor with 2 x 8" Woofers
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

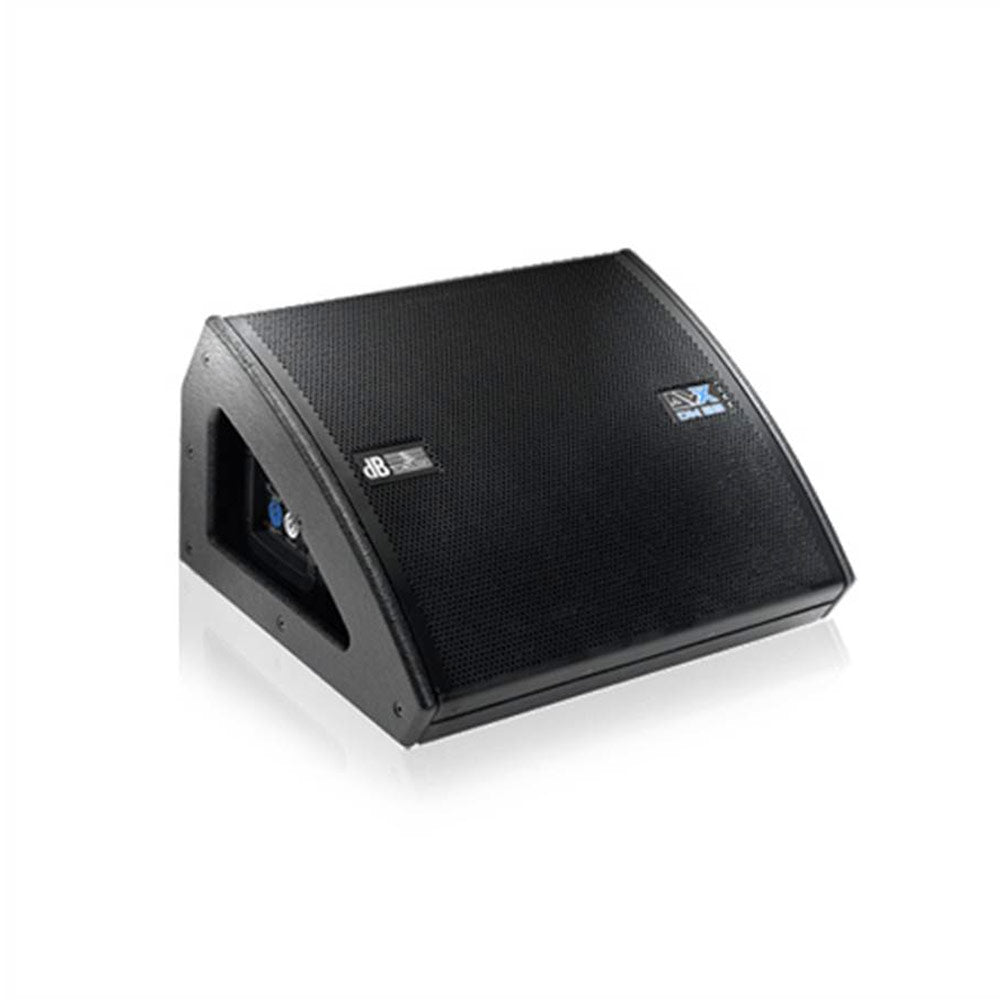

The DVX DM 28 bi-amped active stage monitor is equipped with a DIGIPRO amplifier delivering 500W RMS for the bass section and 250W RMS for the high frequency section. The active two-way speaker features two neodymium 8" (voice coil 2.5") woofers and a neodymium 1" (voice coil 1.75") compression driver installed on a CD- horn with double horizontal dispersion 90 x 60 - 40 degrees. The speaker is made of 15mm birch ply wood, the 2 recessed handles on each side of the speaker are enabling easy transport and installation.
| System | Active Bi-Amp |
| Type of Amplifier | Class D |
| RMS Power | 500W + 250W |
| Frequency Response | 89 -19000Hz (-3dB) 70-20000Hz (-10dB) |
| Crossover | 1600Hz - 24dB/oct |
| Sound Pressure (max SPL) | 130dB |
| Ouptut Connector | Balanced XLR - Link / Out |
| Input Connector | Balanced XLR |
| Input Sensitivity | max -3dBu |
| Input Impedance | Balanced - 20kohm Unbalanced - 10Kohm |
| Color | Black |
| Dimension (WxHxD) | 480x265x418mm |
| Weight | 14Kg |
| Flying Support | --- |
| Pole Mount Cup | --- |
| Handle | 2 - one per side |
The DVX DM 28 bi-amped active stage monitor is equipped with a DIGIPRO amplifier delivering 500W RMS for the bass section and 250W RMS for the high frequency section. The active two-way speaker features two neodymium 8" (voice coil 2.5") woofers and a neodymium 1" (voice coil 1.75") compression driver installed on a CD- horn with double horizontal dispersion 90 x 60 - 40 degrees. The speaker is made of 15mm birch ply wood, the 2 recessed handles on each side of the speaker are enabling easy transport and installation.
| System | Active Bi-Amp |
| Type of Amplifier | Class D |
| RMS Power | 500W + 250W |
| Frequency Response | 89 -19000Hz (-3dB) 70-20000Hz (-10dB) |
| Crossover | 1600Hz - 24dB/oct |
| Sound Pressure (max SPL) | 130dB |
| Ouptut Connector | Balanced XLR - Link / Out |
| Input Connector | Balanced XLR |
| Input Sensitivity | max -3dBu |
| Input Impedance | Balanced - 20kohm Unbalanced - 10Kohm |
| Color | Black |
| Dimension (WxHxD) | 480x265x418mm |
| Weight | 14Kg |
| Flying Support | --- |
| Pole Mount Cup | --- |
| Handle | 2 - one per side |
