dBTechnologies ES 802 Stereo Sound System - 2 Speakers and 12" Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ES 602-802 bi-amp system series is easy to transport, while providing excellent acoustic performance. The subwoofer section is equipped with a 10" cone for ES 602 and with a 12" cone for ES 802; this ensures a consistency at low frequencies which is not what one would expect from such a compact system. The tops of both models have been designed using 4 3" transducers, in an optimised inner layout. This ensures an effective acoustic coverage in different usage contexts, indoors and outdoors. The powerful DSP and the particular flexibility of the inputs also ensure great versatility; that's why this series is the perfect choice for those who wish a compact system, easy to transport but providing powerful PA amplification.

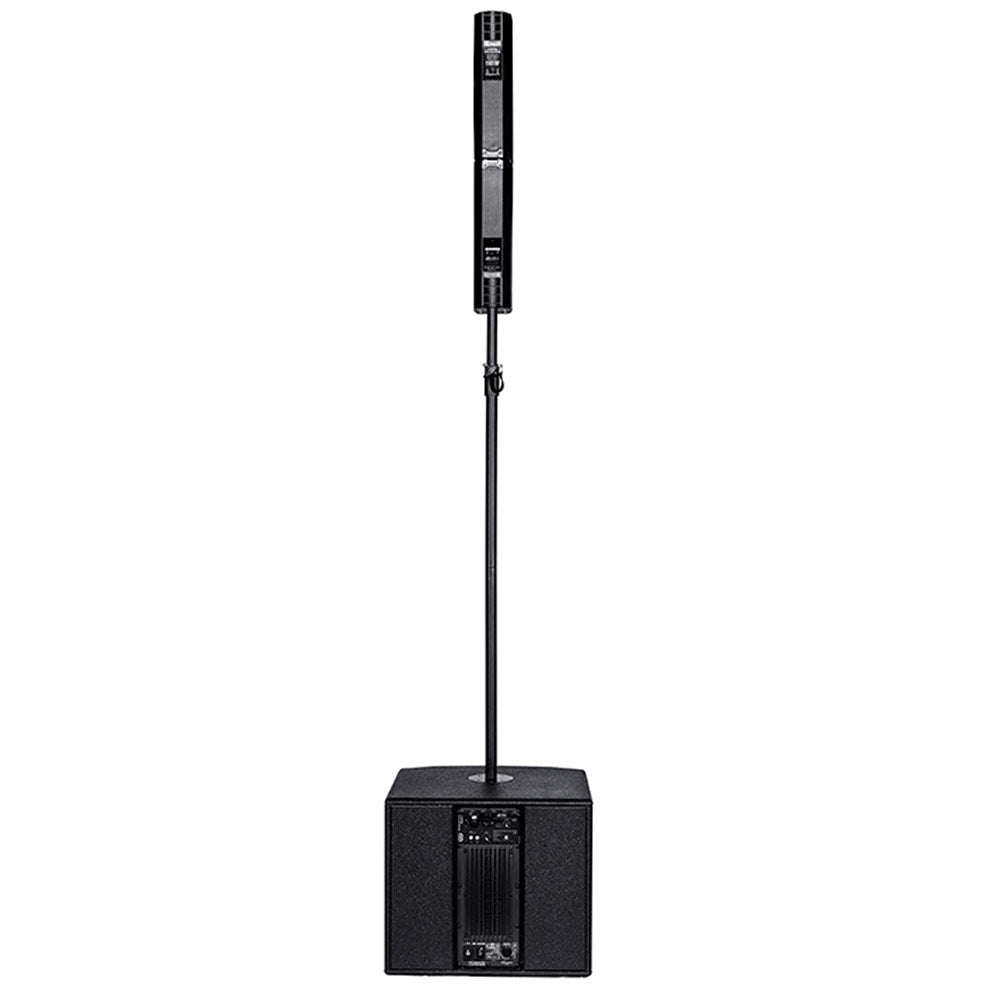

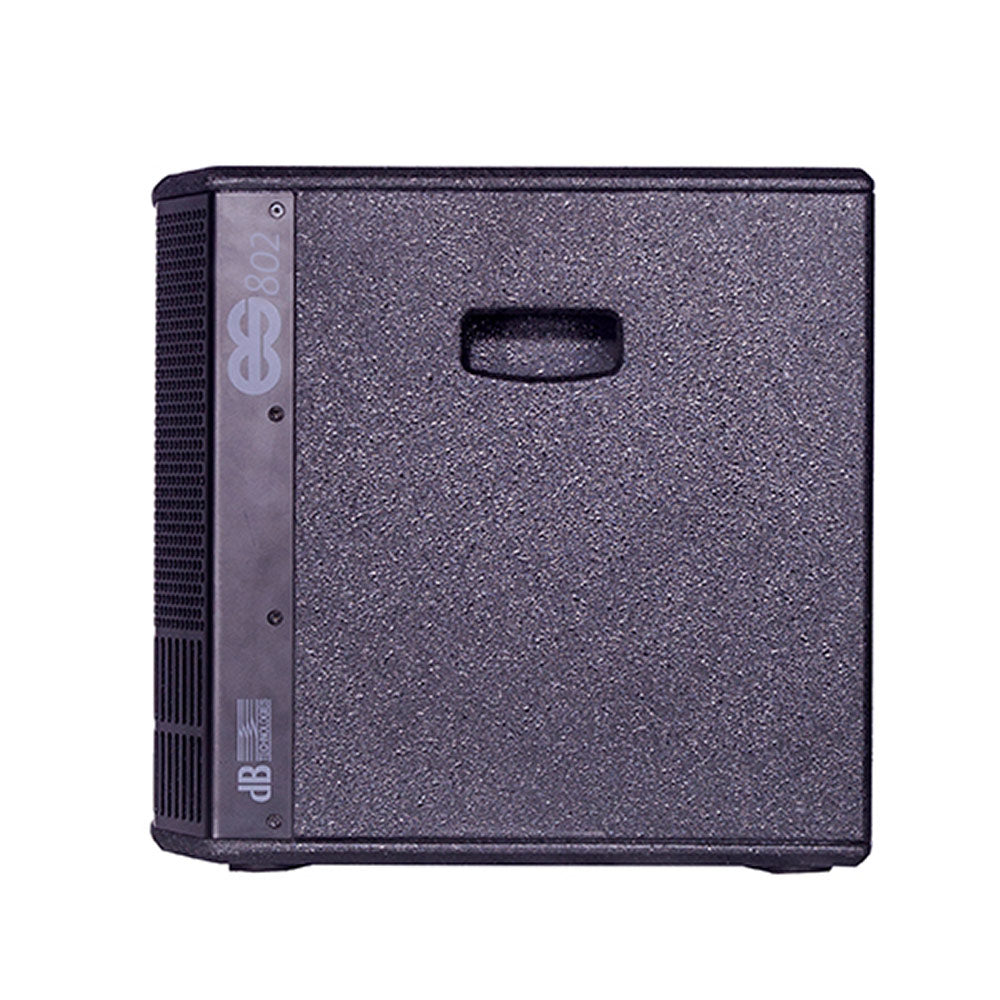

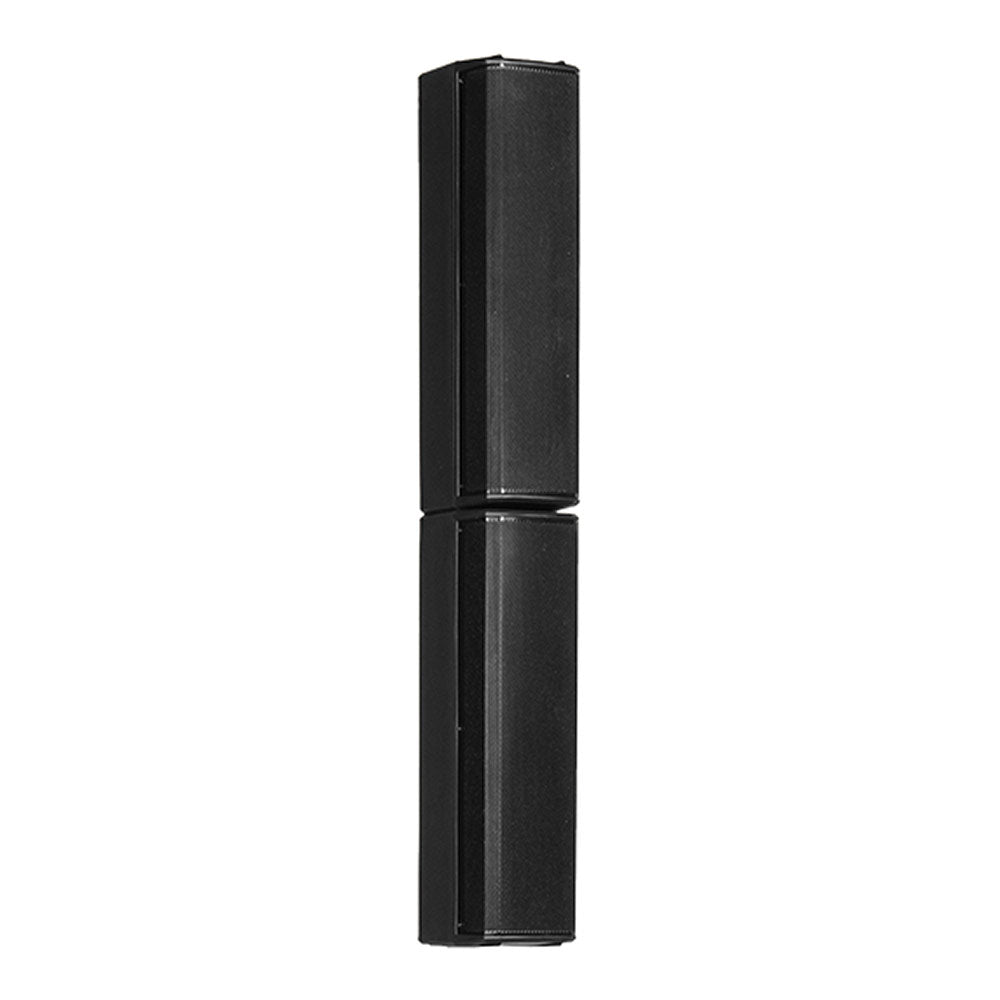

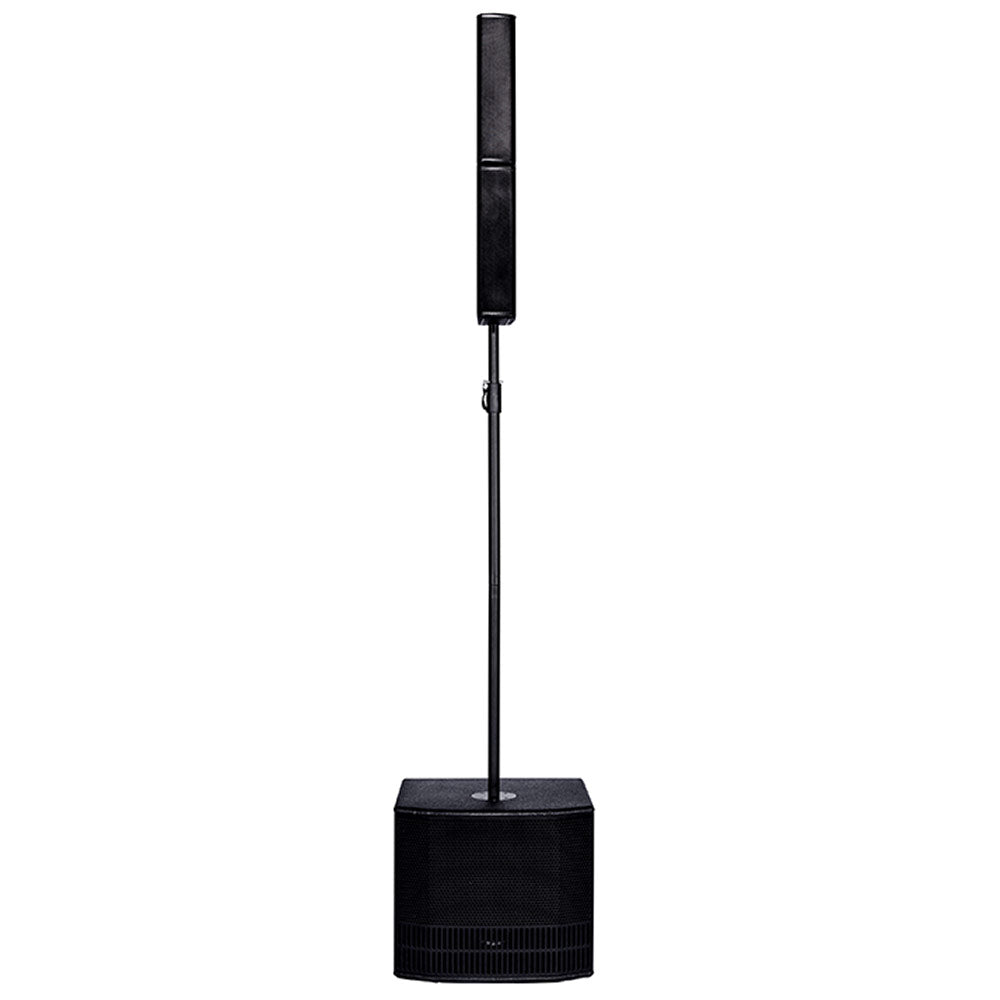

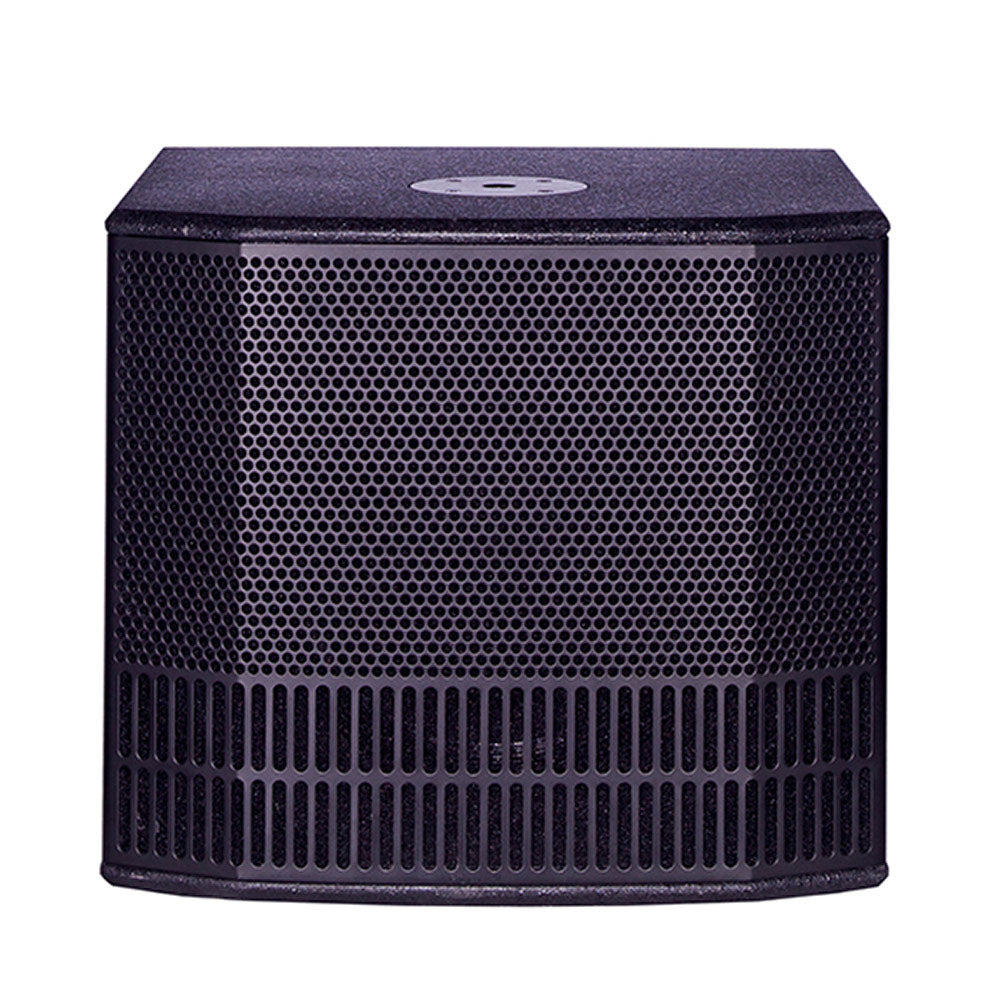

802: 1 ES-SUB 802 subwoofer unit + 1 ES-TOP A satellite + 1 ES-TOP B satellite
Features:
- Easy transport and installation - it can be installed in less than one minute
- Optimised acoustic coverage of 95x65 degrees
- Medium to high-frequency section featuring a satellite with an innovative shape

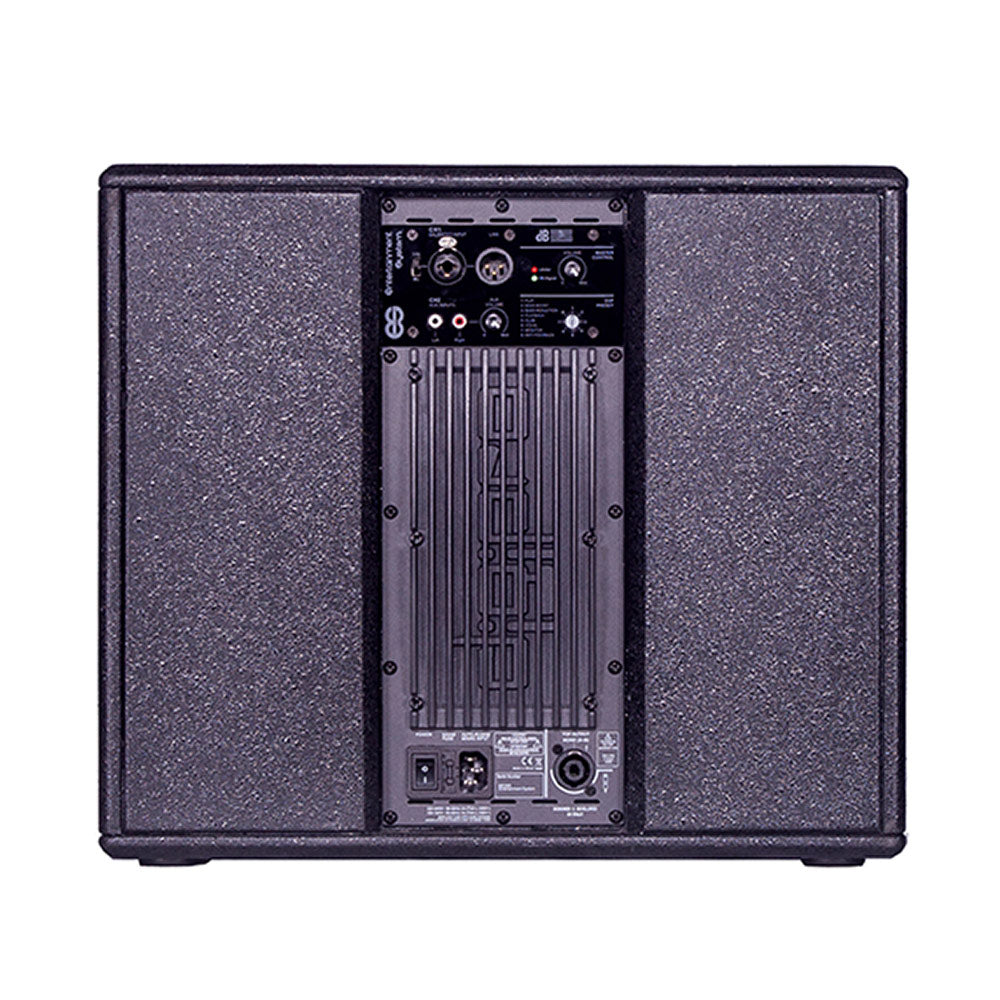

- Versatility of connections (LINE/MIC combo input, RCA stereo input, LINK output)
| Type | 2-way active system consisting of two full-range tops and a subwoofer |
| Frequency Response | 44 - 15000 Hz (-10dB) |
| Max SPL | 124 dB |
| Amp Technology | Digipro G3 |
| Amp Class | Class - D |
| Amplification Power | 1200 W |
| Controls | 1 Rotary control for pre-sets, 1 LED monitoring the input audio signal |
| Internal Controller | DSP 24 bit/48 kHz |
| System Settings | Selectable pre-defined settings |
| Limiter | Dual active, Peak, RMS, Thermal |
| Inputs | 1x Combo (XLR/Jack) balanced/unbalanced + 1 RCA stereo input |
| Outputs | 1x XLR link OUT, balanced |
| Handles | 2, lateral (in the subwoofer) |
| Installation on Pole | the supply includes 2 poles having a diameter of 25 mm, with M20 threading, one of which telescopic |
| Satellite Height | 3.74 inch |
| Satellite Depth | 13.98 inch |
| Subwoofer Width | 13.8 inch |
| Subwoofer Height | 15.7 inch |
| Subwoofer Depth | 16.9 inch |
| Satellite Weight | 4.19 lbs |
| Subwoofer Weight | 36.16 lbs |
The ES 602-802 bi-amp system series is easy to transport, while providing excellent acoustic performance. The subwoofer section is equipped with a 10" cone for ES 602 and with a 12" cone for ES 802; this ensures a consistency at low frequencies which is not what one would expect from such a compact system. The tops of both models have been designed using 4 3" transducers, in an optimised inner layout. This ensures an effective acoustic coverage in different usage contexts, indoors and outdoors. The powerful DSP and the particular flexibility of the inputs also ensure great versatility; that's why this series is the perfect choice for those who wish a compact system, easy to transport but providing powerful PA amplification.
802: 1 ES-SUB 802 subwoofer unit + 1 ES-TOP A satellite + 1 ES-TOP B satellite
Features:
- Easy transport and installation - it can be installed in less than one minute
- Optimised acoustic coverage of 95x65 degrees
- Medium to high-frequency section featuring a satellite with an innovative shape
- Versatility of connections (LINE/MIC combo input, RCA stereo input, LINK output)
| Type | 2-way active system consisting of two full-range tops and a subwoofer |
| Frequency Response | 44 - 15000 Hz (-10dB) |
| Max SPL | 124 dB |
| Amp Technology | Digipro G3 |
| Amp Class | Class - D |
| Amplification Power | 1200 W |
| Controls | 1 Rotary control for pre-sets, 1 LED monitoring the input audio signal |
| Internal Controller | DSP 24 bit/48 kHz |
| System Settings | Selectable pre-defined settings |
| Limiter | Dual active, Peak, RMS, Thermal |
| Inputs | 1x Combo (XLR/Jack) balanced/unbalanced + 1 RCA stereo input |
| Outputs | 1x XLR link OUT, balanced |
| Handles | 2, lateral (in the subwoofer) |
| Installation on Pole | the supply includes 2 poles having a diameter of 25 mm, with M20 threading, one of which telescopic |
| Satellite Height | 3.74 inch |
| Satellite Depth | 13.98 inch |
| Subwoofer Width | 13.8 inch |
| Subwoofer Height | 15.7 inch |
| Subwoofer Depth | 16.9 inch |
| Satellite Weight | 4.19 lbs |
| Subwoofer Weight | 36.16 lbs |
