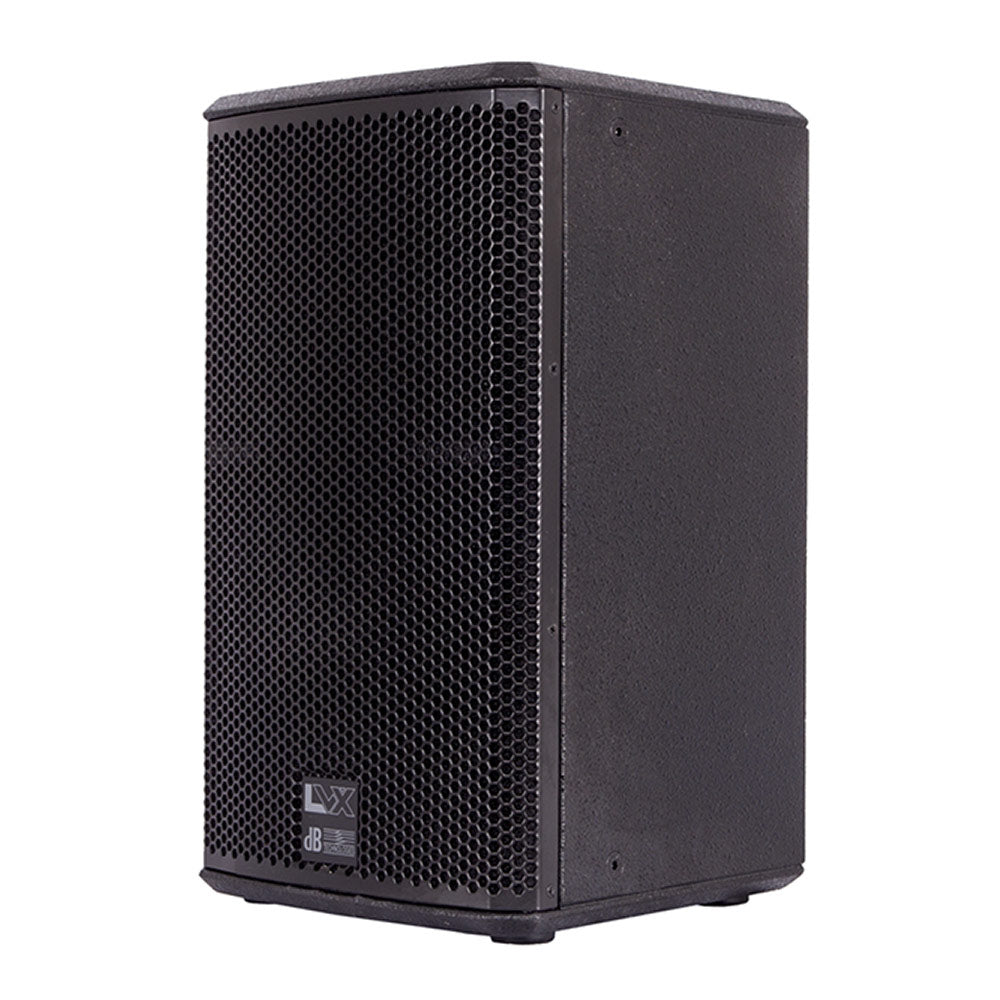

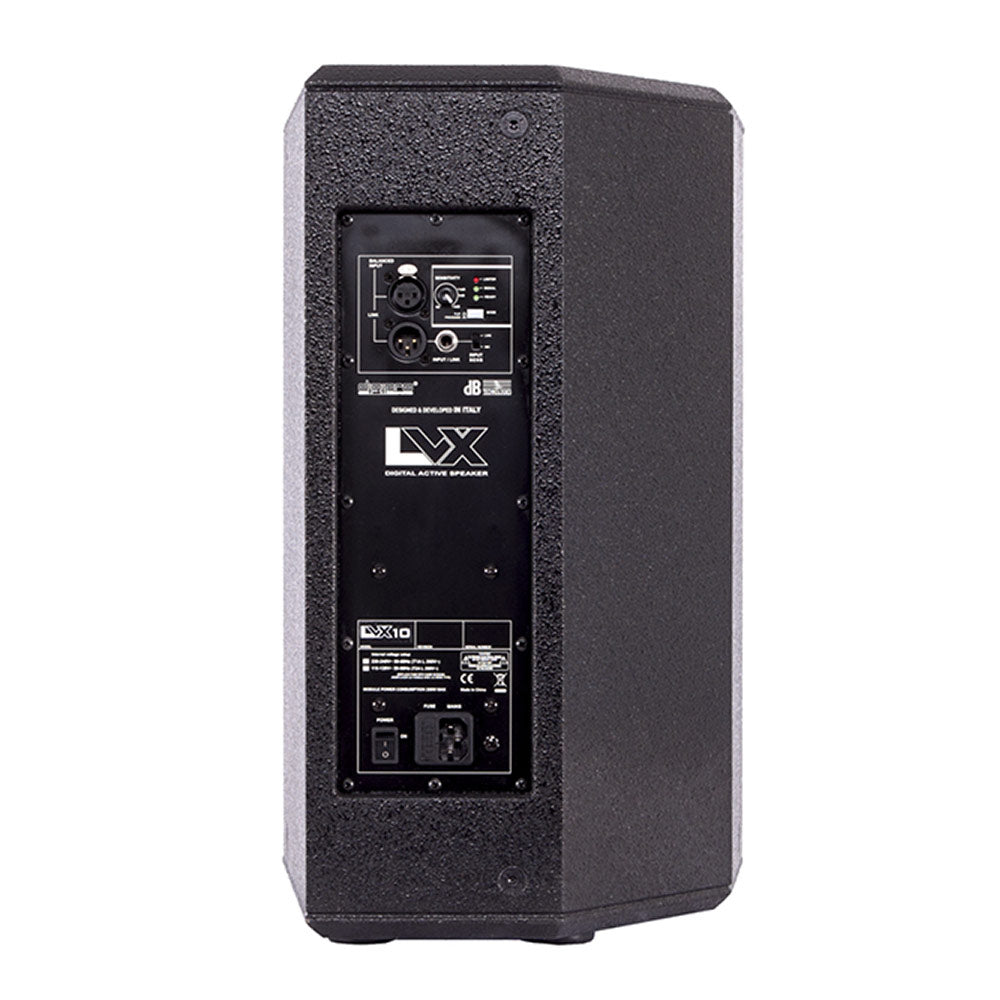

dBTechnologies LVX 10 - 2 Way Active Speaker with Bi-Amp Power - Black

  • Dale #:

    DBTE-LVX10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

LVX 10 bi-amped active speaker is equipped with a DIGIPRO amplifier delivering 400W (Power PRG). LVX 10 active two-way speaker features a woofer 10” (voice coil 2”) and a driver 1” (voice coil 1”) on 90x70 degree horn. The speakers’ horizontal directivity is 90 degree by default factory setting. ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

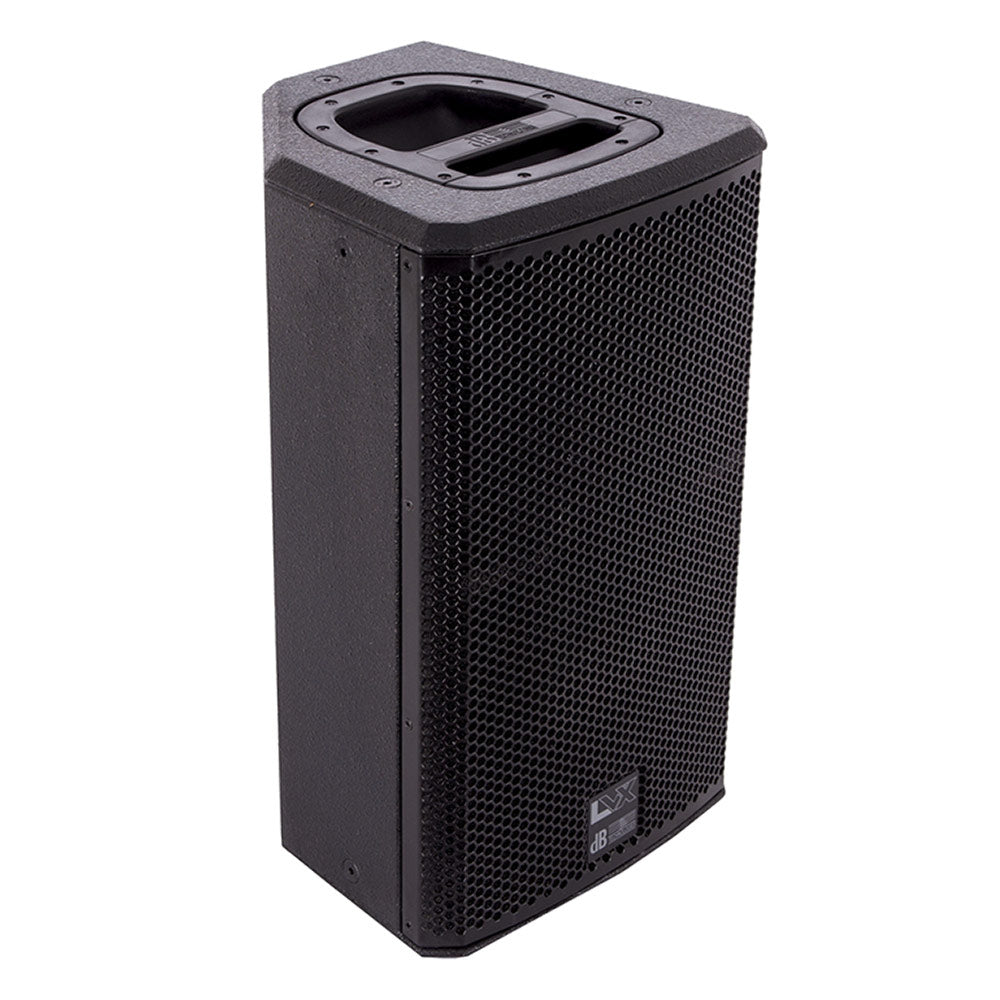

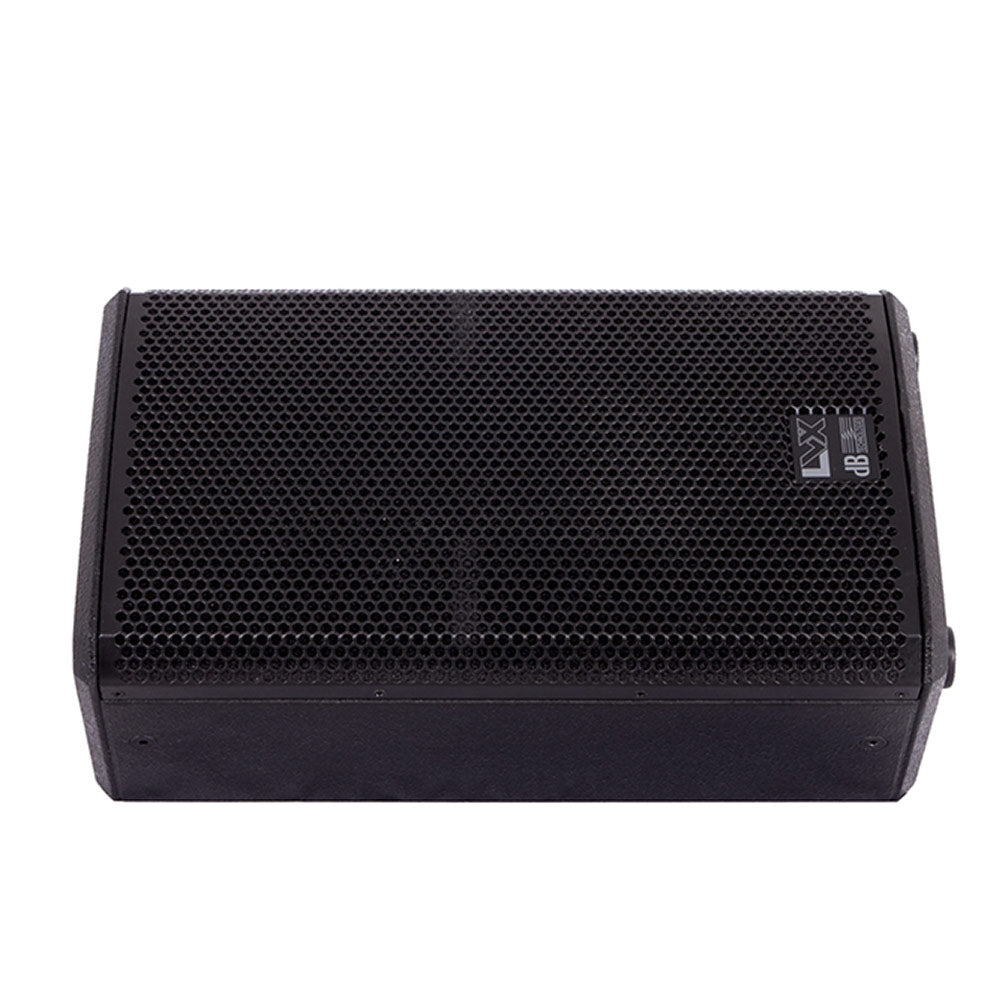

LVX 10 bi-amped active speaker is equipped with a DIGIPRO amplifier delivering 400W (Power PRG). LVX 10 active two-way speaker features a woofer 10” (voice coil 2”) and a driver 1” (voice coil 1”) on 90x70 degree horn. The speakers’ horizontal directivity is 90 degree by default factory setting. The speaker is made of 12mm plywood, the one top plastic handle and the 12 M8 threads located on the sides and the back of the speaker are enabling easy transport and installation. The speaker has been designed to be used also as stage monitor (40 degree angle), by rotating the horn you can maintain the same audio coverage angle of high frequencies also when the speaker is used as monitor. In the bottom of the box there is a standard pole mount cup (D36mm). Balanced inputs can be used to connect balanced or unbalanced microphones or audio sources at line level (0dB) (eg. preamplifier, mixer, …) The balanced connector is connected in parallel and can be used to send the audio signal to other amplified speakers, recorders or supplementary amplifiers.

The speakers of LVX series use digital amplifiers DIGIPRO series last generation. These highly efficient amplifiers provide high power with limited weight and dimension. Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan. The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover between the acoustic components, the frequency response, the limiter, and the acoustic alignment. A selector enables to select one of two different equalizations - “FLAT” or “PROCESSED“ - to provide high versatility for the different applications. The amplifiers DIGIPRO for LVX 12 and LVX 15 speakers use power supplies featuring SMPS (Switched-Mode Power Supplies) technology. This technology increases power supply efficiency and minimizes its weight.

More +

Product Specs

System

Active Bi-Amp

Amplifier Type

Digital - Class D

DIGIPRO G2 Technology

Power PRG 400W
Peak Power

800W

Frequency Response

(-6dB) 70Hz-19KHz

(-10dB) 60Hz-20KHz

SPL 125 dB max
Limiter Peak, RMS, Thermal, limiters

Input Impedence (MIC / LINE)

2,2Kohm/20Kohm

Dimensions (L x H x P) 11.81x18.90x11.81in
Weight 29.76 lbs
Audio conversion AD / DA 24bit/48KHz
Volume Control Digital
