dBTechnologies SUB 615 Active 15-Inch Subwoofer

  • Dale #:

    DBTE-SUB615
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

SUB615 is a bass-reflex active subwoofer featuring a 600W RMS Class D SMPS Power Amplifier and is equipped with a 15” transducer. The system delivers outstanding sound pressure levels (up to 131dB) in spite of its compact housing, while providing a clean, impressively precise low-end reproductio... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

SUB615 is a bass-reflex active subwoofer featuring a 600W RMS Class D SMPS Power Amplifier and is equipped with a 15” transducer.

The system delivers outstanding sound pressure levels (up to 131dB) in spite of its compact housing, while providing a clean, impressively precise low-end reproduction.

Sub 600s’ outstanding audio performance allow user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to a balanced Xover signal to left and right speakers.

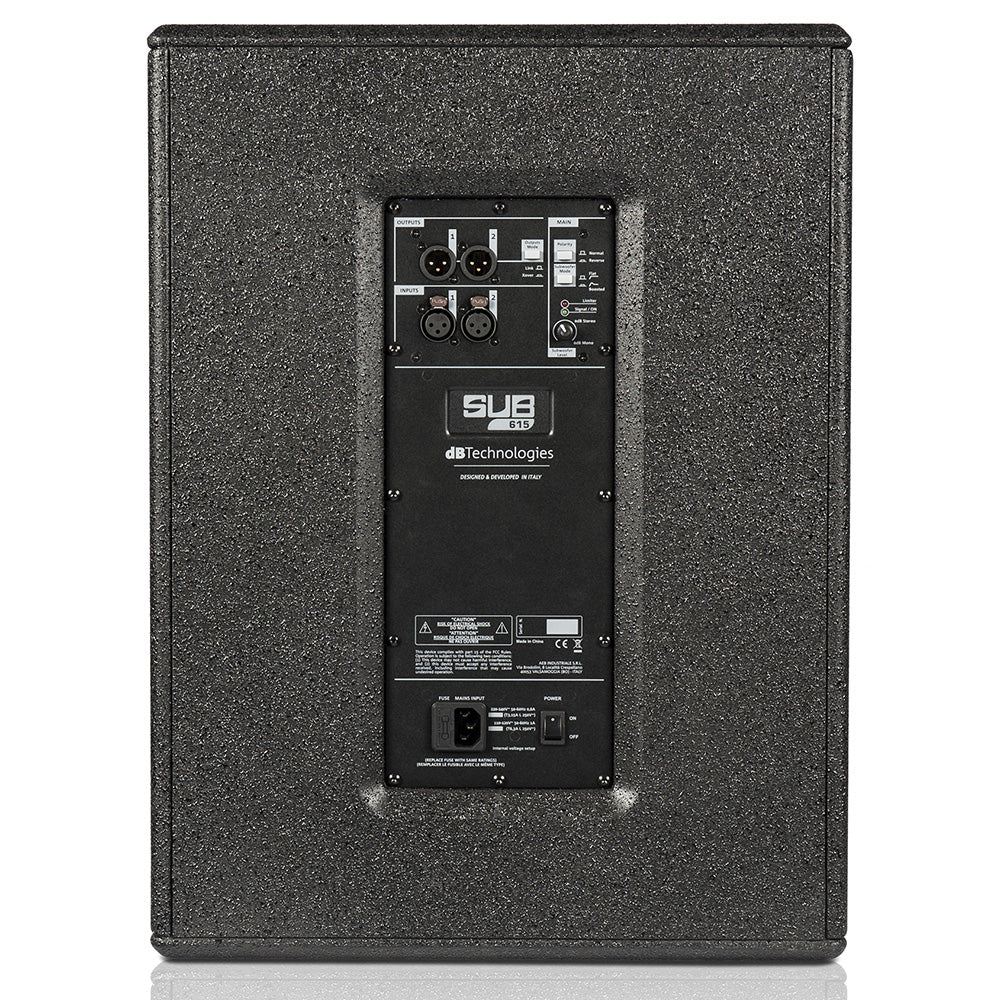

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or Xover).

Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch.

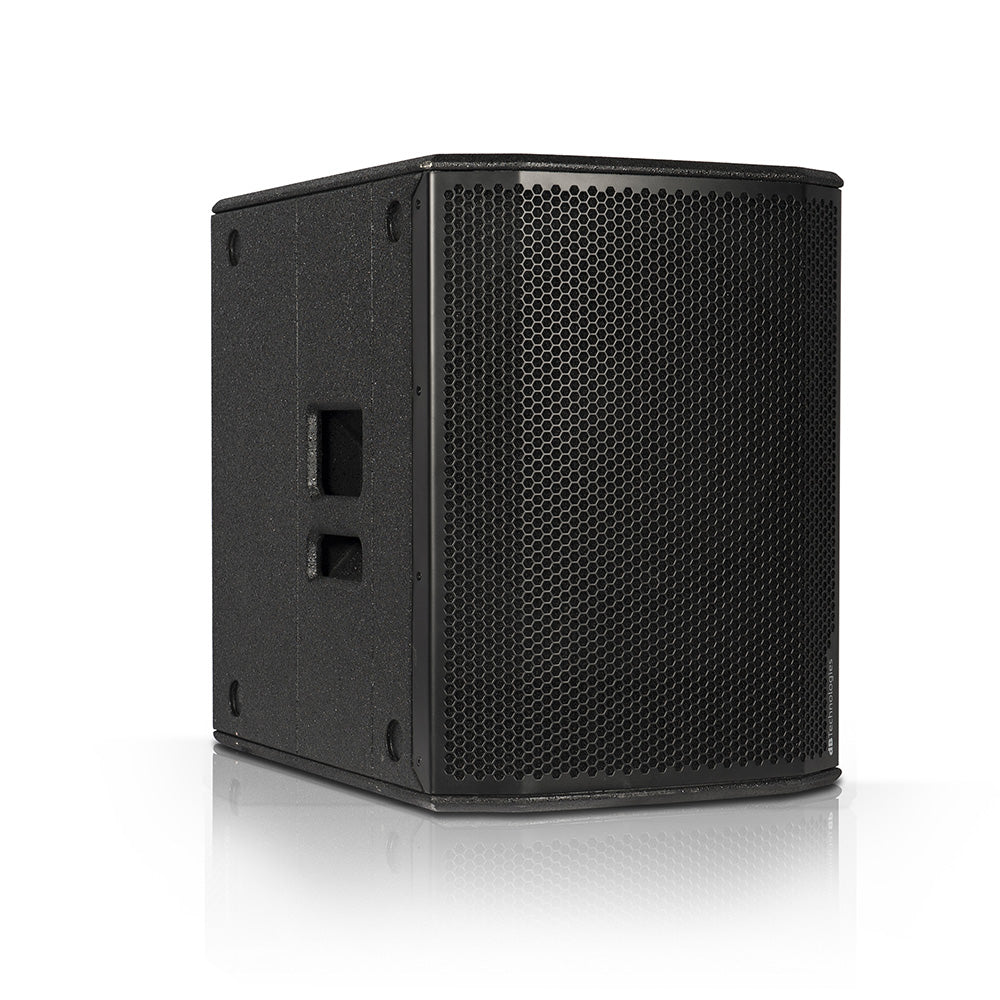

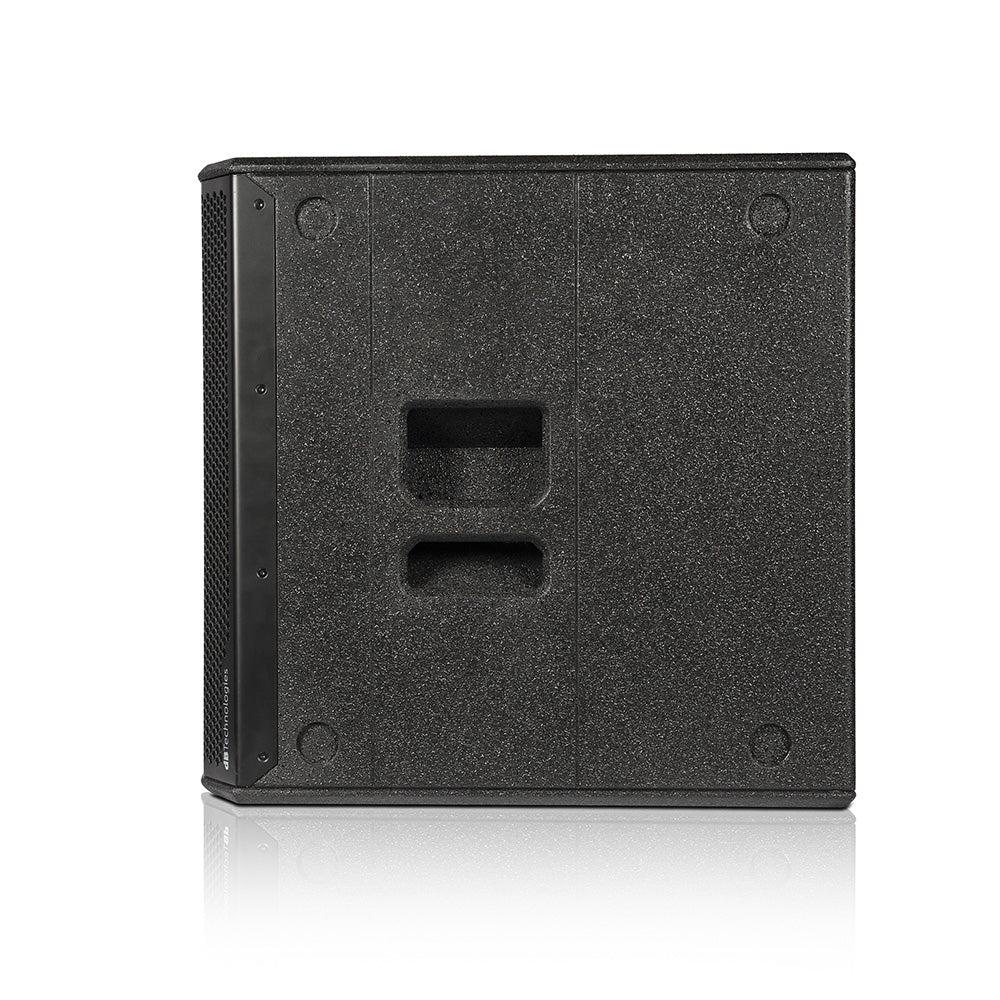

The series comes with a full grille design in a lightweight (25 kg) wood cabinet strengthened with a hardwearing, scratch-resistant black covering. Side handles enhance portability. The design of the top side eases subs stacking for larger systems and features a M20 pole mount thread to stack full-range speakers.

Features:

  • 600 W RMS Class D AMP
  • Selectable Stereo Balanced Input
  • Link or Xover Balanced Stereo Output Mode
  • Compact and sturdy wood cabinet
  • Lightweight
  • Polarity Switch
  • FLAT or BOOST Mode Switch

More +

Product Specs

Speaker Type Active Subwoofer
Acoustical data
Frequency Response [-10dB] 42 - 124 Hz
Max SPL (1 m) 131 dB
Directivity omnidirectional
LF 15"
LF Voice Coil 2.5"
Amplifier
Amp Technology SMSP digital amplifier
Amp Class Class D
RMS Power 600 W
Peak Power 1200 W
Processor
Controller 28/56 bit DSP
Limiter Peak, Thermal, RMS
Controls Subwoofer level, Outputs mode, Polarity, Subwoofer mode
Input
Signal Input 2x XLR (balanced)
Signal Output 2x XLR (balanced)
Mechanics
Housing Plywood
Grille Full metal grid
Pole Mount M20
Width 430 mm (16.92 in)
Height 580 mm (22.83 in)
Depth 600 mm (23.62 in)
Weight 25.5 kg (56.22 lbs)
