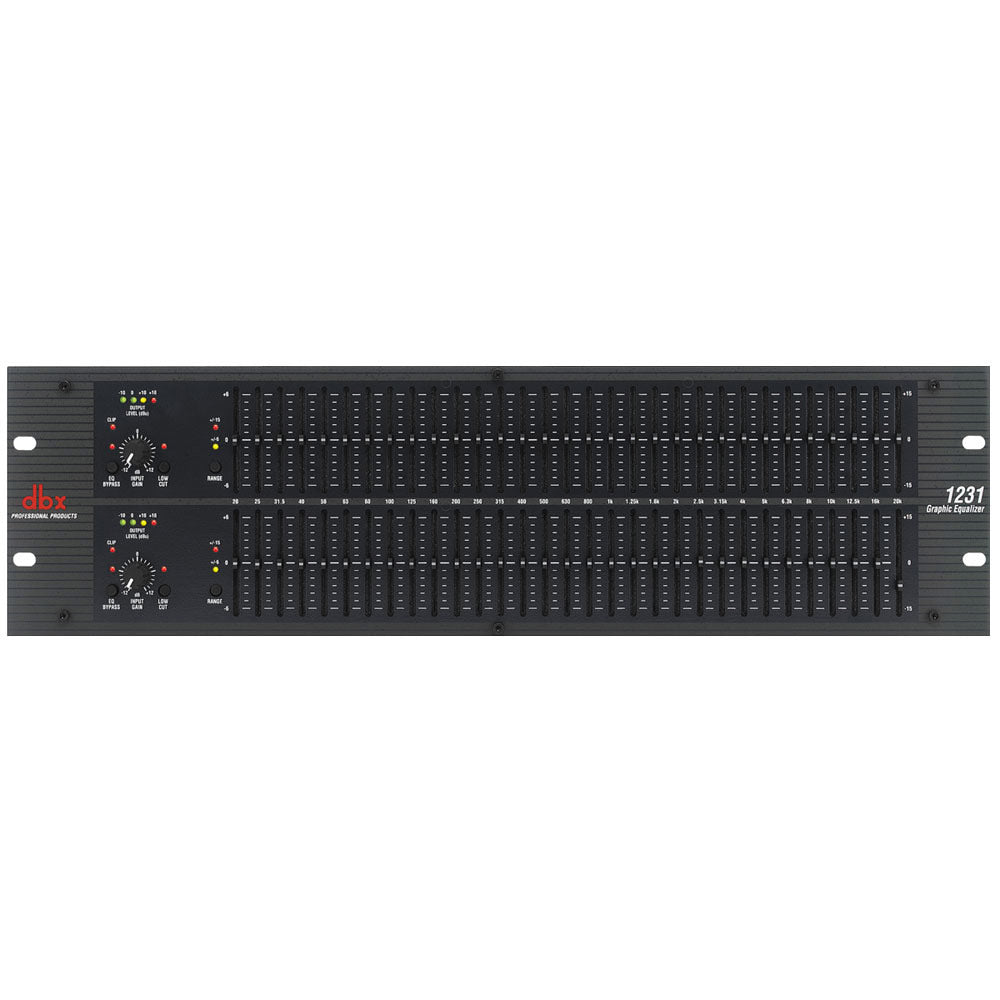

DBX 1231 Dual 31 Band Graphic Equalizer


  • Dale #:

    DBX-1231
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier.

Features

  • Switchable boost/cut ranges of ±6 or ±15 dB
  • Electronically balanced/unbalanced inputs
  • Servo balanced/unbalanced outputs
  • RF filtered inputs and outputs
  • XLR, Barrier Strip, and 1/4" TRS connectors
  • -12dB/+12dB input gain range
  • 18dB/octave 40Hz Bessel low-cut filter
  • Chassis/signal ground lift capability
  • Internal power supply transformer
  • Power-off hardwire relay bypass with 2-second power-up delay

The dbx 12 Series Equalizers were precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2 second power up delay were steps our engineers took to ensure compatibility for all installations. Only the best components were utilized, yielding a 10Hz to 50kHz frequency response, greater than 90dB SNR (ref +4dBu), less than 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of less than -80dB from 20Hz to 20kHz. All this attention to detail is contained in a 3U steel/aluminum chassis.

More +

Product Specs

INPUT
Connectors1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
TypeElectronically balanced/unbalanced, RF filtered
ImpedanceBalanced 40 kOhm, unbalanced 20 kOhm
Max Input Level>+21dBu balanced or unbalanced
CMRR>40dB, typically >55dB at 1kHz
OUTPUTS
Connectors1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
TypeImpedance-balanaced/unbalanced, RF filtered
ImpedanceBalanced 200 ohm, unbalanced 100 ohm
Max Output Level>+21dBu balanced/unbalanced into 2 kOhm or greater
>+18dBm balanced/unbalanced (into 600 ohm)
SYSTEM PERFORMANCE
Bandwidth20Hz to 20kHz, +0.5/-1dB
Frequency Response<10Hz to >50kHz, +0.5/-3dB
+/-15dB range +/-6dB range
Dynamic Range109dB 115dB
Signal-to-Noise90dB, 97dB
THD + Noise<0.005%
Interchannel Crosstalk<-80db, 20Hz to 20kHz
FUNCTION SWITCHES
EQ BypassBypasses the graphic equalizer section in the signal path
Low Cut (recessed)Activates the 40Hz 18dB/octave Bessel high-pass filter
Range (recessed)Selects either +/- 6dB or +/- 15dB slider boost/cut range
INDICATORS
Output Level Meter4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and
+18dBu
EQ Bypass1 LED: Red
Clip1 LED: Red
Low Cut1 LED: Red
+/-6dB1 LED: Yellow
+/-15dB1 LED: Red
POWER SUPPLY
Operating Voltage00VAC 50/60Hz, 120VAC 60Hz 230VAC 50/60Hz
Power consumption24W
Main ConnectionIEC receptacle
PHYSICAL
Dimensions5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm)
WeightÊ10.6 lbs.
Shipping Weight11.6 lbs.
