DBX 131s Silver 31 Band Single Channel Equalizer


  • Dale #:

    DBX-131S
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

When the pros need an EQ, they turn to dbx. With a proven track record that spans four decades, dbx® EQs are the industry standard for touring, studios, and audio installations. With the dbx heritage of revered pro EQs, the 131s meets the needs of the most demanding sound reinforcement environmen... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

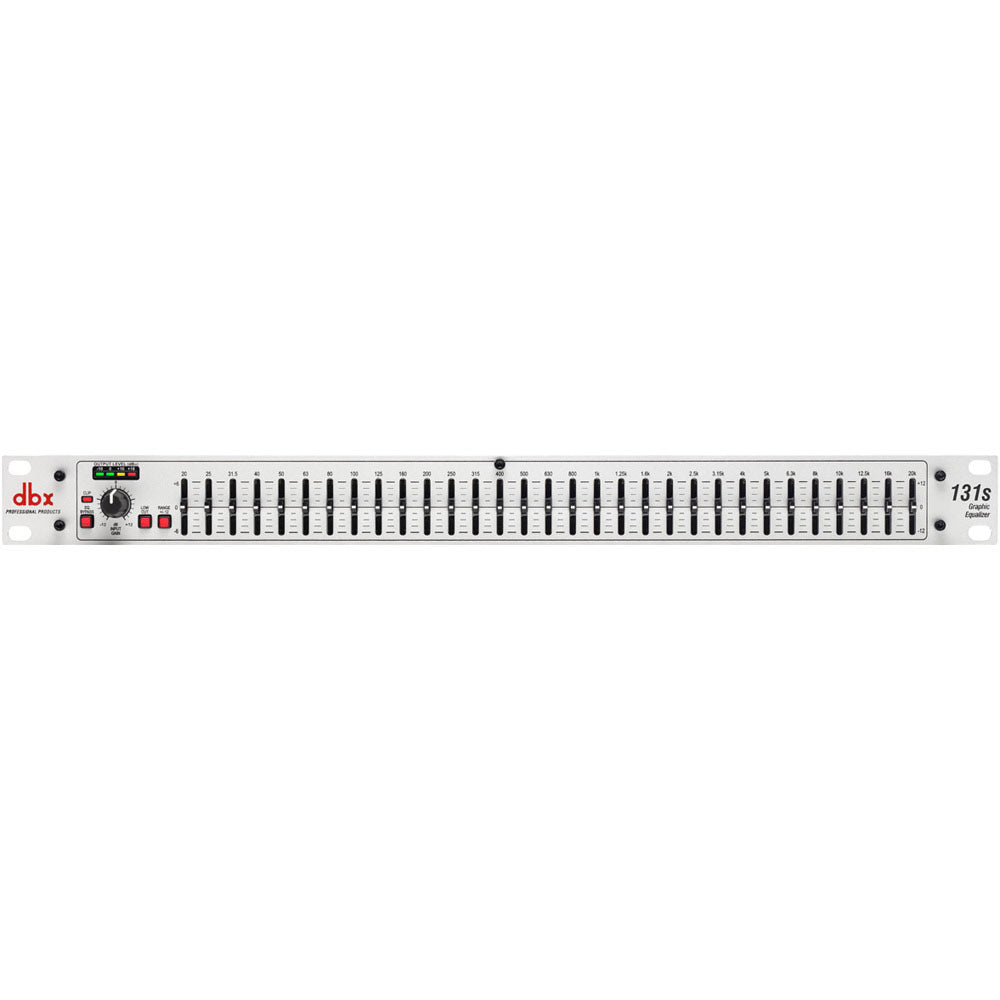

When the pros need an EQ, they turn to dbx. With a proven track record that spans four decades, dbx® EQs are the industry standard for touring, studios, and audio installations. With the dbx heritage of revered pro EQs, the 131s meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.

The dbx 131s includes one 31-band channel of 1/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 131s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Sure to find a home in the studio, on tour and with installed sound venues, the dbx 131s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

Features:

  • 31-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of ±6 or ±12 dB
  • Front panel bypass switch
  • ±12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS Inpts and Outputs
  • Frequency Repsonse of <10Hz to >50kHz
  • Dynamic range of greater than 108dB

More +

Product Specs

INPUTS
Connectors 1/4 TRS, female XLR (pin 2 hot)
Type Electronically balanced/unbalanced, RF filtered
Impedance Balanced 40k ohm, unbalanced 20k ohm
Max Input Level >+21dBu balanced or unbalanced
CMRR >40dB, typically >55dB at 1kHz
OUTPUTS
Connectors 1/4 TRS, male XLR (pin 2 hot)
Type Impedance-balanaced/unbalanced, RF filtered
Impedance Balanced 100 ohm, unbalanced 50 ohm
Max Output Level >+21dBu balanced/unbalanced into 2k ohm or greater
>+18dBm balanced/unbalanced (into 600 ohm)
SYSTEM PERFORMANCE
Bandwidth 20Hz to 20kHz, +0.5/-1dB
Frequency Response <10Hz to >50kHz, +0.5/-3dB
Dynamic Range Typicall >112dB
Signal-to-Noise Typically >95dB
THD+Noise

<0.003%
Interchannel Crosstalk <-90dB, 20Hz to 20kHz
FUNCTION SWITCHES
EQ Bypass Bypasses the graphic equalizer section in the signal path
Low Cut Activates the 50Hz 12dB/octave high-pass filter
Range Selects either +/- 6dB or +/- 12dB slider boost/cut range
POWER SUPPLY
Operating Voltage 100VAC-240VAC 50/60Hz
Power consumption 15W
Mains Connection IEC receptacle
PHYSICAL
Weight 4.8 lbs.(2.2 kg) Shipping weight 6.2 lbs.(2.8kg)
Dimensions 1.75 (4.4cm) H x 6(15.24cm) D x 19 (48.26cm) W

More +
