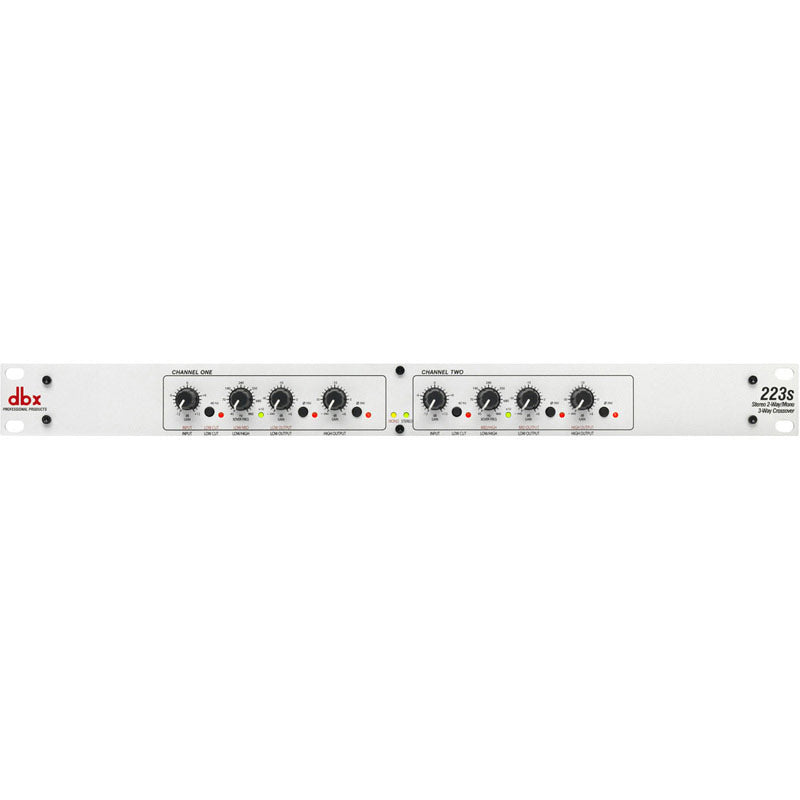

DBX 223xs Silver Stereo 2-Way/Mono 3-Way Crossover with XLR


  • Dale #:

    DBX-223XS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The secret to making speakers sound great lies with the crossover you use. With the dbx® 223xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 223xs uses precision filters to... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The secret to making speakers sound great lies with the crossover you use. With the dbx® 223xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 223xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

The dbx 223xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid click controls to the high quality XLR inputs and outputs.

Features:

  • Mode switch for stereo 2-way or mono 3-way operation
  • Low frequency summed (subwoofer) output
  • x10 range switch on both channels
  • 40Hz high pass (low cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • 24dB per octave Linkwitz-Riley filters (the professional standard)
  • Stereo/Mono status LEDs indicate the selected mode
  • dbx® 2 year parts and labor as standard
  • CSA NRTL/C approved
  • CE compliant

More +

Product Specs

INPUTS
Connectors XLR
Type Electronically balanced/unbalanced, RF filtered
Impedance Balanced 50k ohm, unbalanced 25k ohm
Max Input Level >+22dBu balanced or unbalanced
OUTPUTS
Connectors XLR
Type Impedance-balanaced/unbalanced, RF filtered
Impedance Balanced 60 ohm, unbalanced 30 ohm
Max Output Level >+20dBu balanced/unbalanced into 600 ohm or greater
SYSTEM PERFORMANCE
Bandwidth 20Hz to 20kHz, +0.0/-0.5dB
Frequency Response < 3 Hz to > 90 kHz, +0/-3 dB

Dynamic Range > 106 dB, unweighted, any output
Signal-to-Noise <-93dBu, unweighted (22kHz measurement bandwidth)
THD+Noise

< 0.004% at +4 dBu, 1 kHz

< 0.04% at +20 dBu, 1 kHz

Interchannel Crosstalk <-80dB, 20Hz to 20kHz
Common Mode Rejection Ref: +4dBu, 22kHz measurement bandwidth
Interchannel Crosstalk <-80dB, 20Hz to 20kHz
Stereo Mode >94dB (Low Output)

>91dB (High Output)

Mono Mode >94dB (Low Output)

>93dB (Mid Output)

>91dB (High Output)

CROSSOVER FREQUENCIES
Stereo Mode Low/High 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

Mono Mode Low/Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

Filter Type Linkwitz-Riley, 24 dB/octave, state-variable

FUNCTION SWITCHES
Front Panel (Low Cut) Activates 40Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
Phase Invert Inverts the phase at the output, one switch per output

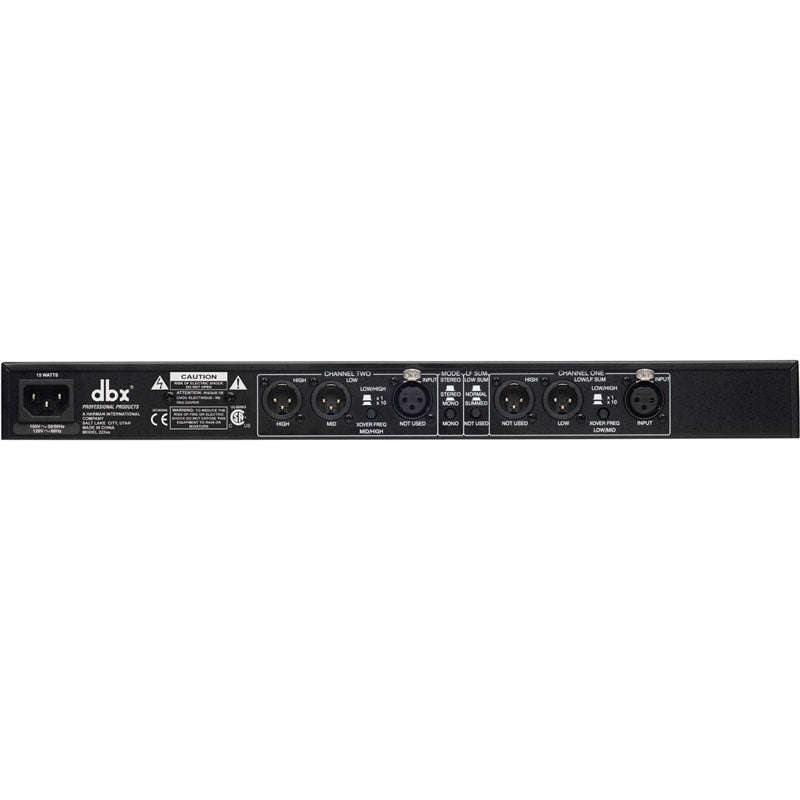

Rear Panel x10: Multiplies crossover frequency range by 10, one switch per channel

Mode: Selects stereo/mono and 2/3-way operation

LF sum: Selects normal (stereo) or mono-summed low frequency operation

INDICATORS
Stereo Operation Green LED
Mono Operation Yellow LED
Low Cut Red LED per channel
x10 Green LED per channel
Polarity Invert Red LED per output (3 per channel)
POWER SUPPLY
Operating Voltage 100VAC-240VAC 50/60Hz
Power consumption 15W
Mains Connection IEC receptacle
Operating Temperature 32°F to 113°F (0°C to 45°C)
PHYSICAL
Weight Net weight: 3.7 lbs. (1.7 kg) Shipping weight: 5.4 lbs. (2.5 kg)
Dimensions 1.75 x 6.9 x 19 (4.45 cm x 17.5 cm x 48.26 cm
