DBX CT2 Portable Cable Tester

  • Dale #:

    DBX-CT2
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

We all know how frustrating and time consuming it can be when your audio cables fail. With the dbx CT2 cable testing unit you can now evaluate a large variety of your cables with ease. The CT2 offers many common connectors such as Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, & Banana. T... Read More

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

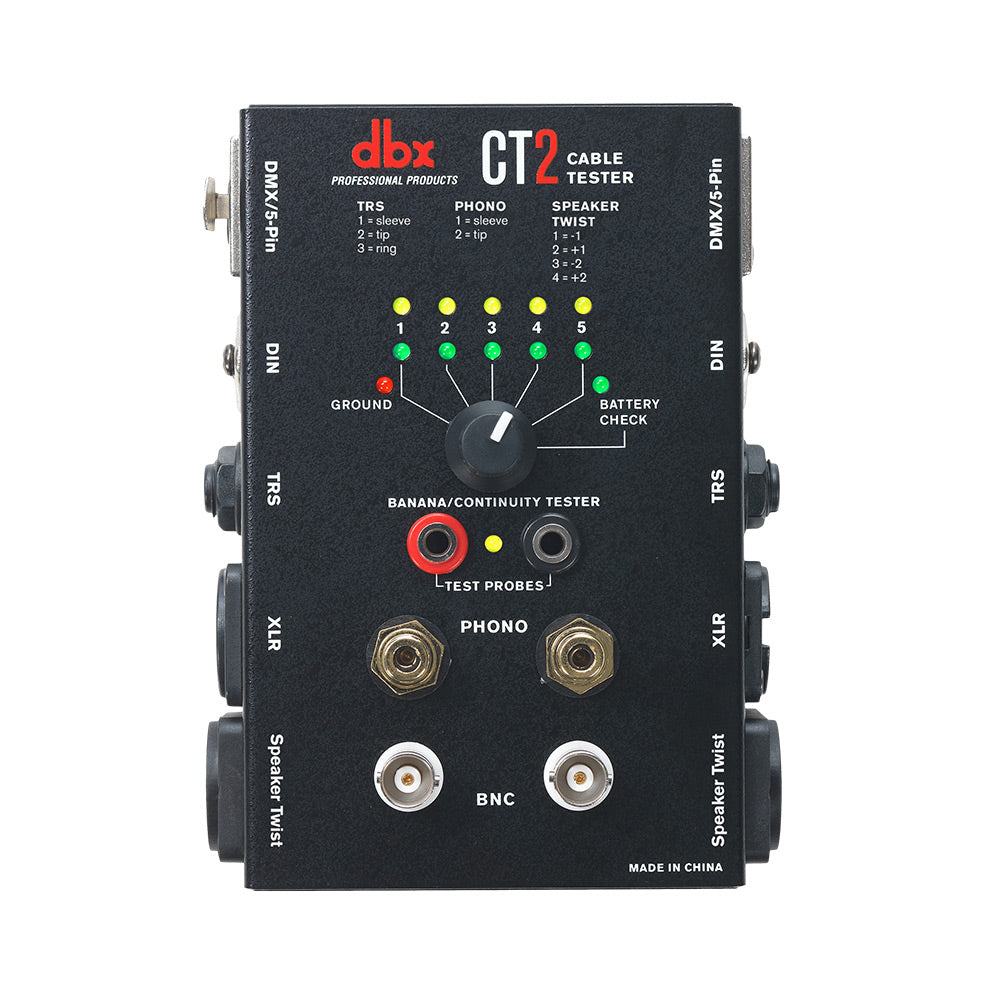

We all know how frustrating and time consuming it can be when your audio cables fail. With the dbx CT2 cable testing unit you can now evaluate a large variety of your cables with ease. The CT2 offers many common connectors such as Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, & Banana. The CT2 allows for testing cables even with different connectors at each end. For example, it is simple to test a TRS to XLR cable. With well illuminated LED indicators and a simple rotary dial, users can quickly establish whether a cable is wired and functioning correctly, or if it is dead and in need of repair.

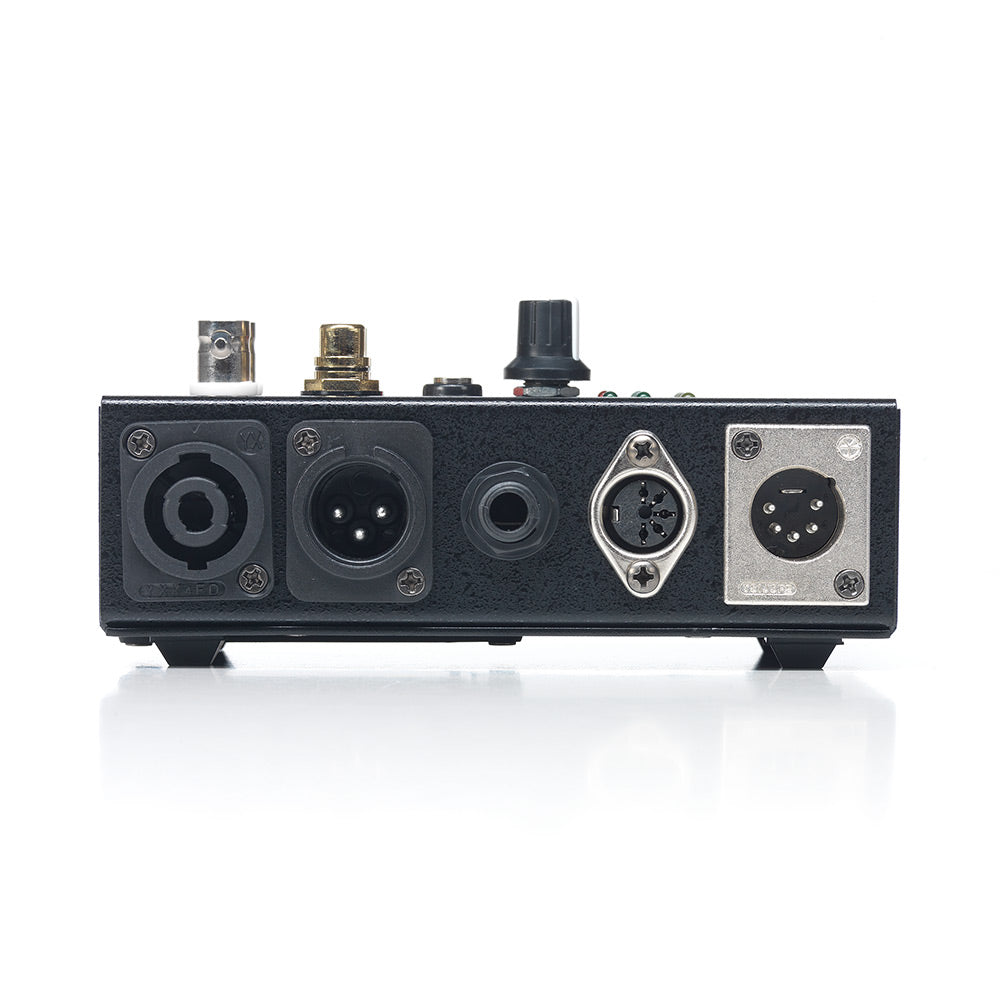

Features:

  • 6-position rotary selector with individual LED’s for up to five pins plus internal battery life check
  • ‘Banana’ connector continuity tester with beeper and LED indicator
  • Super-rugged construction for durability and longer life
  • (2) Speaker Twist connectors for testing of 4 pin->to pin connections
  • (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
  • (2) RCA Phono connectors for testing of 2 pin->to pin connections
  • (2) BNC connectors for testing of 2 pin->to pin connections
  • (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
  • (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
  • (2) 1/4” TRS connectors for testing of 3 pin->to pin connections
  • (2) Banana connectors for testing of 1 pin->to pin connections

More +

Product Specs

Power Requirements 9V battery (Battery not included)
Dimensions 3.5” (8.9cm) (W) x 5.5” (14cm) (L) x 1.5” (3.7cm) (H)
