DBX CT3 Advanced Cable Testing Unit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

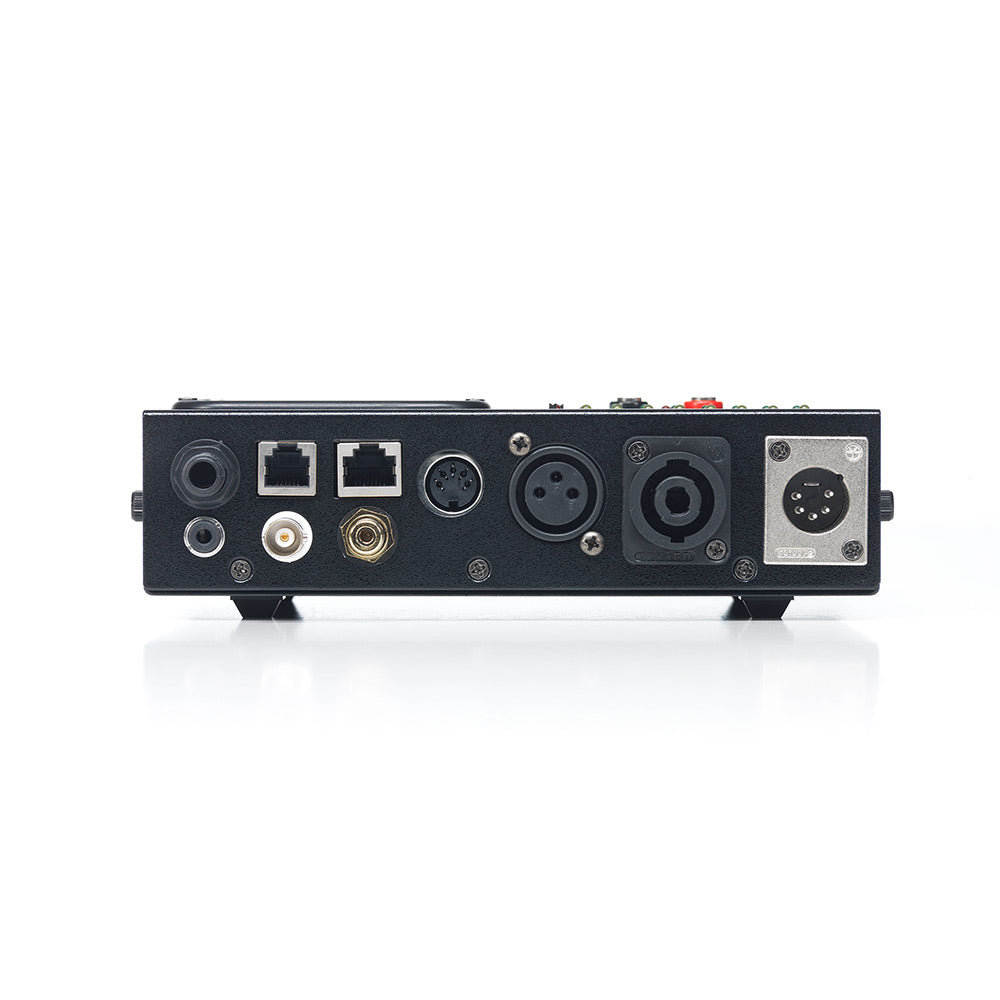

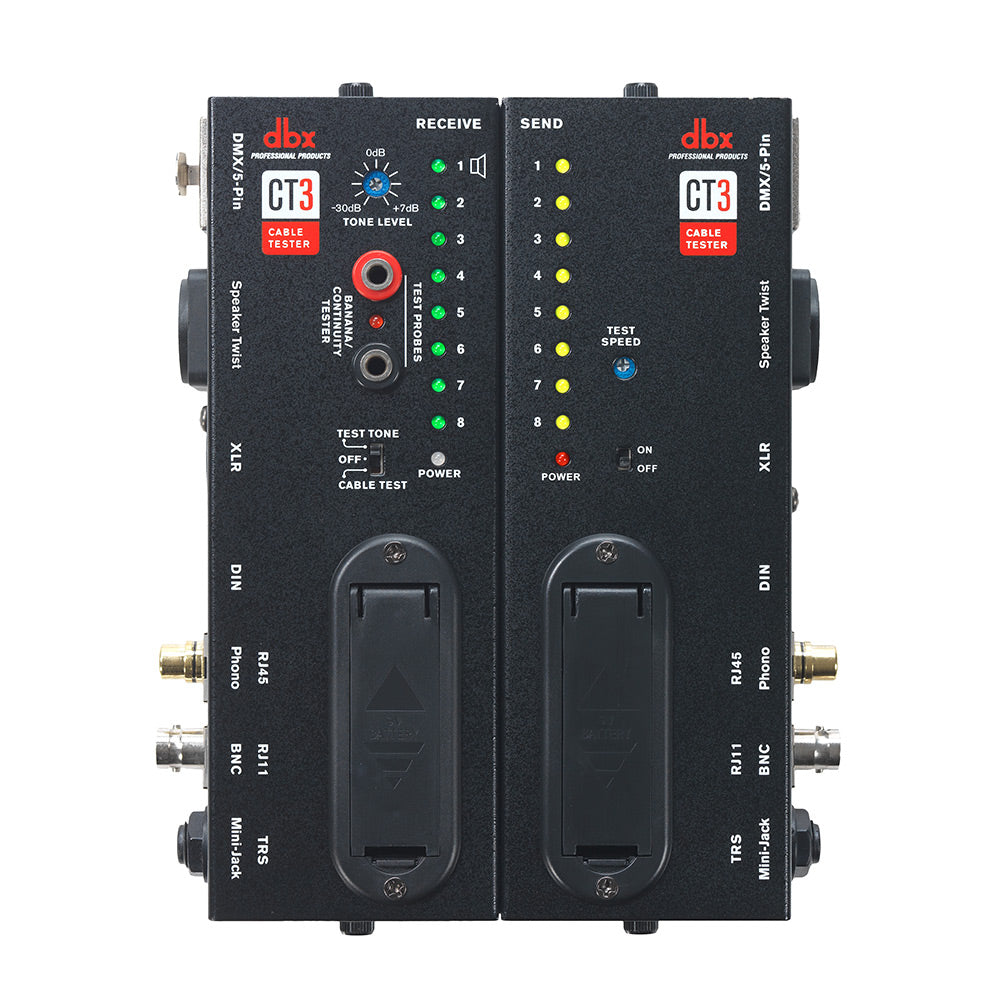

The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.
Features:
- Tests up to 8-pin cables
- 2 piece chassis for testing installed cables
- Test Tone Generator
- Allows connection between different format connectors with ease
- 'Banana' connector continuity tester with beeper and LED indicator
- Super-rugged construction for durability and longer life
- (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
- (2) BNC connectors for testing of 2 pin->to pin connections
- (2) RCA Phono connectors for testing of 2 pin->to pin connections
- (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
- (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
- (2) Speaker Twist connectors for testing of 4 pin->to pin connections
- (2) Banana connectors for testing of 1 pin->to pin connections
- (2) 1/4" (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections
- (2) RJ45 connectors for testing of 8P8C modular connections
- (2) 1/8" (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections
| Power Requirements | (2) 9V batteries, one per side (Batteries not included) |
| Dimensions | 3.5” (8.9cm) (W) x 5.5” (14cm) (L) x 1.5” (3.7cm) (H) |
The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.
Features:
- Tests up to 8-pin cables
- 2 piece chassis for testing installed cables
- Test Tone Generator
- Allows connection between different format connectors with ease
- 'Banana' connector continuity tester with beeper and LED indicator
- Super-rugged construction for durability and longer life
- (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
- (2) BNC connectors for testing of 2 pin->to pin connections
- (2) RCA Phono connectors for testing of 2 pin->to pin connections
- (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
- (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
- (2) Speaker Twist connectors for testing of 4 pin->to pin connections
- (2) Banana connectors for testing of 1 pin->to pin connections
- (2) 1/4" (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections
- (2) RJ45 connectors for testing of 8P8C modular connections
- (2) 1/8" (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections
| Power Requirements | (2) 9V batteries, one per side (Batteries not included) |
| Dimensions | 3.5” (8.9cm) (W) x 5.5” (14cm) (L) x 1.5” (3.7cm) (H) |
