Description
At dbx, when we do something, we do it right. So when we decided to create our new direct injection boxes, we didn't settle for the same old tired approach to direct box design. With our dbx name on the line, how could we? One look at our direct box will tell you that this is clearly different. W... Read MoreRetail Price: $183.97 Our Price: $149.00
Free Shipping (Continental US)
Suggested Accessories
Description

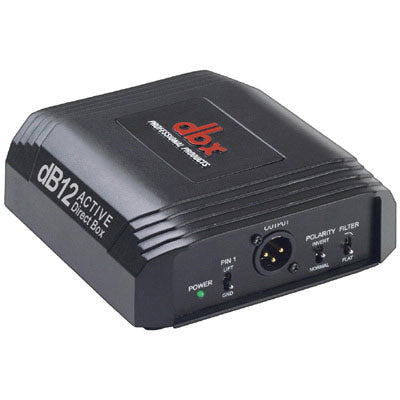

At dbx, when we do something, we do it right. So when we decided to create our new direct injection boxes, we didn't settle for the same old tired approach to direct box design. With our dbx name on the line, how could we? One look at our direct box will tell you that this is clearly different. With it's bullet-proof construction, and extraordinary audio performance to rival it's looks, finally there's a direct box worthy of the dbx name. Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source.
This box include a pad switch that accommodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound. As a professional, you don't have time for interference, so we've included a ground lift switch to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.More +
Product Specs
INPUT SECTION | |
Connector | 1/4 jack |
Impedance | 1M Ohm (0dB pad), 47k Ohm (20dB pad) 47k Ohm (40dB pad) |
Max Input Level | +10dBu (0dB pad), +30dBu (20dB pad), +50dBu (40dB pad) |
OUTPUT SECTION | |
Connector | 1/4 jack |
Main Output | 1 line level |
Impedance | 150 Ohm typical |
Max Output Level | +8dBu into 600 Ohm |
Dimensions | 5.82 L X 5.44 W X 2.20 H (148 x 138 x 56mm) |
Weight | 1.4 lbs / 0.65 kg |
