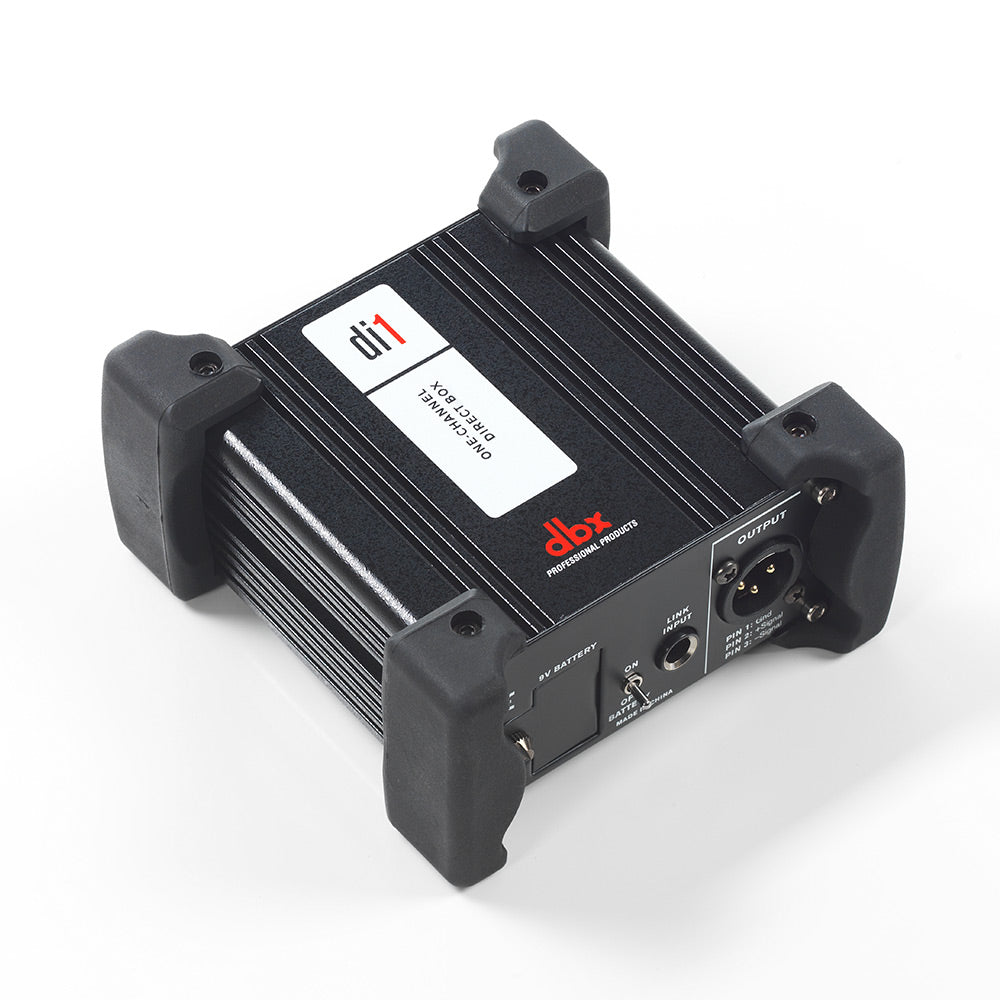

DBX DI1 Single Channel Active Direct Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise. Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone. Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.
Features:
- Level and impedance matching function
- Output impedance: > 600 Ohms
- Signal pass through connector
- Output connector: XLR balanced
- Battery LED indicator
- Distortion: (THD) < 0.005% at 1kHz, 0dBu
- Phantom power LED indicator
- Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
- Output Noise: <-100dB unweighted
- TS and XLR inputs and outputs
- Frequency response: 10Hz to 70kHz, +0dB/-3dB
- Attenuation control
- Phantom Power: +18 volts DC to +48 volts DC
- Ground lift switch
- Main/Standby: 9V battery
- Input Impedance: >250k Ohm
- Metal Chassis
| Input Impedance | > 250k Ohm |
| Max Input | +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB) |

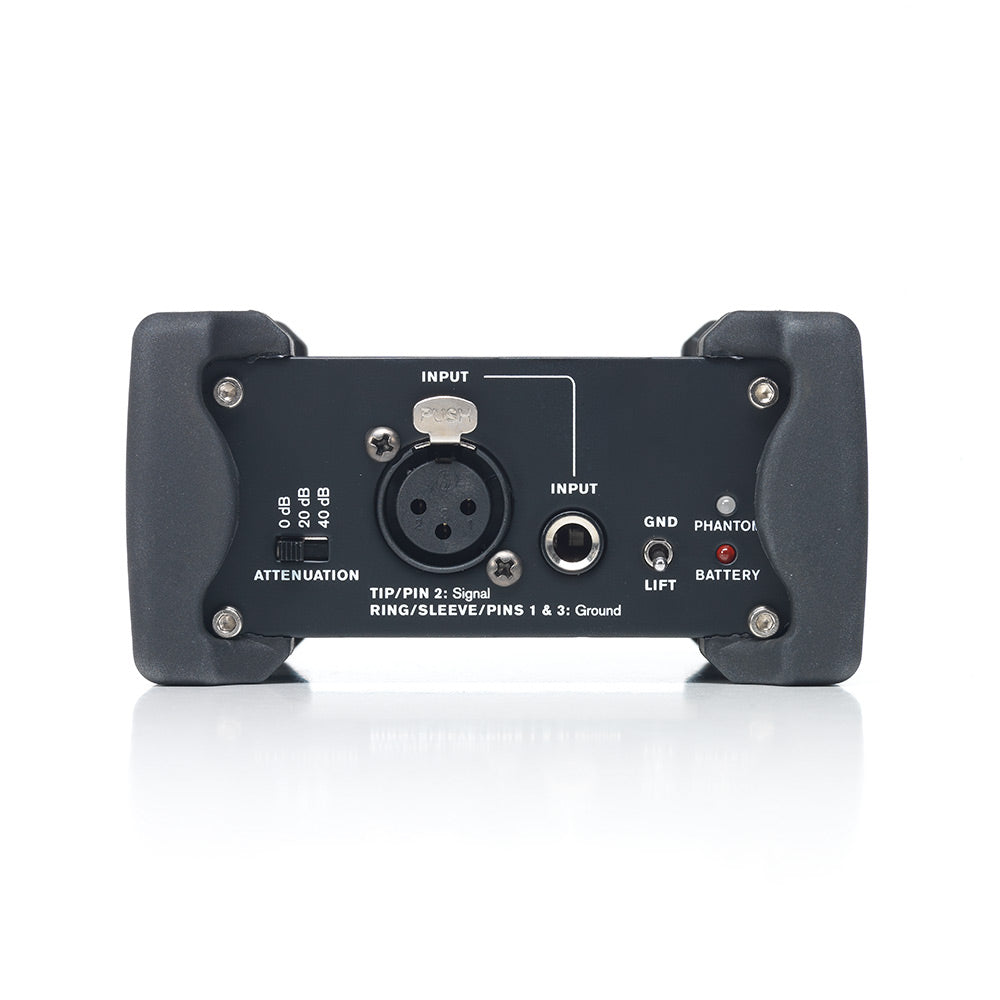

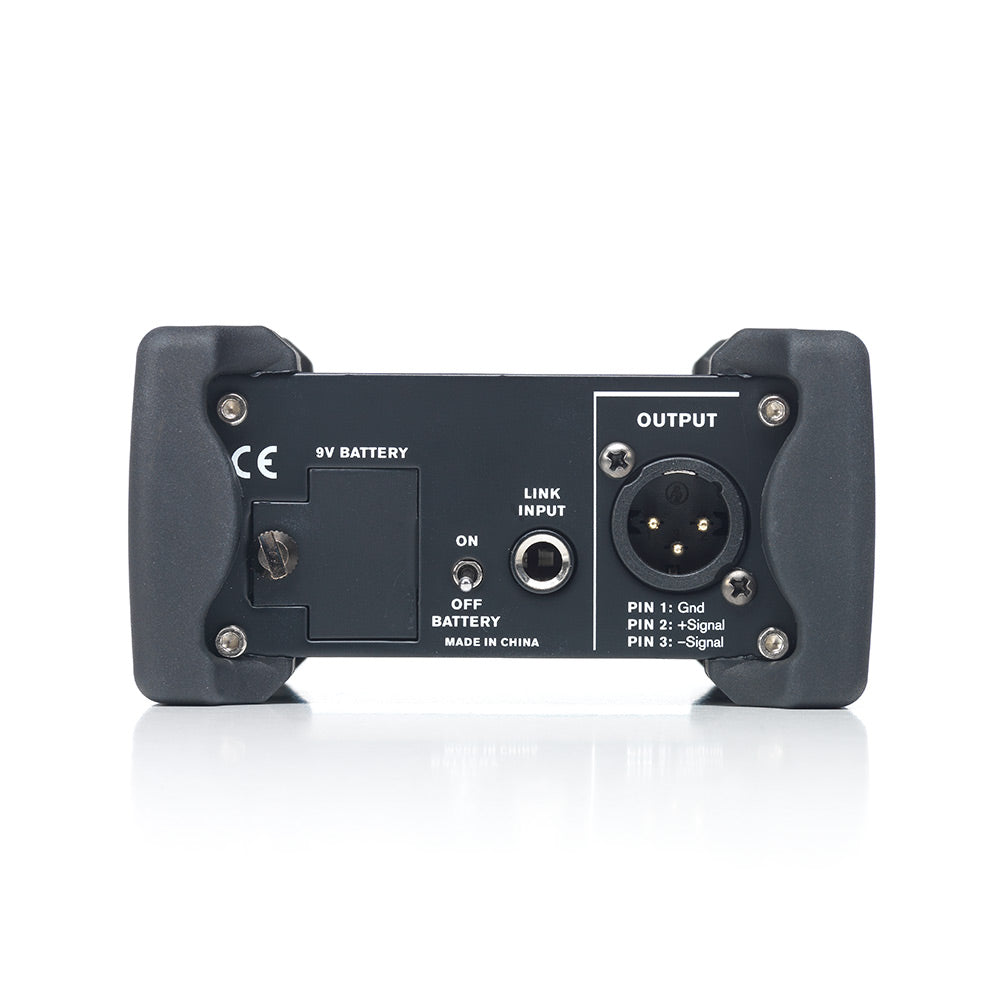

| Connectors | Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 / 3 Ground |
| Output Impedance | > 600 Ohms |
| Output Connectors | XLR balanced |
| Distortion | (THD) < 0.005% at 1kHz, 0dBu |
| Output Noise | <-100dB unweighted |
| Frequency Response | 10Hz to 70kHz, +0dB/-3dB |
| Main/Standby | 9 Volt battery |
| Phantom Power | +18 Volts DC to +48 Volts DC |
The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise. Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone. Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.
Features:
- Level and impedance matching function
- Output impedance: > 600 Ohms
- Signal pass through connector
- Output connector: XLR balanced
- Battery LED indicator
- Distortion: (THD) < 0.005% at 1kHz, 0dBu
- Phantom power LED indicator
- Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
- Output Noise: <-100dB unweighted
- TS and XLR inputs and outputs
- Frequency response: 10Hz to 70kHz, +0dB/-3dB
- Attenuation control
- Phantom Power: +18 volts DC to +48 volts DC
- Ground lift switch
- Main/Standby: 9V battery
- Input Impedance: >250k Ohm
- Metal Chassis
| Input Impedance | > 250k Ohm |
| Max Input | +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB) |
| Connectors | Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 / 3 Ground |
| Output Impedance | > 600 Ohms |
| Output Connectors | XLR balanced |
| Distortion | (THD) < 0.005% at 1kHz, 0dBu |
| Output Noise | <-100dB unweighted |
| Frequency Response | 10Hz to 70kHz, +0dB/-3dB |
| Main/Standby | 9 Volt battery |
| Phantom Power | +18 Volts DC to +48 Volts DC |
