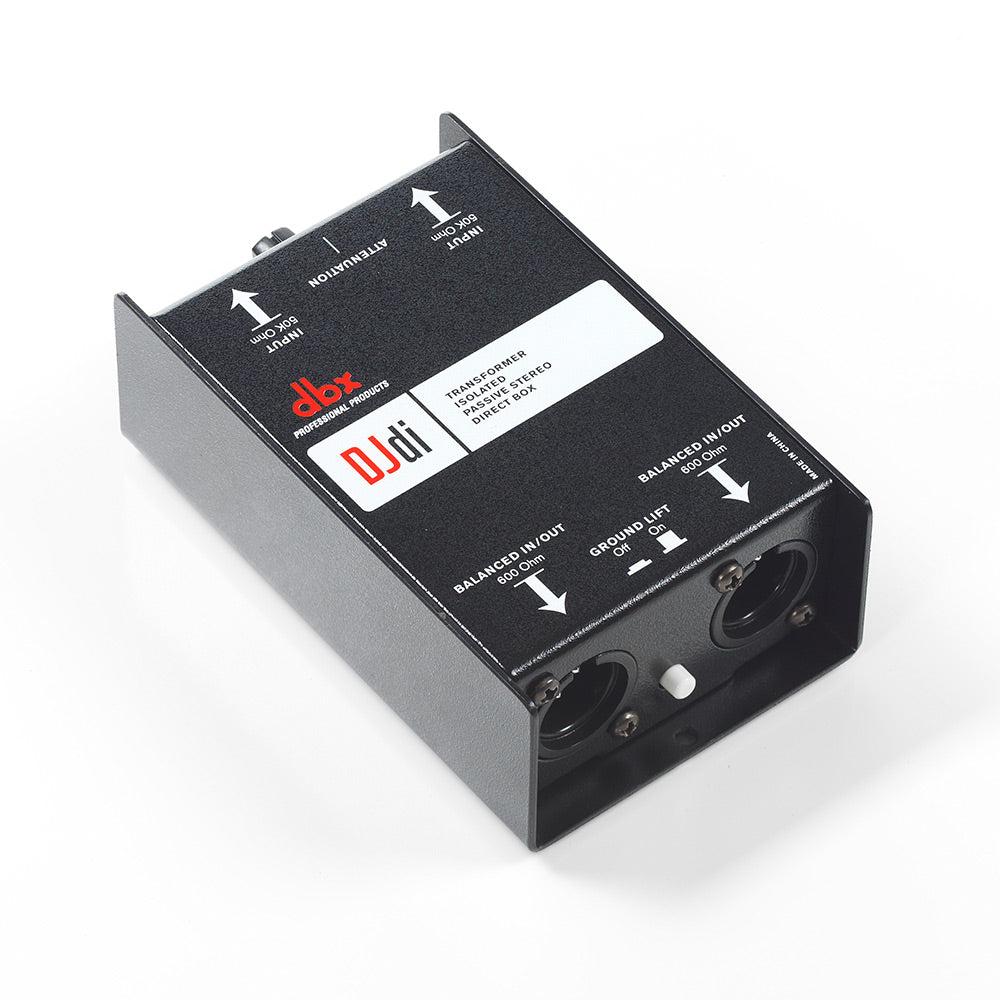

DBX DJDI Passive Stereo Direct Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
Features:
- Dual Channel
- (2) 1/4" 50k Ohm TS Inputs
- (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
- Passive Circuit Design

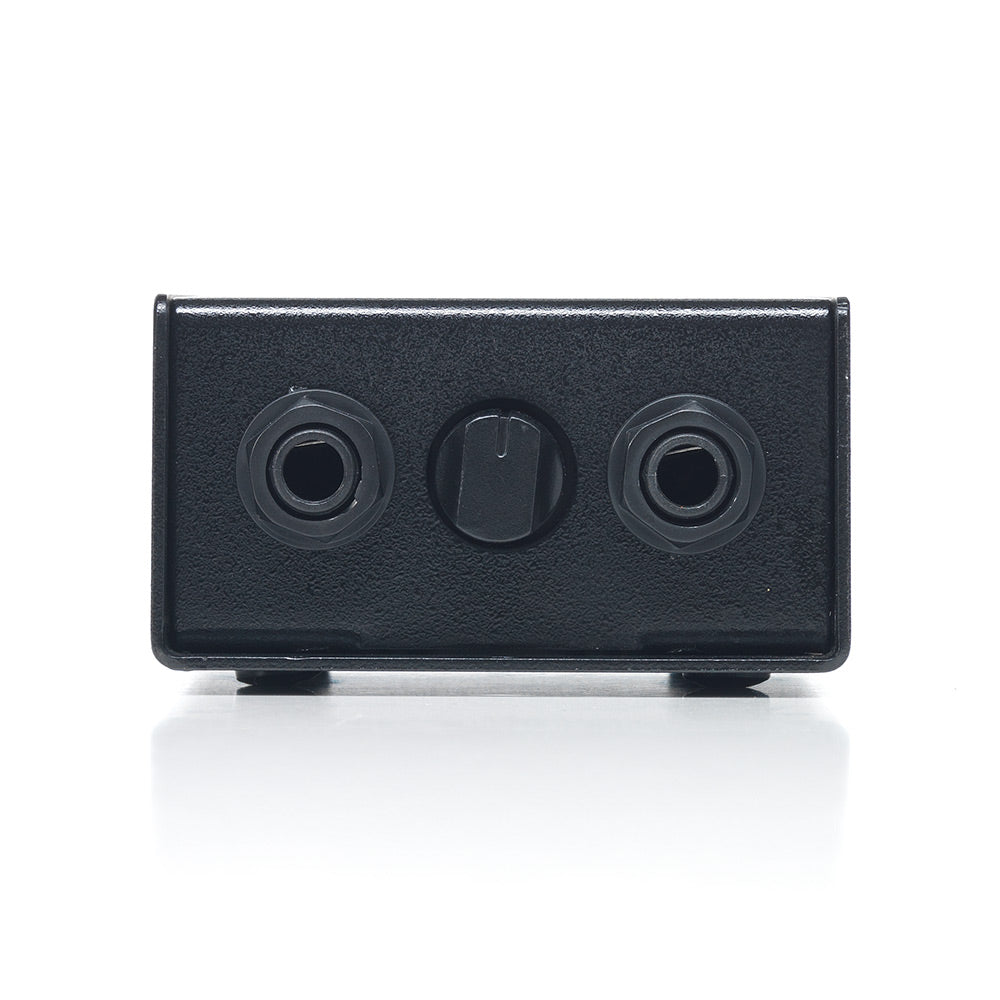

- Continuously Variable Input Attenuator
- Ground Lift Switch
| Circuit | Passive |
| Inputs | 2 |
| Input Connectors | 1/4” TS (Tip Hot, Sleeve Ground) |
| Input Type | Unbalanced, RF Filtered |
| Input Impedance | 50 kOhm |
| Outputs | 2 |
| Output Connectors | Male XLR, Balanced, Pin 2 hot |
| Output Impedance | 600 Ohms |
| Noise Level | -104dBu (22Hz -22kHz, Input Shorted) |
| THD+N (10Hz-22kHz) | 0.23% typical @ +4dBu @ 1kHz |
| Insertion Loss | 21dB typical |
The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
Features:
- Dual Channel
- (2) 1/4" 50k Ohm TS Inputs
- (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
- Passive Circuit Design
- Continuously Variable Input Attenuator
- Ground Lift Switch
| Circuit | Passive |
| Inputs | 2 |
| Input Connectors | 1/4” TS (Tip Hot, Sleeve Ground) |
| Input Type | Unbalanced, RF Filtered |
| Input Impedance | 50 kOhm |
| Outputs | 2 |
| Output Connectors | Male XLR, Balanced, Pin 2 hot |
| Output Impedance | 600 Ohms |
| Noise Level | -104dBu (22Hz -22kHz, Input Shorted) |
| THD+N (10Hz-22kHz) | 0.23% typical @ +4dBu @ 1kHz |
| Insertion Loss | 21dB typical |
