DALE SKU # DBX-ZC8

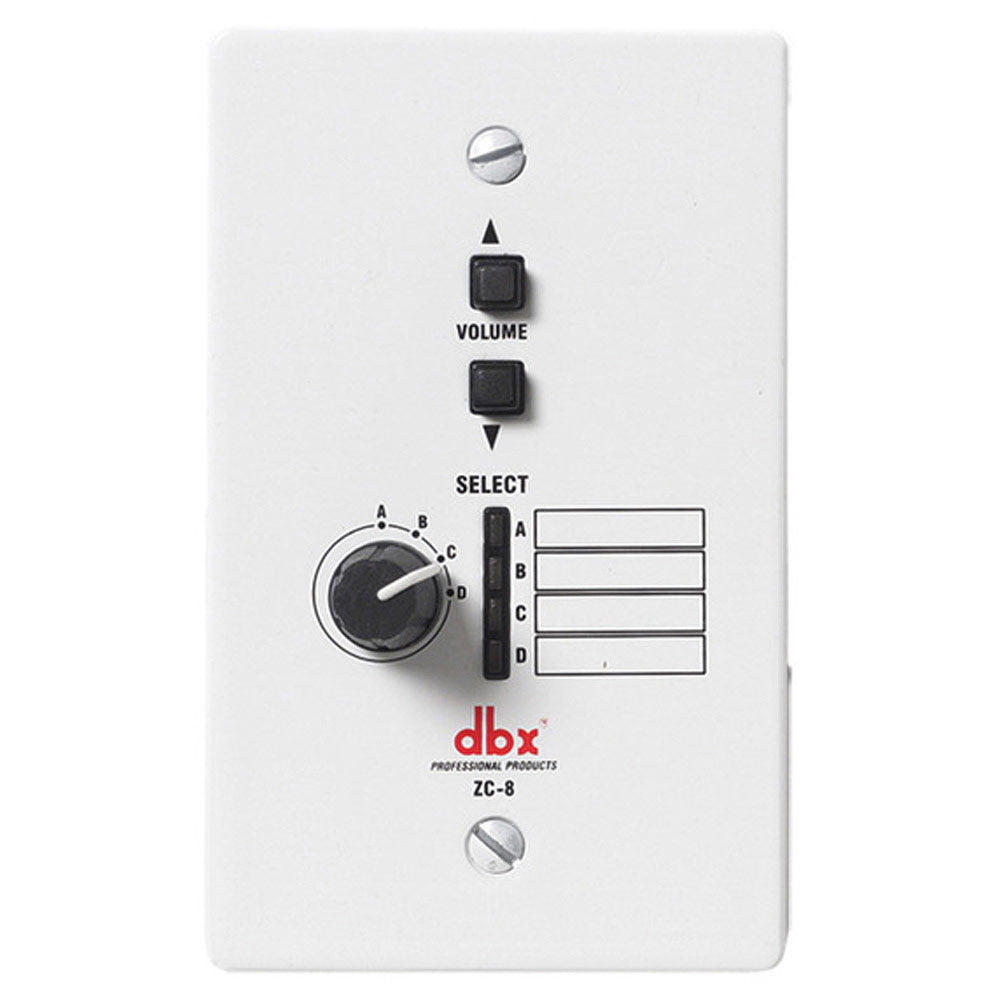

DBX ZC-8 Remote Wall-Plate Mounting Volume and Source Controller for dbx ZonePro devices

Sale price$110.00
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ZC-8 provides both programmable source selection and volume control to the ZonePro products.

    The Zone Controllers offer extended utility to the DriveRack¨and ZonePRO families. The ten Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

    Features :

    • Programmable Volume Control
    • Program or Scene Selection
    • Programmable Contact Closure Interface
    • Up to 1000 ft. on CAT 5 Cable
    • Programmable Push-To-Talk Paging
    • Programmable Source Selection
    ConnectionsZC-1, ZC-2, ZC-3, ZC6, ZC-7, ZC-8 and ZC-9
    Connectors (2) RJ-45, (1) 6-Pin Phoenix
    ZC-BOB Connectors(7) RJ-45
    ZC-FIRE(2) RJ-45, (2) 2-pin Phoenix
    Series Wiring Maximum Cable Length varies with number of Zone Controllers.For Example,Three Zone Controllers : 600 ft.Six Zone Controllers : 300 ft.
    Parallel Wiring Using a ZC-BOB : Up to Six Zone Controllers : 1000 ft.
    Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher.
    Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065

    The ZC-8 provides both programmable source selection and volume control to the ZonePro products.

    The Zone Controllers offer extended utility to the DriveRack¨and ZonePRO families. The ten Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

    Features :

    • Programmable Volume Control
    • Program or Scene Selection
    • Programmable Contact Closure Interface
    • Up to 1000 ft. on CAT 5 Cable
    • Programmable Push-To-Talk Paging
    • Programmable Source Selection
    ConnectionsZC-1, ZC-2, ZC-3, ZC6, ZC-7, ZC-8 and ZC-9
    Connectors (2) RJ-45, (1) 6-Pin Phoenix
    ZC-BOB Connectors(7) RJ-45
    ZC-FIRE(2) RJ-45, (2) 2-pin Phoenix
    Series Wiring Maximum Cable Length varies with number of Zone Controllers.For Example,Three Zone Controllers : 600 ft.Six Zone Controllers : 300 ft.
    Parallel Wiring Using a ZC-BOB : Up to Six Zone Controllers : 1000 ft.
    Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher.
    Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
