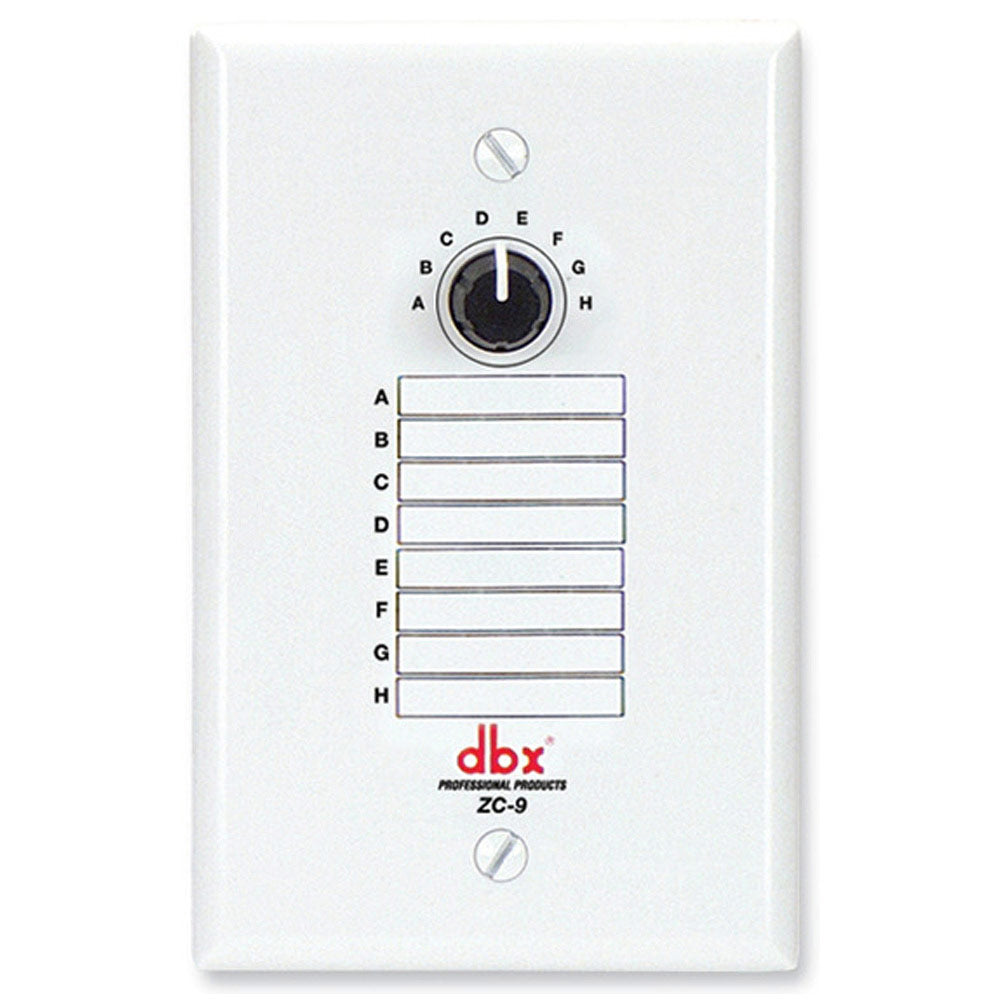

DBX ZC-9 Rotary Remote Wall-Plate Mounting Source Selector for dbx ZonePro 1260 and 1261
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ZC-9 provides source selection for the ZonePRO 1260 and 1261.
The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The ten Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
Features :
- Programmable Volume Control
- Program or Scene Selection
- Programmable Contact Closure Interface
- Up to 1000 ft. on CAT 5 Cable
- Programmable Push-To-Talk Paging
- Programmable Source Selection
| Connections | ZC-1, ZC-2, ZC-3, ZC6, ZC-7, ZC-8 and ZC-9 |
| Connectors | (2) RJ-45, (1) 6-Pin Phoenix |
| ZC-BOB Connectors | (7) RJ-45 |
| ZC-FIRE | (2) RJ-45, (2) 2-pin Phoenix |
| Series Wiring | Maximum Cable Length varies with number of Zone Controllers.For Example,Three Zone Controllers : 600 ft.Six Zone Controllers : 300 ft. |
| Parallel Wiring | Using a ZC-BOB : Up to Six Zone Controllers : 1000 ft. |
| Cable | CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher. |
| Safety Agency Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
The ZC-9 provides source selection for the ZonePRO 1260 and 1261.
The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The ten Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
Features :
- Programmable Volume Control
- Program or Scene Selection
- Programmable Contact Closure Interface
- Up to 1000 ft. on CAT 5 Cable
- Programmable Push-To-Talk Paging
- Programmable Source Selection
| Connections | ZC-1, ZC-2, ZC-3, ZC6, ZC-7, ZC-8 and ZC-9 |
| Connectors | (2) RJ-45, (1) 6-Pin Phoenix |
| ZC-BOB Connectors | (7) RJ-45 |
| ZC-FIRE | (2) RJ-45, (2) 2-pin Phoenix |
| Series Wiring | Maximum Cable Length varies with number of Zone Controllers.For Example,Three Zone Controllers : 600 ft.Six Zone Controllers : 300 ft. |
| Parallel Wiring | Using a ZC-BOB : Up to Six Zone Controllers : 1000 ft. |
| Cable | CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher. |
| Safety Agency Certifications | UL 60065, IEC 60065, EN 55013, E60065 |
