DigiGram IQOYA Talk - Portable IP Field Codec
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IQOYA TALK portable IP audio codec was designed to ease your life when live remote broadcasting for radio and TV. Its intuitive user interface, designed for non-tech users, is as simple as a smartphone and enables remote reporters to perform all key actions in just 2 clicks. Focus on your live reporting or commentary, make your 4 guests at ease for a studio quality interview or talk show, IQOYA TALK takes care of the rest: audio content is streamed through a large number of wired or wireless 'last mile' connections. Reliable, high quality sound, simplest configuration: your IQOYA TALK companion has your back.

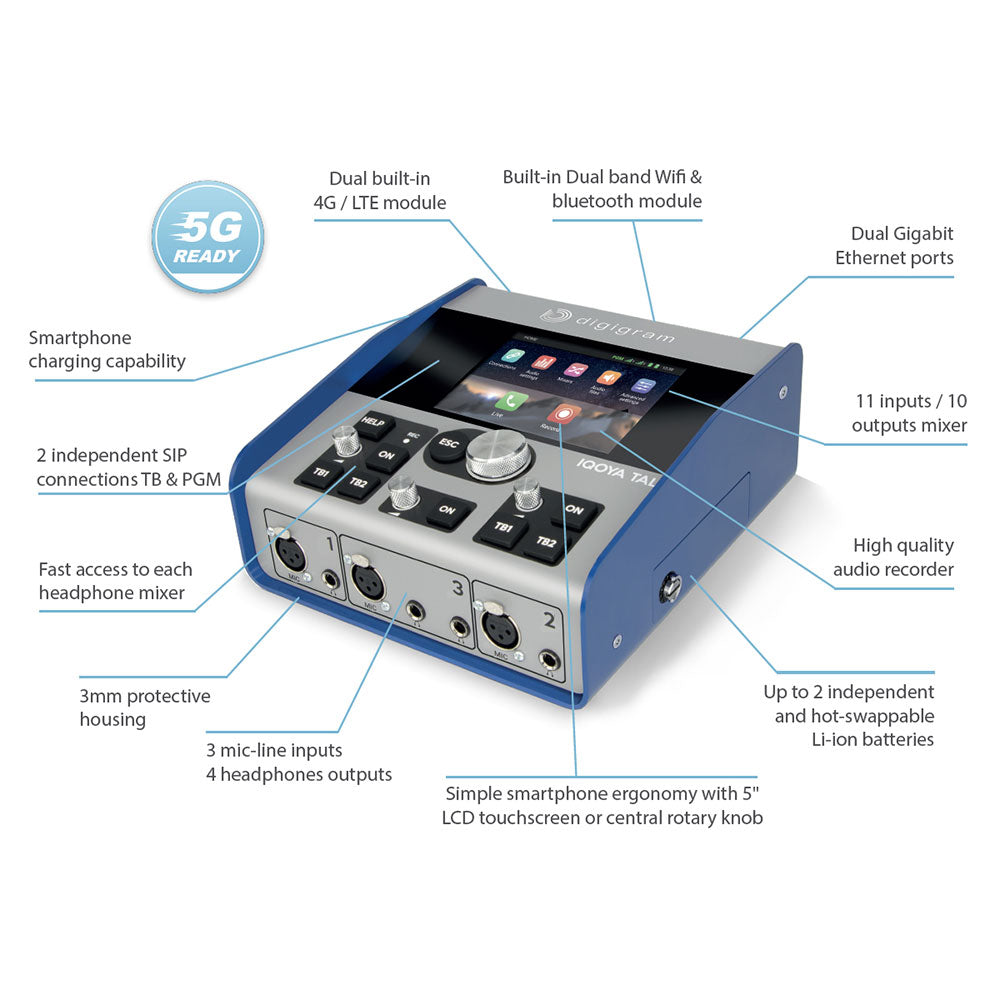

Features:
- High quality audio recorder
- Dual build-in 4G/LTE module
- Build-in Wifi module
- Dual Gigabit Ethernet ports
- Simple UI with 5" LCD touchscreen or knob
- 3 mic-line inputs
- 4 headphones outputs
- 11 Inputs / 10 outputs embedded mixer
- 3mm protective housing
- Fast access to each headphone mixer
- 2 independent SIP connections TB / PGM
The most connected
Build-in connectivities: 2 Ethernet, WiFi, 2x 3G/LTE/4G
Talk's got your back
2 Independent SIP connections (TB and PGM)
Headache-free configuration
Predefined configuration in the studio Provisionning of configuration
Smartphone-like UI experience
Instinctive smartphone like user interface for quick access to all on-field settings
Always On-Air
Up to 2 independent and hot-swappable Li-ion batteries that last up to 8 hours
IQOYA TALK + CONNECT
Make the most of IQOYA TALK with the IQOYA CONNECT application. Remote broadcasting today: the objective of radio and television channels is to produce and distribute attractive content. They need easy-to-use solutions and tools to stay content focused. Digigram believes that today's remote broadcasting solutions should be easier than they are.
| AUDIO | |
| Inputs | 3 Mic inputs, Microphone / Line level adjustment 12 or 48 V phantom power 1 analog or AES/EBU stereo input Line level |
| Outputs | 4 headphone outputs, individual mix bus on each output 2 Talkback channels for users 1 and 2 and 1 mono or stereo program on independent IP connections |
| Mixer | 11 input / 10 output embedded mixer |
| CONNECTIVITY | |
| Connection Types | 2 Gigabit Ethernet ports for EBU/ACIP and AES67audio streams 1 integrated dual band wifi / bluetooth module 2 integrated 4G / LTE modules, approved in Europe, USA and Asia 3 GPIOs controllable by GUI 2 USB A ports for files 1 USB C port for streaming audio to PC |
| ENCODING AND STREAMING | |
| Type | 2 independent SIP connections for 1 mono or stereo program and 2 talkbacks |
| Encoding | G711/G722, MPEG-1/2 Layer II MPEG-4 AAC-LC, AAC-LD/ELD, HE-AACv1/v2, Opus |
| Streams | Dual streaming / Configurable FEC Redundancy of audio streams on available IP networks (Ethernet, WiFi, 4G / LTE, 3G) Compliant with ACIP (EBU Tech 3326 and Tech 3368) |
| PHYSICAL | |
| Power | Lockable external power supply 12-24 V DC |
| Dimensions | LxWxH: 200 x 216 x 90 mm (77Ú8 x 81Ú2 x 335Ú 64) |
| Battery | Up to 12H autonomy with 2 internal hot-swappable batteries (2 Li-ion packs, 6.4 A.h) |
| Weight | 2,3 Kg (5 lb) incl. 1 battery |
| Operating temperature | 0-45 ¡ C |
The IQOYA TALK portable IP audio codec was designed to ease your life when live remote broadcasting for radio and TV. Its intuitive user interface, designed for non-tech users, is as simple as a smartphone and enables remote reporters to perform all key actions in just 2 clicks. Focus on your live reporting or commentary, make your 4 guests at ease for a studio quality interview or talk show, IQOYA TALK takes care of the rest: audio content is streamed through a large number of wired or wireless 'last mile' connections. Reliable, high quality sound, simplest configuration: your IQOYA TALK companion has your back.
Features:
- High quality audio recorder
- Dual build-in 4G/LTE module
- Build-in Wifi module
- Dual Gigabit Ethernet ports
- Simple UI with 5" LCD touchscreen or knob
- 3 mic-line inputs
- 4 headphones outputs
- 11 Inputs / 10 outputs embedded mixer
- 3mm protective housing
- Fast access to each headphone mixer
- 2 independent SIP connections TB / PGM
The most connected
Build-in connectivities: 2 Ethernet, WiFi, 2x 3G/LTE/4G
Talk's got your back
2 Independent SIP connections (TB and PGM)
Headache-free configuration
Predefined configuration in the studio Provisionning of configuration
Smartphone-like UI experience
Instinctive smartphone like user interface for quick access to all on-field settings
Always On-Air
Up to 2 independent and hot-swappable Li-ion batteries that last up to 8 hours
IQOYA TALK + CONNECT
Make the most of IQOYA TALK with the IQOYA CONNECT application. Remote broadcasting today: the objective of radio and television channels is to produce and distribute attractive content. They need easy-to-use solutions and tools to stay content focused. Digigram believes that today's remote broadcasting solutions should be easier than they are.
| AUDIO | |
| Inputs | 3 Mic inputs, Microphone / Line level adjustment 12 or 48 V phantom power 1 analog or AES/EBU stereo input Line level |
| Outputs | 4 headphone outputs, individual mix bus on each output 2 Talkback channels for users 1 and 2 and 1 mono or stereo program on independent IP connections |
| Mixer | 11 input / 10 output embedded mixer |
| CONNECTIVITY | |
| Connection Types | 2 Gigabit Ethernet ports for EBU/ACIP and AES67audio streams 1 integrated dual band wifi / bluetooth module 2 integrated 4G / LTE modules, approved in Europe, USA and Asia 3 GPIOs controllable by GUI 2 USB A ports for files 1 USB C port for streaming audio to PC |
| ENCODING AND STREAMING | |
| Type | 2 independent SIP connections for 1 mono or stereo program and 2 talkbacks |
| Encoding | G711/G722, MPEG-1/2 Layer II MPEG-4 AAC-LC, AAC-LD/ELD, HE-AACv1/v2, Opus |
| Streams | Dual streaming / Configurable FEC Redundancy of audio streams on available IP networks (Ethernet, WiFi, 4G / LTE, 3G) Compliant with ACIP (EBU Tech 3326 and Tech 3368) |
| PHYSICAL | |
| Power | Lockable external power supply 12-24 V DC |
| Dimensions | LxWxH: 200 x 216 x 90 mm (77Ú8 x 81Ú2 x 335Ú 64) |
| Battery | Up to 12H autonomy with 2 internal hot-swappable batteries (2 Li-ion packs, 6.4 A.h) |
| Weight | 2,3 Kg (5 lb) incl. 1 battery |
| Operating temperature | 0-45 ¡ C |
