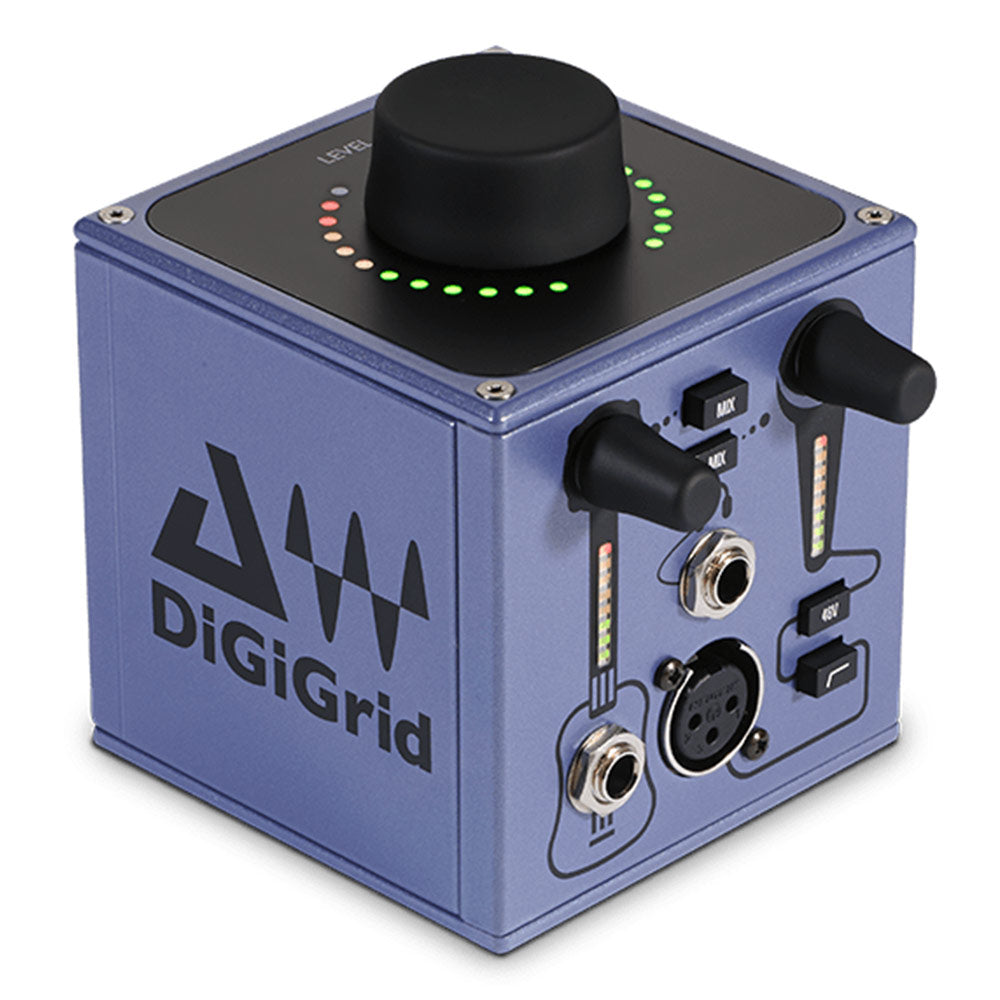

DiGiGrid CM Cube Series Compact Ethernet Audio Interface


  • Dale #:

    DIGD-CM
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Introducing M:Êthe musician’s choice. Perfect for use at home, in the studio, or any musical environment for that matter, this stylish unit boasts two inputs and two outputs. It is super-easy to use: plug and play, with simultaneous monitoring and recording capabilities through two dedicated I/O.... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Introducing M:Êthe musician’s choice. Perfect for use at home, in the studio, or any musical environment for that matter, this stylish unit boasts two inputs and two outputs. It is super-easy to use: plug and play, with simultaneous monitoring and recording capabilities through two dedicated I/O.

Input one is a dedicated mic/line and input two is instrument/line, which allows for many musical combinations. Audio capture is also of the highest order thanks to M’s top quality converters and industry proven mic preamps; and when listening back, a dedicated high-power headphone output guarantees that classic warm analogue control path in a fun and easy to use package.

Should you need to expand, the possibilities are practically endless: DiGiGrid M integrates seamlessly with any other DiGiGrid product to provide you with mountains of extra I/O and overall functionality, all connectible through the device’s Cat 5e/Cat 6 SoundGrid network port.Ê

DiGiGrid M benefits from a non-slip base and optional mic-stand adaptor plate. It is powered by a twist-lock 12V DC power supply (provided as standard) or Power over Ethernet (PoE) for maximum flexibility and ease of set-up, anywhere you want it.


With just one simple Ethernet connection to your Mac or PC, you now have a simple standalone high-quality audio interface that you can use with any DAW.

Use DiGiGrid M in conjunction with theÊDiGiGrid SÊswitch, you will easily be able to network up to four DiGiGrid devices, up to 75 meters/245 feet apart. They can even be connected to multiple computers and DAWs at the same time.

Check outÊDiGiGrid QÊif you need an extra high-powered headphone amplifier, andÊDiGiGrid DÊfor more I/O from the same series. And as your system grows, you can connect more I/O and DSP from the rack-mounted series.

Features:

  • Just 9cm cubed in high grade aluminium extrusion for rugged yet flexible use
  • Songwriters, musicians and engineers tool for 96KHz recording and headphone monitoring
  • 2 inputs / 2 outputs / 48V Phantom / high pass filter and dedicated metering
  • Analogue control path for highest quality warm sonic performance
  • Connects via a single Ethernet cable (Cat 5e/Cat 6)
  • Optional stand mount adaptor for maximum flexibility of placement
  • Stand alone or integrate into larger DiGiGrid Advanced Audio Networks

More +

Product Specs

Mic Input
Input Impedance 1K5½
Gain Range 0 To +70dB
Frequency Response
(Analogue To Analogue)
-3dB <10Hz To 100kHz
Harmonic Distortion 0.005% (40dB Gain)
Noise EIN Typically -127dB (70dB Gain)
High Pass Filter -3dB 100Hz 18dB/Octave
Line Input
Input Impedance 1M½
Gain Range +6 To +30dB
Frequency Response
(Analogue To Analogue)
Ê-3dB <10Hz To 100kHz
Harmonic Distortion 0.005%
Noise Min Gain -82dBu
Max Gain -73dBu
Headphone
Gain Range Infinity To +10dB
Max Output Level:
Load Level RMS
16½ 2.3V
32½ 3.7V
100½ 6.0V
200½ 7.5V
600½ 8.8V
