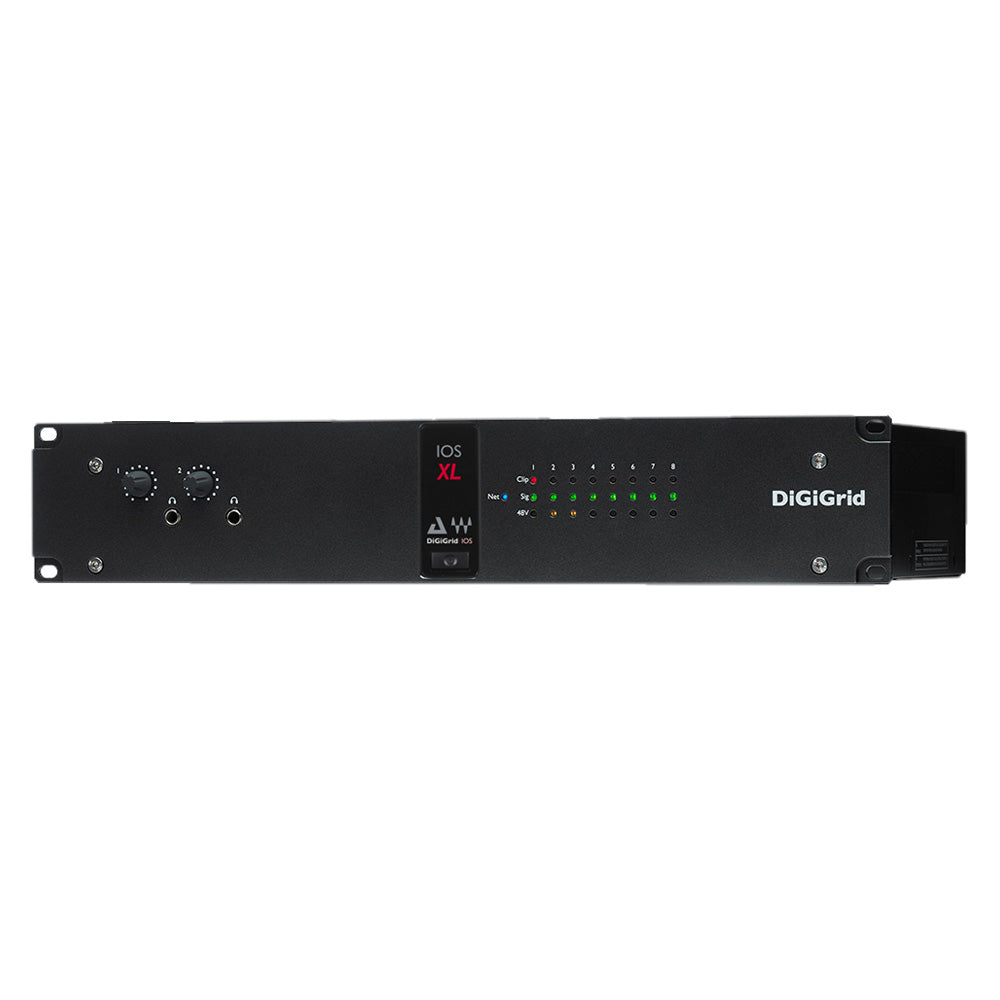

DiGiGrid IOS-XL - High-Definition Network Interface and SoundGrid Server


  • Dale #:

    DIGD-IOSXL
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DiGiGrid IOS-XL is the most comprehensive all-in-one solution for Native DAW users, ideal for both professional and personal audio production environments. DiGiGrid IOS-XL is a comprehensive audio interface with a built-in extreme SoundGrid DSP server that adds more plugin processing power t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DiGiGrid IOS-XL is the most comprehensive all-in-one solution for Native DAW users, ideal for both professional and personal audio production environments.

DiGiGrid IOS-XL is a comprehensive audio interface with a built-in extreme SoundGrid DSP server that adds more plugin processing power to your system. Ideal for professional and personal production environments alike, the IOS-XL is the all-in-one solution for Studio and Live.

Together with the SoundGrid Studio System, DiGiGrid IOS-XL enables you to mix and monitor in real time using hundreds of SoundGrid-compatible Waves and third-party plugins, with incredibly low latency of only 0.8 milliseconds.

Features:

  • 8 mic/line ins, 8 line outs, 2 headphone outs
  • Built-in SoundGrid DSP server
  • ASIO and Core Audio-compatible audio interface
  • MIDI, S/PDIF, and AES/EBU ins and outs
  • Connects via a single Ethernet cable (Cat 5e/Cat 6)
  • Quick-view front panel metering and status indicators


DiGiGrid IOS-XL Comes with the Complete SoundGrid Studio System Software by Waves
The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the people you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers.

The SoundGrid Studio System Gives You the Power to Do More

  • Real-Time Processing – Run hundreds of plugins simultaneously.
  • Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency.
  • Networking – Connect everything and everyone through a centralized hub.
  • Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver.
  • Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins.

SoundGrid Studio System Software Components

  • SoundGrid Studio Application – For managing the SoundGrid network on your host computer.
  • eMotion ST Mixer – Low-latency monitoring for tracking and rehearsing.
  • StudioRack – For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server
  • SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O.

More +

Product Specs

General
Dimensions 2U rack-mounted (standard 19” rack-mount wide, 2U high, 380-mm deep excluding connectors)
Supported sample rates 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)
Analog I/O 8 channel mic/line inputs (on XLR/TRS combo)
8 channel line outputs (on TRS or 25pin D-con)
Digital I/O 2 channel AES/EBU or SPDIF (switchable), SRC optional.
Word Clock I/O
Synchronization Clock synchronization via Word Clock input, AES/EBU, SPDIF, SoundGrid (SoE), Internal
MIDI I/O
Network Interface 4 SoundGrid ports (RJ45s)
Protection USB port (emergency port to boot server support function)
Reset switch
Headphones 2 headphone outputs with analog level knobs; range: Off to +15 dB
Level Control Settings for different broadcast level formats via jumpers on all analog I/Os
DSP Internal SoundGrid DSP server (Intel® i3)
Analog Inputs specifications
Input Impedance Mic: 2K5 / Line: 8K0
Gain Range Mic: 0 dB to +52.5 dB in 7.5-dB steps / Line: 0 dB to +52.5 dB in 7.5-dB steps
Maximum Input Level Mic: +26 dBu / Line: +36 dBu
Mic Equivalent Input Noise -126 dB (150 Ohm source, gain +60 dB)
Harmonic Distortion Typically < 0.01% @ unity gain, 10-dB input @ 1 kHz
Frequency Response +/-0.5 dB (20 Hz to 20 kHz)
Channel Separation Better than 90 dB (40 Hz to 15 kHz)
Analog Outputs specifications
Maximum Output Level +22 dBu
Residual Output Noise 90 dB (20 Hz to 20 kHz)
Frequency Response +/-0.5 dB (20 Hz to 20 kHz)
Output Impedance 50 Ohms
Channel Separation Better than 90 dB (40 Hz to 15 kHz)
Harmonic Distortion Typically < 0.01% @ +10-dB Output @ 1 kHz
Analog Connectors DB25 8-channel balanced connector AES59-2012
