DiGiGrid IOX SoundGrid I/O Expander
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The IOX is a 1U unit that includes 12 broadcast grade pre amp design and smooth 192kHz precision ADC conversion and 6 line outputs, giving the ability to connect artist and studio I/O via ASIO or Core audio drivers to your current DAW system. Quick view metering on the units give assurance that signals are present before the onscreen metering provides a detailed view.
The IOX also comes with four powerful headphone outputs. Whether you are performing in the studio, or want detailed monitoring in the control room, you can be confident of the performance and audio quality, MADI, more I/O, or a world of high-grade plugins is only a Ethernet cable away. And don't forget, these units are on a network so they can be shared with multiple users.
Features:
- Expansion for further DiGiGrid Products
- 12 Mic/Line Inputs
- 6 Line Outputs
- 4 powerful headphone outputs

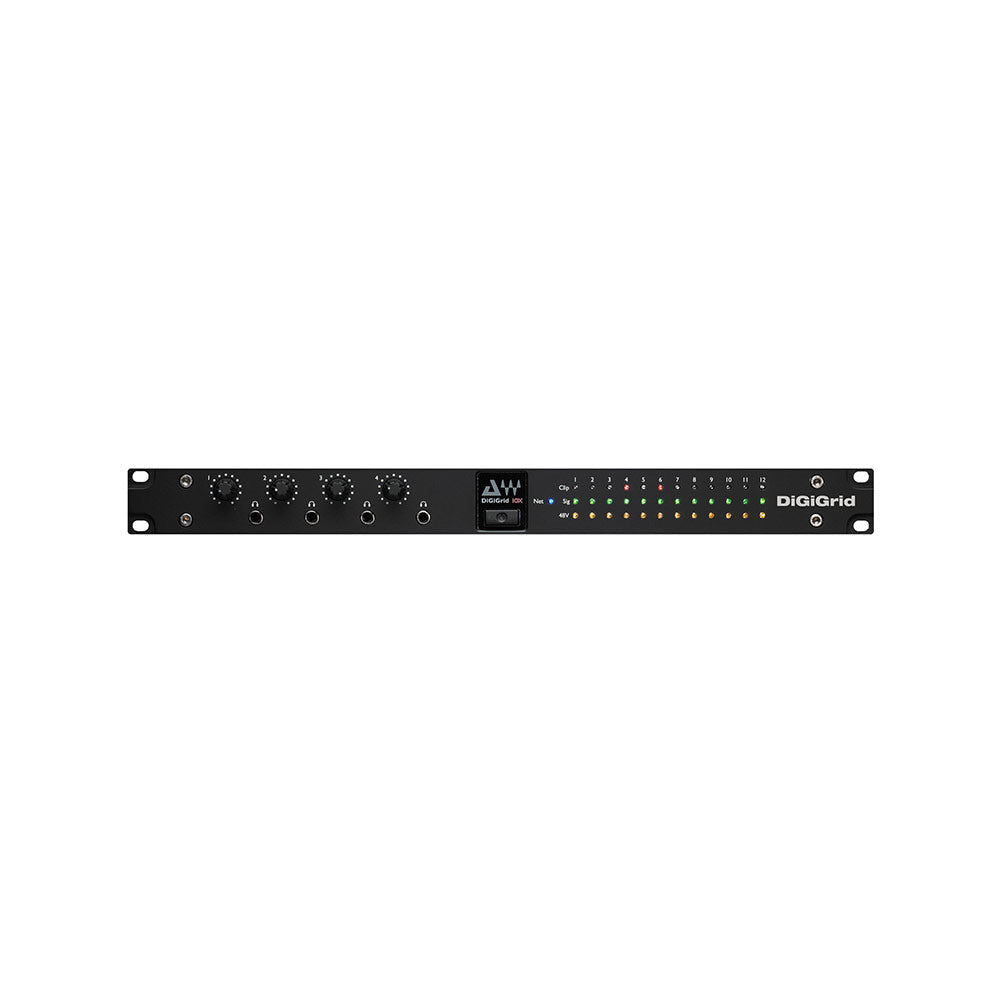

- Front Panel Metering
| Supported sample rates | 44.1, 48, 88.2, 96, 176.4*, 192* kHz |

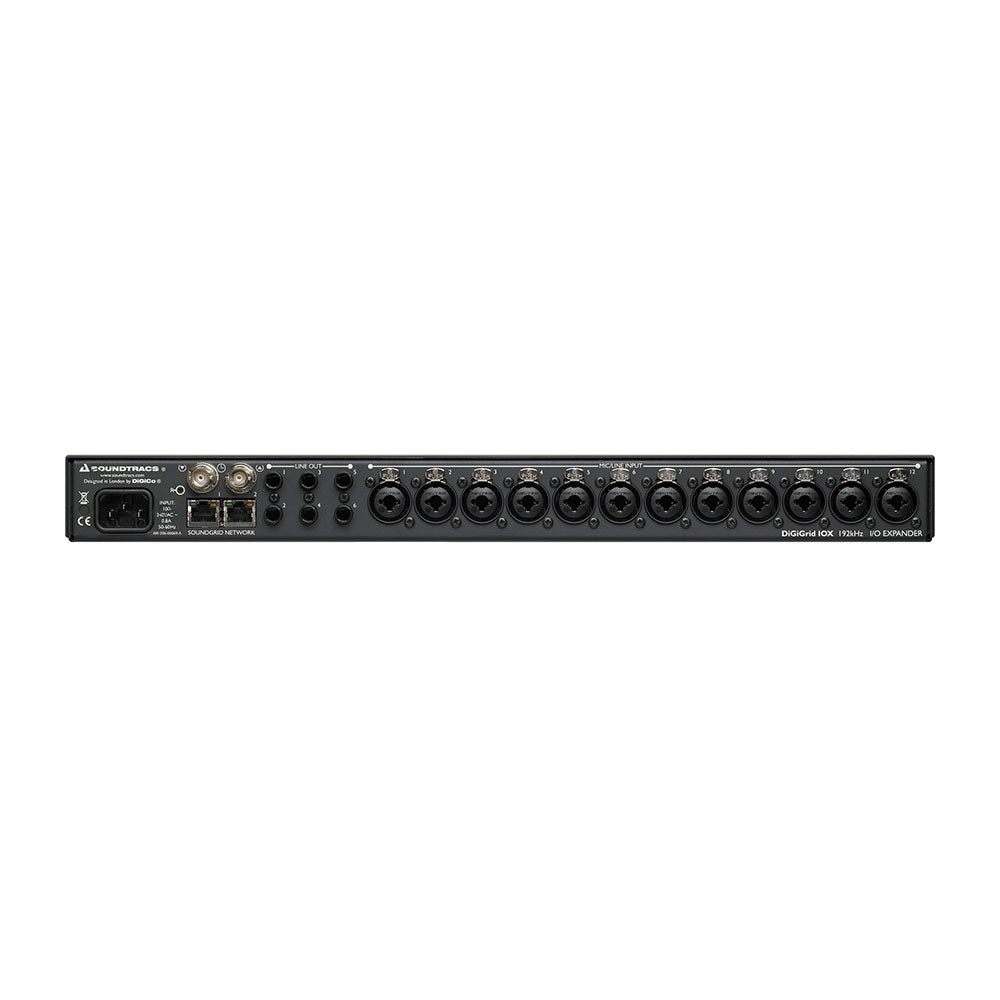

| Connections | 12 Channel Mic/Line inputs (on XLR/TRS combo) 6 Channel Line outputs (on TRS) Word Clock I/O 4 Headphone outputs with analogue level knobs Settings for different broadcast level formats via jumpers on all analogue I/Os |
| Clock Synchronisation via | Word Clock input, SoundGrid (SoE), Internal |
| Network | 2 SoundGrid ports (RJ45s) Reset switch |
| Mic/Line inputs | |
| Input Impedance | Mic: 2K5 Line: 8K0 |
| Gain Range | Mic -20 TO +60dB in 0.5dB steps Line -30 to +50dB in 0.5dB steps |
| Maximum Input Level | Mic: +26dB Line: +36dB |
| Mic Equivalent Input Noise | >-126dB (150 Ohm source, Gain +60dB) |
| Frequency Response | +/-0.5dB 20Hz to 20kHz |
| Channel Separation | Better than 90dB (40Hz to 15kHz) |
| Line Outputs | |
| Maximum Output Level | +22dBu |
| Frequency Response | +/-0.5dB 20Hz to 20kHz |
| Output Impedance | 50 Ohms |
| Channel Separation | Better than 90dB (40Hz to 15kHz) |
The IOX is a 1U unit that includes 12 broadcast grade pre amp design and smooth 192kHz precision ADC conversion and 6 line outputs, giving the ability to connect artist and studio I/O via ASIO or Core audio drivers to your current DAW system. Quick view metering on the units give assurance that signals are present before the onscreen metering provides a detailed view.
The IOX also comes with four powerful headphone outputs. Whether you are performing in the studio, or want detailed monitoring in the control room, you can be confident of the performance and audio quality, MADI, more I/O, or a world of high-grade plugins is only a Ethernet cable away. And don't forget, these units are on a network so they can be shared with multiple users.
Features:
- Expansion for further DiGiGrid Products
- 12 Mic/Line Inputs
- 6 Line Outputs
- 4 powerful headphone outputs
- Front Panel Metering
| Supported sample rates | 44.1, 48, 88.2, 96, 176.4*, 192* kHz |
| Connections | 12 Channel Mic/Line inputs (on XLR/TRS combo) 6 Channel Line outputs (on TRS) Word Clock I/O 4 Headphone outputs with analogue level knobs Settings for different broadcast level formats via jumpers on all analogue I/Os |
| Clock Synchronisation via | Word Clock input, SoundGrid (SoE), Internal |
| Network | 2 SoundGrid ports (RJ45s) Reset switch |
| Mic/Line inputs | |
| Input Impedance | Mic: 2K5 Line: 8K0 |
| Gain Range | Mic -20 TO +60dB in 0.5dB steps Line -30 to +50dB in 0.5dB steps |
| Maximum Input Level | Mic: +26dB Line: +36dB |
| Mic Equivalent Input Noise | >-126dB (150 Ohm source, Gain +60dB) |
| Frequency Response | +/-0.5dB 20Hz to 20kHz |
| Channel Separation | Better than 90dB (40Hz to 15kHz) |
| Line Outputs | |
| Maximum Output Level | +22dBu |
| Frequency Response | +/-0.5dB 20Hz to 20kHz |
| Output Impedance | 50 Ohms |
| Channel Separation | Better than 90dB (40Hz to 15kHz) |
