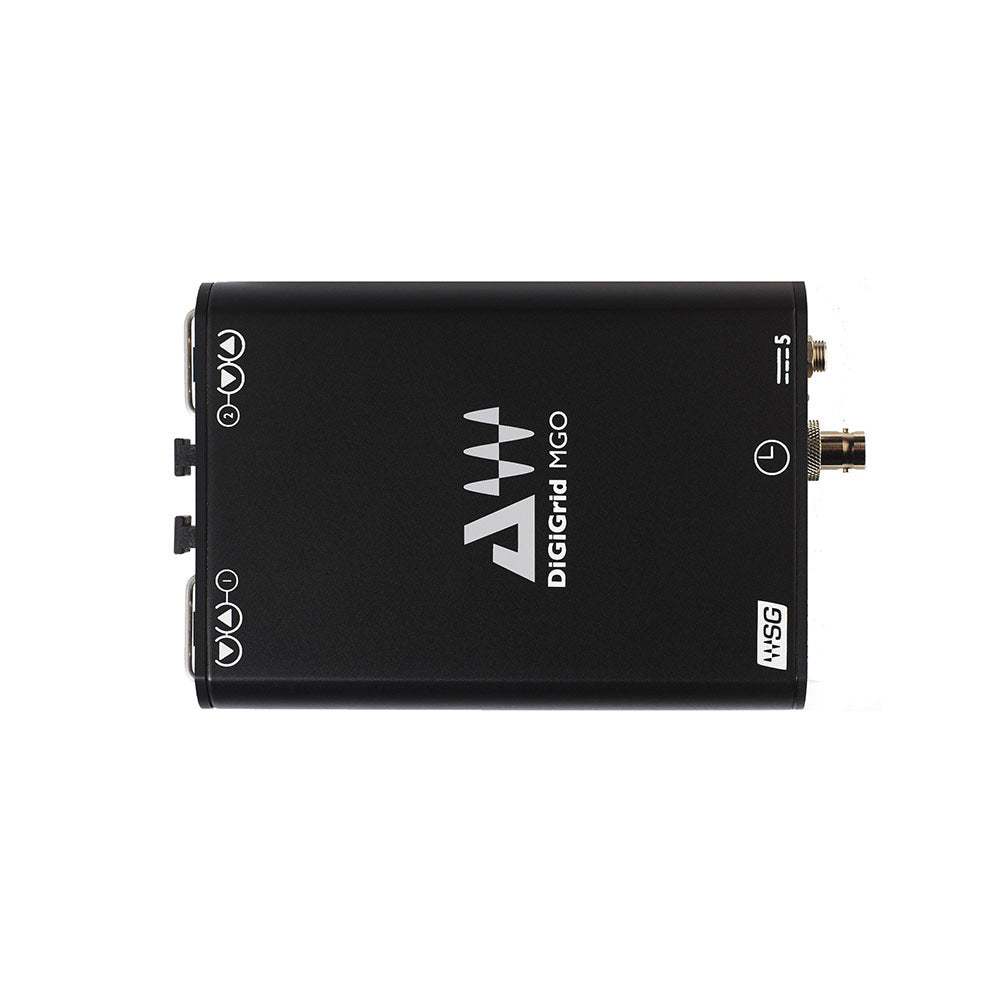

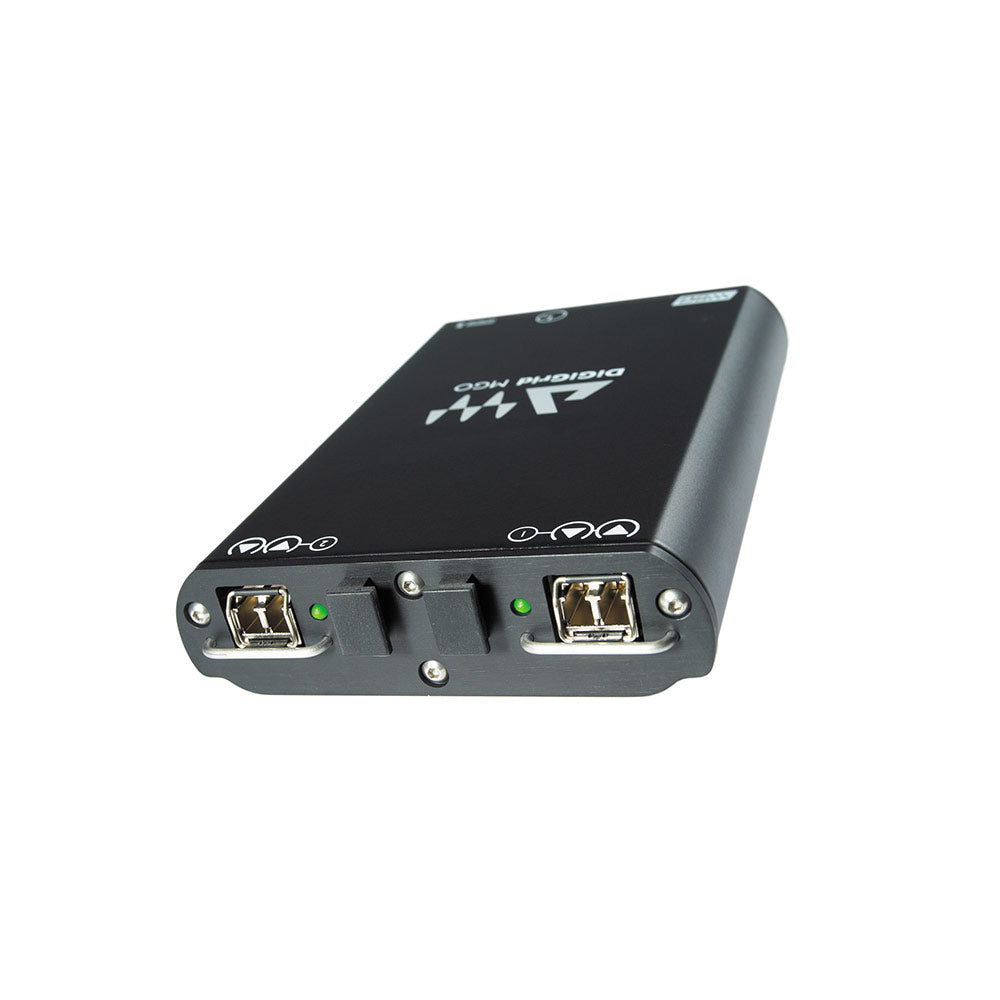

DiGiGrid MGO MADI to SoundGrid Optical Interface


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • In simple terms, the MGO offers a new level of portable MADI. In the most basic mode, connect the SoundGrid network connection to your laptop or desktop. You now have access to the two MADI I/Os. These can be used to record up to 128 channels, through your computer's 1GB Ethernet port with simultaneous playback of 128 channels. Add a SoundGrid DSP server and SWI plus Waves MultiRack application, and now any MADI-compatible live or broadcast console has instant access to real-time processing.

    Your system is now 256 MADI channels of audio at 48kHz.

    Does your application demand higher levels of audio quality? A simple configuration change, switches the unit over to 96kHz. In this mode, you still have 128 channels of audio with 64 channels of recording and 64 channels of simultaneous playback.

    Looking for even long cable runs?

    The MGO comes as standard with dual mode transceivers – should longer distance optical fibre cable runs be required,then simply upgrade either or both of the MGO's standard dual mode transceivers to optional,single mode transceivers.

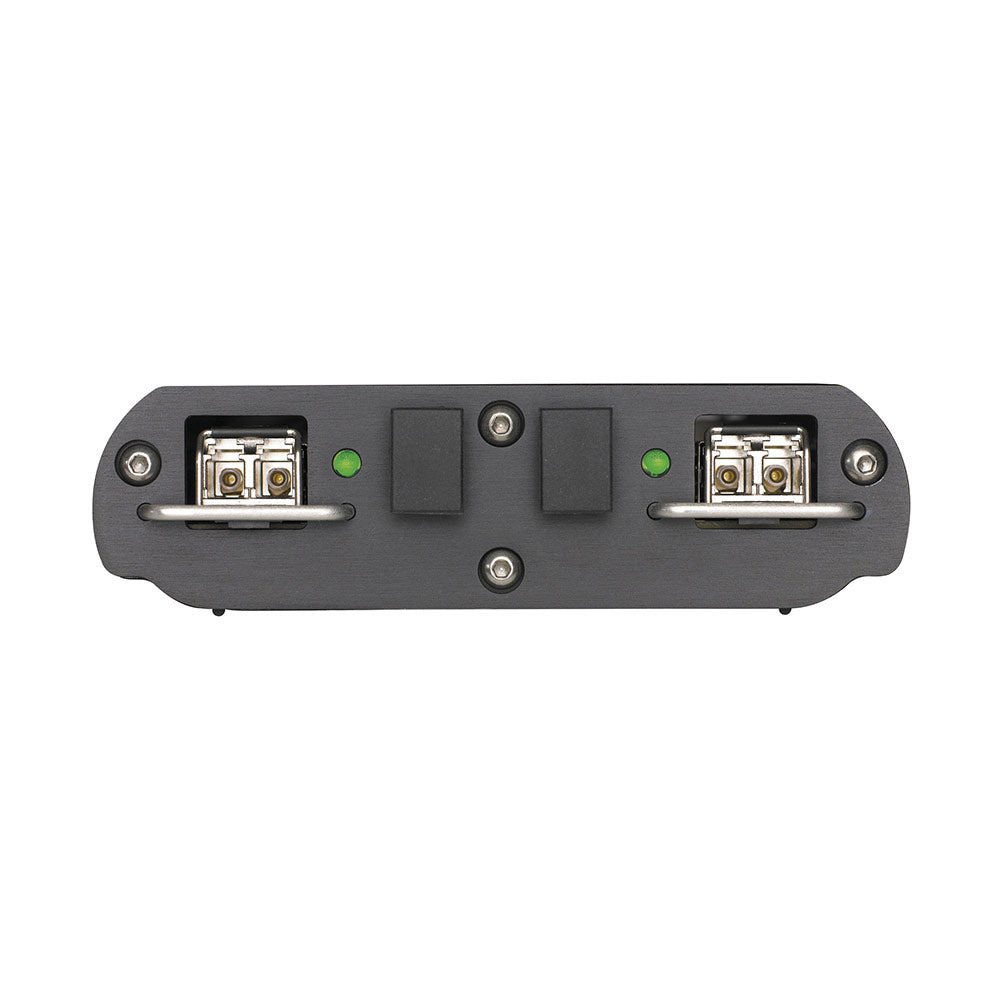

    • MADI Optical I/O (SFP Optics cartridges)
    • LC Connectors
    • Supported sample rates: 44.1, 48, 88.2, 96 kHz
    • 112/128 channel I/O @ 48kHz
    • 56/64 channel I/O @ 96kHz
    • Optional Single mode transceiver upgrade
    • MADI Optical I/O (SFP Optics cartridges)

    • Supported sample rates: 44.1, 48, 88.2, 96 kHz
    • 112/128 channel I/O @ 48kHz
    • 56/64 channel I/O @ 96kHz
    • Support for 64chn and 56chn modes
    • Support for double wire (48k frame) and single wire (96k frame) @ 96kHz
    • Clock Synchronisation via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SoE), Internal

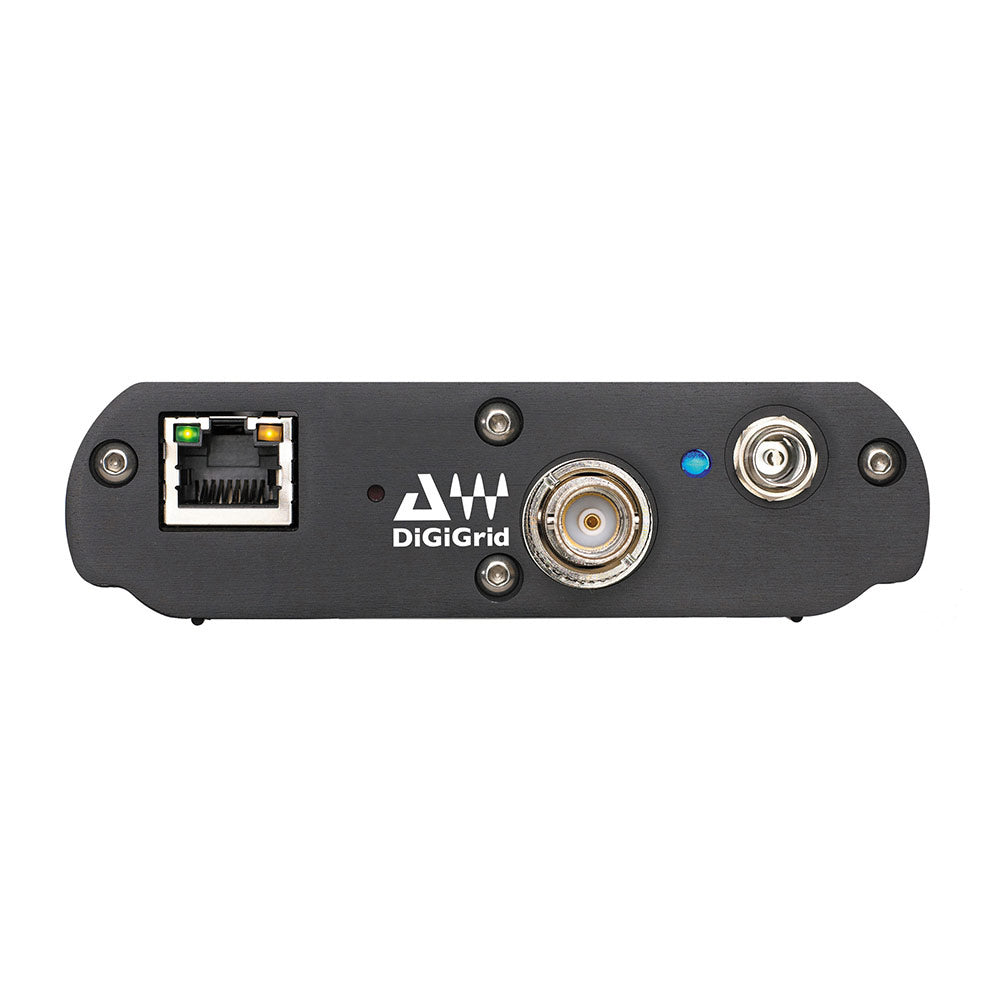

    • 1 SoundGrid port (RJ45)
    • Reset switch
    • Support for channel 57 controls – DiGiCo-specific, will be used to connect a DiGiCo stage rack and control it.
