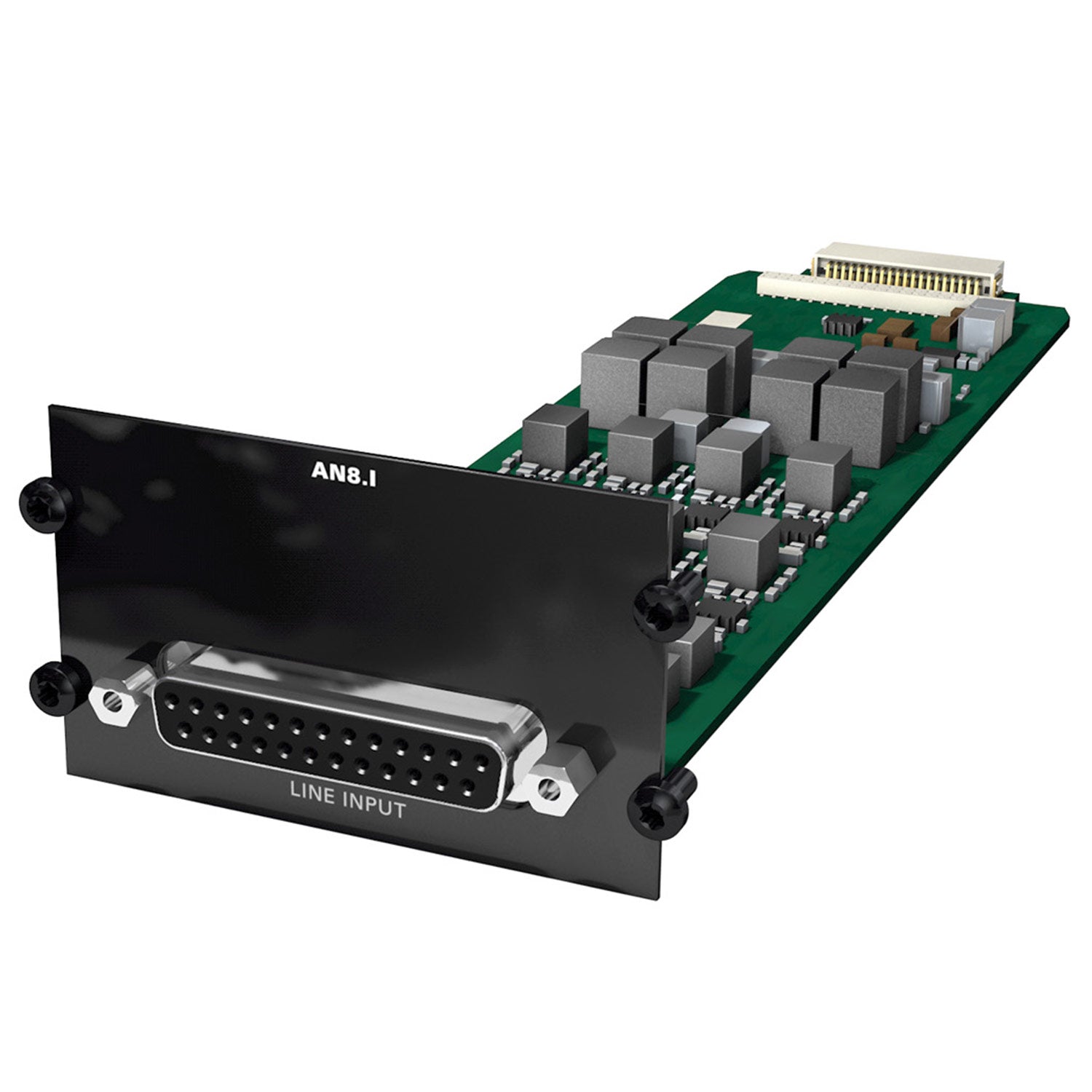

DirectOut AN8.I - 8-Channel Analog Input Module for PRODIGY or MAVEN Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AN8.I is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A. Eight analog audio input channels are interfaced via a DSUB-25 connector. The line inputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
| Channels | 8 channels line input |
| Reference levels | +15 / +18 / +24 dBu via jumper |
| SNR | < -117,6 dB RMS (20 Hz - 20 kHz) / -119,9 dB(A) THD @ -1 dBFS: < -119 dB |
| Frequency response | < -0,15 dB (10 Hz) / -0,15 dB (20 kHz) |
| Pin Configuration | 1 x DSUB-25 connector (input)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
AN8.I is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A. Eight analog audio input channels are interfaced via a DSUB-25 connector. The line inputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
| Channels | 8 channels line input |
| Reference levels | +15 / +18 / +24 dBu via jumper |
| SNR | < -117,6 dB RMS (20 Hz - 20 kHz) / -119,9 dB(A) THD @ -1 dBFS: < -119 dB |
| Frequency response | < -0,15 dB (10 Hz) / -0,15 dB (20 kHz) |
| Pin Configuration | 1 x DSUB-25 connector (input)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
