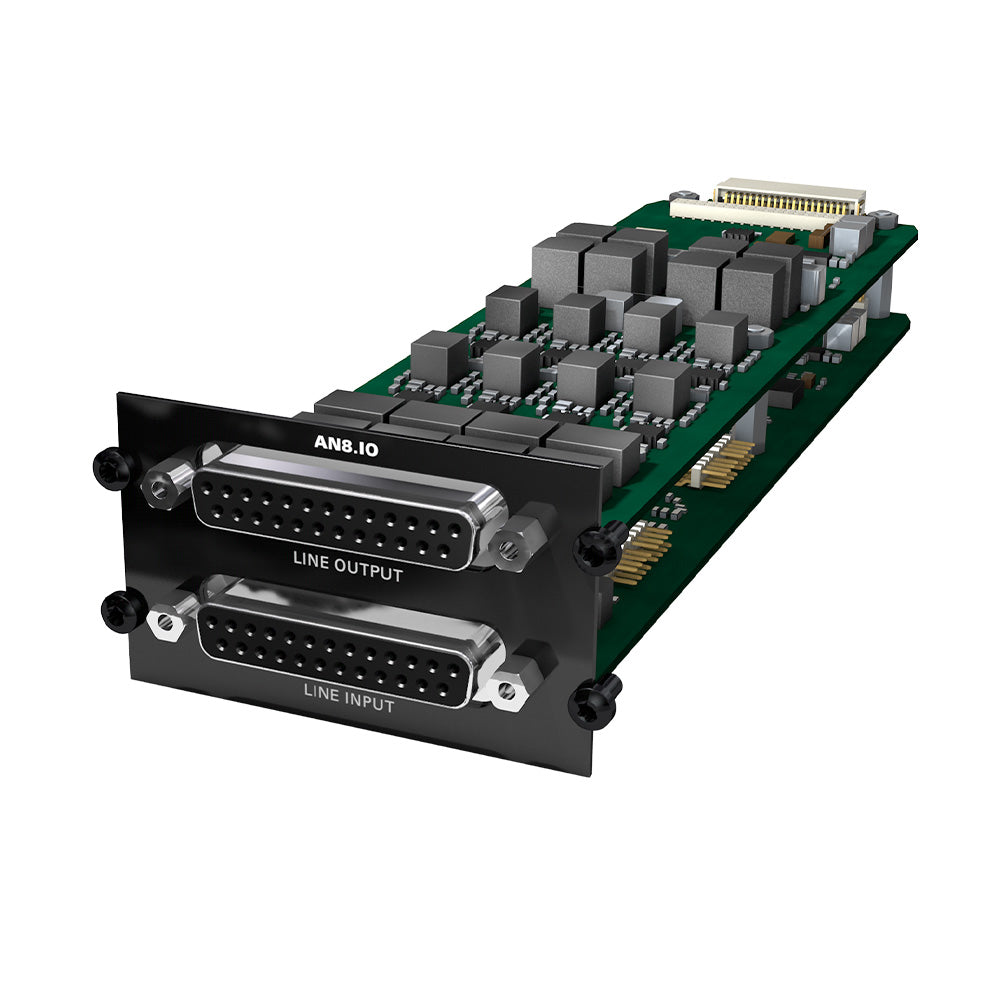

DirectOut AN8.IO - 8 Line Input / 8 Line Output Card for PRODIGY or MAVEN Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
AN8.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.
Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.
The line inputs and outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel and per input or output.
| Input / Output | 8 channels line input/output reference levels +15 / +18 / +24 dBu via jumper |
| A/D | SNR: < -117,6 dB RMS (20 Hz - 20 kHz) / -119,9 dB(A) THD @ -1 dBFS: < -119 dB Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz) |
| D/A | SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Interfaces | 2 x DSUB-25 connector (input/output)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
AN8.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.
Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.
The line inputs and outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel and per input or output.
| Input / Output | 8 channels line input/output reference levels +15 / +18 / +24 dBu via jumper |
| A/D | SNR: < -117,6 dB RMS (20 Hz - 20 kHz) / -119,9 dB(A) THD @ -1 dBFS: < -119 dB Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz) |
| D/A | SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Interfaces | 2 x DSUB-25 connector (input/output)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
