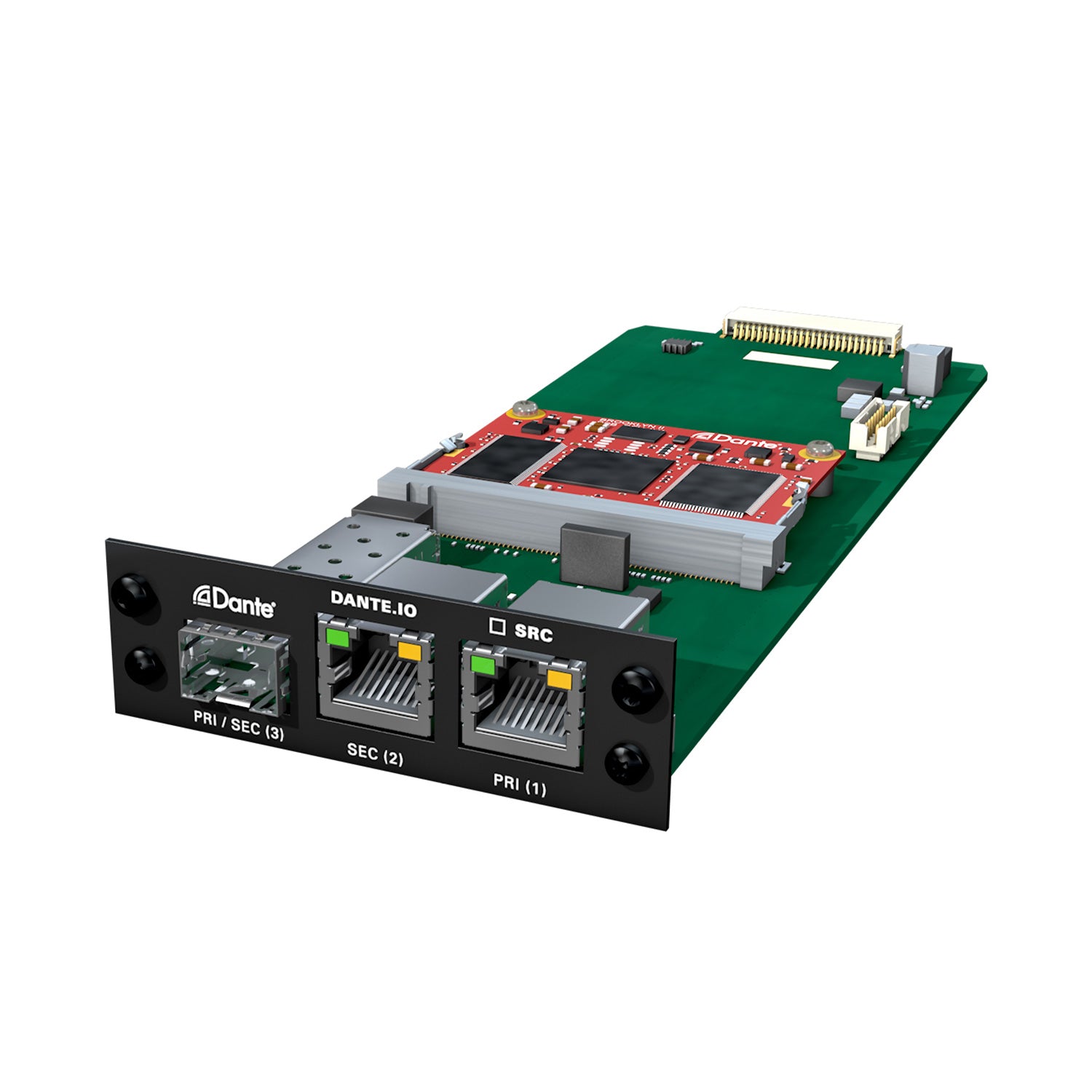

DirectOut DANTE.SRC.IO MKII - 64-Channel Dante Module for PRODIGY or MAVEN (with SRC)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
DANTE.SRC.IO is an audio network module for the PRODIGY Series and MAVEN.A to interface Dante streams. Compared to DANTE.IO the DANTE.SRC.IO features sample rate conversion on board (HD SRC). The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRCª) for input and output.
Three network ports can be configured to different operating modes (primary / secondary) and connect up to 64 audio channels (input / output).
The amount of audio channels is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.
| IO | 32 streams 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS) |
| Sample rate | 44.1 kHz up to 192 kHz |
| Sample rate conversion | (DANTE.SRC.IO and FastSRCÈ in PRODIGY Series) |
| Network Compatibility | Compliant with AES67, SMPTE ST 2110-30 (requires DDM) Stream redundancyä primary/secondary Switch configurable (Primary / Secondary) Ethernet layer 3 ('Audio over IP') |
| Connection | 2 x RJ45 gigabit ethernet / 1 x SFP supporting optical connection Remote control via Dante Controller, browser and globcon, DDM ready |
DANTE.SRC.IO is an audio network module for the PRODIGY Series and MAVEN.A to interface Dante streams. Compared to DANTE.IO the DANTE.SRC.IO features sample rate conversion on board (HD SRC). The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRCª) for input and output.
Three network ports can be configured to different operating modes (primary / secondary) and connect up to 64 audio channels (input / output).
The amount of audio channels is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.
| IO | 32 streams 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS) |
| Sample rate | 44.1 kHz up to 192 kHz |
| Sample rate conversion | (DANTE.SRC.IO and FastSRCÈ in PRODIGY Series) |
| Network Compatibility | Compliant with AES67, SMPTE ST 2110-30 (requires DDM) Stream redundancyä primary/secondary Switch configurable (Primary / Secondary) Ethernet layer 3 ('Audio over IP') |
| Connection | 2 x RJ45 gigabit ethernet / 1 x SFP supporting optical connection Remote control via Dante Controller, browser and globcon, DDM ready |
