DirectOut EXBOX.MD MKII - 64-Channel Dante to MADI Converter with FastSRC
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
EXBOX.MD is a Dante / MADI converter linking Audinate's audio networking technology Dante and MADI (AES10). Equipped with three MADI ports and four network ports it offers straight-forward conversion of 64 audio channels between MADI and Dante.
The handy size of the popular EXBOX series (1/3 of 19''), combined with the rock-solid housing and redundant power supplies, makes the EXBOX.MD a perfect connectivity tool for touring live shows, OB vans as well as studio applications.
EXBOX.MD MKII features the Audinate Brooklyn 3 Dante processor.
OVERVIEW

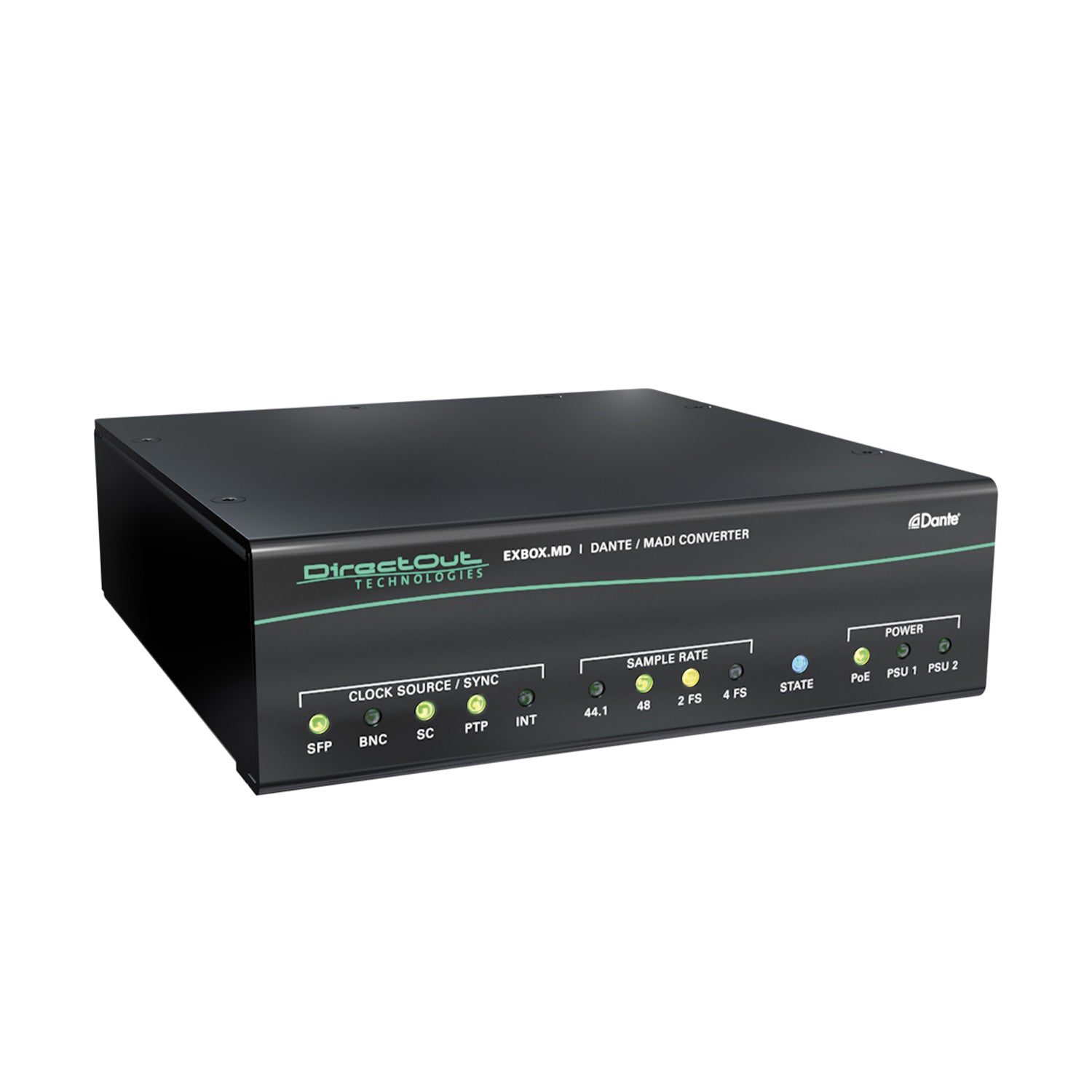

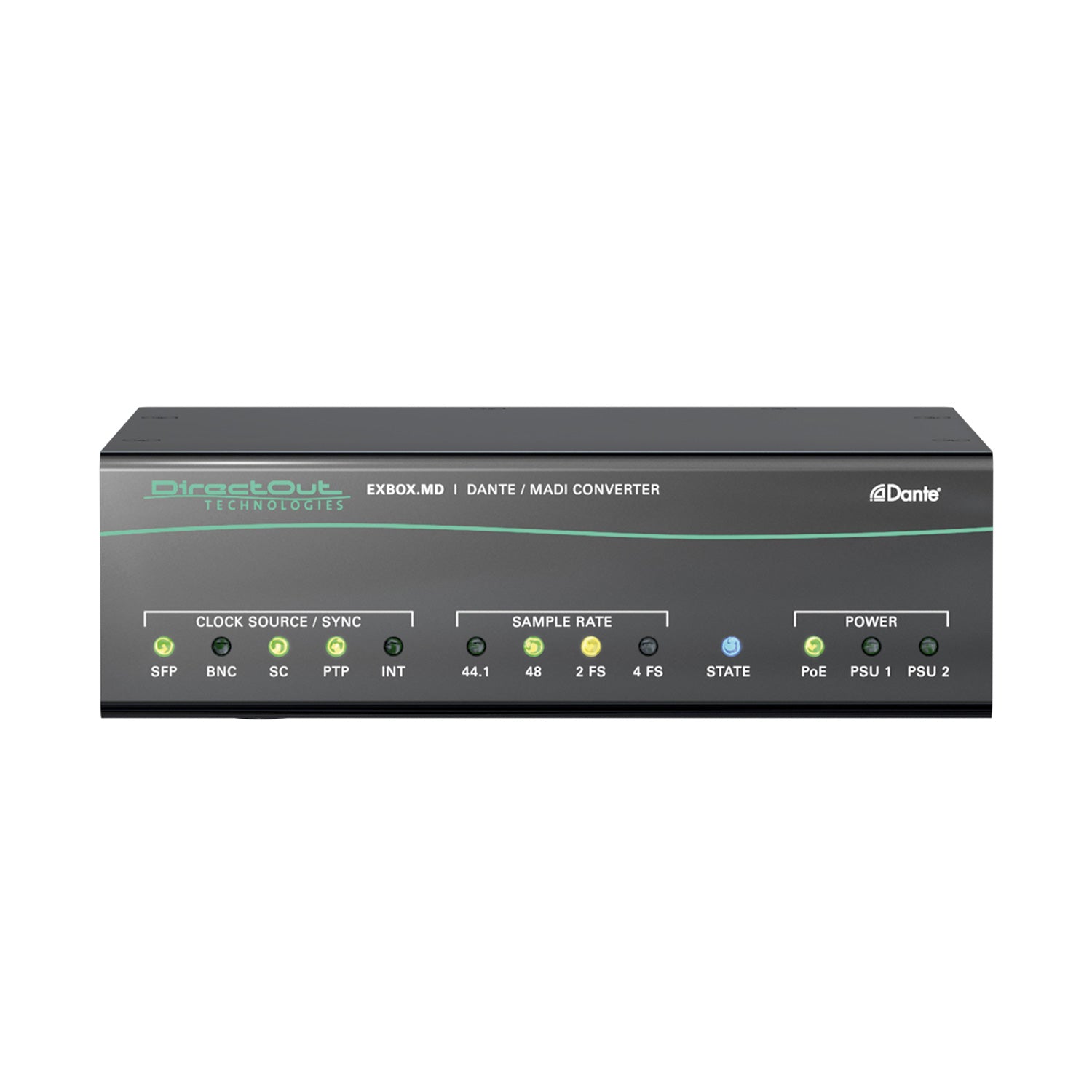

LEDs at the front panel inform about clocking, sample rate, device state and power supply at a glance.
AUDIO STREAMING
Up to 32 streams with a total number of 64 audio channels are supported. The device also features the latest Dante firmware with activated AES67 support.
ALL-ROUND FUNCTIONALITY

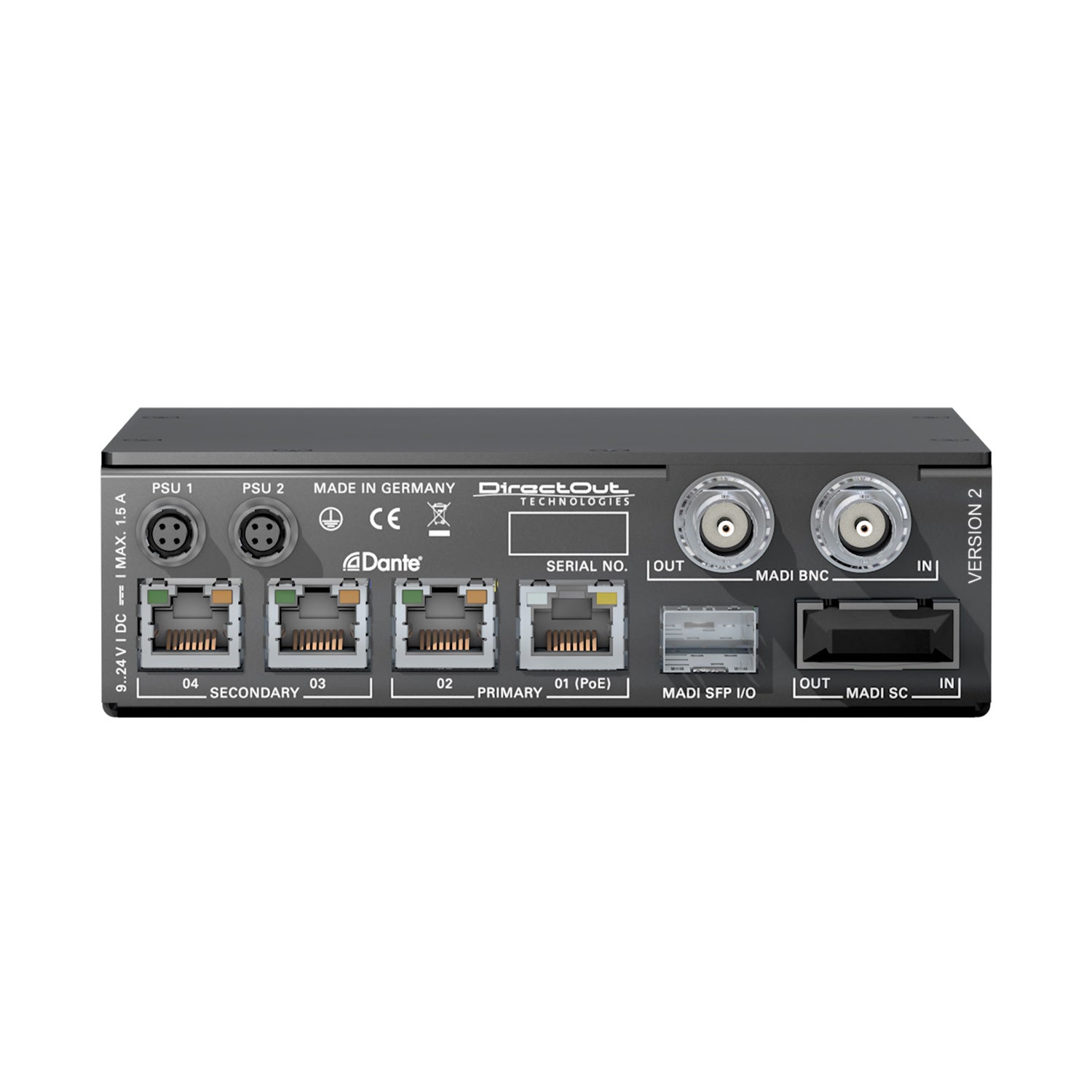

EXBOX.MD offers highest flexibility as it provides three MADI ports of different interface types:
- optical SC (single-mode or multi-mode)
- coaxial (BNC)
- SFP
The Small Form Factor Pluggable cage can be fitted with any SFP module suitable for the particular application.
FastSRCª
The FastSRCª is a low latency sample rate converter, switchable for the Dante I/O, and ensures seamless exchange between MADI and Dante I/O when both sources are not synchronised.
EARSª
Enhanced Automatic Redundancy Switchingª is a system to prevent interruption of the output signal. It uses either the proven BLDSª technology or pilot tone triggering. A logic monitors the condition of the trigger signal on the audio network or the MADI inputs. In case of a failure it switches automatically to the defined backup input (audio network or MADI).
BUILT-IN-SWITCH
Four network ports are connected to an internal switch and give the opportunity to use Dante's redundancy mode (Primary - Secondary), while more EXBOX.MDs or other Dante devices can be connected in switched mode directly to increase the number of channels.
REMOTE CONTROL
EXBOX.MD can be controlled by Audinate's remote software âDante Controller' and is âDante Domain Manager' ready. Device functions, such as the channel based routing matrix, FastSRCª or EARSª are accessible via globcon and a browser UI.
SAFE OPERATION
The device can be powered by up to two external power-supplies as well as PoE (Power over Ethernet).
RACK READY

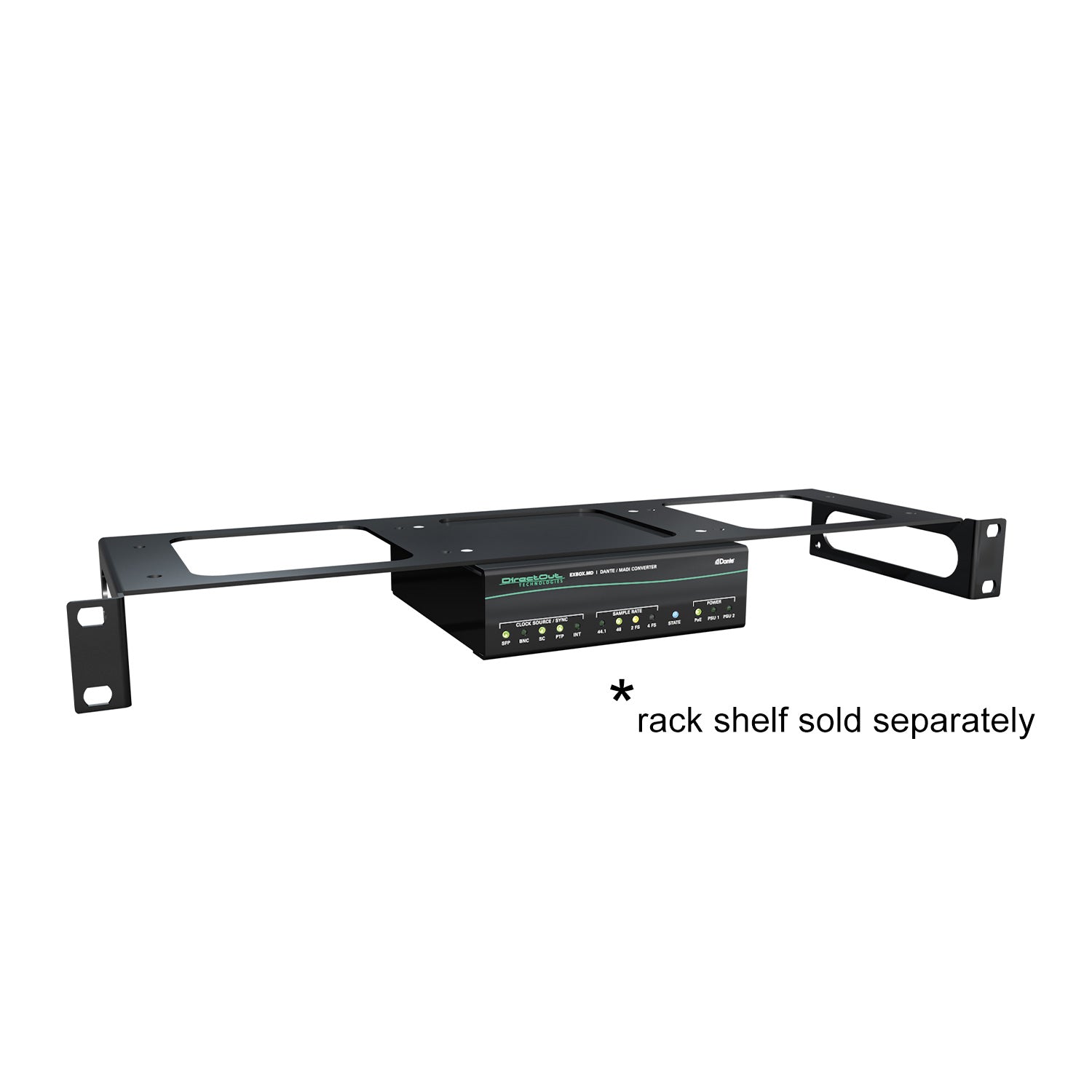

Each EXBOX can be mounted into a standard 19''-rack by using the optional kit BOXMOUNT.XL. Up to three devices may fit side-by-side within 1 RU.
| Interfaces | |
| MADI ports (I/O) | 1 x coaxial BNC, 75? 1 x optical SC-Socket multi-mode 1 x SFP (empty cage without transceiver)* * compatible with SFP MADI Transceiver LWLAB optical LC Multi Mode / Single Mode and SFP Transceiver HD-BNC coax, available from DirectOut GmbH |
| Network | 3 x RJ45 Socket (1 Gbit/s) 1 x RJ45 Socket (1 Gbit/s, PoE) |
| Digital | |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
| MADI formats | 48k / 96k Frame, 56 / 64 channel, S/MUX |
| Network Audio | |
| Network-Layer | 3 |
| Number of streams | 32 |
| Number of channels (I/O) | 64 (@1 FS), 32 (@2 FS), 16 (@4 FS) |
| Standard | Dante, AES67 |
| Sync via Network | IEEE 1588 v1 |
| Signal Processing | |
| Sample Rate Conversion | FastSRC» @ Dante I/O |
| Communication | |
| Remote Software | Dante Controller, globcon |
| Remote Methods | Network |
| Global | |
| Power Supply | external, 2 x Hirose (9 - 24V)*, 1 x PoE (IEEE 802.3af) * 1 x power supply included |
| Dimensions | Width 140 mm Height 42 mm Depth 140 mm |
| Weight | about 1 kg |
| Accessory | SFP modules (LC single-mode or multi-mode) BOXMOUNT.XL for 19'' rack mount |
| Device variants | Single-mode: MADI port: SC-Socket single-mode Dual PSU optional available |
| æ | æ |
EXBOX.MD is a Dante / MADI converter linking Audinate's audio networking technology Dante and MADI (AES10). Equipped with three MADI ports and four network ports it offers straight-forward conversion of 64 audio channels between MADI and Dante.
The handy size of the popular EXBOX series (1/3 of 19''), combined with the rock-solid housing and redundant power supplies, makes the EXBOX.MD a perfect connectivity tool for touring live shows, OB vans as well as studio applications.
EXBOX.MD MKII features the Audinate Brooklyn 3 Dante processor.
OVERVIEW
LEDs at the front panel inform about clocking, sample rate, device state and power supply at a glance.
AUDIO STREAMING
Up to 32 streams with a total number of 64 audio channels are supported. The device also features the latest Dante firmware with activated AES67 support.
ALL-ROUND FUNCTIONALITY
EXBOX.MD offers highest flexibility as it provides three MADI ports of different interface types:
- optical SC (single-mode or multi-mode)
- coaxial (BNC)
- SFP
The Small Form Factor Pluggable cage can be fitted with any SFP module suitable for the particular application.
FastSRCª
The FastSRCª is a low latency sample rate converter, switchable for the Dante I/O, and ensures seamless exchange between MADI and Dante I/O when both sources are not synchronised.
EARSª
Enhanced Automatic Redundancy Switchingª is a system to prevent interruption of the output signal. It uses either the proven BLDSª technology or pilot tone triggering. A logic monitors the condition of the trigger signal on the audio network or the MADI inputs. In case of a failure it switches automatically to the defined backup input (audio network or MADI).
BUILT-IN-SWITCH
Four network ports are connected to an internal switch and give the opportunity to use Dante's redundancy mode (Primary - Secondary), while more EXBOX.MDs or other Dante devices can be connected in switched mode directly to increase the number of channels.
REMOTE CONTROL
EXBOX.MD can be controlled by Audinate's remote software âDante Controller' and is âDante Domain Manager' ready. Device functions, such as the channel based routing matrix, FastSRCª or EARSª are accessible via globcon and a browser UI.
SAFE OPERATION
The device can be powered by up to two external power-supplies as well as PoE (Power over Ethernet).
RACK READY
Each EXBOX can be mounted into a standard 19''-rack by using the optional kit BOXMOUNT.XL. Up to three devices may fit side-by-side within 1 RU.
| Interfaces | |
| MADI ports (I/O) | 1 x coaxial BNC, 75? 1 x optical SC-Socket multi-mode 1 x SFP (empty cage without transceiver)* * compatible with SFP MADI Transceiver LWLAB optical LC Multi Mode / Single Mode and SFP Transceiver HD-BNC coax, available from DirectOut GmbH |
| Network | 3 x RJ45 Socket (1 Gbit/s) 1 x RJ45 Socket (1 Gbit/s, PoE) |
| Digital | |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
| MADI formats | 48k / 96k Frame, 56 / 64 channel, S/MUX |
| Network Audio | |
| Network-Layer | 3 |
| Number of streams | 32 |
| Number of channels (I/O) | 64 (@1 FS), 32 (@2 FS), 16 (@4 FS) |
| Standard | Dante, AES67 |
| Sync via Network | IEEE 1588 v1 |
| Signal Processing | |
| Sample Rate Conversion | FastSRC» @ Dante I/O |
| Communication | |
| Remote Software | Dante Controller, globcon |
| Remote Methods | Network |
| Global | |
| Power Supply | external, 2 x Hirose (9 - 24V)*, 1 x PoE (IEEE 802.3af) * 1 x power supply included |
| Dimensions | Width 140 mm Height 42 mm Depth 140 mm |
| Weight | about 1 kg |
| Accessory | SFP modules (LC single-mode or multi-mode) BOXMOUNT.XL for 19'' rack mount |
| Device variants | Single-mode: MADI port: SC-Socket single-mode Dual PSU optional available |
| æ | æ |
