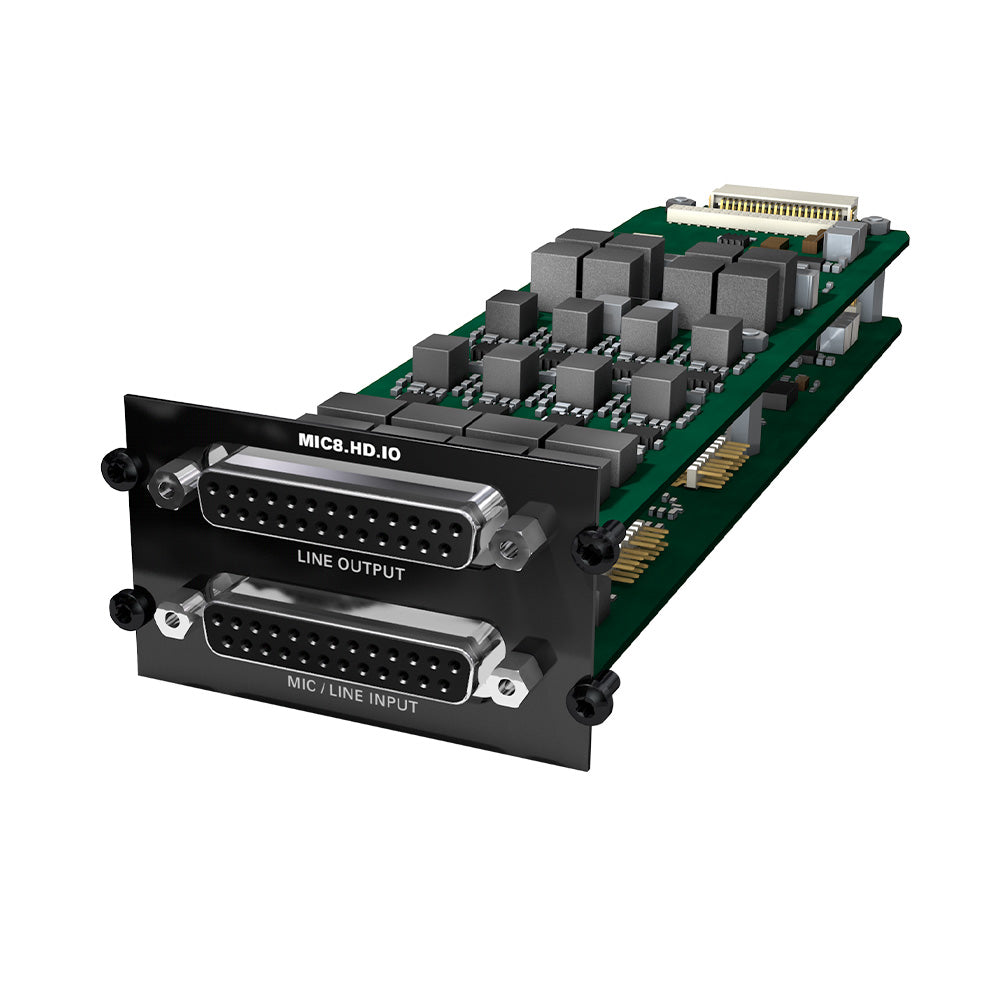

DirectOut MIC8.HD.IO - 8 Mic/Line Input / 8 Line Output Card for PRODIGY or MAVEN Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
MIC8.HD.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A. Eight analog audio input and output channels are interfaced via two DSUB-25 connectors. The inputs are balanced and cover signal ranges from mic to line level. The outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
The MIC8.HD.IO suits best for superior quality recordings and broadcasting. The MIC8.LINE.IO applies perfect for live sound or installation scenarios where usual high-quality is required.
| Input/Output | 8 channels mic input (High Definition)/line output |
| A/D | PAD -30 dB, phantom power (+48 V, switchable) Input sensitivity: -56 dBu to +24 dBu EIN: -128 dBu, THD @ -1 dBFS: -113 dB Frequency response: -0.15 dB (10 Hz) / -0.15 dB (20 kHz) |
| D/A | reference levels +15 / +18 / +24 dBu via jumper SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Interfaces | 2 x DSUB-25 connector (input/output)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
MIC8.HD.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A. Eight analog audio input and output channels are interfaced via two DSUB-25 connectors. The inputs are balanced and cover signal ranges from mic to line level. The outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel.
The MIC8.HD.IO suits best for superior quality recordings and broadcasting. The MIC8.LINE.IO applies perfect for live sound or installation scenarios where usual high-quality is required.
| Input/Output | 8 channels mic input (High Definition)/line output |
| A/D | PAD -30 dB, phantom power (+48 V, switchable) Input sensitivity: -56 dBu to +24 dBu EIN: -128 dBu, THD @ -1 dBFS: -113 dB Frequency response: -0.15 dB (10 Hz) / -0.15 dB (20 kHz) |
| D/A | reference levels +15 / +18 / +24 dBu via jumper SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A) THD @ -1 dBFS: -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz) |
| Interfaces | 2 x DSUB-25 connector (input/output)*, according to AES59 * suitable cabling to connect with BREAKOUT is available from DirectOut GmbH |
