DirectOut MIC8.LINE.I - 8-Channel Mic/Line Input Module for PRODIGY or MAVEN Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

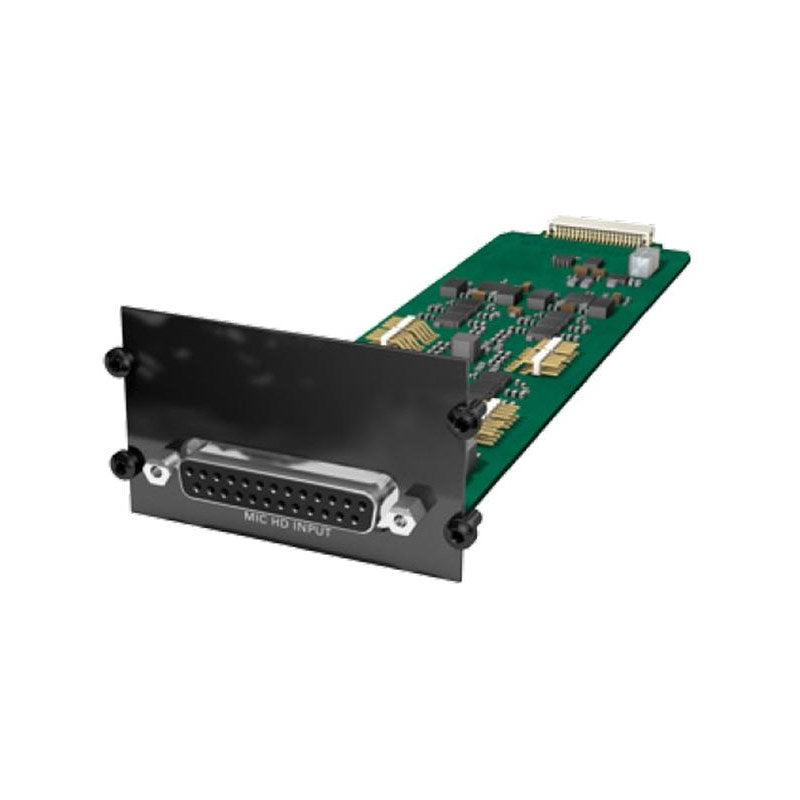

MIC8.LINE.I is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A. Eight analog audio input channels are interfaced via a DSUB-25 connector. The inputs are balanced and cover signal ranges from mic to line level.
The MIC8.LINE.I applies perfect for live sound or installation scenarios where usual high-quality is required. The MIC8.HD.I suits best for superior quality recordings and broadcasting.
| IO | 8 channels mic input (High Definition) |
| PAD | -30 dB, phantom power (+48 V, switchable) |
| Input sensitivity | -56 dBu to +24 dBu, EIN: -128 dBu |
| THD @ -1 dBFS | -113 dB |
| Frequency response | -0.15 dB (10 Hz) / -0.15 dB (20 kHz) |
| Connection | 1 x DSUB-25 connector (input)*, according to AES59 |
MIC8.LINE.I is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A. Eight analog audio input channels are interfaced via a DSUB-25 connector. The inputs are balanced and cover signal ranges from mic to line level.
The MIC8.LINE.I applies perfect for live sound or installation scenarios where usual high-quality is required. The MIC8.HD.I suits best for superior quality recordings and broadcasting.
| IO | 8 channels mic input (High Definition) |
| PAD | -30 dB, phantom power (+48 V, switchable) |
| Input sensitivity | -56 dBu to +24 dBu, EIN: -128 dBu |
| THD @ -1 dBFS | -113 dB |
| Frequency response | -0.15 dB (10 Hz) / -0.15 dB (20 kHz) |
| Connection | 1 x DSUB-25 connector (input)*, according to AES59 |
