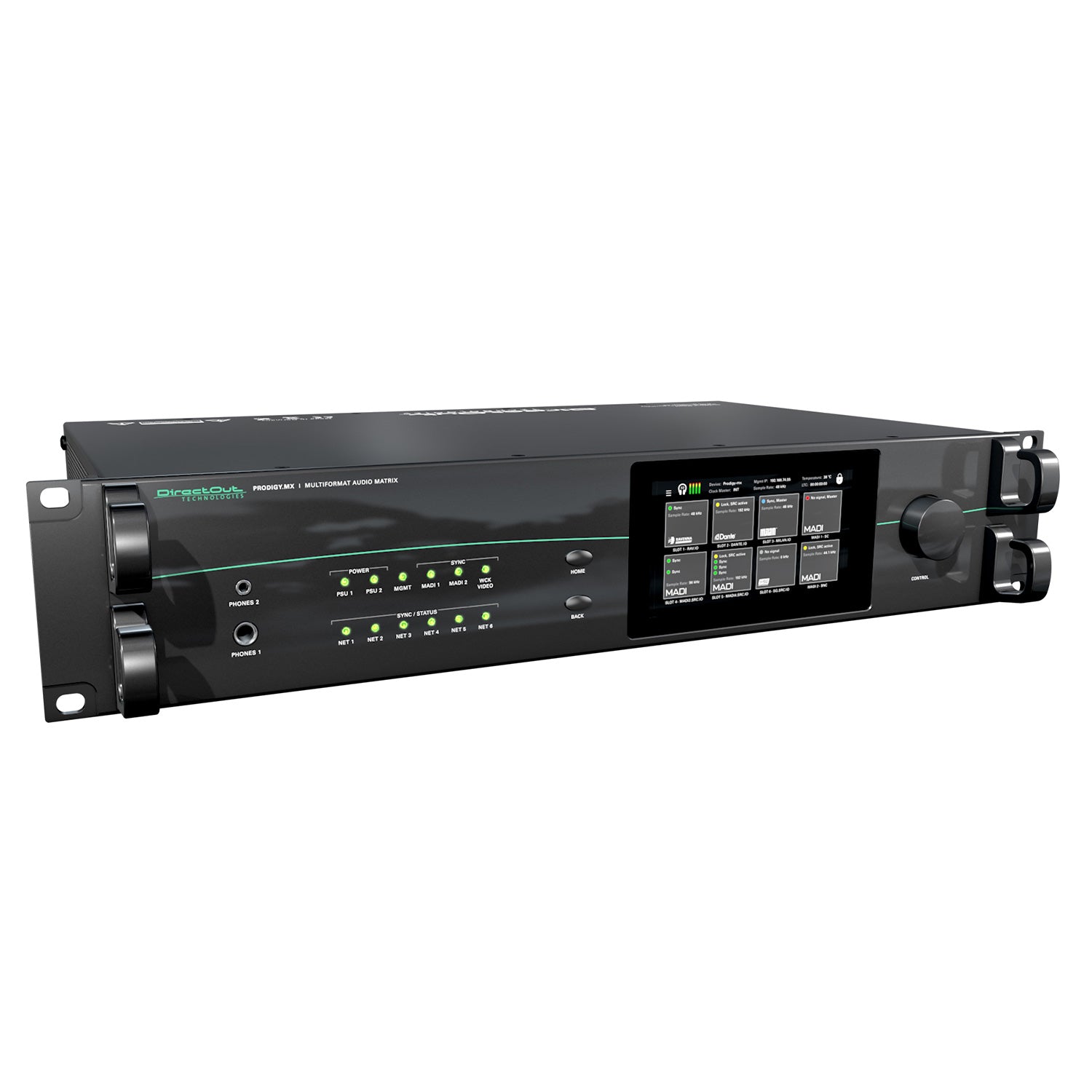

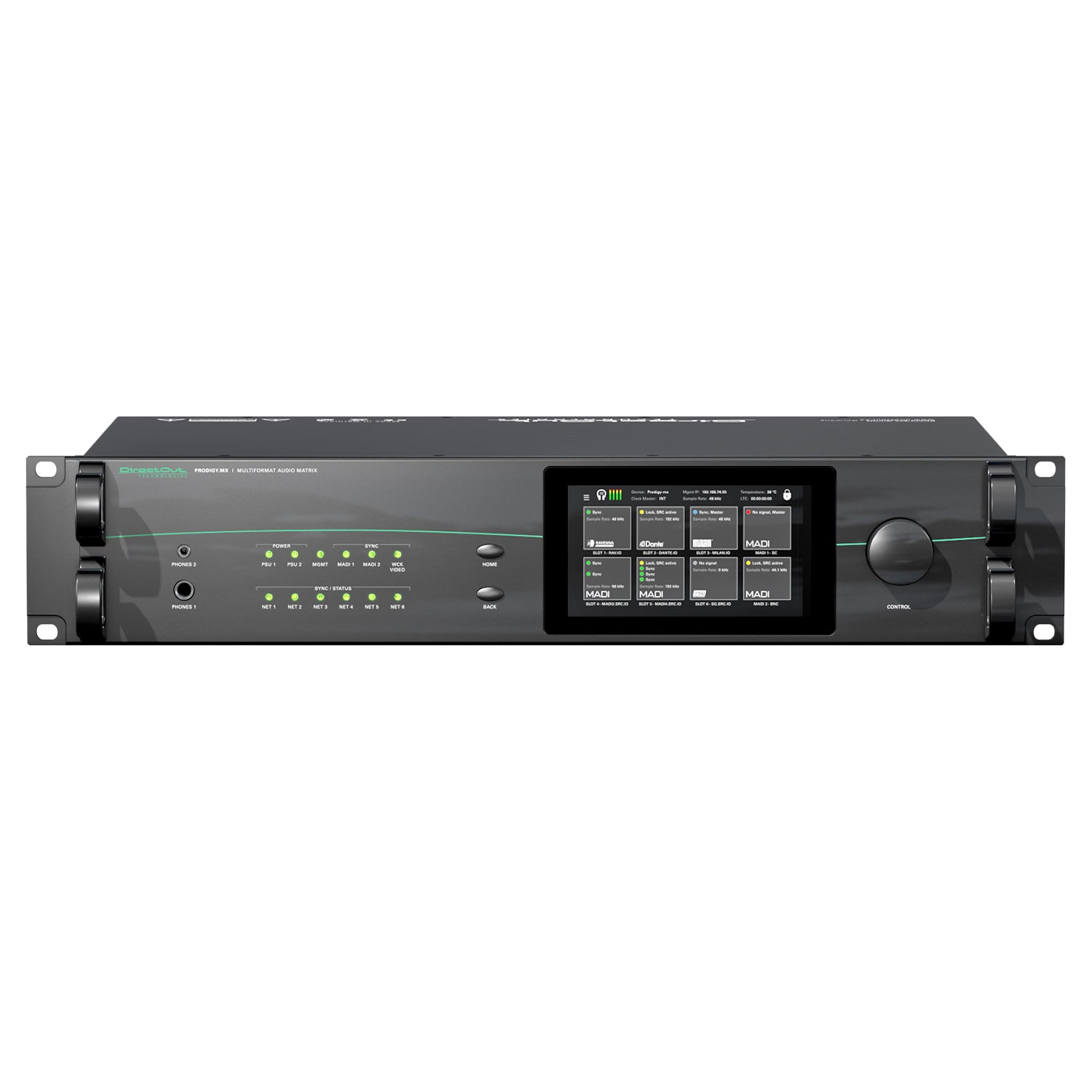

DirectOut PRODIGY.MX - Modular Digital Audio Matrix (Chassis Frame)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
PRODIGY.MX is a multiformat audio matrix with a capacity of 1664 x 1668 audio channels. Interfacing with the whole range of audio protocols offered by DirectOut and powerful DSP functions it addresses numerous applications in broadcast and installation. The hardware is modular and the available licenses are granular - offering to make the best choice to meet your requirements.
Modules - IO

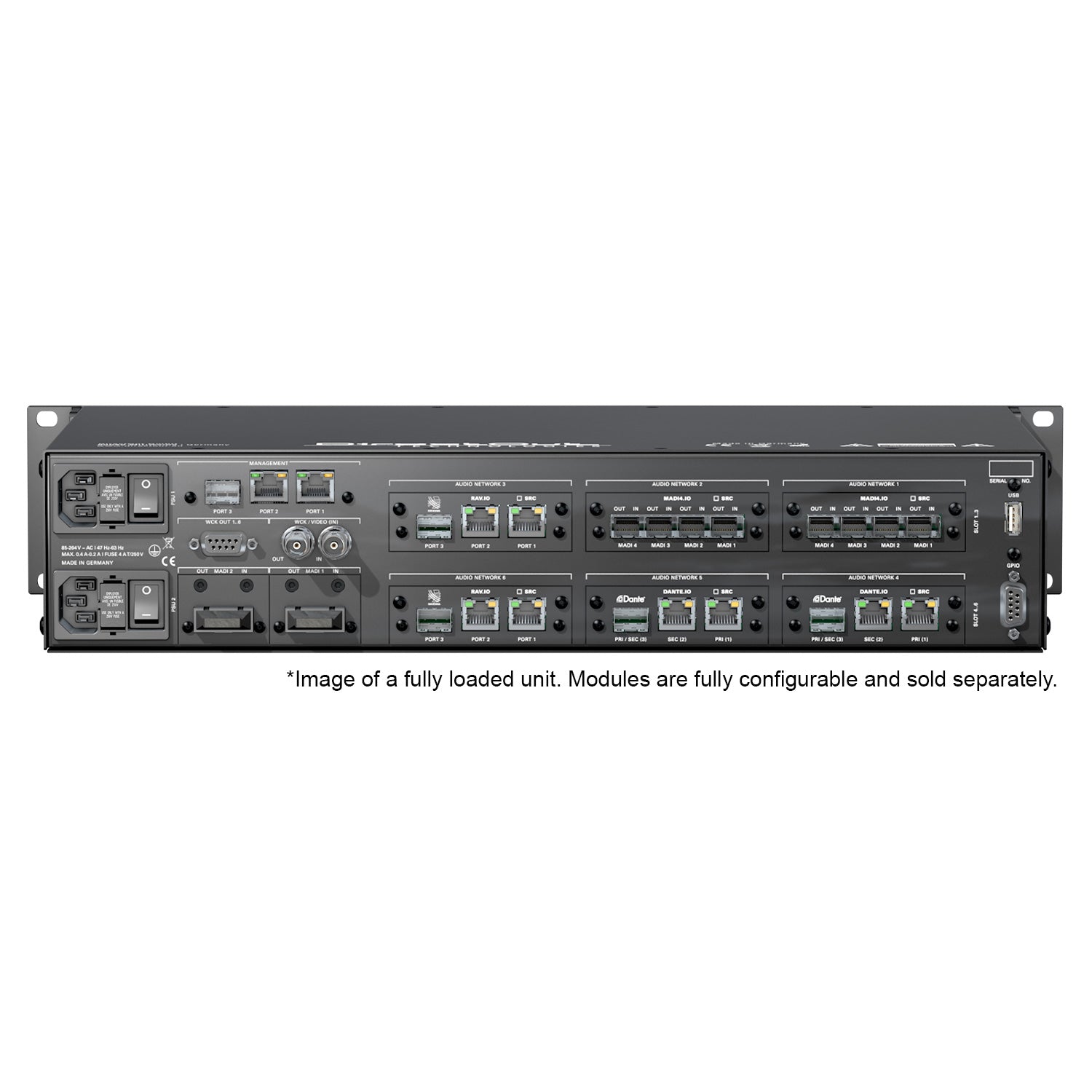

PRODIGY.MX featuresÊsix A slots and two B slots:
- A slot - audio network, multi-port MADI or USB - up to 256 channels per module
- B slot - single-port MADI - 64 channels per module
The channel capacity sums up to 1664 inputs and 1668 outputs which are managed with a channel-based routing matrix.
MultiÊFormat
- RAVENNA / AES67
- Dante
- SoundGrid
- AVB / MILAN
- MADI single-port, multi-port
- USB
Seamless connecting
Bidirectional sample rate conversion connects across clock boundaries:
- FastSRC operating on the mainframe for the B modules (single-port MADI)
- HD SRC operating optionally on the corresponding A modules (audio network, multi-port MADI)*
Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC. Local display and operation on a touch display facilitates the overview and grants basic control. Third-party control protocols (Ember+, OSC, SNMP, JSON-API, Lawo HOME) are available as options.
DSP
Signal processing offers gain control of all inputs and outputs and channel groups for comfortable fading. 64 Flex Channels provide signal processing with excellent internal plugins:
- IIR filter with six instances of selectable filter types
- Dynamics with four different configurations
- Delay of up to 262143 samples (= 5461 milliseconds @ 48 kHz)
64 x 64 Matrix Mixer to mix 64 freely assignable sources to 64 busses.
64 Summing Busses, each of which can sum any number of signal sources to a single feed.
AutoMix for automated mixing of different audio signals in up to 16 AutoMix groups to increase intelligibility or to reduce noise
Redundancy
64 Input Managers each managing the signal automatic switch-over between up to six physical inputs. EARSª (Enhanced Automatic Redundancy Switching) for automatic fail-over switching of an entire input port to a backup port.
MADI unlocked
New MADI modules for the A slots with two or four MADI ports add extra capacity to the single-port MADI slots (B slots) - Modules' ABC
* HD SRC is available only on corresponding hardware modules (XX.SRC.IO).
| MADI Modules | BNC.IO - 64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 _, B Module SC.IO - 64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request), B Module SFP.IO - 64 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut), B Module MADI2.SRC.IO - 128 ch MADI, 2x SFP cage (matching SFP modules available from DirectOut), HD SRC, A Module MADI2.BNC.SRC.IO - 128 ch MADI, 2x coaxial BNC input, 2x coaxial BNC output, 75 _, HD SRC, A Module MADI4.IO - 256 ch MADI, 4x SFP cage (matching SFP modules available from DirectOut), A Module MADI4.SRC.IO - 256 ch MADI, 4x SFP cage (matching SFP modules available from DirectOut), HD SRC, A Module |
| Network Modules | RAV.IO - 128 ch Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP), A Module RAV.SRC.IO - 128 ch Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP), HD SRC, A Module DANTE.IO - 64 ch Audio Network DANTE (2x RJ45, 1x SFP), A Module DANTE.SRC.IO - 64 ch Audio Network DANTE (2x RJ45, 1x SFP), HD SRC, A Module SG.IO - 128 ch Audio Network SoundGrid (2x RJ45, 1x SFP), A Module SG.SRC.IO - 128 ch Audio Network SoundGrid (2x RJ45, 1x SFP), HD SRC, A Module MILAN.IO - 128 ch Audio Network AVB/MILAN (2x RJ45, 1x SFP), A Module MILAN.SRC.IO - 128 ch Audio Network AVB/MILAN (2x RJ45, 1x SFP), HD SRC, A Module |
| USB Modules | USB.IO - 128 ch, USB Type 3, driver or class compliant mode (USB-C), A Module |
| Digital | |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
| MADI formats | 48k / 96k Frame, 56 / 64 channel, S/MUX |
| Additional Interfaces | |
| Headphone Output #1 | 1 x 6.3 mm TRS jack, mono/stereo Output level: max. +18 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| Headphone Output #2 | 1 x 3.5 mm TRS jack, mono/stereo Output level: max. +12 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| Communication | |
| Remote Software | globcon software control integrated web server with UI (HTML, JavaScript) |
| Control Protocols | JSON API, SNMP*, OSC, Ember+, Lawo HOME |
| Remote Network | 1x RJ45 Gigabit Ethernet |
| Global | |
| Power supply | 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant |
| Power Consumption | 20 to 110 W, module dependent |
| Display | 5.0î Backlight LED LCD IPS Transmissive Resolution: 480 x 854 px |
| Local Control | 1 x Encoder knob with push functionality 2 x Push-Buttons |
| Dimensions | Width 19'' (483 mm) Height 2 RU (89 mm) Depth 10'' (254 mm) |
| Weight | about 10 kg |
PRODIGY.MX is a multiformat audio matrix with a capacity of 1664 x 1668 audio channels. Interfacing with the whole range of audio protocols offered by DirectOut and powerful DSP functions it addresses numerous applications in broadcast and installation. The hardware is modular and the available licenses are granular - offering to make the best choice to meet your requirements.
Modules - IO
PRODIGY.MX featuresÊsix A slots and two B slots:
- A slot - audio network, multi-port MADI or USB - up to 256 channels per module
- B slot - single-port MADI - 64 channels per module
The channel capacity sums up to 1664 inputs and 1668 outputs which are managed with a channel-based routing matrix.
MultiÊFormat
- RAVENNA / AES67
- Dante
- SoundGrid
- AVB / MILAN
- MADI single-port, multi-port
- USB
Seamless connecting
Bidirectional sample rate conversion connects across clock boundaries:
- FastSRC operating on the mainframe for the B modules (single-port MADI)
- HD SRC operating optionally on the corresponding A modules (audio network, multi-port MADI)*
Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC. Local display and operation on a touch display facilitates the overview and grants basic control. Third-party control protocols (Ember+, OSC, SNMP, JSON-API, Lawo HOME) are available as options.
DSP
Signal processing offers gain control of all inputs and outputs and channel groups for comfortable fading. 64 Flex Channels provide signal processing with excellent internal plugins:
- IIR filter with six instances of selectable filter types
- Dynamics with four different configurations
- Delay of up to 262143 samples (= 5461 milliseconds @ 48 kHz)
64 x 64 Matrix Mixer to mix 64 freely assignable sources to 64 busses.
64 Summing Busses, each of which can sum any number of signal sources to a single feed.
AutoMix for automated mixing of different audio signals in up to 16 AutoMix groups to increase intelligibility or to reduce noise
Redundancy
64 Input Managers each managing the signal automatic switch-over between up to six physical inputs. EARSª (Enhanced Automatic Redundancy Switching) for automatic fail-over switching of an entire input port to a backup port.
MADI unlocked
New MADI modules for the A slots with two or four MADI ports add extra capacity to the single-port MADI slots (B slots) - Modules' ABC
* HD SRC is available only on corresponding hardware modules (XX.SRC.IO).
| MADI Modules | BNC.IO - 64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 _, B Module SC.IO - 64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request), B Module SFP.IO - 64 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut), B Module MADI2.SRC.IO - 128 ch MADI, 2x SFP cage (matching SFP modules available from DirectOut), HD SRC, A Module MADI2.BNC.SRC.IO - 128 ch MADI, 2x coaxial BNC input, 2x coaxial BNC output, 75 _, HD SRC, A Module MADI4.IO - 256 ch MADI, 4x SFP cage (matching SFP modules available from DirectOut), A Module MADI4.SRC.IO - 256 ch MADI, 4x SFP cage (matching SFP modules available from DirectOut), HD SRC, A Module |
| Network Modules | RAV.IO - 128 ch Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP), A Module RAV.SRC.IO - 128 ch Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP), HD SRC, A Module DANTE.IO - 64 ch Audio Network DANTE (2x RJ45, 1x SFP), A Module DANTE.SRC.IO - 64 ch Audio Network DANTE (2x RJ45, 1x SFP), HD SRC, A Module SG.IO - 128 ch Audio Network SoundGrid (2x RJ45, 1x SFP), A Module SG.SRC.IO - 128 ch Audio Network SoundGrid (2x RJ45, 1x SFP), HD SRC, A Module MILAN.IO - 128 ch Audio Network AVB/MILAN (2x RJ45, 1x SFP), A Module MILAN.SRC.IO - 128 ch Audio Network AVB/MILAN (2x RJ45, 1x SFP), HD SRC, A Module |
| USB Modules | USB.IO - 128 ch, USB Type 3, driver or class compliant mode (USB-C), A Module |
| Digital | |
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%) |
| MADI formats | 48k / 96k Frame, 56 / 64 channel, S/MUX |
| Additional Interfaces | |
| Headphone Output #1 | 1 x 6.3 mm TRS jack, mono/stereo Output level: max. +18 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| Headphone Output #2 | 1 x 3.5 mm TRS jack, mono/stereo Output level: max. +12 dBu SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD+N @ 0 dBFS: -105 dB @ 600 _ |
| Communication | |
| Remote Software | globcon software control integrated web server with UI (HTML, JavaScript) |
| Control Protocols | JSON API, SNMP*, OSC, Ember+, Lawo HOME |
| Remote Network | 1x RJ45 Gigabit Ethernet |
| Global | |
| Power supply | 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant |
| Power Consumption | 20 to 110 W, module dependent |
| Display | 5.0î Backlight LED LCD IPS Transmissive Resolution: 480 x 854 px |
| Local Control | 1 x Encoder knob with push functionality 2 x Push-Buttons |
| Dimensions | Width 19'' (483 mm) Height 2 RU (89 mm) Depth 10'' (254 mm) |
| Weight | about 10 kg |
