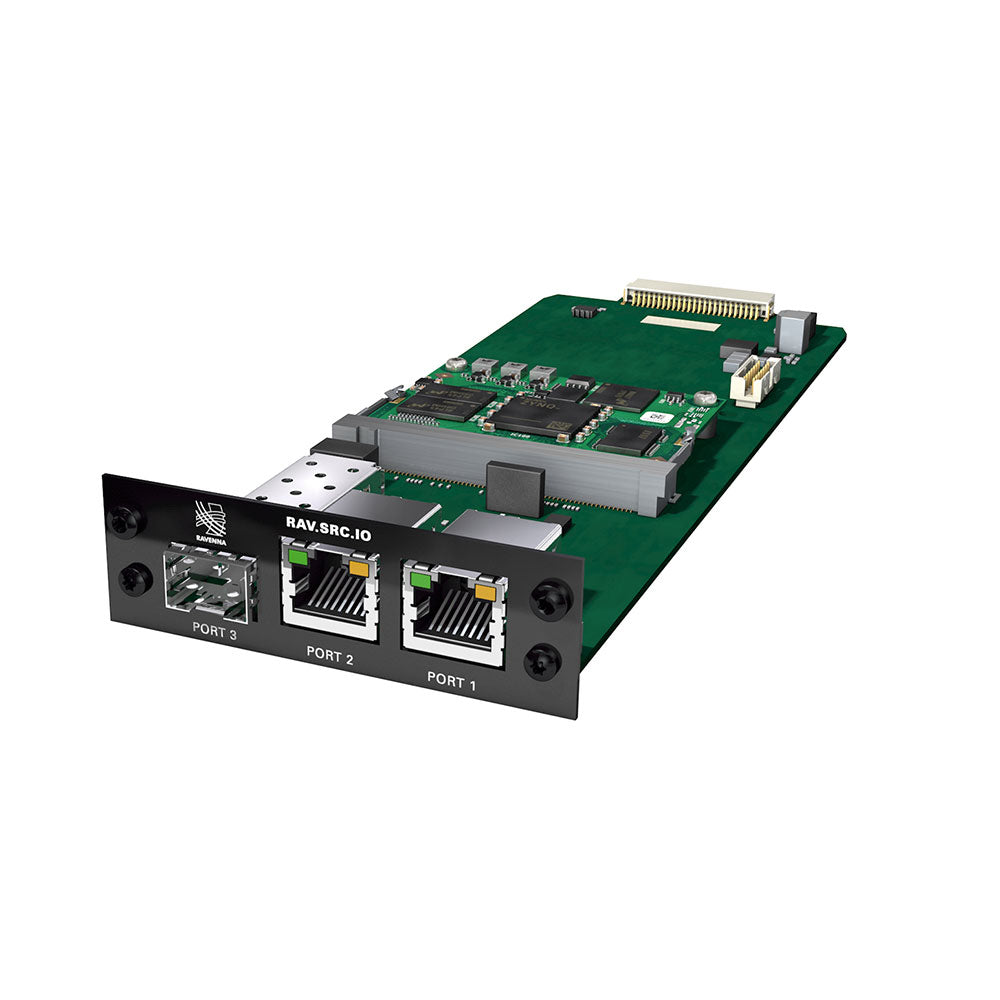

DirectOut RAV.SRC.IO - 64-Channel RAVENNA Interface Card for PRODIGY or MAVEN (with SRC)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
RAV.SRC.IO is an audio network module for the PRODIGY Series and MAVEN.A to interface RAVENNA streams. Compared to RAV.IO the RAV.SRC.IO features sample rate conversion (HD SRC) on board. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRCª) for input and output.
Three network ports can be configured to connect with two independent networks or for redundant transmission according to ST 2022-7. It interfaces up to 128 audio channels (input and output).
The amount of audio channels is reduced at higher sample rates - 64 channels @ 2 FS or 32 channels @ 4 FS.
RAVENNA is an open audio networking technology developed initially by ALC NetworX. DirectOut's own RAVENNA implementation relies on more than ten years of development. As a successful participant of the JT-NM Tested program RAV.IO is listed in the JT-NM Tested Catalog as a module aligning with the SMPTE 2110 standards.
| IO | 32 streams 128 channels (1 FS), 64 channels (2 FS), 32 channels (4 FS) 500 ms buffer (WAN capable) |
| Sample rate | 44.1 kHz up to 192 kHz |
| Sample rate conversion | (RAV.SRC.IO and FastSRCÈ in PRODIGY Series) |
| Network Compatibility | Stream redundancy ST 2022-7 Switch configurable (NIC1 / NIC2) Compliant with AES67, SMPTE ST 2110-30 / -31 Ethernet layer 3 ('Audio over IP') |
| Connection | 2 x RJ45 gigabit ethernet / 1 x SFP supporting optical connection PTP Hybrid Mode Remote control via browser NMOS IS-04 (stream discovery) NMOS IS-05 (connection management) |
RAV.SRC.IO is an audio network module for the PRODIGY Series and MAVEN.A to interface RAVENNA streams. Compared to RAV.IO the RAV.SRC.IO features sample rate conversion (HD SRC) on board. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRCª) for input and output.
Three network ports can be configured to connect with two independent networks or for redundant transmission according to ST 2022-7. It interfaces up to 128 audio channels (input and output).
The amount of audio channels is reduced at higher sample rates - 64 channels @ 2 FS or 32 channels @ 4 FS.
RAVENNA is an open audio networking technology developed initially by ALC NetworX. DirectOut's own RAVENNA implementation relies on more than ten years of development. As a successful participant of the JT-NM Tested program RAV.IO is listed in the JT-NM Tested Catalog as a module aligning with the SMPTE 2110 standards.
| IO | 32 streams 128 channels (1 FS), 64 channels (2 FS), 32 channels (4 FS) 500 ms buffer (WAN capable) |
| Sample rate | 44.1 kHz up to 192 kHz |
| Sample rate conversion | (RAV.SRC.IO and FastSRCÈ in PRODIGY Series) |
| Network Compatibility | Stream redundancy ST 2022-7 Switch configurable (NIC1 / NIC2) Compliant with AES67, SMPTE ST 2110-30 / -31 Ethernet layer 3 ('Audio over IP') |
| Connection | 2 x RJ45 gigabit ethernet / 1 x SFP supporting optical connection PTP Hybrid Mode Remote control via browser NMOS IS-04 (stream discovery) NMOS IS-05 (connection management) |
