Description
The Dolby DP590 Broadcast Audio Object Authoring tool is a key element of Dolby's industry leading object-based audio authoring toolkit that assists broadcasters, live audio mixers, and engineers in the adoption and deployment of immersive audio for live events. Dolby's object-based audio (OBA) a... Read MoreSuggested Accessories
Description

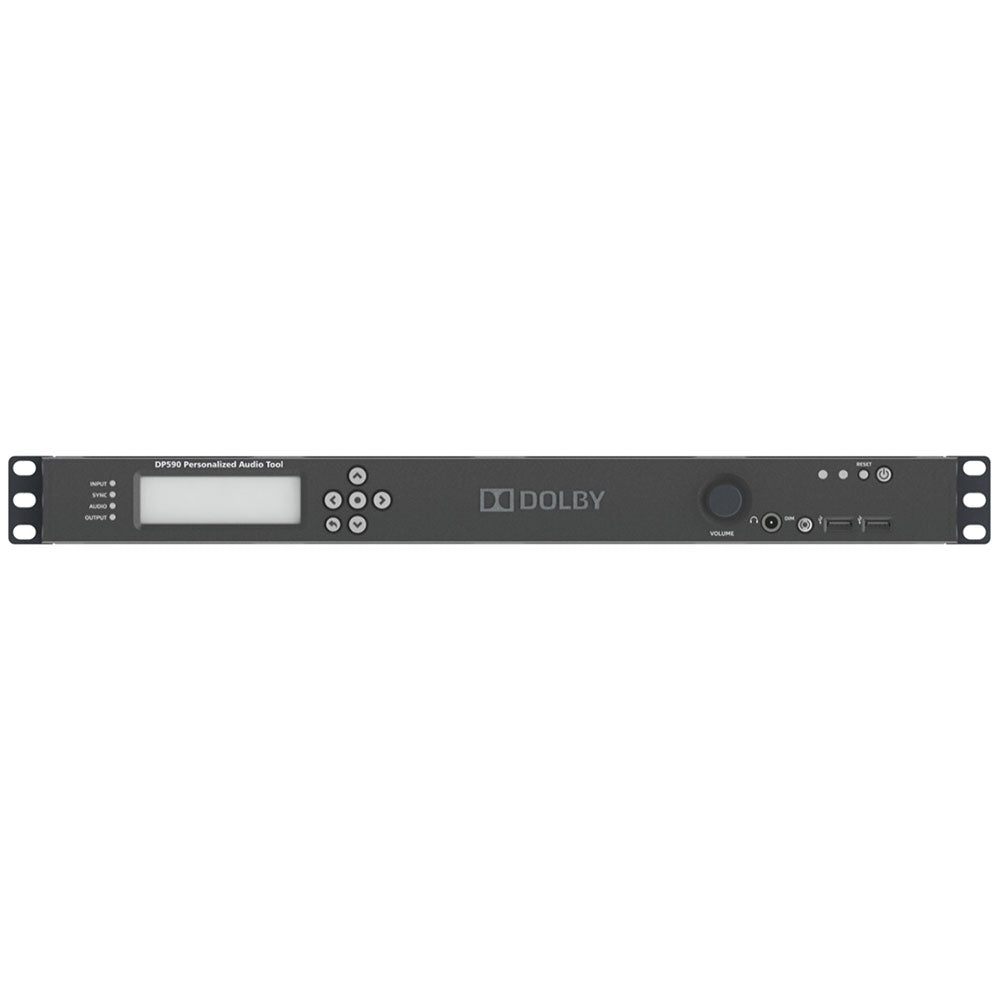

The Dolby DP590 Broadcast Audio Object Authoring tool is a key element of Dolby's industry leading object-based audio authoring toolkit that assists broadcasters, live audio mixers, and engineers in the adoption and deployment of immersive audio for live events.
Dolby's object-based audio (OBA) authoring toolkit for broadcast applications consists of the DP590 Broadcast Audio Object Authoring tool (DP590), the DP591 Audio Encoder (DP591), and the DP580 Professional Reference Decoder (DP580). This toolkit provides the ability to do immersive audio authoring, encoding, and monitoring.
The DP590 provides a user-friendly interface to give the audio engineer easy access to set up and deliver a new immersive audio experience as channel-based audio (e.g. 5.1.2, 5.1.4). It does this by ingesting audio groups from the mixing console and providing a simple way to create object audio presentations, including mapping sounds to locations in 3D space, and developing associated metadata. It also provides an easy way to monitor the changes to the immersive audio content that has been created, including emulating different speaker configurations.
The DP590 wraps around an audio mixing console as show in the diagram shown below. It enables audio engineers to define and monitor the various combinations of the audio elements that they wish to create. Each defined combination is referred to as a Presentation, and downstream decoders can be set to decode and render each presentation - for example, "5.1 English" - whenever this is required. The metadata used within the presentation is fully defined in the DP590 and is therefore under the control of the audio engineer. Presentations can be appropriately named for the production and may refer to languages, targeted delivery paths, or enhanced experiences as desired by the producers.
Features:
More +
Product Specs
Input / Output | |
SDI input | Two auto detecting BNC female connectors, 75Ω, unbalanced Supports SD-SDI (SMPTE 259M-1998), 1.5 GB/s HD-SDI (SMPTE 292M-1998), 3.0 GB/s HD-SDI (SMPTE 424M-2008) |
AES input or MADI input | One BNC female connector, unbalanced, 75Ω AES: signal levels per AES-3id-1995 (SMPTE 276M) MADI: signal levels per AES-10id-2055 |
VREF input | One BNC female connector, unbalanced, 75Ω, support for video reference signal |
SDI out | Two auto detecting BNC female connectors, 75Ω, unbalanced Supports SD-SDI (SMPTE 259M-1998), 1.5 GB/s HD-SDI (SMPTE 292M-1998), 3.0 GB/s HD-SDI (SMPTE 424M-2008) |
AES outputs | Four BNC female connectors, unbalanced, 75Ω, signal levels per AES-3id-1995 (SMPTE 276M) |
MADI output | One BNC female connector, unbalanced, 75Ω, signal levels per AES-10id-2005 |
Headphone output | 6.35 mm (1/4-inch) standard stereo headphone jack for confidence monitoring |
Media Ethernet port | RJ45 connector for 1000Base-T Ethernet; not used |
Control Ethernet port | RJ45 connector for 1000Base-T Ethernet; provides status and control through a web-based user interface |
Audio processing | |
Input | Up to 32 PCM channels at 48 kHz |
Output | Up to 32 PCM channels at 48 kHz |
Loudness measurement | ITU-BS.1770-4 and EBU R-128 |
System management | SNMP 1.2 support |
Power specifications | |
Power supply | Dual, hot-swappable from rear |
Input voltage range | 100–240 VAC |
Input frequency range | 50–60 Hz, autosensing |
Power consumption | 350 W |
Physical | |
Dimensions | 1-U rackmount: 44 × 483 × 394 mm (1.75 × 19 × 15.50 inches) |
Weight | Net: 6.5 kg (14.5 lb.) |
Environmental | |
Cooling | Front to rear airflow; Temperature-controlled fans |
Operating Temperature | 0°C–40°C (32°F–104°F) |
Storage Temperature | 0°C–40°C (32°F–104°F) |
Operating Humidity | 20%–80% relative humidity (noncondensing) |
Regulatory Notices | |
North America | UL, FCC, and CE compliant |
