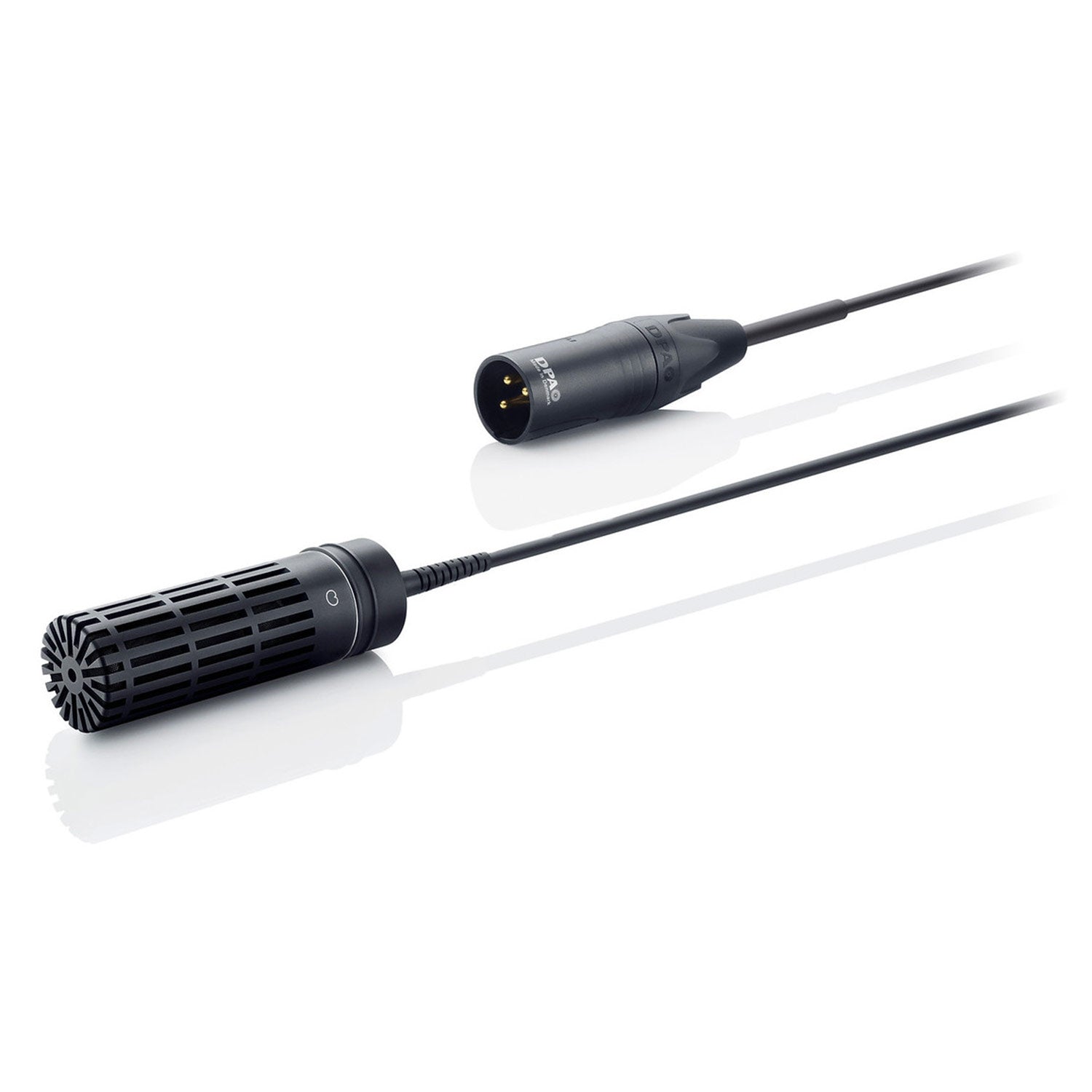

DPA Microphones 2011ER - Twin-Diaphragm Cardioid Condenser Microphone (Rear Cable)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The 2011 Twin Diaphragm Cardioid Mic is a directional microphone. The distinctive sound of this microphone is well balanced. It bridges the gap between the extreme sound quality of DPA's pencil microphones and their well-known lavalier microphones. Two opposite-facing miniature capsules are custom rebuilt inside this microphone. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth. The capsules are loaded to our supreme preamps, which gives the sound more air and precision.
Features:
- Blends clarity, richness and dynamics
- Twin Diaphragm Capsule Technology
- Advanced Interference Tube Technology
- Superb stage separation and level control
- Modular flexibility
Combine it with the preamp of your choice
As with all of DPA's modular pencil microphones, you can combine the 2011 Twin Diaphragm Cardioid Mic Capsule with any of their preamps.
The MMP-A Mic Preamp is an ultra-transparent, transformerless preamplifier with active drive for impedance balancing. The MMP-C Compact Mic Preamp is an ultra-compact preamplifier with active drive for impedance balancing. It has a slightly softer character than the other preamps for their pencil microphones.
Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter.
The 2011A Twin Diaphragm Cardioid Mic is acclaimed for its close-miking excellence and hi-SPL handling. Optimized for onstage use, it has been used on many stages as well as recording sessions. It exhibits a previously unheard blend of clarity, richness and dynamic range.
At any time, and with no tools needed, it is possible to transform the 2011 Twin Diaphragm Cardioid Mic into a new configuration. The 2011 is very widely used as a snare drum mic but fits easily well on many other instruments.
| Directional pattern | Cardioid |
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarized condenser, Twin Diaphragm Capsule |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 33 dB (max. 36 dB) |
| Rated output impedance | 200 ? |
| Minimum load impedance | 2 k? |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 3.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Matte black |
| Weight | 24 g (0.8 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Microphone length | 51 mm (2.0 in) |
| Maximum output voltage, RMS | 2.2 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
