DPA-2011ESAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

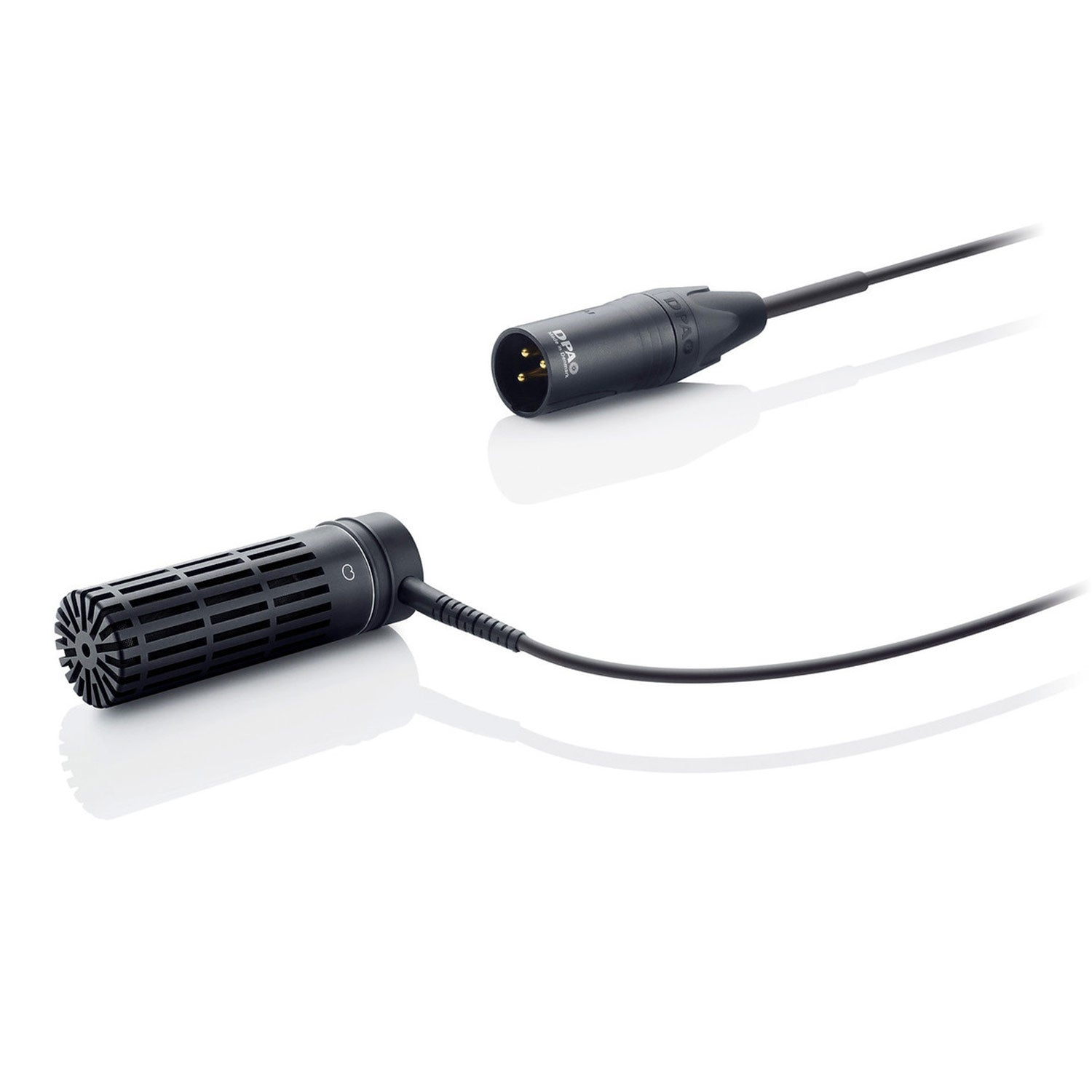

The 2011 Twin Diaphragm Cardioid Mic is a directional microphone. The distinctive sound of this microphone is well balanced. It bridges the gap between the extreme sound quality of DPA's pencil microphones and their well-known lavalier microphones. Two opposite-facing miniature capsules are custo... Read MoreOur Price: $1,090.00
Free Shipping (Continental US)
Suggested Accessories
Description
More +
Product Specs
Directional pattern | Cardioid |
Principle of operation | Pressure gradient, with interference tube |
Cartridge type | Pre-polarized condenser, Twin Diaphragm Capsule |
Frequency response | 20 Hz - 20 kHz |
Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz |
Sensitivity, nominal, ±2 dB at 1 kHz | 10 mV/Pa; -40 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 33 dB (max. 36 dB) |
Rated output impedance | 200 ? |
Minimum load impedance | 2 k? |
Cable drive capability | 100 m (328 ft) |
Output balance principle | Impedance balancing |
Common mode rejection ratio (CMRR) | > 40 dB |
Power supply (for full performance) | P48 (Phantom Power) |
Current consumption | 3.5 mA |
Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
Color | Matte black |
Weight | 24 g (0.8 oz) |
Microphone diameter | 19 mm (0.75 in) |
Microphone length | 51 mm (2.0 in) |
Maximum output voltage, RMS | 2.2 V |
Polarity | +V at pin 2 for positive sound pressure |
Temperature range | -40°C to 45°C (-40°F to 113°F) |
Relative humidity (RH) | Up to 90% |
Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
