Description
The 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear fr... Read MoreOur Price: $2,700.00
Free Shipping (Continental US)
Suggested Accessories
Description
The 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).
Features:
Built on Earth, tested on Mars
NASA’s Mars 2020 Rover took off on July 30, 2020 for a seven-month journey to the mysterious Red Planet. It touched down successfully on February 18, 2021 with a DPA 4006 Omnidirectional, an MMA-A Digital Audio Interface and an MMP-G Modular Active Cable in tow.
This omnidirectional condenser microphone is linear and true in character. It has earned its status as a worldwide recording standard and is our most popular pencil mic. This highly sought after mic has forged its enviable reputation over the past quarter of a century by repeatedly exhibiting its total transparency in any recording situation.

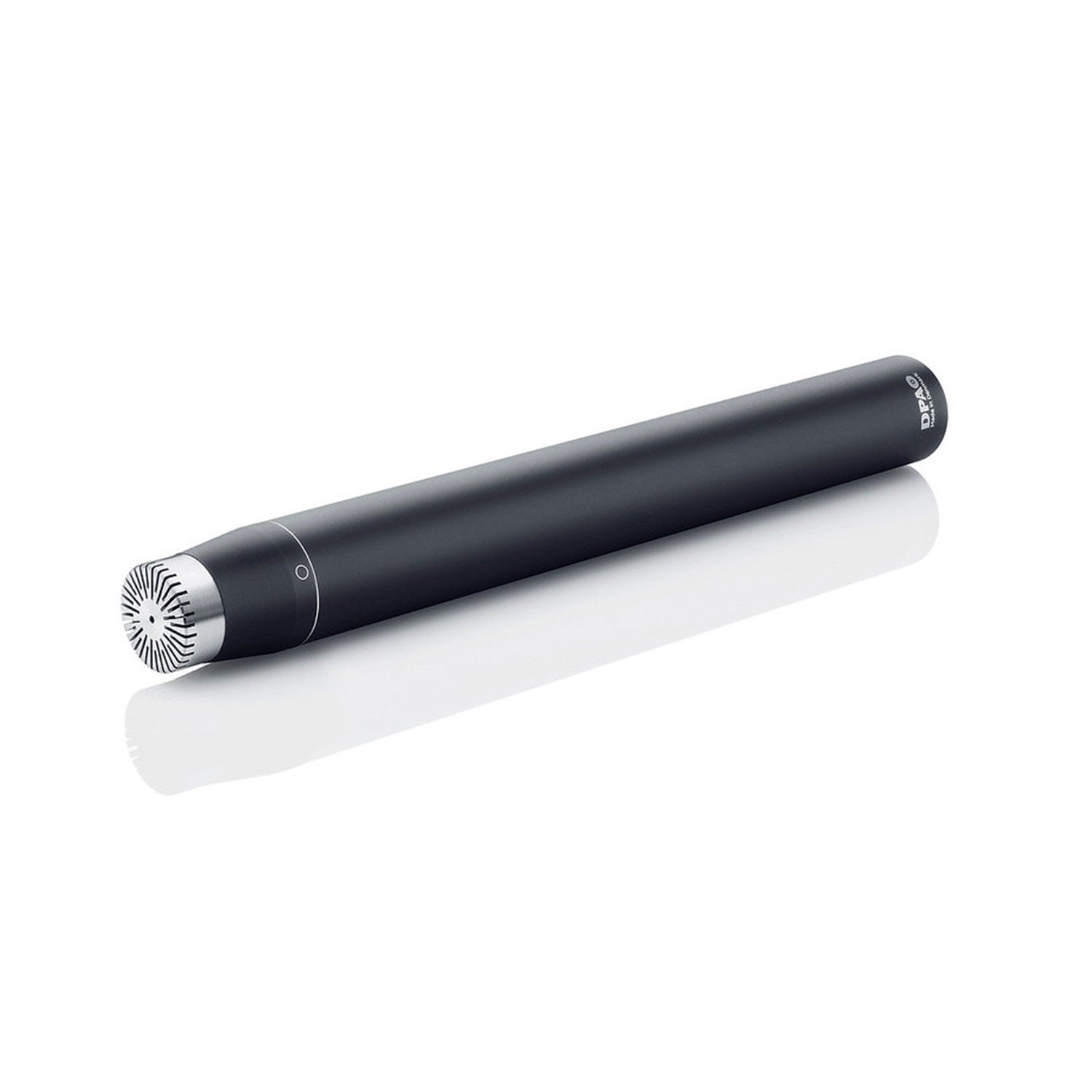

4006A Omni Mic
This is a very flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This omnidirectional condenser mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close miking all types of instruments.
A wide selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter. These accessories are available in the Stereo Kits and Surround Kits.
Combine with the preamp of your choice
As with all of the modular pencil microphones, you can combine the Omni Mic Capsule with any of our preamps.
The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps for our pencil microphones.
Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter.
You can combine any of the preamps with any of the modular capsules in the Pencil Microphones Series.
More +
Product Specs
Directional pattern | Omnidirectional |
Principle of operation | Pressure |
Cartridge type | Pre-polarized condenser |
Frequency response | 10 Hz - 20 kHz |
Effective frequency range | ±2 dB10 Hz - 20 kHz |
Sensitivity, nominal, ±2 dB at 250 Hz | S/N up to 3170324: 40 mV/Pa; -28 dB re. 1 V/Pa S/N from 3170325: 36 mV/Pa; -28,9 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 27 dB (max. 29 dB) |
Distortion, THD < 1% | S/N up to 3170324: 136 dB SPL RMS, 139 dB SPL peak S/N from 3170325: 133 dB SPL RMS, 136 dB SPL peak |
Dynamic range | S/N up to 3170324: Typ. 124 dB S/N from 3170325: Typ. 121 dB |
Max. SPL, THD 10% | 146 dB SPL peak |
Switchable attenuator, filters etc. | 0 dB / -20 dB |
Rated output impedance | 200 ? |
Minimum load impedance | 2 k? |
Cable drive capability | 100 m (328 ft) |
Output balance principle | Impedance balancing with Active Drive |
Common mode rejection ratio (CMRR) | > 60 dB |
Power supply (for full performance) | P48 (Phantom Power) |
Current consumption | 2.8 mA |
Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
Color | Matte black |
Weight | 163 g (5.7 oz) |
Microphone diameter | 16 - 19 mm (0.6 - 0.75 in) |
Capsule diameter | 16 mm (0.6 in) |
Microphone length | 170 mm (6.7 in) |
Maximum output voltage, RMS | 8 V |
Polarity | +V at pin 2 for positive sound pressure |
Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
Relative humidity (RH) | Up to 90 % |
Matching tolerance (frequency response and sensitivity) | ±0.5 dB |
Phase deviation for kit | < 5¡ |
More +
