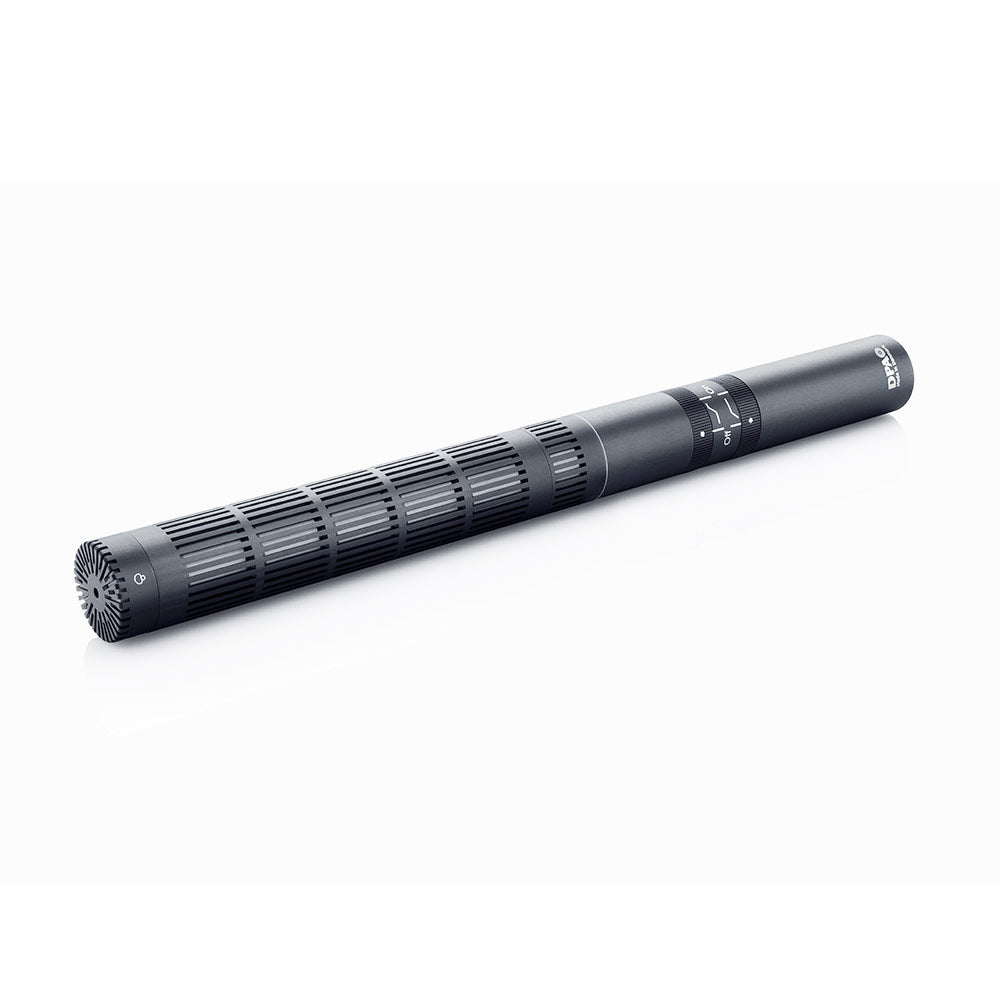

DPA Microphones 4017B - Hypercardoid Shotgun Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
At just 210 mm (8.3 in) and 68 g (2.4 oz), this mic is one of the shortest and lightest shotgun condenser microphones available. At the same time, it offers impressive accuracy, clarity and musicality. The mic is fully immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. Designed for a broad range of applications, the d:dicateª Microphones Series is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast/ENG/film booming and even studio recording environments.
Features:
- Small and lightweight
- Excellent RF Immunity
- Uniform off-axis response
- Highly directional pattern
| Directional characteristics | Supercardioid, lobe-shaped |
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz |
| Frequency range, ± 2 dB | 70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, A-weighted | Typ. 24 dB (max. 26 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 81 dB(A) |
| Total Harmonic Distortion (THD) | < 1 % up to 137 dB SPL peak |
| Dynamic range | Typ. 124 dB |
| Max. SPL, peak before clipping | 138 dB |
| Switchable attenuator, filters etc. | High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz |
| Output impedance | 100 _ |
| Minimum load impedance | 2 k_ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Signal balanced |
| Common Mode Rejection Ratio (CMRR) | > 40 dB |
| Power supply | 48 V Phantom power (± 4 V) |
| Current consumption | 4.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase |
| Color | Matte black |
| Weight | 68 g (2.4 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 212 mm (8.3 in) |
| Output voltage, RMS | 2.0 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40 to 45ÁC (-40 to 113ÁF) |
| Relative Humidity (RH) | Up to 90% |
At just 210 mm (8.3 in) and 68 g (2.4 oz), this mic is one of the shortest and lightest shotgun condenser microphones available. At the same time, it offers impressive accuracy, clarity and musicality. The mic is fully immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. Designed for a broad range of applications, the d:dicateª Microphones Series is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast/ENG/film booming and even studio recording environments.
Features:
- Small and lightweight
- Excellent RF Immunity
- Uniform off-axis response
- Highly directional pattern
| Directional characteristics | Supercardioid, lobe-shaped |
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz |
| Frequency range, ± 2 dB | 70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, A-weighted | Typ. 24 dB (max. 26 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 81 dB(A) |
| Total Harmonic Distortion (THD) | < 1 % up to 137 dB SPL peak |
| Dynamic range | Typ. 124 dB |
| Max. SPL, peak before clipping | 138 dB |
| Switchable attenuator, filters etc. | High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz |
| Output impedance | 100 _ |
| Minimum load impedance | 2 k_ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Signal balanced |
| Common Mode Rejection Ratio (CMRR) | > 40 dB |
| Power supply | 48 V Phantom power (± 4 V) |
| Current consumption | 4.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase |
| Color | Matte black |
| Weight | 68 g (2.4 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 212 mm (8.3 in) |
| Output voltage, RMS | 2.0 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40 to 45ÁC (-40 to 113ÁF) |
| Relative Humidity (RH) | Up to 90% |
