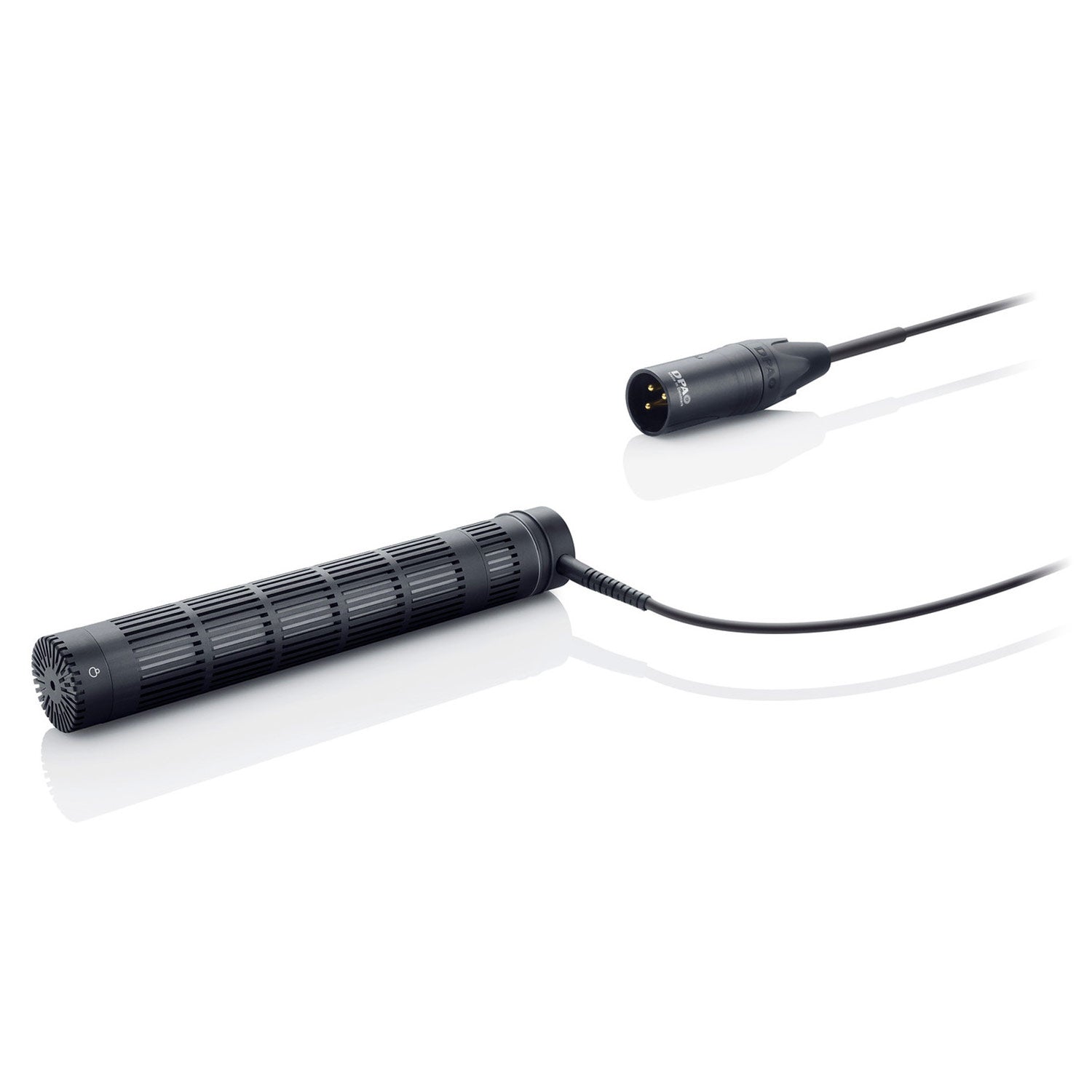

DPA Microphones 4017ES - Hypercardoid Shotgun Microphone (Side Cable Mount)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With DPA's tiniest preamplifier design, the 4017E Shotgun Microphone features an integrated cable solution with either side (4017ES) or rear (4017ER) cable entry. It is the shortest professional interference tube shotgun mic available today; only 12.5 cm (4.9 in) in length and 121 g (4.3 oz) in weight (including 3 m (9.8 ft) cable and connector). It is ideal for booming actors or capturing distant voice dialogue for broadcast and video situations.
The mic is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping.
The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.
Designed for a broad range of applications, the 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.
This condenser microphone capsule is part of the flexible pencil microphones. It is equipped with a highly-directional hypercardioid pickup pattern; obtained using a supercardioid design with an interference tube that provides excellent off-axis rejection.
The Shotgun Mic Capsule is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. It withstands use in very humid environments with ease. It delivers clear sound even when used in very hot or cold areas of the world such as the desert and the arctic.
Features:
- Small and lightweight
- Excellent RF immunity
- Highly immune to humidity
- Uniform off-axis response
- Highly directional pattern
- Sleek shotgun for distant miking
- Integrated active cable
| Directional pattern | Supercardioid, lobe-shaped |
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 60 cm (23.6 in) | 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 24 dB (max. 26 dB) |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 124 dB |
| Max. SPL, THD 10% | 138 dB SPL peak |
| Rated output impedance | 100 ? |
| Minimum load impedance | 2 k? |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 3.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Matte black |
| Weight | 121 g (4.3 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 125 mm (4.9 in) |
| Maximum output voltage, RMS | 2.2 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
| Relative humidity (RH) | Up to 90% |
With DPA's tiniest preamplifier design, the 4017E Shotgun Microphone features an integrated cable solution with either side (4017ES) or rear (4017ER) cable entry. It is the shortest professional interference tube shotgun mic available today; only 12.5 cm (4.9 in) in length and 121 g (4.3 oz) in weight (including 3 m (9.8 ft) cable and connector). It is ideal for booming actors or capturing distant voice dialogue for broadcast and video situations.
The mic is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping.
The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.
Designed for a broad range of applications, the 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.
This condenser microphone capsule is part of the flexible pencil microphones. It is equipped with a highly-directional hypercardioid pickup pattern; obtained using a supercardioid design with an interference tube that provides excellent off-axis rejection.
The Shotgun Mic Capsule is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. It withstands use in very humid environments with ease. It delivers clear sound even when used in very hot or cold areas of the world such as the desert and the arctic.
Features:
- Small and lightweight
- Excellent RF immunity
- Highly immune to humidity
- Uniform off-axis response
- Highly directional pattern
- Sleek shotgun for distant miking
- Integrated active cable
| Directional pattern | Supercardioid, lobe-shaped |
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 60 cm (23.6 in) | 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 24 dB (max. 26 dB) |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 124 dB |
| Max. SPL, THD 10% | 138 dB SPL peak |
| Rated output impedance | 100 ? |
| Minimum load impedance | 2 k? |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 3.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Matte black |
| Weight | 121 g (4.3 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 125 mm (4.9 in) |
| Maximum output voltage, RMS | 2.2 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40¡C to 45¡C (-40¡F to 113¡F) |
| Relative humidity (RH) | Up to 90% |
