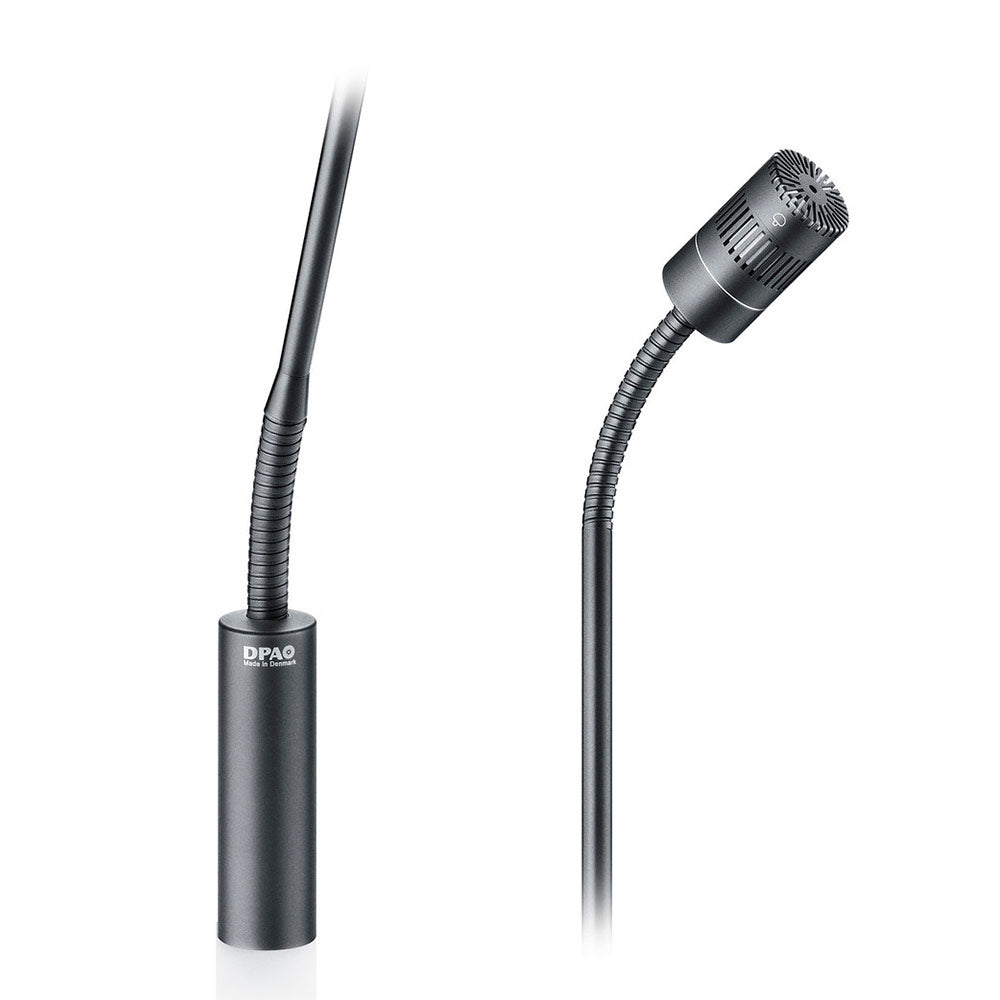

DPA Microphones 4018-DF-G-B01-045 - Supercardioid Gooseneck Microphone (18" Boom / Dual)


  • Dale #:

    DPA-4018DFGB01045
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount. These microphones have, on numerous occasions, been the preferred type to turn to when high speech intelligibility is paramount. This for i... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount. These microphones have, on numerous occasions, been the preferred type to turn to when high speech intelligibility is paramount. This for instance is the fact at parliaments where multiple languages are to be simultaneous interpreted and the interpreters must catch every word and nuances of the spoken word and in a split second deliver the perfect translation.

In conference use, boardroom applications and videoconference situations the DPA mics gives you trouble-free installations and delivers pristine, clear sound. DPA's gooseneck microphone solutions are primarily for the installation segment.

This solution uses the MMC4018 Cardioid Microphone Capsule, which has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Due to its modular nature, the 4018 Supercardioid Microphone Boom can be combined with different lengths of podium booms – 15, 30 or 45 cm (6, 12 or 18 in). If longer booms are needed for floor stands with visual elegance, our long booms at 75 or 120 cm (30 or 48 in) make a high-quality stage voice mic together with our dedicated accessories.

Features:

  • Outstanding audio quality
  • Wireless podium mic capability
  • Highly directional – very isolated
  • High rejection of radio frequency interference
  • Sleek Scandinavian design

4018 Gooseneck Microphones come in five lengths:

  • 20 cm (8 in), 32 cm (13 in) and 47 cm (18 in) boom intended for podium solutions
  • 77 cm (30 in) and 122 cm (48 in) for floor stand applications

More +

Product Specs

Directional pattern Supercardioid
Principle of operation Pressure gradient
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in) 40 Hz - 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz 12 mV/Pa; -38.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 23 dB (max. 26 dB)
Distortion, THD < 1% 134 dB SPL RMS, 137 dB SPL peak
Dynamic range Typ. 121 dB
Max. SPL, THD 10% 142 dB SPL peak
Rated output impedance 100 ?
Minimum load impedance 2 k?
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing
Common mode rejection ratio (CMRR) > 40 dB
Power supply (for full performance) P48 (Phantom Power)
Current consumption 3.5 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Microphone diameter 19 mm (0.75 in)
Capsule diameter 19 mm (0.75 in)
Microphone length Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
Maximum output voltage, RMS 2.2 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40¡C to 45¡C (-40¡F to 113¡F)
Relative humidity (RH) Up to 90%
Matching tolerance (frequency response and sensitivity) ±1 dB
Phase deviation for kit < 10¡
