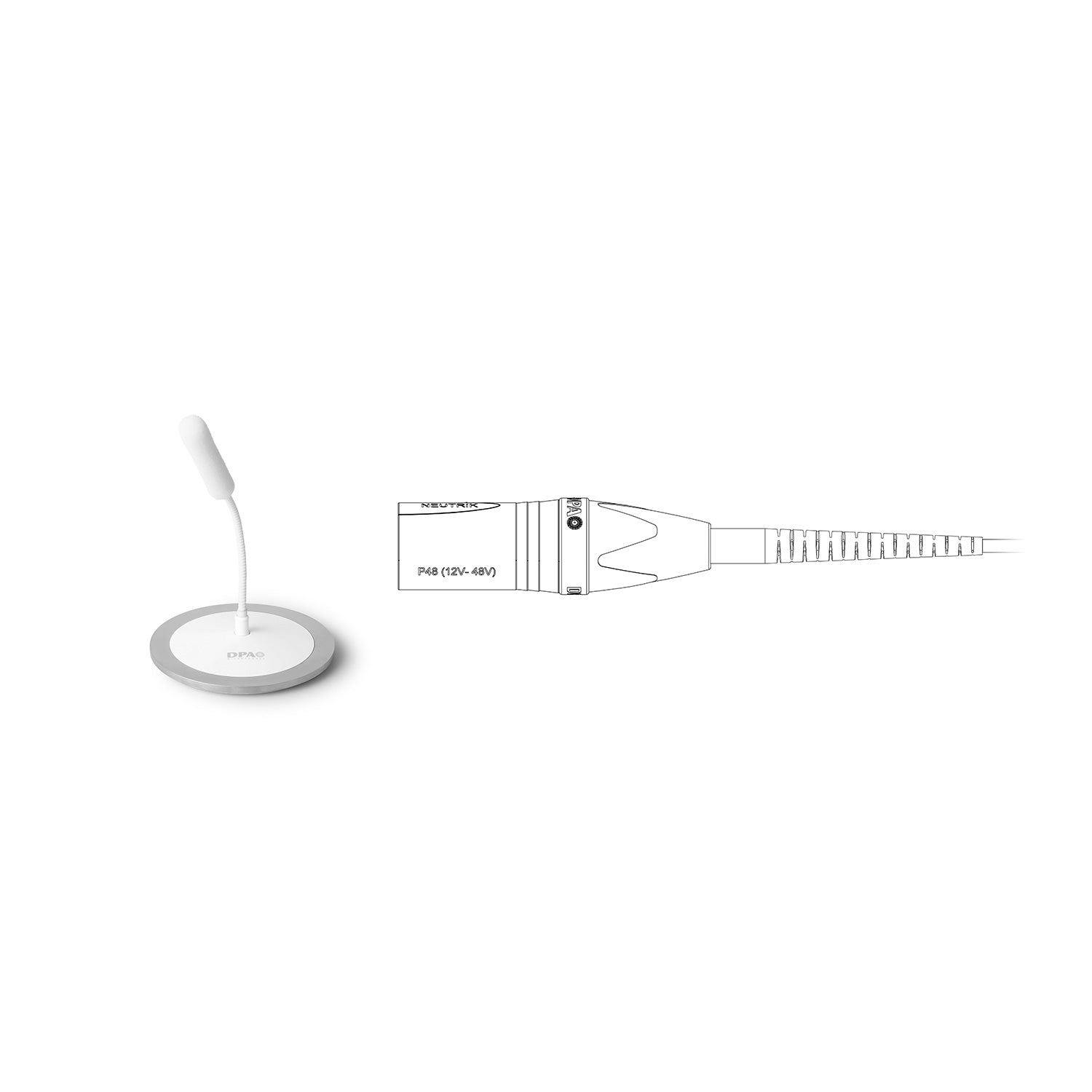

DPA Microphones 4098 CORE - Supercardioid Tabletop Microphone (White / XLR / 17" Disk)


  • Dale #:

    DPA-4098DCDW01015
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

With very low noise and a high sensitivity, our ceiling and tabletop microphones offer the most clear, transparent, and natural sound available on the small footprint mic market. They ensure maximum speech intelligibility regardless of the acoustical environment. With a linear response, low disto... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With very low noise and a high sensitivity, our ceiling and tabletop microphones offer the most clear, transparent, and natural sound available on the small footprint mic market. They ensure maximum speech intelligibility regardless of the acoustical environment. With a linear response, low distortion and an extremely large dynamic range, they sound great in any environment.

The Microphone Base is made specifically to work with the 4098 CORE Supercardioid Podium Microphone. It has an elegant yet unobtrusive design with a white, non-reflective surface and integrated shock mount. The audio cables are an integral part of the Microphone Base unit.

The Microphone Base fits most electrical back boxes and secures ease of installation. Furthermore, the great off-axis response and the physics of sound level vs distance, makes it possible to cover a small to mid-size room with only one or a few microphones. Read more about microphones in installed systems.

Features:

  • Outstanding audio quality
  • Slim, elegant Scandinavian design
  • Highly directional – very isolated
  • High rejection of radio frequency interference
  • Meets the needs of architects, AV consultants, system integrators and installing electricians


Supercardioid Tabletop Microphones
A complete, supercardioid tabletop microphone solution, which is ideal for either permanently affixing to or temporarily placed on a table in conference venues, meeting rooms and board rooms.

This solution can be scaled up as needed. In smaller rooms you might only need one microphone to capture the best sound. In larger settings, you can use multiple mics to ensure each area of the room is completely covered. The best audio quality is obtained in a one-to-one solution – one microphone position close to one speaker.

With very low noise and a high sensitivity, our supercardioid tabletop microphones offer the most clear, transparent, and natural sound available on the miniature mic market. They ensure maximum speech intelligibility regardless of the acoustical environment. With a linear response, low distortion and an extremely large dynamic range, they sound great in any environment.

The Microphone Base is made specifically to work with the 4098 CORE Supercardioid Podium Microphone. It has an elegant yet unobtrusive design with a black, non-reflective surface and integrated shock mount, which ensures that vibrations from people touching the table as well as reverberations from people walking in and out of the room will not affect the sound. The audio cables are an integral part of the Microphone Base unit.

The standard tabletop solution is equipped with a 43 cm (17 in), black gooseneck and comes in standard kits to meet your exact needs:

  • Tabletop Microphone, 43 cm (17 in), Black or White with MicroDot (unbalanced)
  • Tabletop Microphone, 43 cm (17 in), Black or White with XLR (balanced)

More +

Product Specs

Directional pattern Supercardioid
Principle of operation Pressure gradient
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in) MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz 16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)
Distortion, THD < 1% - Legacy 122 dB SPL RMS, 125 dB SPL peak
Distortion, THD < 1% - CORE 130 dB SPL RMS, 133 dB SPL peak
Dynamic range - Legacy Typ. 102 dB
Dynamic range - CORE Typ. 110 dB
Max. SPL, THD 10% 135 dB SPL peak
Rated output impedance From MicroDot: 30 - 40 ?
From XLR connector or DAD6001-BC XLR Adapter: 100 ?
Minimum load impedance 2 k?
Cable drive capability MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
XLR-3M: Up to 100 m (328 ft)
Output balance principle Signal balanced with XLR connector or DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance) MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or P48 (Phantom Power) with DAD6001-BC XLR adapter
XLR-3M: P48 (Phantom Power)
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroDot or XLR-3M
Color Black or white
Weight Microdot:
16 cm (6 in): 12 g (0.4 oz)
28 cm (11 in): 20 g (0.7 oz)
43 cm (17 in): 28 g (1.0 oz)
77 cm (30 in): 55 g (1.9 oz)
122 cm (48 in): 67 g (2.4 oz)
XLR-3M:
20 cm (8 in): 75 g (2.6 oz)
32 cm (13 in): 80 g (2.8 oz)
47 c
Microphone diameter 5.7 mm (0.22 in)
Microphone length Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in)
XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in).
Polarity +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter)
Temperature range -40¡C to 45¡C (-40¡F to 113¡F)
Relative humidity (RH) Up to 90%
