DPA Microphones ST2006A - Stereo Pair of 2006A Microphones with Accessories and Case


  • Dale #:

    DPA-ST2006A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Together with the MMP-A preamp this condenser mic bridges the gap between the extreme sound quality of our recording mic series and our well-known miniature mic series. These kits contains a complete stereo pair; two handpicked 2006 Twin Diaphragm Omnidirectional Microphones, selected on sensiti... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Together with the MMP-A preamp this condenser mic bridges the gap between the extreme sound quality of our recording mic series and our well-known miniature mic series.

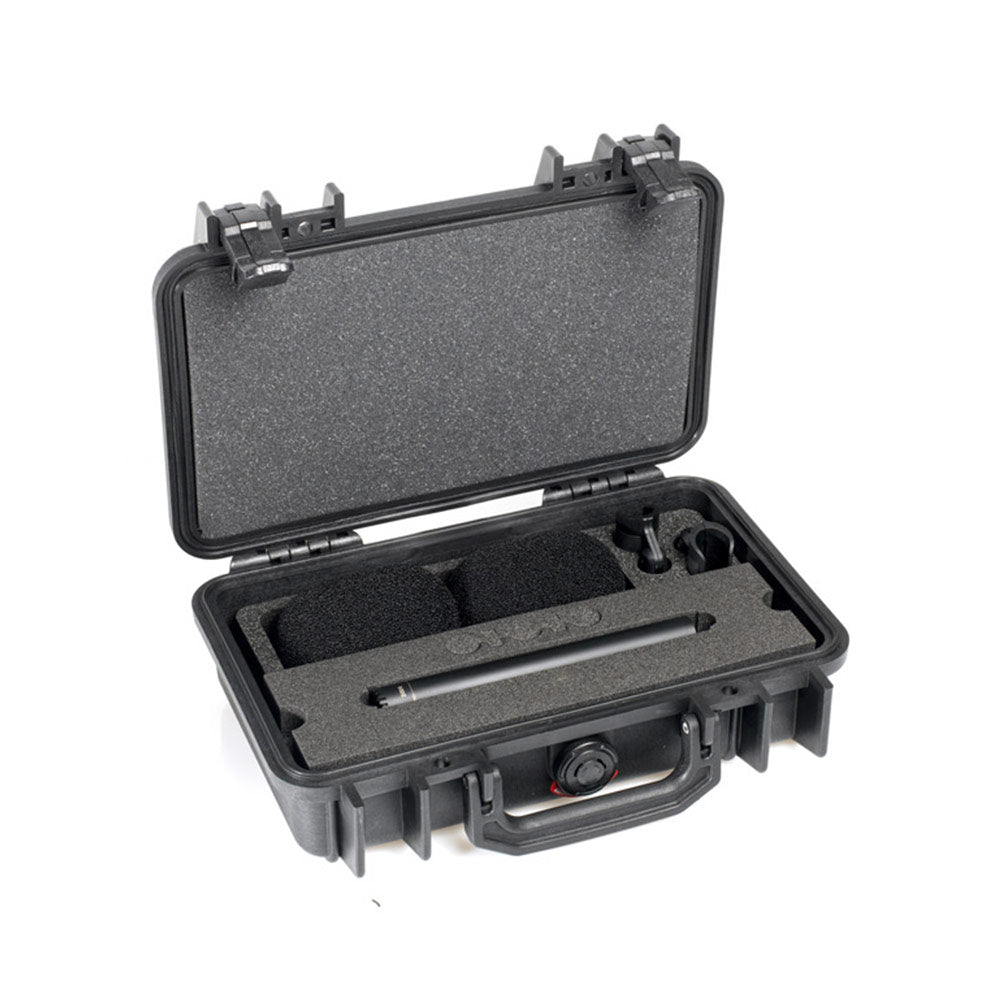

These kits contains a complete stereo pair; two handpicked 2006 Twin Diaphragm Omnidirectional Microphones, selected on sensitivity within ±1.5 dB. The mics deliver precise sound and true tone. These mics are ideal for use with orchestra, acoustic piano, guitar, wind instruments and choirs. The two 2006s comes with Clips and Windscreens all packed in a Peli™ Case.

Features:

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 dB dynamic range
  • RF rejection between 60 and 40 dB
  • Linear frequency response
  • High SPL
  • Superior gain before feedback


The 2006 Twin Diaphragm Omnidirectional Microphone

Inside the MMC2006 Twin Diaphragm Omnidirectional Capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to DPA's supreme recording mic series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

Comparisons with its big brother, the iconic 4006 Omnidirectional Microphone, are inevitable. The relationship between the two can be clearly heard. The 2000 series performs as well as more exclusive microphones. It is a premium-class microphone and redefines the term value for money.

More +

Product Specs

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ±2 dB at 1 kHz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 28 dB (max. 30 dB)
Distortion, THD < 1% 127 dB SPL RMS, 130 dB SPL peak
Dynamic range Typ. 114 dB
Max. SPL, THD 10% 146 dB SPL peak
Switchable attenuator, filters etc. 0 dB / -20 dB
Rated output impedance 200 ?
Minimum load impedance 2 k?
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) P48 (Phantom Power)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 160 g (5.6 oz)
Microphone diameter 19 mm (0.75 in)
Microphone length 164 mm (6.5 in)
Maximum output voltage, RMS 8 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40¡C to 45¡C (-40¡F to 113¡F)
Relative humidity (RH) Up to 90%
Sensitivity selection tolerance (at 1 kHz) ±1.5 dB
