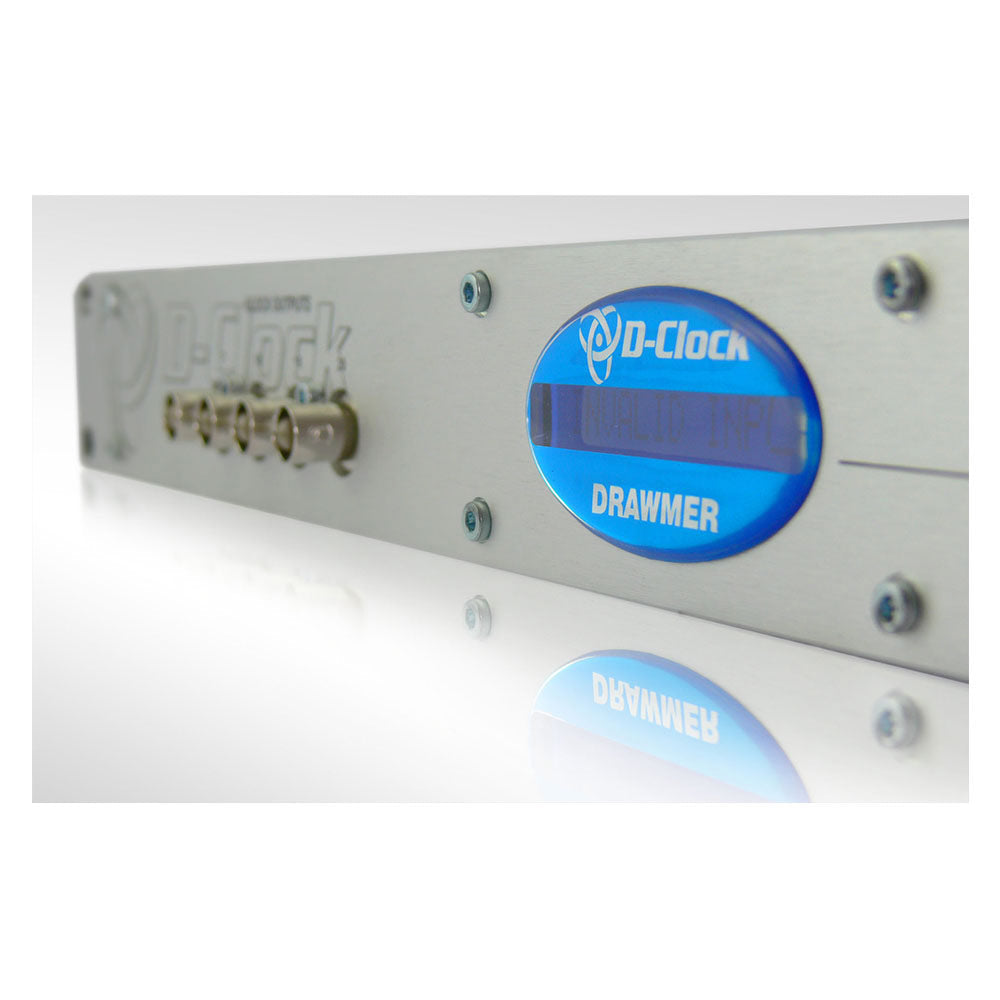

Drawmer DMS-2 D-Clock Word Clock Management and Distribution System

  • Dale #:

    DRAW-DCLOCK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Digital audio facilities often require a number of clock sources, which are used to synchronise outboard processors to the system clock rate using external clock inputs. The Drawmer D-CLock is a dual input, twenty output word clock distributor with a 16 character blue LCD display providing a high... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Digital audio facilities often require a number of clock sources, which are used to synchronise outboard processors to the system clock rate using external clock inputs. The Drawmer D-CLock is a dual input, twenty output word clock distributor with a 16 character blue LCD display providing a high accuracy reference measurement of the incoming sample rate. It uses a high stability TCXO (temperature compensated xtal oscillator) along with a microcontroller to measure the incoming sample rate to an accuracy of 2ppm and displays the information in three different formats, actual frequency (to one decimal place), nominal frequency +/- ppm error, or nominal frequency plus percentage of pull up or pull down.

Features:

  • 2 in x 20 out Clock Measurement and Distribution Amplifier.
  • 16 character blue LCD display providing a reference measurement of the incoming sample rate.
  • Measures incoming sample frequencies up to 768 kHz to an accuracy of 2ppm or 2 microseconds.
  • Display modes: ppm, ±ppm & % pull up/down for video users.
  • Inputs: BNC with zero latency, 33 Ohms impedance.
  • AES with with zero latency loopthrough.
  • Outputs: BNC loopthrough / AES loopthrough.
  • Universal voltage filtered mains power input.

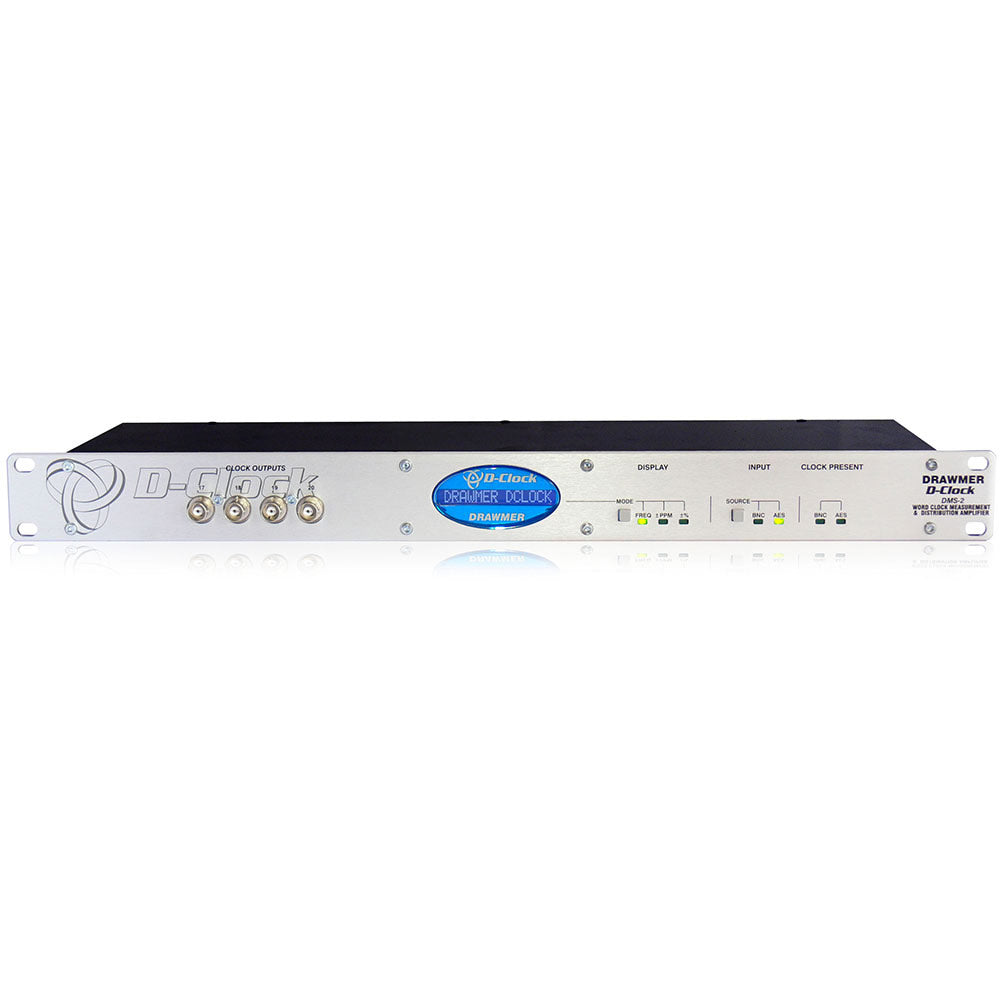

The D-CLock has both AES/EBU and BNC word clock inputs featuring a zero latency loopthrough output with switchable high impedance to maintain the correct level of the digital signal for onward distribution. Sixteen BNC clock outputs are situated on the rear panel with a further four BNC clock outputs on the front panel for quick patching to other digital devices.Ê The wordclock outputs can be fed from the wordclock input at any sample rate between 32KHz and 768KHz or derived from an AES11 input or stripped from an AES3 audio signal at any sample rate between 32KHz and 192KHz. Using an audio signal to provide the clock means even products without a wordclock output, such as some analogue to digital converters, or one of the many mic pre-amplifiers with internal A/D conversion but no word clock output, can be the master wordclock source for the whole digital studio.

More +

Product Specs

INPUTS Ê
BNC wordclock input switchable 75ohm/hi z termination
AES sync input switchable 110ohm/hiz termination
Sensitivity 120mV
LOOPTHROUGH OUTPUTS Ê
BNC Output zero latency loopthrough from input BNC
AES Output zero latency loopthrough from AES input
MAIN OUTPUTS Ê
BNC wordclock outputs 20 x simultaneous re-buffered BNC wordclock outputs with 33 ohm output impedance
4 of which are on the front panel for ease of connectivity
DISPLAY Blue/white LCD display wth three switchable modes of operation with mode led indicators for each:
frequency actual frequency up to >768KHz
+/- ppm nominal sample rate with +/- ppm
error indication for 32,44.1,48,96 & 192KHz
+/-% Nominal sample rate with percent pull up/down indication for 32,44.1,48,96 & 192KHz
Accuracy 2ppm at all sample rates up to 768KHz
0.1 Hz increments @ 48KHz sample rate
INDICATORS AES/wordclock source select led indicators
AES/wordclock clock present led indicators
Power Supply Internal, Universal Input, 10 W
Power Requirement <6W
Fuse Rating T315mA for All voltages
CONFORMING TO IEC127-2
Fuse Type 20mm x 5mm, Class 3 Slow - Blow. 250Volt working
Dimensions 1u, 19" Rack Mount, Depth 145 mm
Weight 1.7 kg
