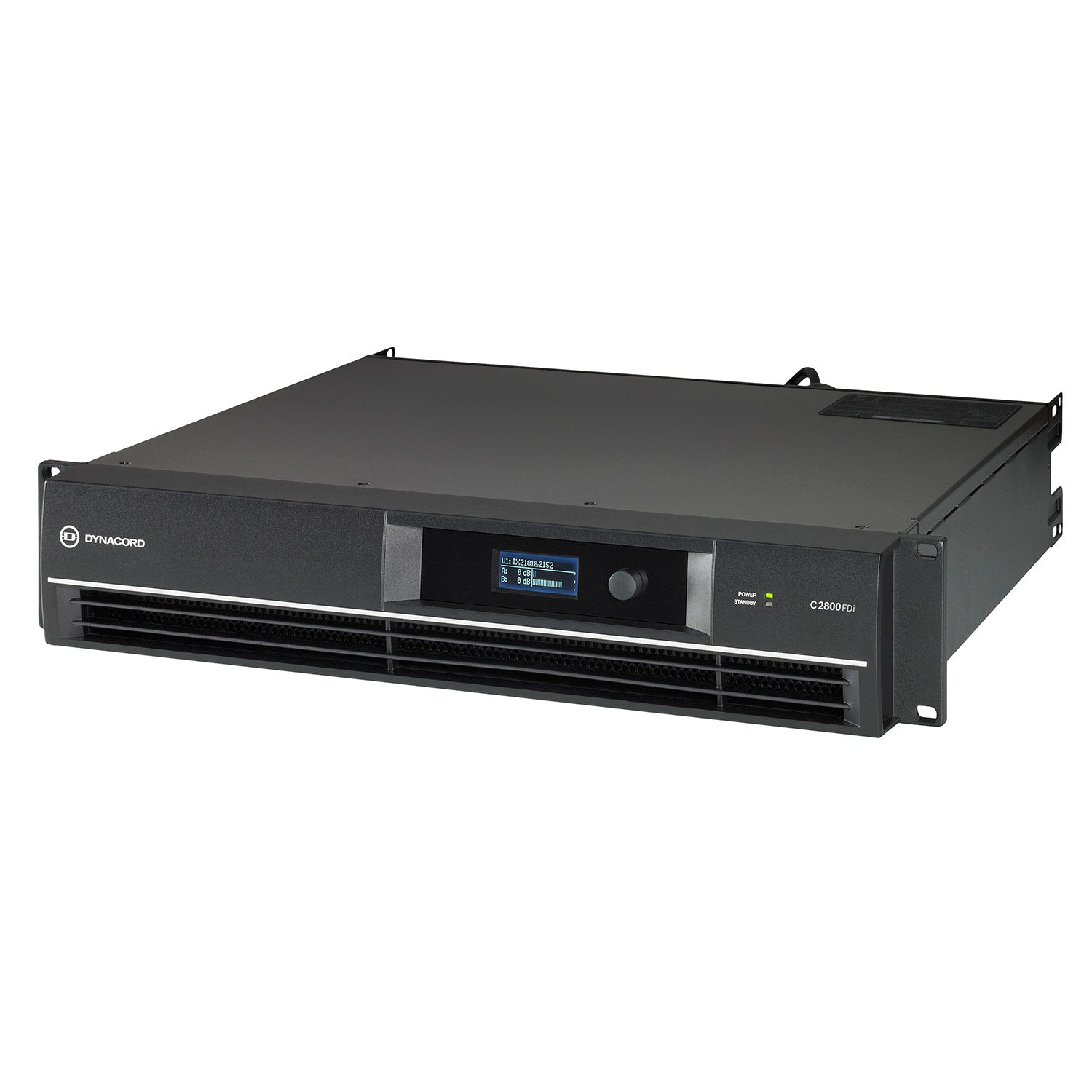

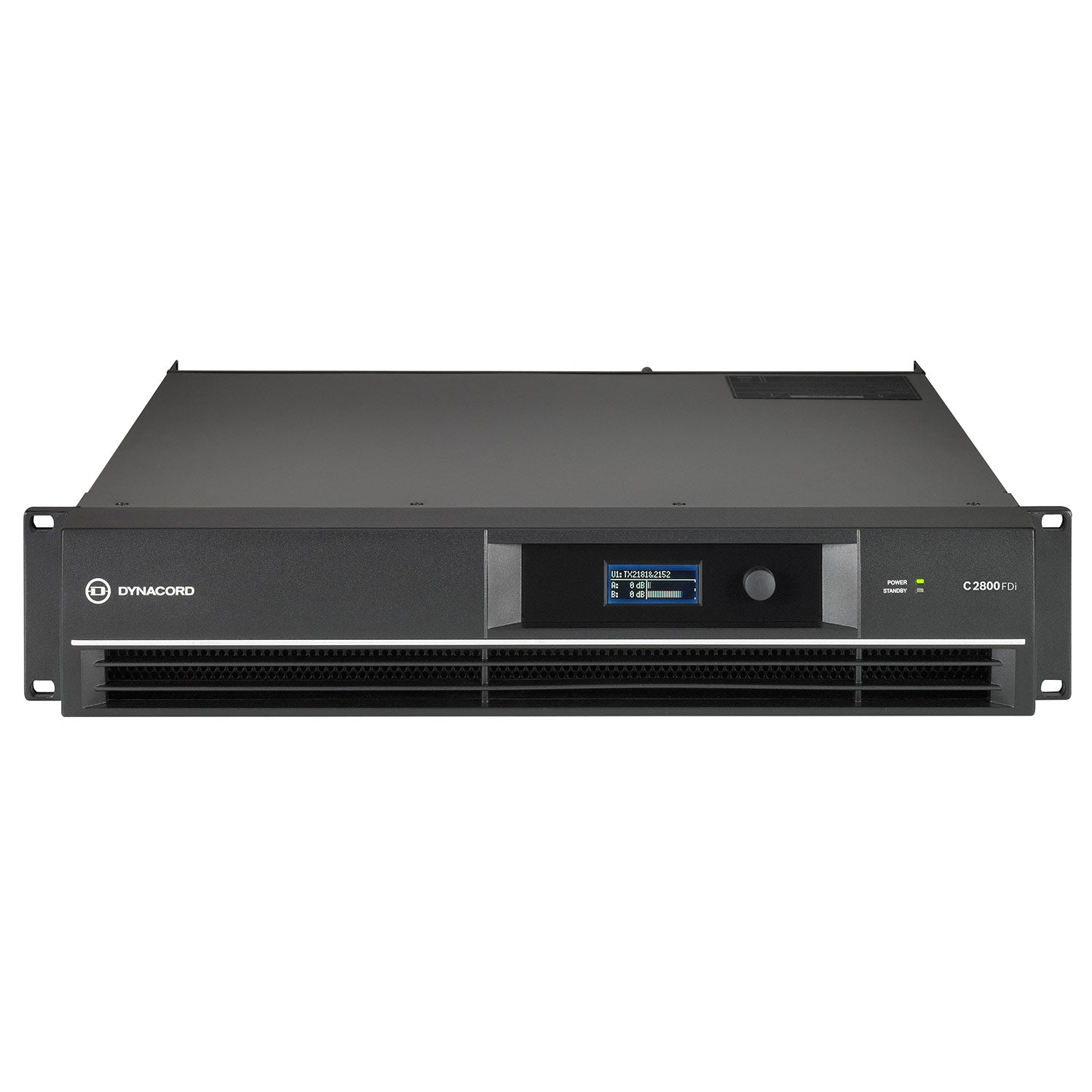

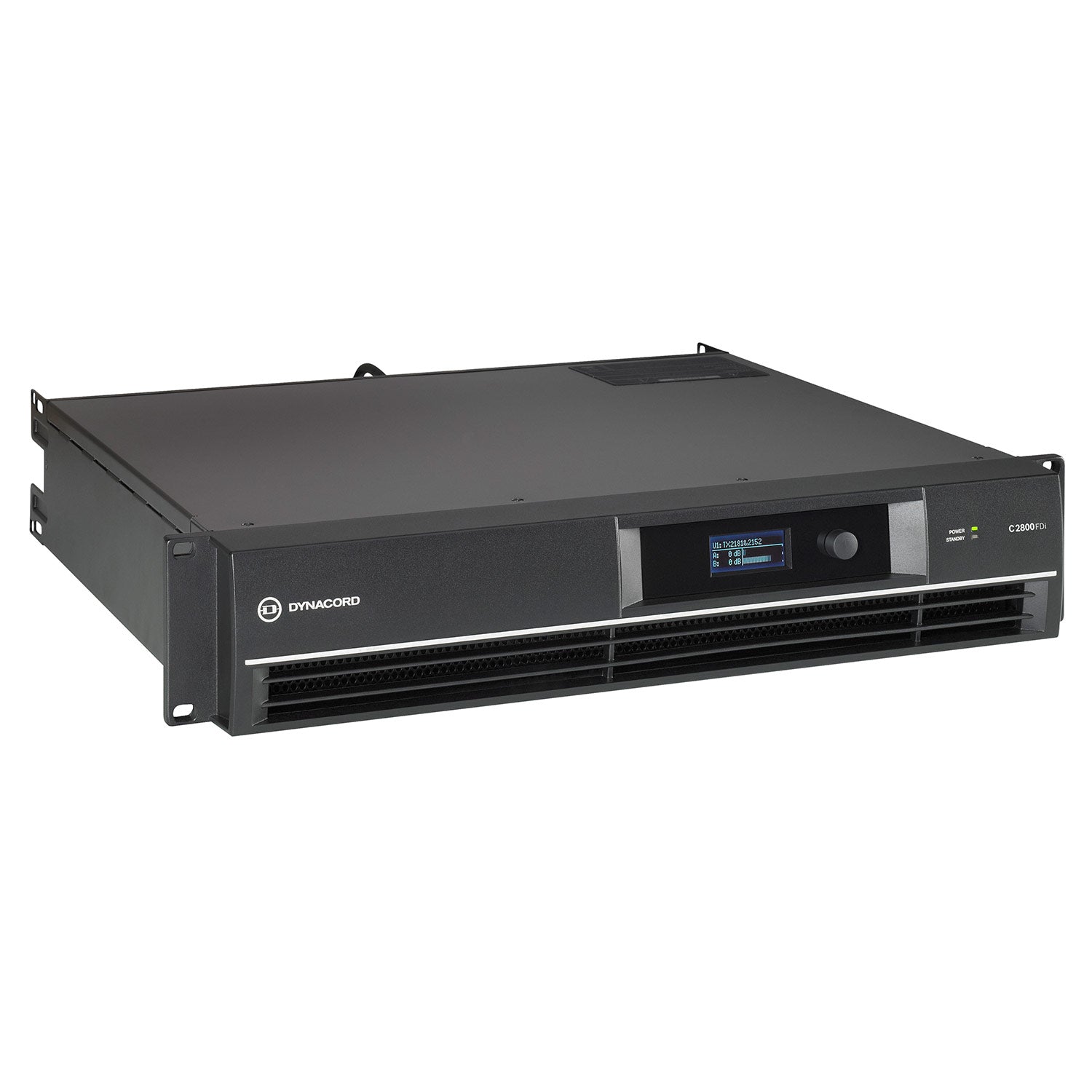

Dynacord C2800FDI 2-Channel 2x1400W Installation DSP Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Dynacord's C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers.
C Series power amplifiers also feature an exciting new industrial design. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed - even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions. Four different models per series are available, with a total output power ranging from 1300 W to 3600 W at 4 ohms.
All models are also suitable for direct drive applications with 70V / 100V speaker lines, providing high flexibility for a variety of install scenarios. In addition, the amplifiers feature Euroblock connectors for convenient wiring, remote power-on delay, and GPIOs to interface with third-party controls. The efficient standby power mode reduces running costs and power consumption by up to 90%, leading to a very low total cost of ownership.
Like all Dynacord amplifiers, the C series also offers high quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. The onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ (graphic equalizer), and delay for each group.
Features:
- Rock solid amplifier technology engineered in Germany
- Extremely powerful, proven audio performance
- Engineered for constant stability at 2 ohms
- Low and high impedance outputs and remote GPIO control
- Highly efficient standby power mode reduces running costs and power consumption up to 90%.
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
- High-performance bulletproof voltage handling
- On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ.
- Intuitive, powerful control software makes configuration and real time control easy - up to 16 amp channels can be controlled and monitored simultaneously
- Advanced FIR drive to optimize loudspeaker settings brings premium feature into an installation form factor
| Load Impedance | 2 2.7 4 8 |
| Maximum Output Power, SIngle Channel | 2 : 2300W; 2.7 : 2000W; 4 : 1400W; 8 : 700W; |
| Maximum Output Power, Dual Channel | Load Impedance: 2 =2200W; 2.7 =1800W; 4 =1300W; 8 =650W; High Impedance: 70V Operation=2x 1250W; 100V Operation=2x 2500W |
| Maximum Output Power, Bridged | Load Impedance: 4 =4400W; 8 =2600W; High Impedance: Not recommended |
| Maximum RMS Voltage Swing, THD = 1%, 1kHz | 78.8V |
| Voltage Gain ref.1kHz | 32.0dB |
| IMD-SMPTE, 60 Hz, 7 kHz | <0.1% |
| DIM 30 | <0.05%% (3.15 kHz, 15 kHz) |
| Maximum Input Level | +21dBu |
| Crosstalk | < -80dB (ref. 1 kHz, at 100 W/4 ) |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance, active balanced | 20k |
| Signal-to-Noise Ratio (A-weighted) | >107dB |
| Output Noise , A-weighted | <-68dBu |
| Output Stage Topology | Class H |
| Power Requirement | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption | 700W ( Maximum Output Power @4 ) |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Safety Class | I |
| Available Color | Black |
| Height | 3.46" (88mm) |
| Width | 19.02" (483mm) |
| Depth | 18.2" (462.4mm) |
| Weight Net | 35.71lbs (16.2kg) |
| Signal Processing | FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance |
| High Impedance Operation | |
| Mains Fuse | 240 V/230 V: T10AH; 120 V/100 V: T20AH |
| Operating Temperature Range | +5¡C to +40¡C (40¡F to +105¡F) |
| Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection |
| Total Harmonic Distortion | < 0.05% (at 900 W/4 MBW = 80 kHz, 1 kHz) |
Dynacord's C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers.
C Series power amplifiers also feature an exciting new industrial design. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed - even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions. Four different models per series are available, with a total output power ranging from 1300 W to 3600 W at 4 ohms.
All models are also suitable for direct drive applications with 70V / 100V speaker lines, providing high flexibility for a variety of install scenarios. In addition, the amplifiers feature Euroblock connectors for convenient wiring, remote power-on delay, and GPIOs to interface with third-party controls. The efficient standby power mode reduces running costs and power consumption by up to 90%, leading to a very low total cost of ownership.
Like all Dynacord amplifiers, the C series also offers high quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. The onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ (graphic equalizer), and delay for each group.
Features:
- Rock solid amplifier technology engineered in Germany
- Extremely powerful, proven audio performance
- Engineered for constant stability at 2 ohms
- Low and high impedance outputs and remote GPIO control
- Highly efficient standby power mode reduces running costs and power consumption up to 90%.
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
- High-performance bulletproof voltage handling
- On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ.
- Intuitive, powerful control software makes configuration and real time control easy - up to 16 amp channels can be controlled and monitored simultaneously
- Advanced FIR drive to optimize loudspeaker settings brings premium feature into an installation form factor
| Load Impedance | 2 2.7 4 8 |
| Maximum Output Power, SIngle Channel | 2 : 2300W; 2.7 : 2000W; 4 : 1400W; 8 : 700W; |
| Maximum Output Power, Dual Channel | Load Impedance: 2 =2200W; 2.7 =1800W; 4 =1300W; 8 =650W; High Impedance: 70V Operation=2x 1250W; 100V Operation=2x 2500W |
| Maximum Output Power, Bridged | Load Impedance: 4 =4400W; 8 =2600W; High Impedance: Not recommended |
| Maximum RMS Voltage Swing, THD = 1%, 1kHz | 78.8V |
| Voltage Gain ref.1kHz | 32.0dB |
| IMD-SMPTE, 60 Hz, 7 kHz | <0.1% |
| DIM 30 | <0.05%% (3.15 kHz, 15 kHz) |
| Maximum Input Level | +21dBu |
| Crosstalk | < -80dB (ref. 1 kHz, at 100 W/4 ) |
| Frequency Response | 10 Hz to 21 kHz (±1 dB) |
| Input Impedance, active balanced | 20k |
| Signal-to-Noise Ratio (A-weighted) | >107dB |
| Output Noise , A-weighted | <-68dBu |
| Output Stage Topology | Class H |
| Power Requirement | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
| Power Consumption | 700W ( Maximum Output Power @4 ) |
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
| Cooling | Front-to-rear, 3-stage-fans |
| Safety Class | I |
| Available Color | Black |
| Height | 3.46" (88mm) |
| Width | 19.02" (483mm) |
| Depth | 18.2" (462.4mm) |
| Weight Net | 35.71lbs (16.2kg) |
| Signal Processing | FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance |
| High Impedance Operation | |
| Mains Fuse | 240 V/230 V: T10AH; 120 V/100 V: T20AH |
| Operating Temperature Range | +5¡C to +40¡C (40¡F to +105¡F) |
| Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection |
| Total Harmonic Distortion | < 0.05% (at 900 W/4 MBW = 80 kHz, 1 kHz) |
