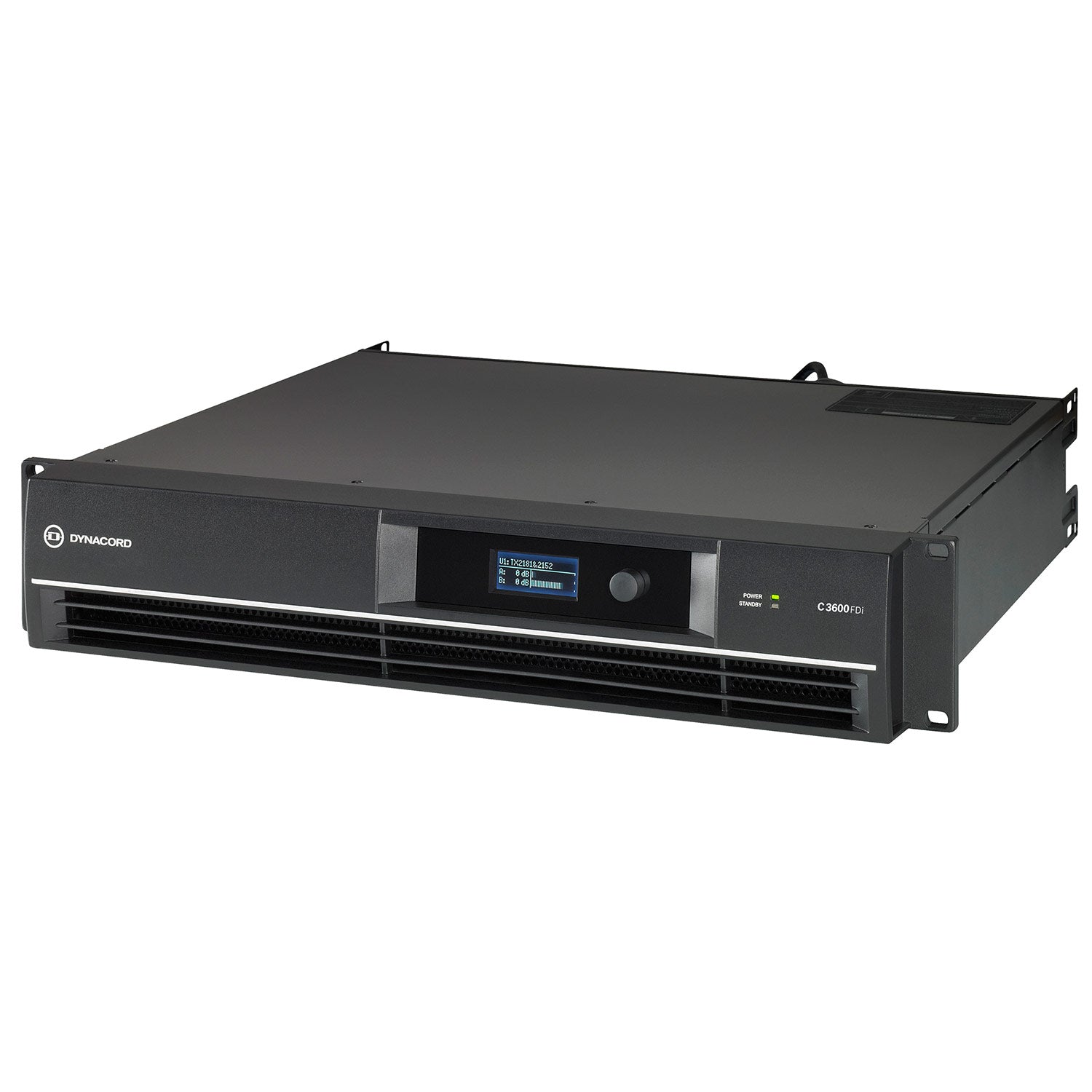

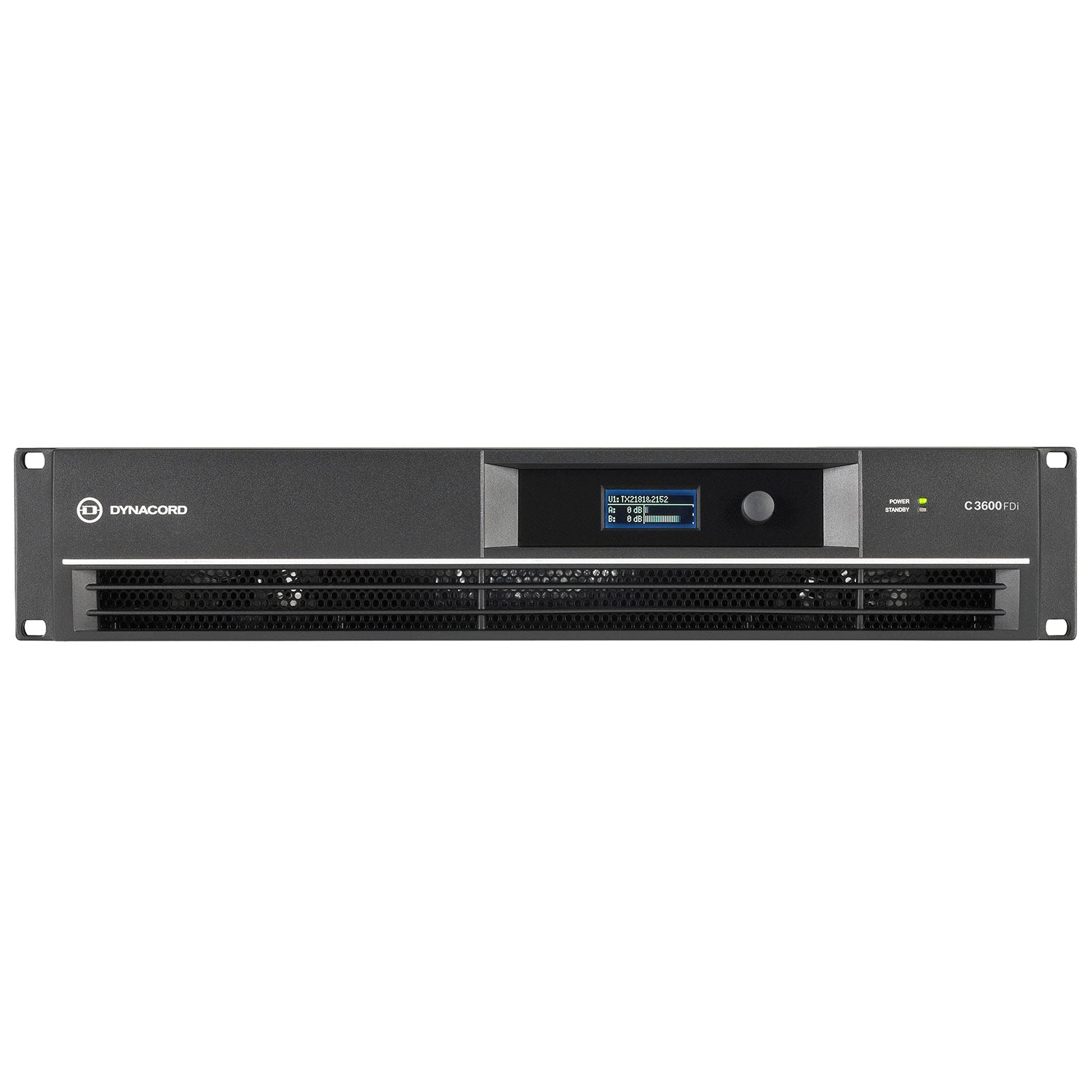

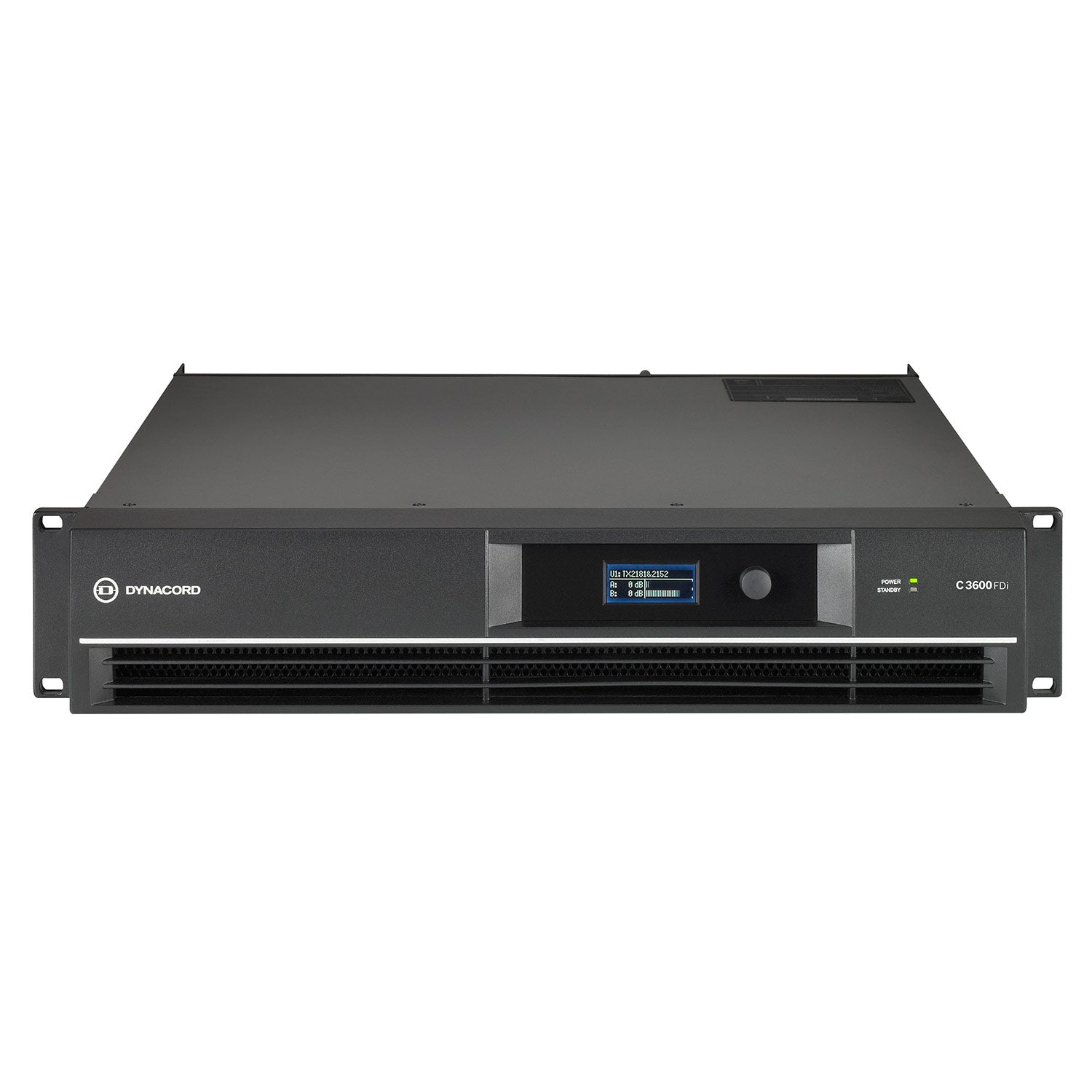

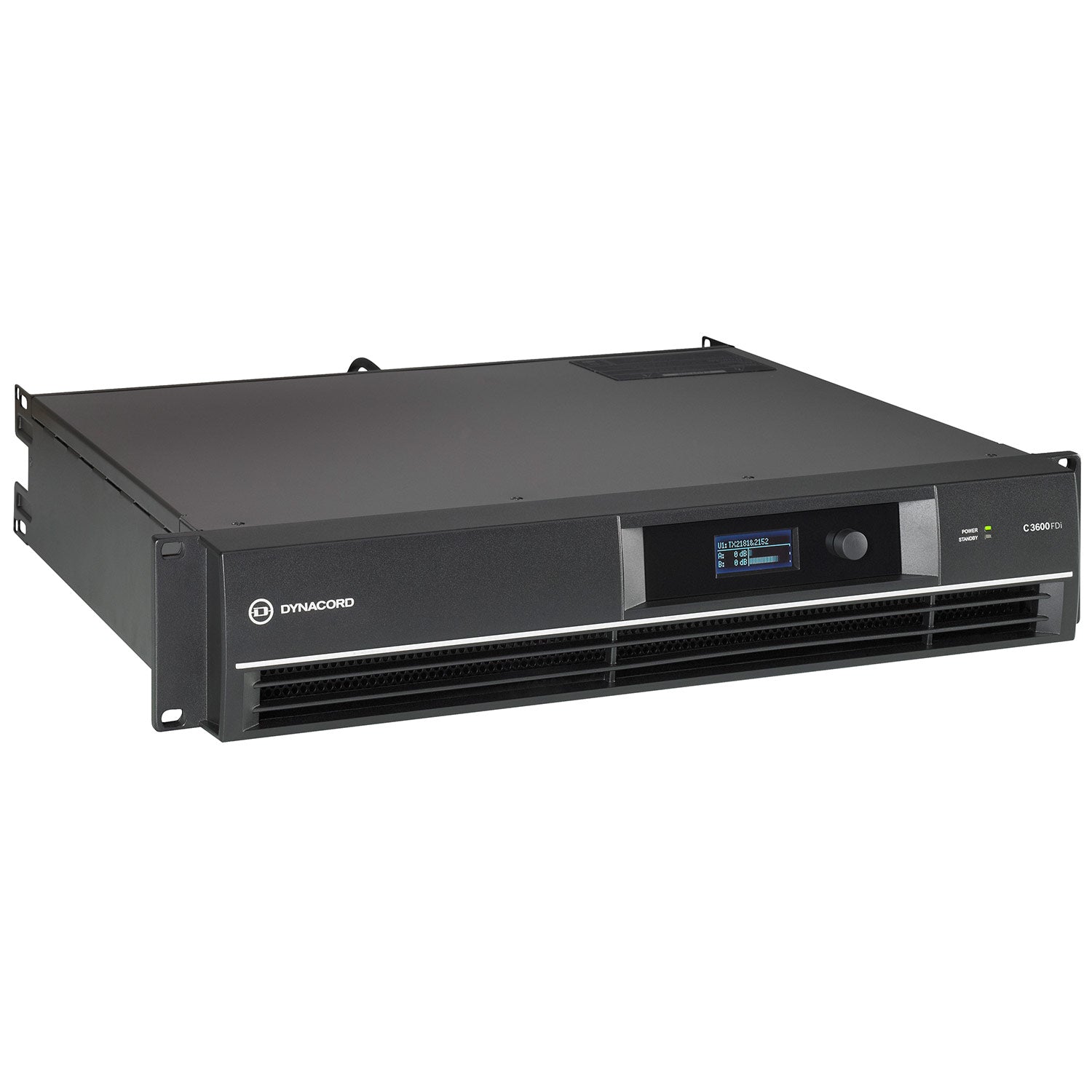

Dynacord C3600FDI 2-Channel 2x1800W Installation DSP Power Amplifier

  • Dale #:

    DYRD-C3600FDIUS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Dynacord's C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers. C Series power amplifiers also feature an exciting new industrial design. ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Dynacord's C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers.

C Series power amplifiers also feature an exciting new industrial design. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed - even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions. Four different models per series are available, with a total output power ranging from 1300 W to 3600 W at 4 ohms.

All models are also suitable for direct drive applications with 70V / 100V speaker lines, providing high flexibility for a variety of install scenarios. In addition, the amplifiers feature Euroblock connectors for convenient wiring, remote power-on delay, and GPIOs to interface with third-party controls. The efficient standby power mode reduces running costs and power consumption by up to 90%, leading to a very low total cost of ownership.

Like all Dynacord amplifiers, the C series also offers high quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. The onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ (graphic equalizer), and delay for each group.

Features:

  • Rock solid amplifier technology engineered in Germany
  • Extremely powerful, proven audio performance
  • Engineered for constant stability at 2 ohms
  • Low and high impedance outputs and remote GPIO control
  • Highly efficient standby power mode reduces running costs and power consumption up to 90%.
  • Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
  • High-performance bulletproof voltage handling
  • On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ.
  • Intuitive, powerful control software makes configuration and real time control easy - up to 16 amp channels can be controlled and monitored simultaneously
  • Advanced FIR drive to optimize loudspeaker settings brings premium feature into an installation form factor

More +

Product Specs

Load Impedance 2 2.7 4 8
Maximum Output Power, SIngle Channel 2 : 3200W; 2.7 : 2700W; 4 : 1800W; 8 : 950W
Maximum Output Power, Dual Channel Load Impedance: 2 =3000W; 2.7 =2500W; 4 =1700W; 8 =900W; High Impedance: 70 V Operation=2 x 1250 W; 100 V Operation=2 x 2500 W
Maximum Output Power, Bridged Load Impedance: 4 =6000 W; 8 =3400 W; High Impedance: Not Recommended
Maximum RMS Voltage Swing, THD = 1%, 1kHz 90.6V
Voltage Gain ref.1kHz 32.0dB
IMD-SMPTE, 60 Hz, 7 kHz <0.1%
DIM 30 <0.05% (3.15 kHz, 15 kHz)
Maximum Input Level +21 dBu
Crosstalk < -80dB (ref. 1 kHz, at 100 W/4 )
Frequency Response 10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced 20k
Signal-to-Noise Ratio (A-weighted) >109dB
Output Noise , A-weighted <-68dBu
Output Stage Topology Class H
Power Requirement 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 850 W ( Maximum Output Power @4 )
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Safety Class I
Available Color Black
Height 3.46" (88mm)
Width 19.02" (483mm)
Depth 18.2" (462.4mm)
Weight Net 40.12lbs (18.2kg)
Signal Processing FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
High Impedance Operation 70V Operation & 100V Operation
Mains Fuse 240 V/230 V: T10AH; 120 V/100 V: T20AH
Operating Temperature Range +5°C to +40°C (40°F to +105°F)
Remote Power ON/GPIO
Total Harmonic Distortion <0.05% (at 1200 W/4 MBW = 80 kHz, 1 kHz)
