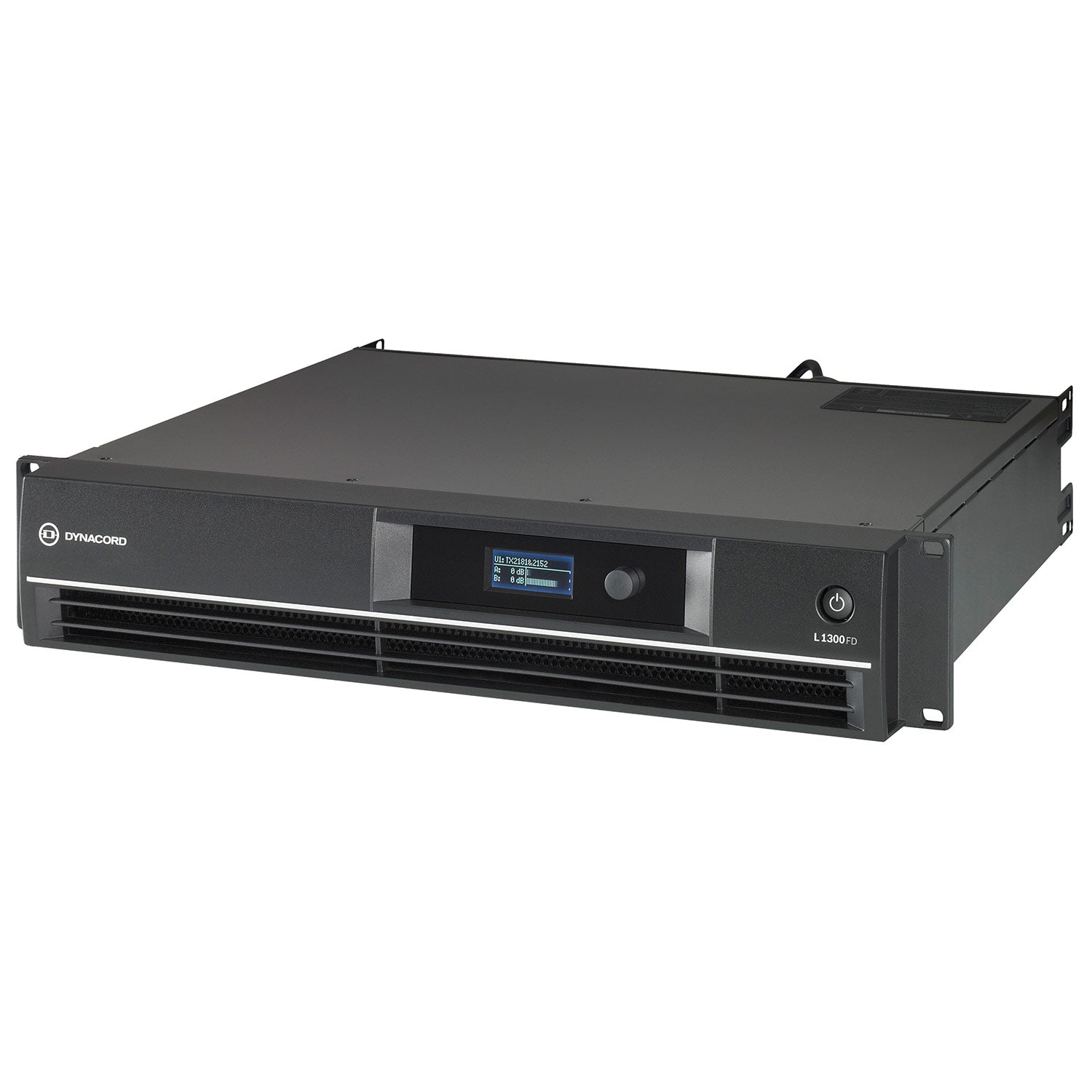

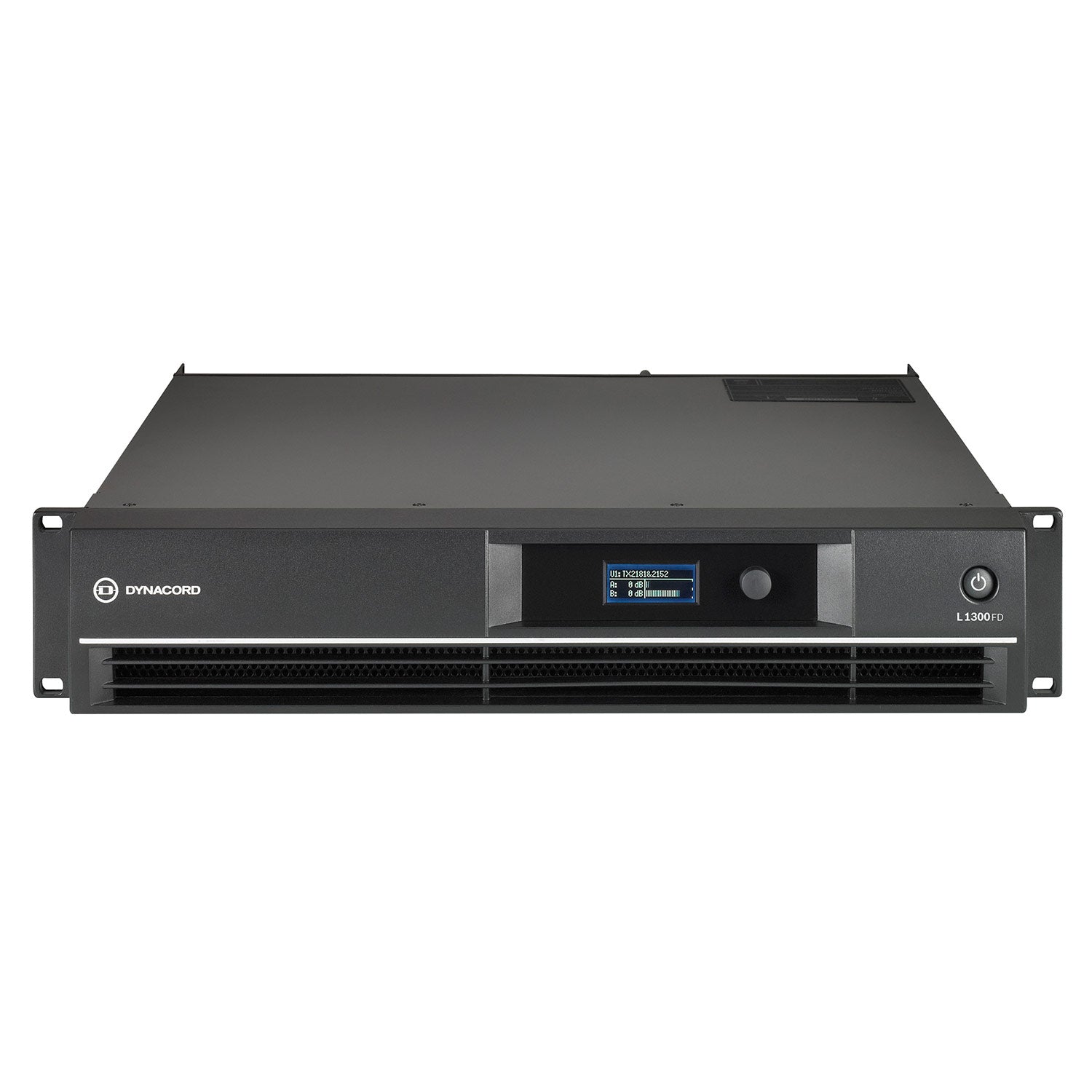

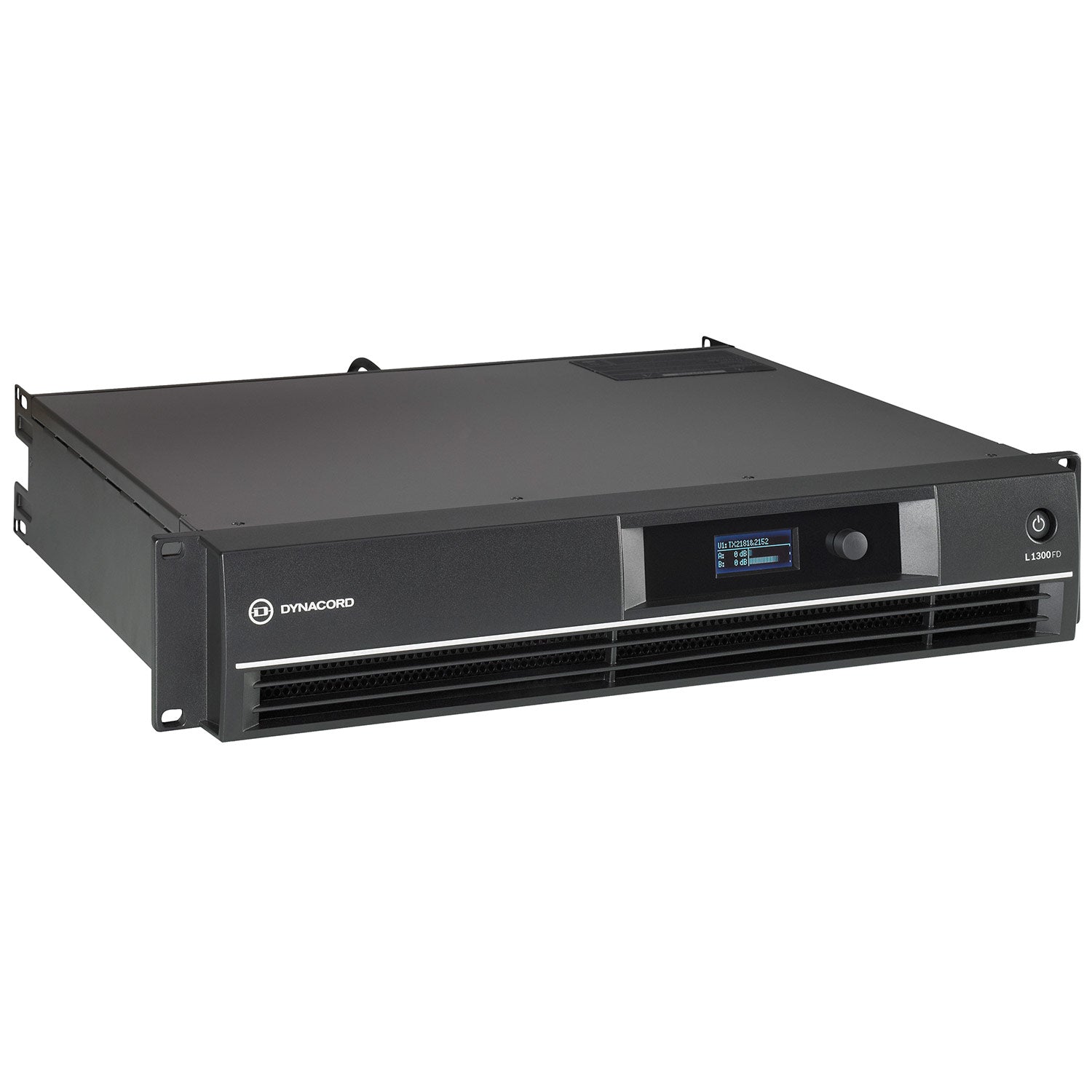

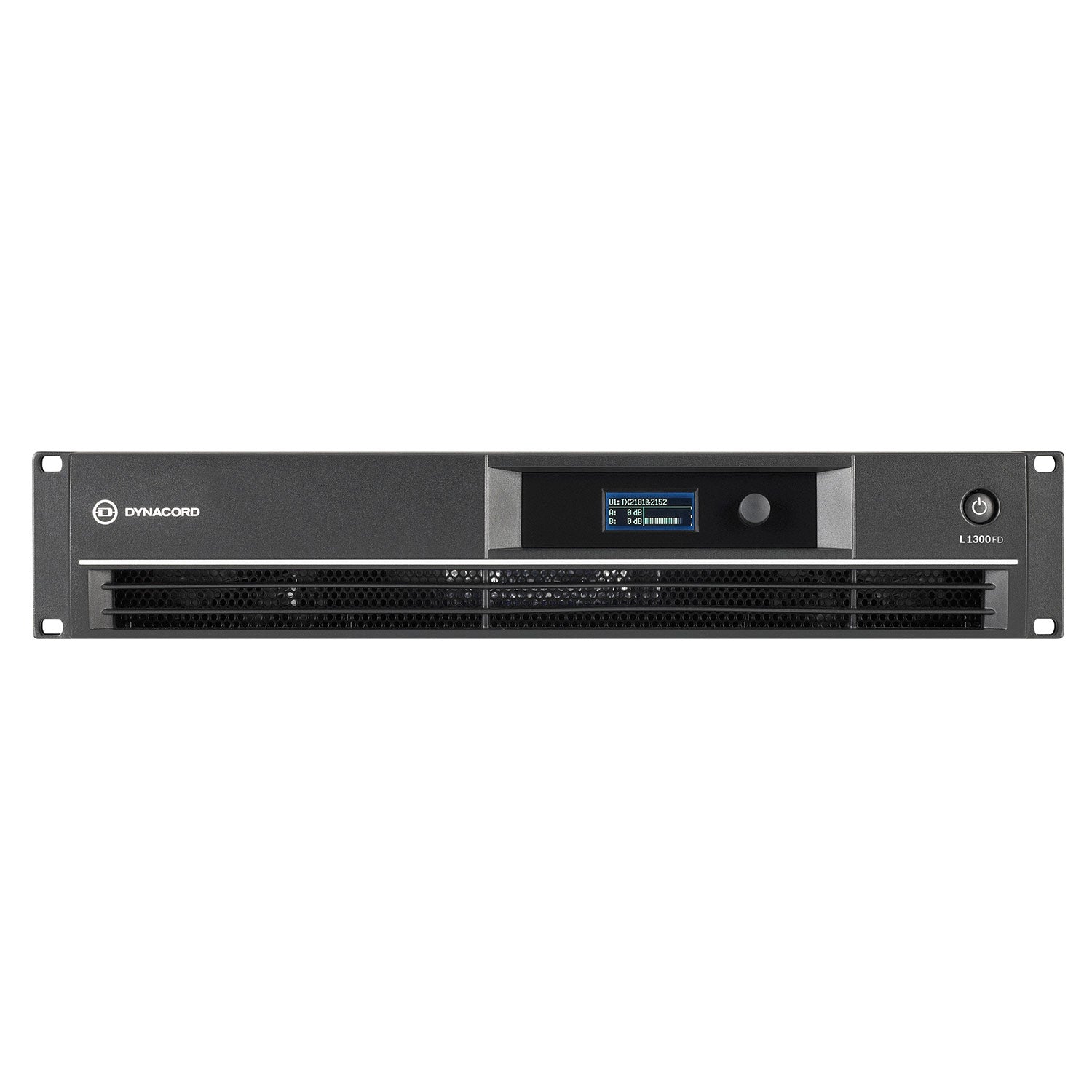

Contact Our Expert Sales Team:
888-462-7828Dale #:
DYRD-L1300FDUSAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
Dynacord L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performan... Read MoreRetail Price: $1,218.00 Our Price: $969.00
Shipping Charges Apply
Suggested Accessories
Description
Dynacord L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performance centers, and sports venues.
The L Series power amplifiers comprise a powerful linear amp design with a best-in-class, tour-grade feature set that brings real professional performance to a new, more accessible price point. Like all Dynacord amplifiers, the L series offers high-quality components and truly professional processing power and performance characteristics. Their engineering and applied technologies enable exceptional sound quality with plenty of headroom. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions.
An onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group. L Series are also equipped with advanced FIR-Drive, a premium feature normally reserved for the highest quality tour-grade DSPs. It optimizes original factory loudspeaker settings, yielding a level of performance unheard of at this price point. Four different models are available, with total output power ranging from 1300 W to 3600 W at 4 ohms.
Features:
More +
Product Specs
Maximum Output Power, Dual Channel | 2 =1000W; 2.6 =850W; 4 =600W; 8 =320W |
Maximum Output Power, Bridged | 4 =2000W; 8 =1200W |
Maximum RMS Voltage Swing, THD = 1%, 1kHz | 55.3 V |
Voltage Gain ref.1kHz | 32.0dB |
IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% |
DIM 30 | < 0.05% (3.15 kHz, 15 kHz) |
Maximum Input Level | +21 dBu |
Crosstalk | < -80dB (ref. 1 kHz, at 100 W/4 ) |
Frequency Response | 10 Hz to 21 kHz (±1 dB) |
Input Impedance, active balanced | 20k |
Signal-to-Noise Ratio (A-weighted) | >104dB |
Output Noise , A-weighted | < -68 dBu |
Output Stage Topology | Class AB |
Power Requirement | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) |
Power Consumption | 550 W ( Maximum Output Power @4 ) |
Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
Cooling | Front-to-rear, 3-stage-fans |
Safety Class | I |
Available Color | Black |
Height | 3.46" (88mm) |
Width | 19.02" (483mm) |
Depth | 18.2" (462.4mm) |
Weight Net | 28.44lbs (12.9kg) |
Signal Processing | FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance |
Mains Fuse | 240 V/230 V: T10AH; 120 V/100 V: T20AH |
Operating Temperature Range | +5°C to +40°C (40°F to +105°F) |
Total Harmonic Distortion | < 0.05% (at 450 W/4 MBW = 80 kHz, 1 kHz) |
More +
